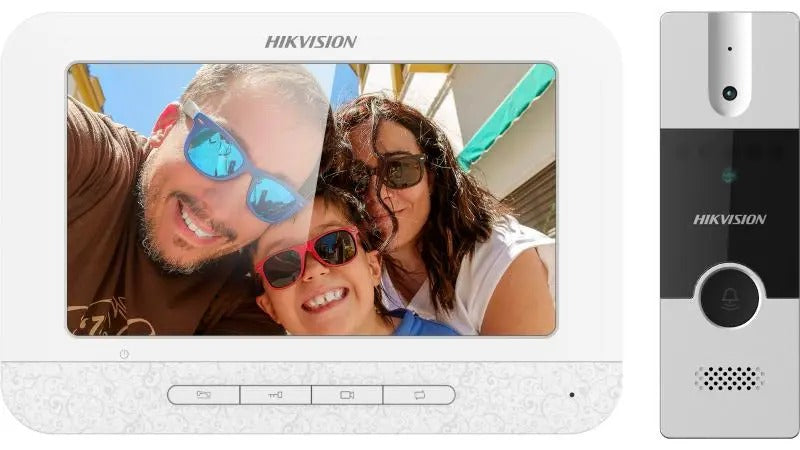

Hikvision DS-KIS202T 7-Inches Analog Video Door Phone

HIKVISION VDP DS-KIS202 is a 7-inch Upgraded Wired Video Door Phone with crystal-clear 720p resolution. Elevating home security, it provides a vivid, real-time visual and two-way audio communication with visitors at your doorstep. Its sleek design blends seamlessly with any home décor, while its advanced features, including night vision and weatherproof construction. With easy installation and user-friendly interface, this video door phone keeps you connected and secure, allowing you to see and speak with confidence, whether you're at home or away.

Specifications

• Door Station/Video Parameters
• Resolution 1920 × 1080 Stream resolution: 960 × 576
• Lens1/2.7" CMOS
• FOV Horizontal: 66.2°，Vertical: 37.2°

• Door Station/Audio Parameters
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker

• Door Station/Device Interfaces
• I/O Output1 relay output
• Four-Wire1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power supply, 1-ch grounding)

• Door Station/General
• Power Supply12 VDC
• Power Consumption Max. 5W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity10% to 90%
• Dimensions128 mm × 42 mm × 24.8 mm

• Indoor Station/Display Parameters
• Operation Method Physical button
• Type7-inch colorful TFT LCD
• Resolution800 × 480

• Indoor Station/Audio Parameters
• Audio Input Built-in omnidirectional microphone
• Audio Output Built-in loudspeaker
• Audio Quality Noise suppression and echo cancellation

• Indoor Station/General
• Power Supply12 VDC
• Power Consumption≤5 W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity10% to 90%
• Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
