Combo-CN111 Smart Electronic Rim Lock to Operate by Remote (3 Remotes) & Mobile App Using Wifi for Metal Gate, By Tuya Smart Life Mobile App

The NavKar Systems Combo-CN111 opens your metal main gate by remote, from your phone with the Smart Life app, or by voice with Alexa and Google Home. It pairs the weatherproof RML-8K electronic rim lock with the PSWF-01 Wi-Fi lock supply and 3 brown remotes.

Highlights

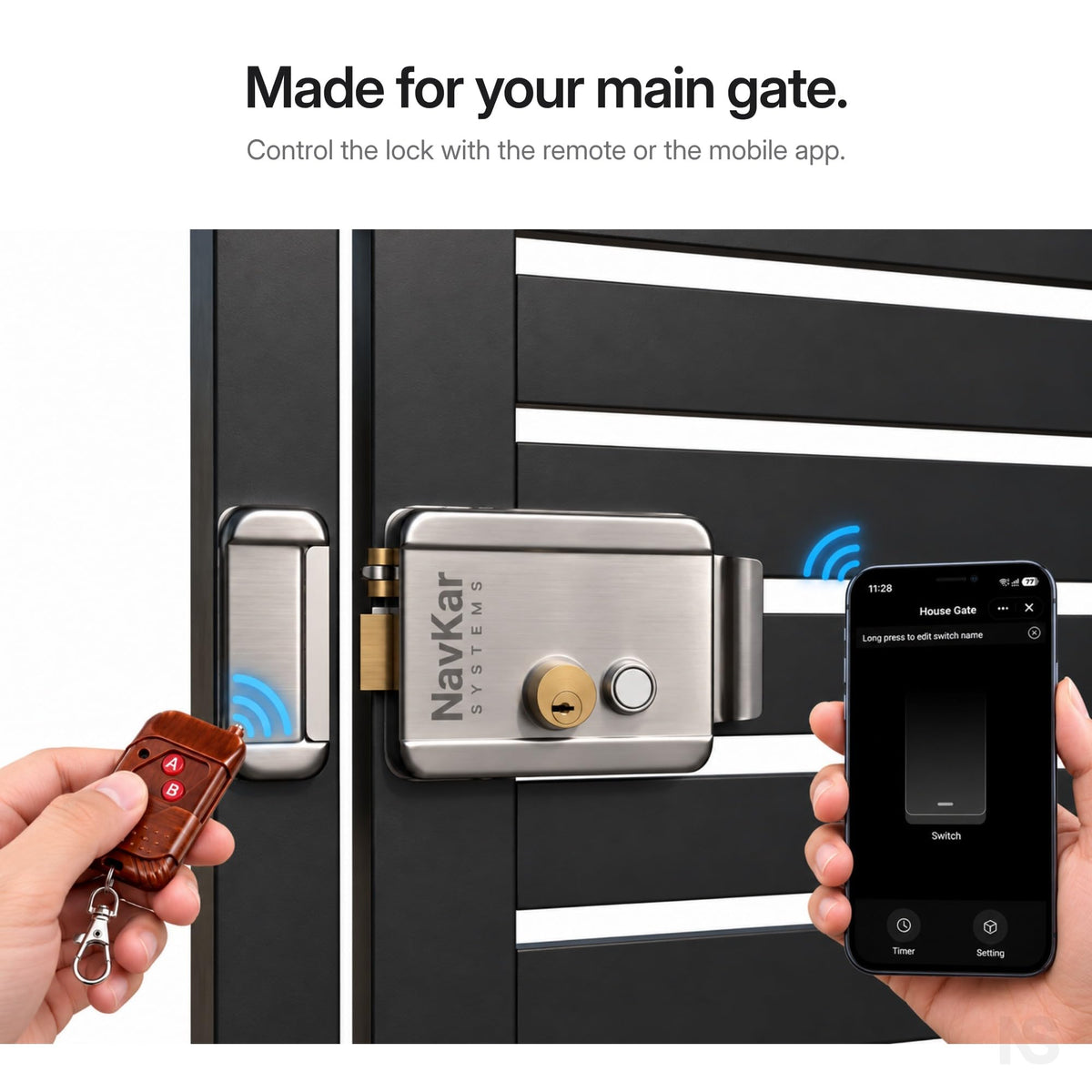

• Remote, app or voice. Press any of the 3 remotes, tap the switch in the Smart Life app on Android or iOS from anywhere, or ask Alexa or Google Home.
• Share with family. Add up to 15 members in the app and pair up to 20 remotes.

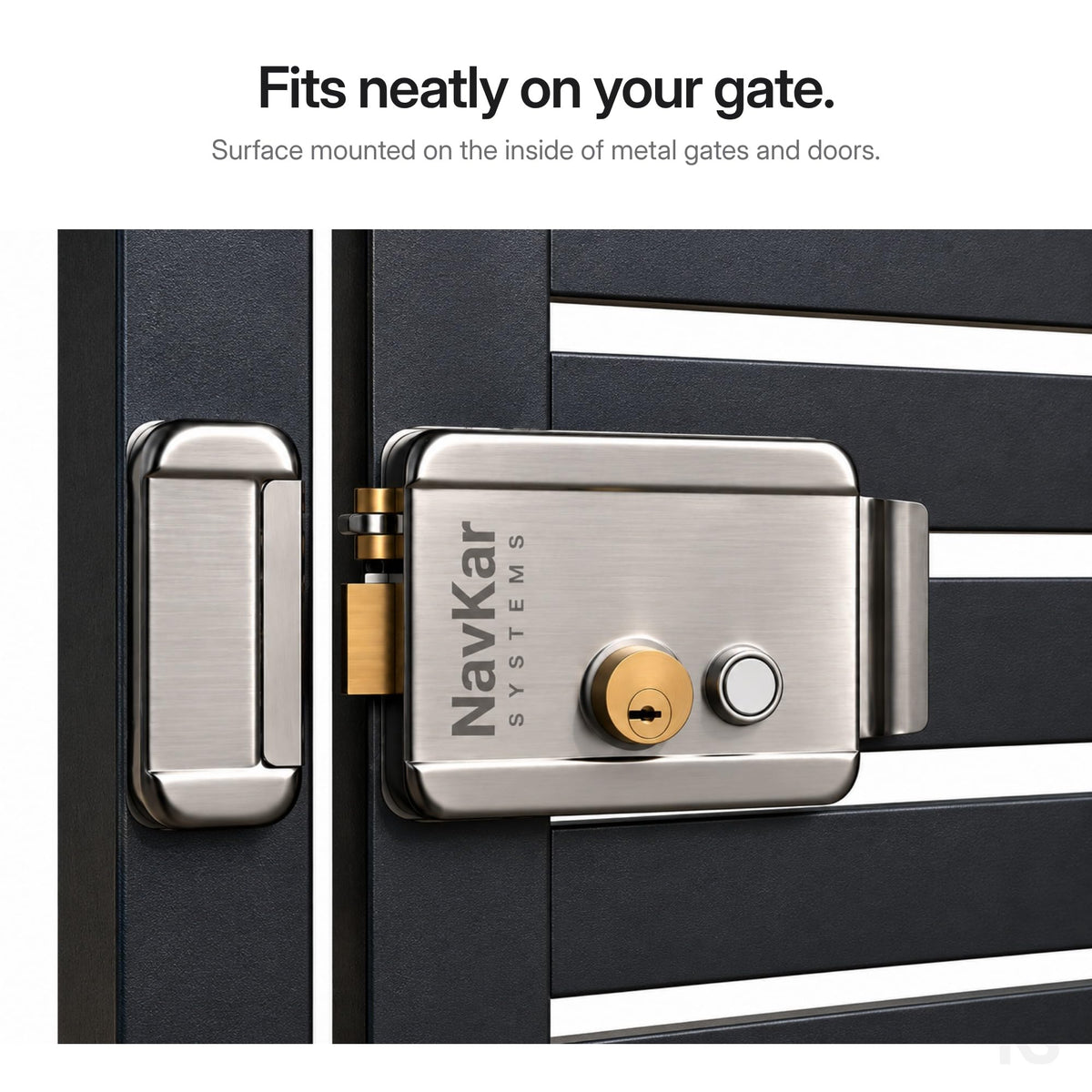

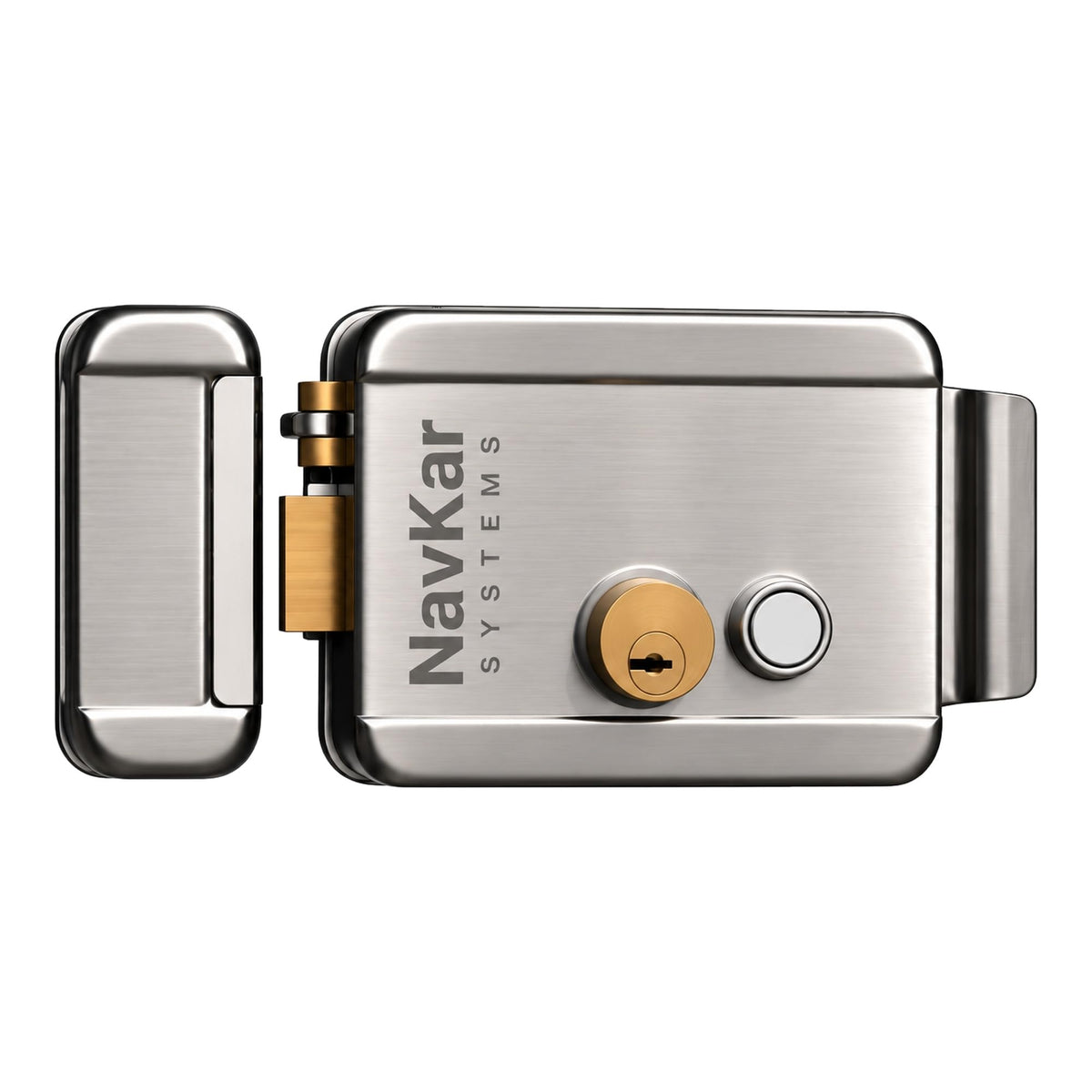

• Weatherproof RML-8K rim lock. Steel lock body made for outdoor main gates. It mounts on the inside face of a metal gate or door, with a strike on the frame.
• Self-locking latch. The latch locks again by itself as the gate closes.

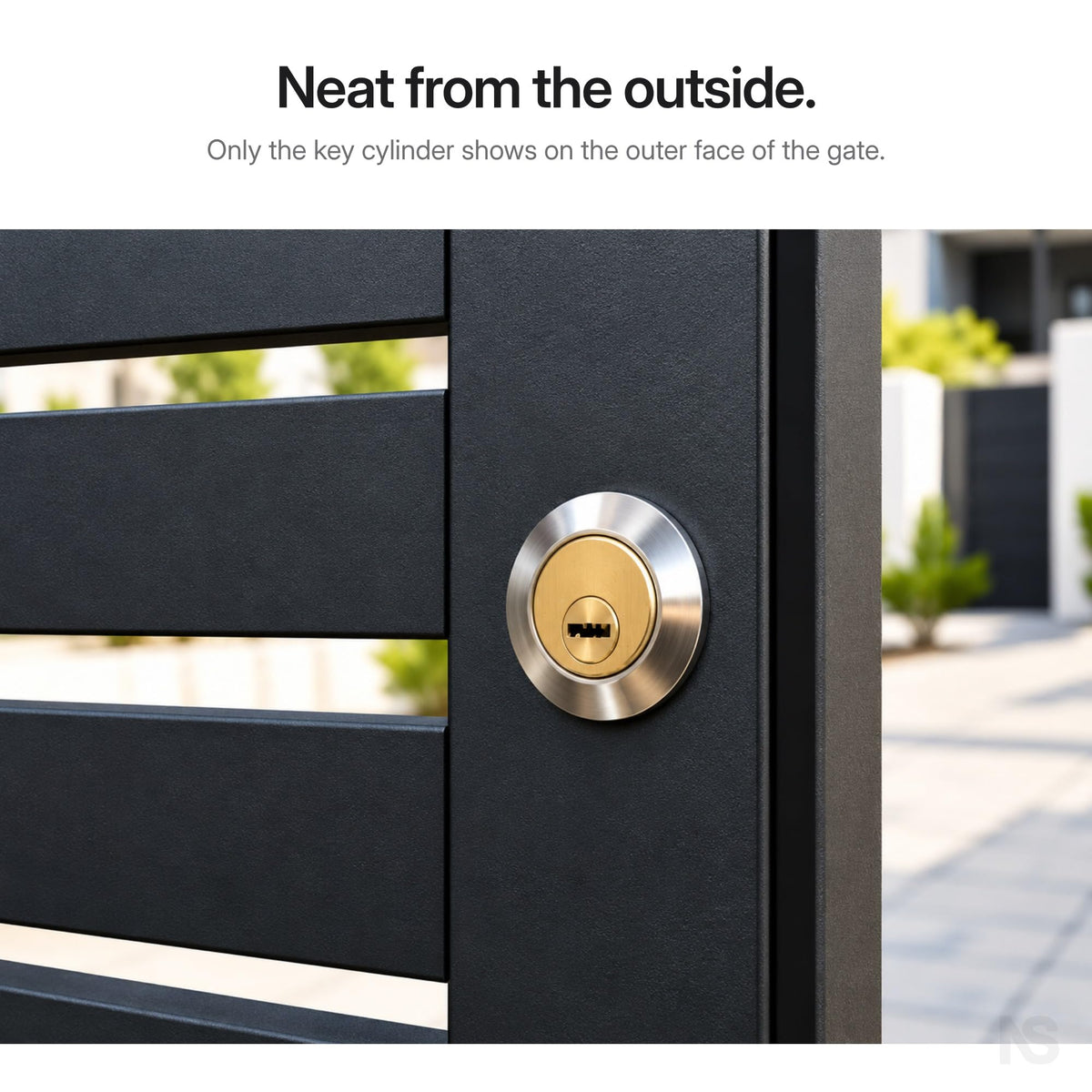

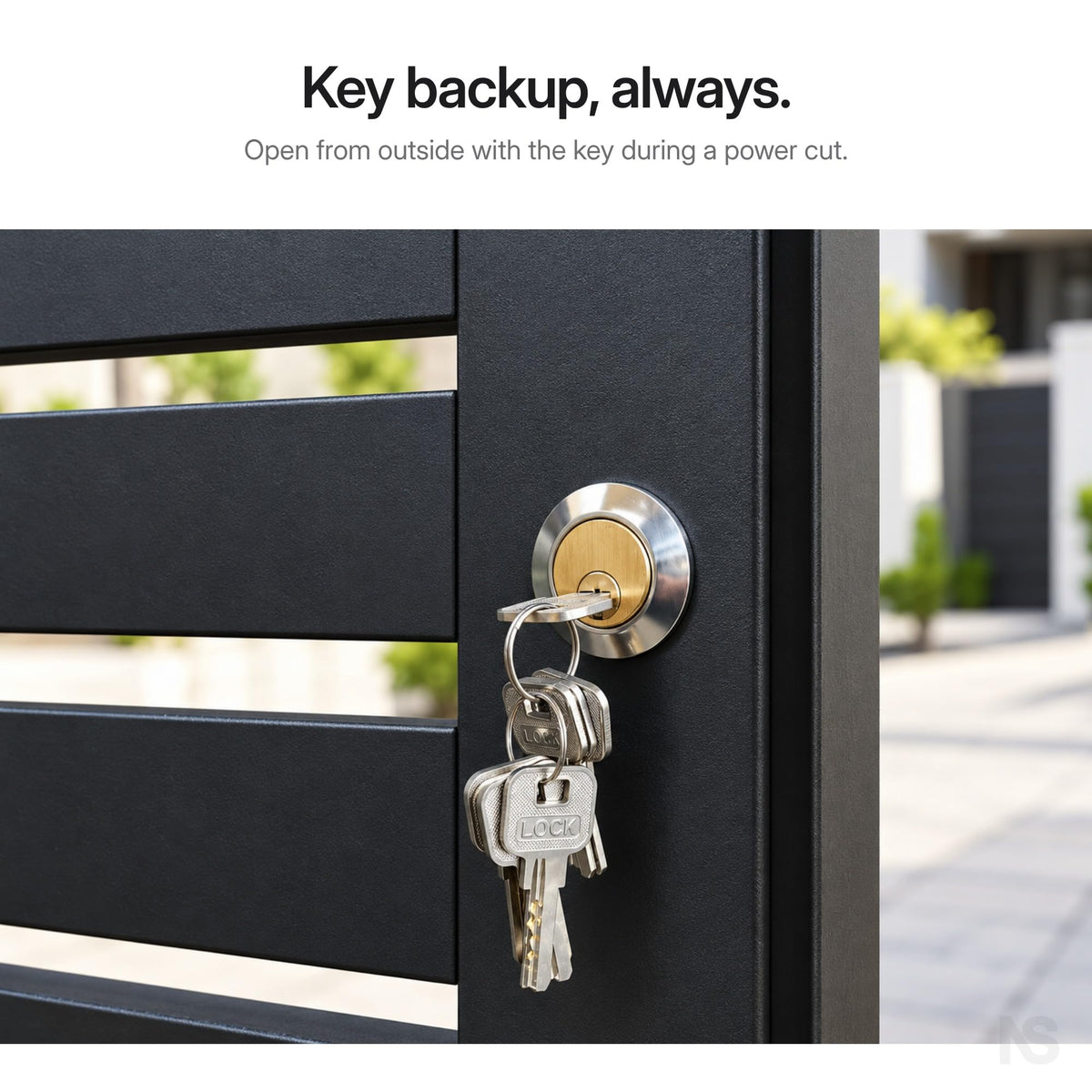

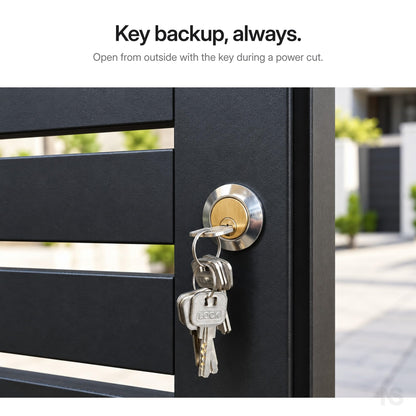

• Key backup. A 32 mm brass key cylinder with computerised keys opens the gate from outside during a power cut.

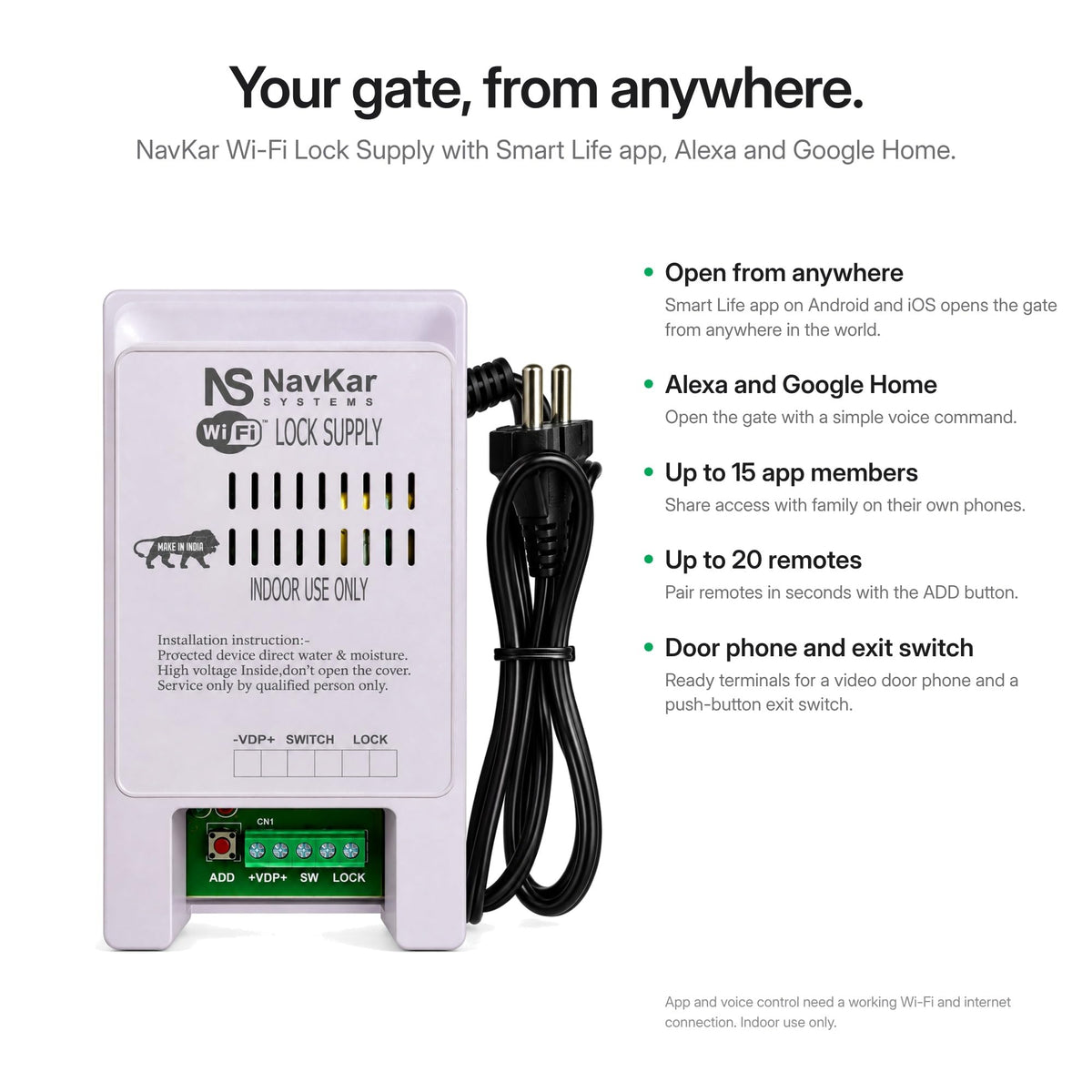

• Add a door phone or exit switch. The supply has terminals for a push-button exit switch and for the lock output of a video door phone outdoor station (not included).

In the box

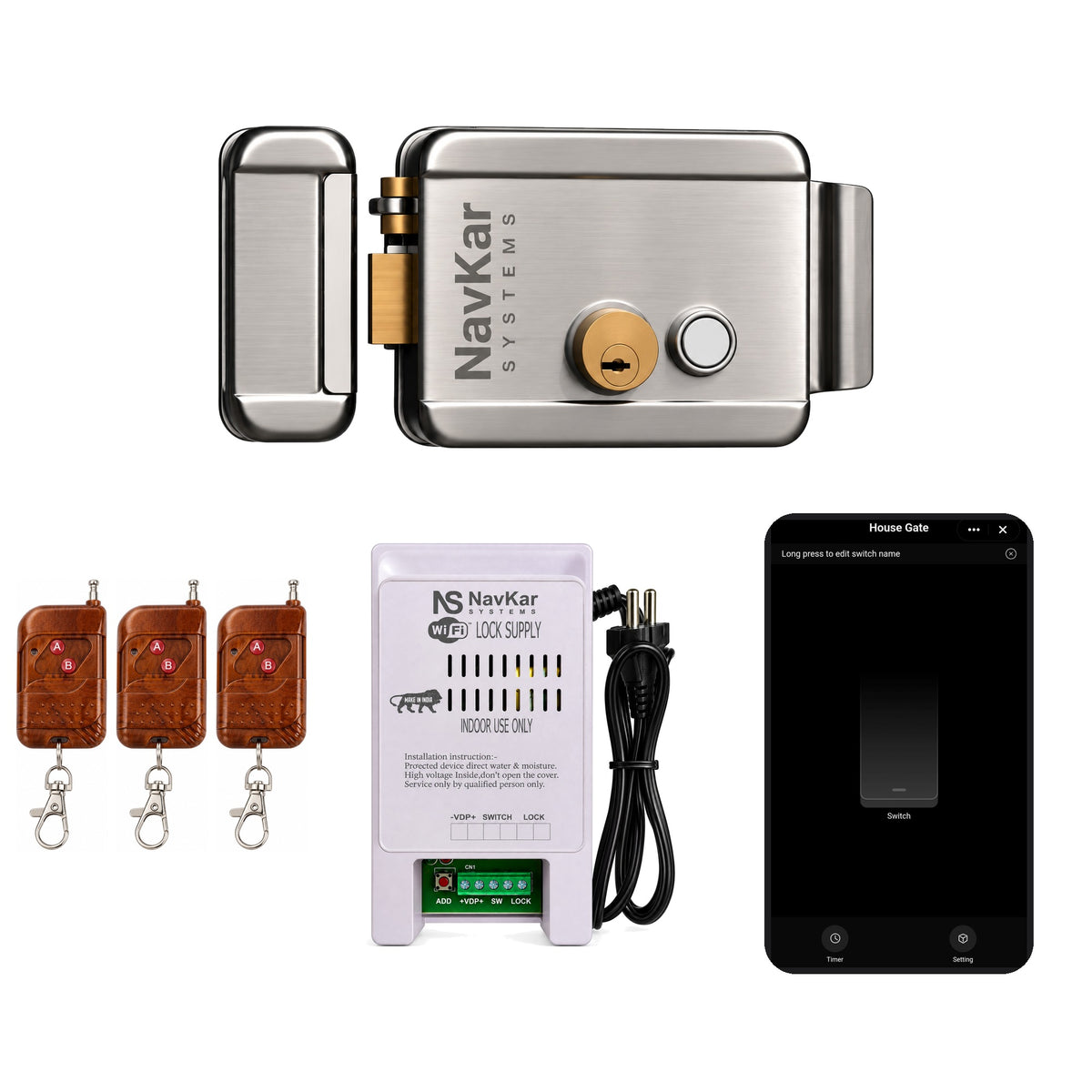

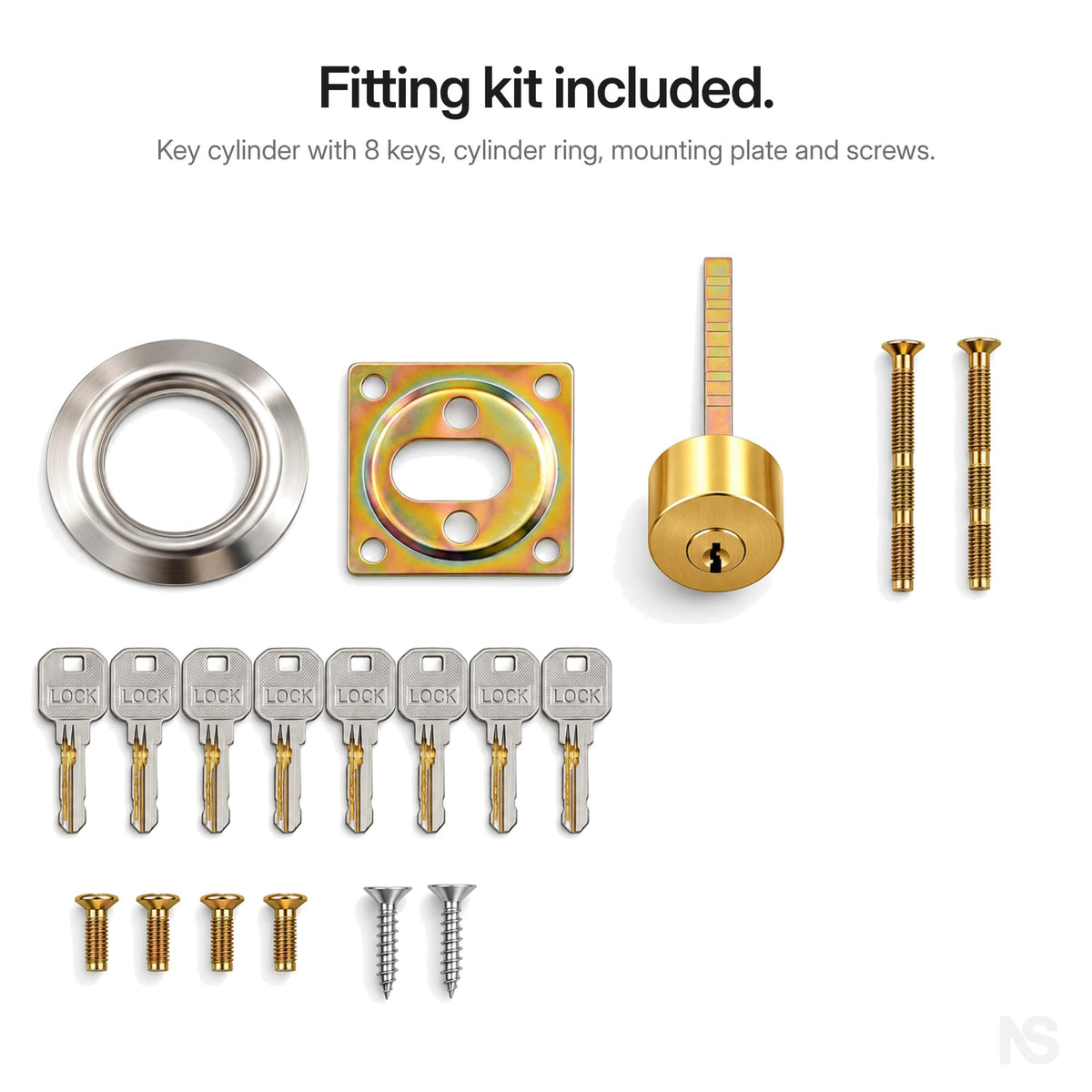

1 x RML-8K electronic rim lock with keys and fitting kit, 1 x PSWF-01 Wi-Fi lock supply, 3 x RM-BR0243 brown remotes.

Good to know

• Use 2.4 GHz home Wi-Fi. 5 GHz is not supported.
• In the Smart Life app, open Timer and keep Inching on at 1 second so the lock coil gets only a short pulse.
• Mount the supply indoors on a dry wall, away from water.
• Mounting on a metal gate may need welding of a plate. Wiring should be done by a trained electrician.

Set up in minutes.

Three steps from the box to your open gate.

1

Fit the rim lock

Mount it on the inside face of your metal gate or door, with the strike plate on the frame.

2

Connect the power supply

Fix the supply indoors on a dry wall and wire it to the lock using the diagram below.

3

Pair remotes and the app

Add your remotes, then connect the Smart Life app on 2.4 GHz Wi-Fi and open the gate in one press.

Watch it in action.

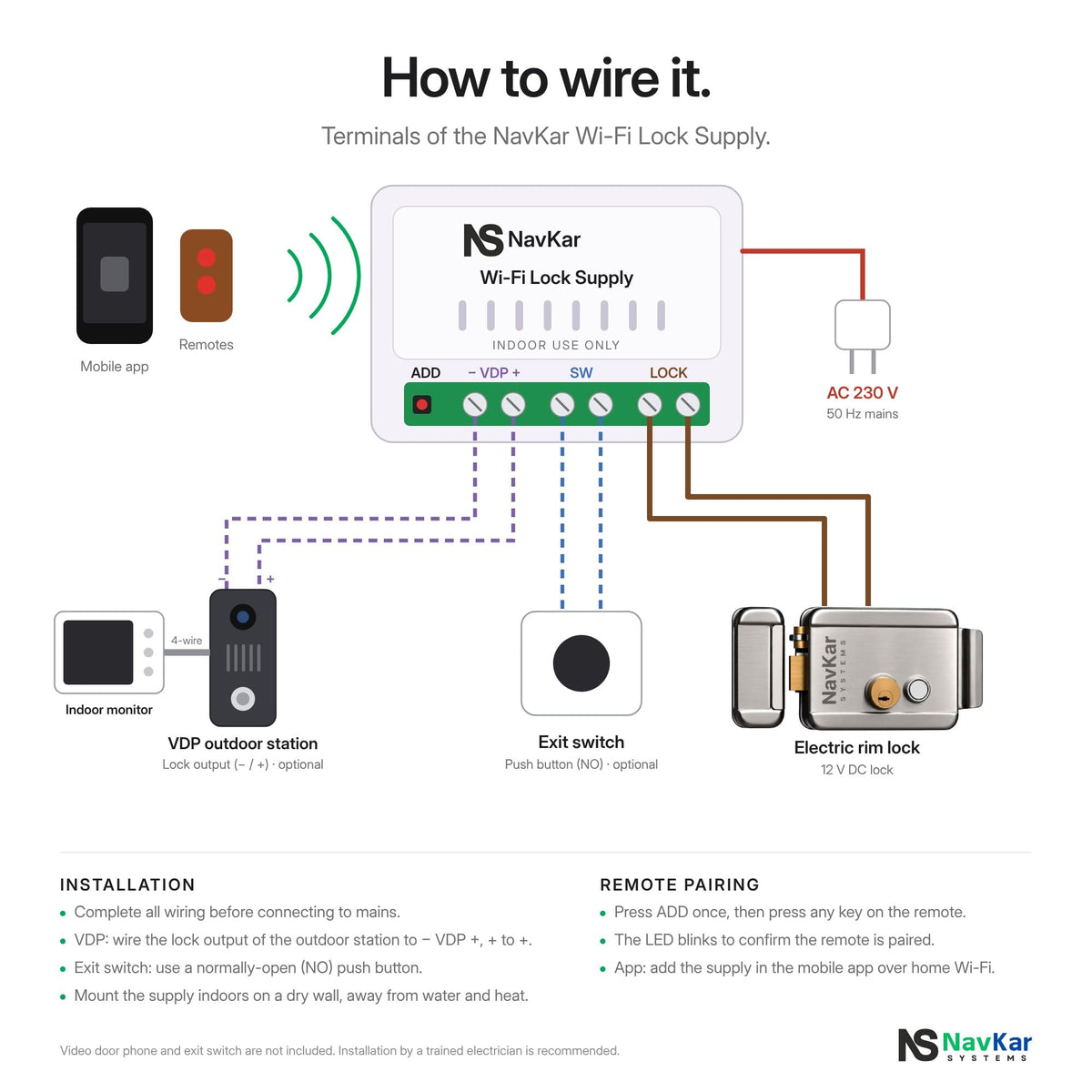

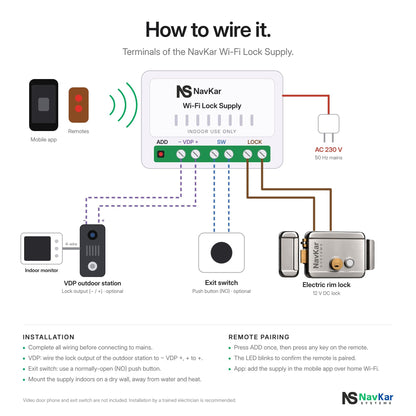

Wiring diagram.

Follow it exactly, or hand it to your electrician.

Download the installation manual (PDF)

Specifications.

At a glance

Remote range: 80 to 100 m, depending on the area
Remotes: 3 in the box, up to 20 compatible remotes
Locking: self-locking latch, locks again as the gate closes
Fitting: surface mount on metal gates and doors
App: Smart Life (Tuya) on Android and iOS, 2.4 GHz Wi-Fi

Questions, answered.

Will the remotes work if the internet is down?

Yes. The remotes talk to the receiver directly by radio, so they need no Wi-Fi or internet.

How many remotes can I add?

You get 3 remotes in the box and can pair up to 20 compatible remotes.

What range can I expect?

80 to 100 m, depending on the area. Walls and metal near the receiver can reduce it.

Who should install it?

A trained electrician or carpenter. Mounting on a metal gate may need a welded plate.

Does the app need 5 GHz Wi-Fi?

No. Use a 2.4 GHz network; 5 GHz is not supported.

NavKar Systems designs and supplies electronic locks and gate automation for Indian homes. Every kit is a matched set.
