Combo-CN96 Remote Receiver with 2 Remotes for Electronic or EM Door Lock

The NavKar Systems Combo-CN96 is a wireless remote kit for electric rim locks, gate locks and EM locks: the RR-120143 12 V remote receiver with 2 RM-BR0243 brown remotes.

Highlights

• Wireless remote control. Open your lock from 80 to 100 m away, depending on the area.

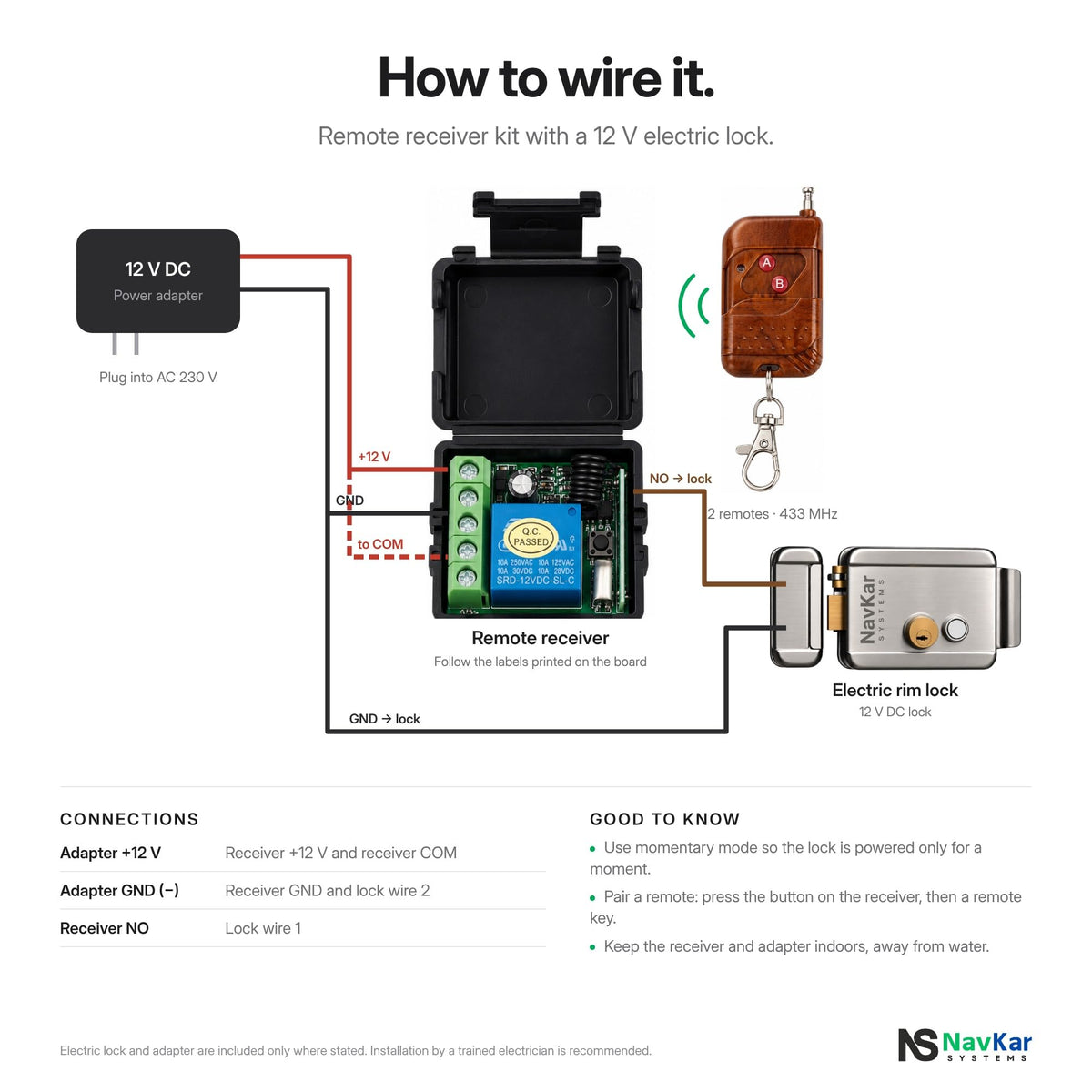

• Simple wiring. Relay output with NO, COM and NC terminals. Use NO for electric rim and gate locks, and NC for EM locks.
• 12 V DC powered. Runs from a 12 V DC adapter or lock power supply. Use momentary mode so the lock is powered only for a moment.
• Easy pairing. Press the learn button on the receiver, then a key on the remote.
• Indoor mounting. Keep the receiver indoors or in a covered box, away from water.

In the box

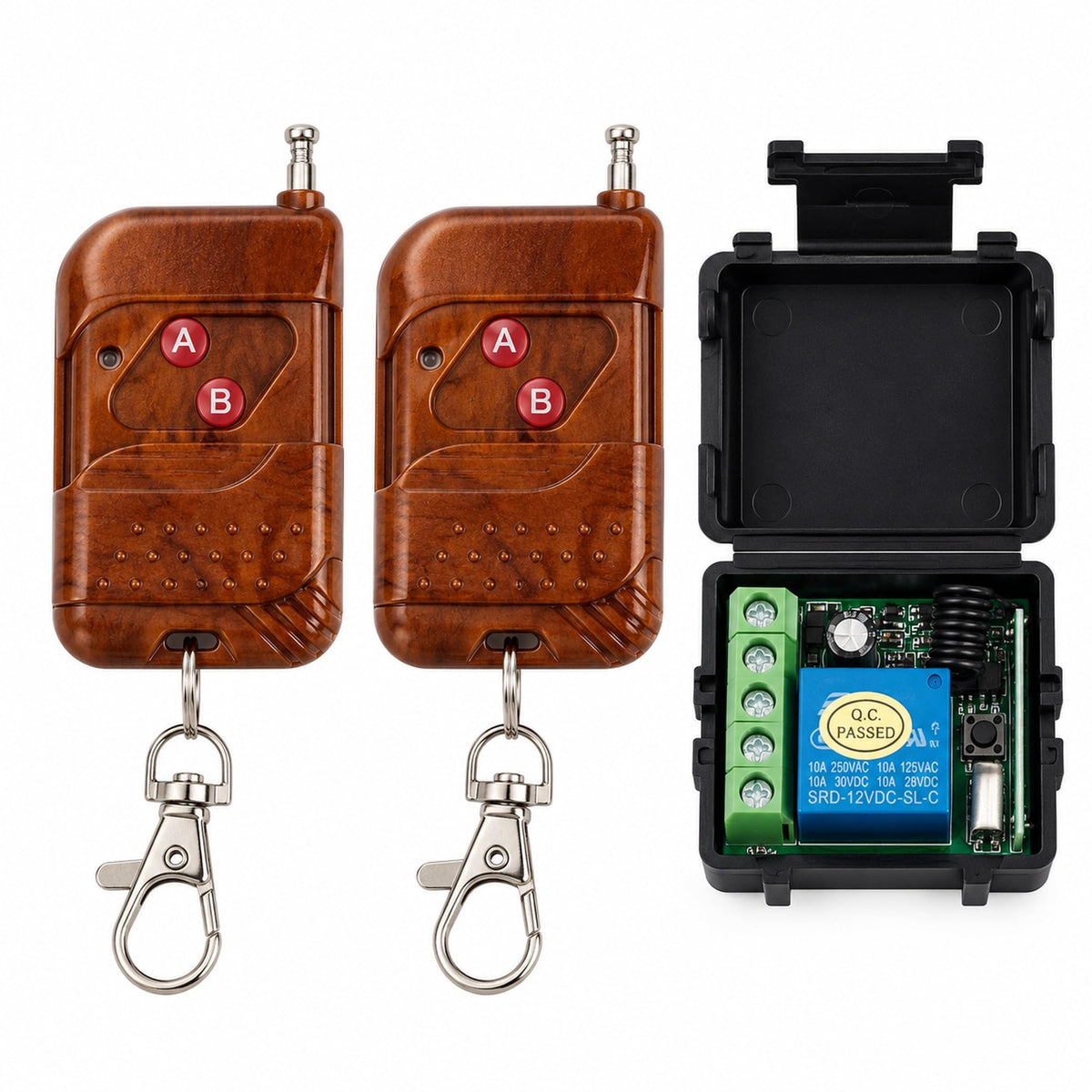

1 x RR-120143 remote receiver and 2 x RM-BR0243 brown remotes. Lock and power supply not included.

Good to know

• Follow the labels printed on the receiver board.
• Installation by a trained electrician is recommended.
