Combo-CN231 Electronic Door Lock + Power Supply with 3 Remotes, Plug n Play, Easy to Install, DIY

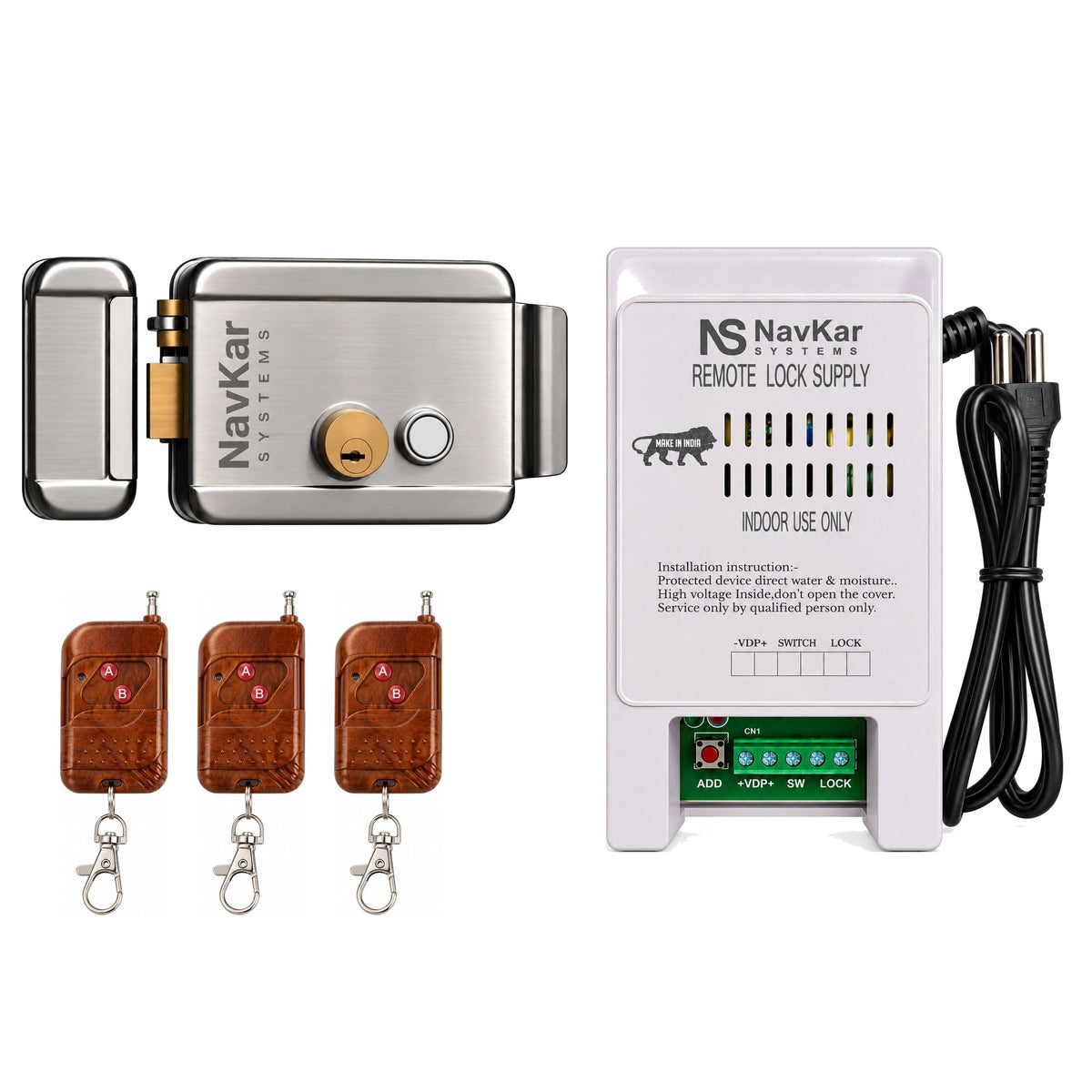

The NavKar Systems Combo-CN231 opens your main gate with a remote. It pairs the weatherproof RML-8K electric rim lock with the PSRM-01 remote lock supply and 3 remotes.

Highlights

• Open by remote. Press any of the 3 remotes to open the gate from your car or home.

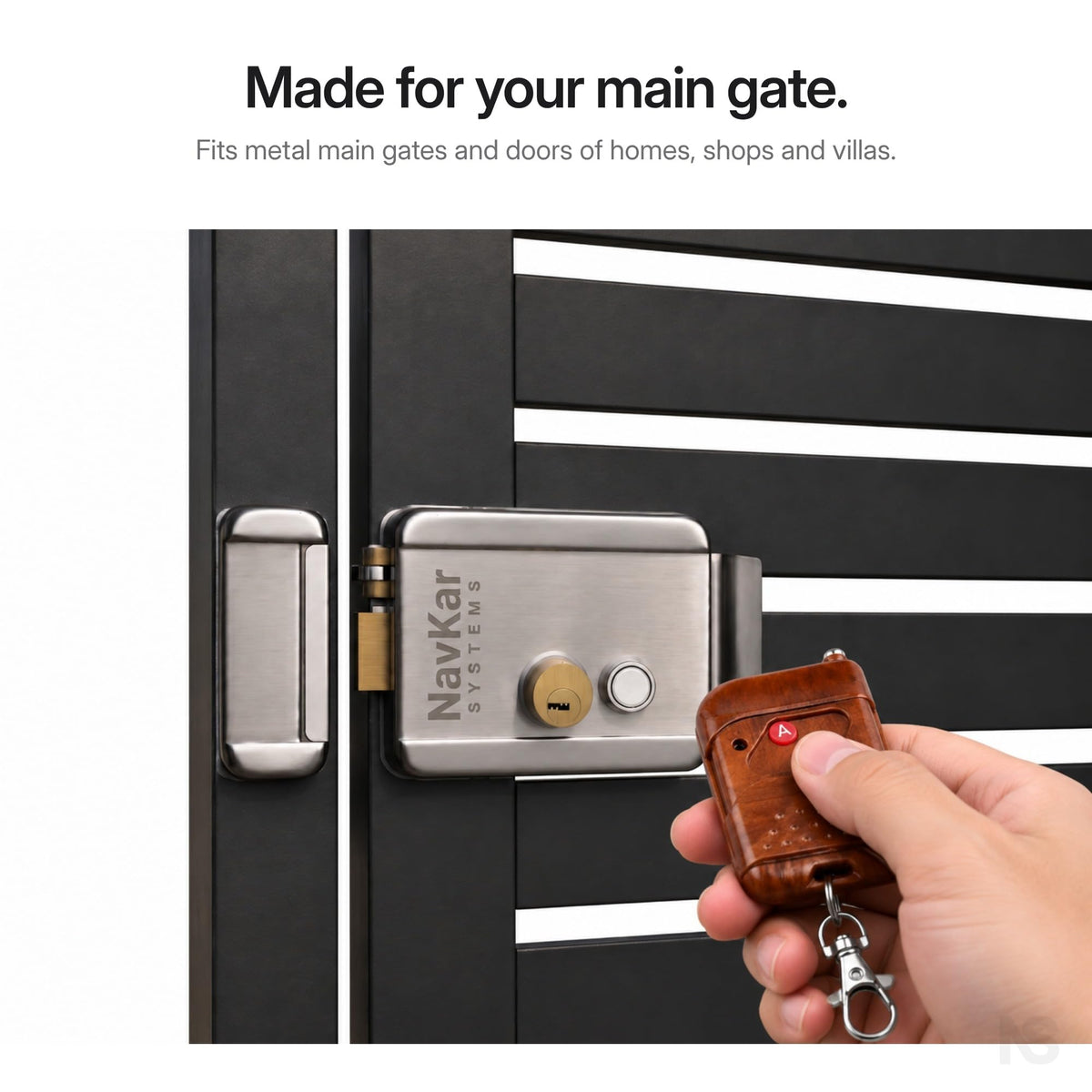

• Weatherproof RML-8K rim lock. Steel lock body made for outdoor main gates. It mounts on the inside face of a metal gate or door, with a strike on the frame.
• Self-locking latch. The latch locks again by itself as the gate closes.

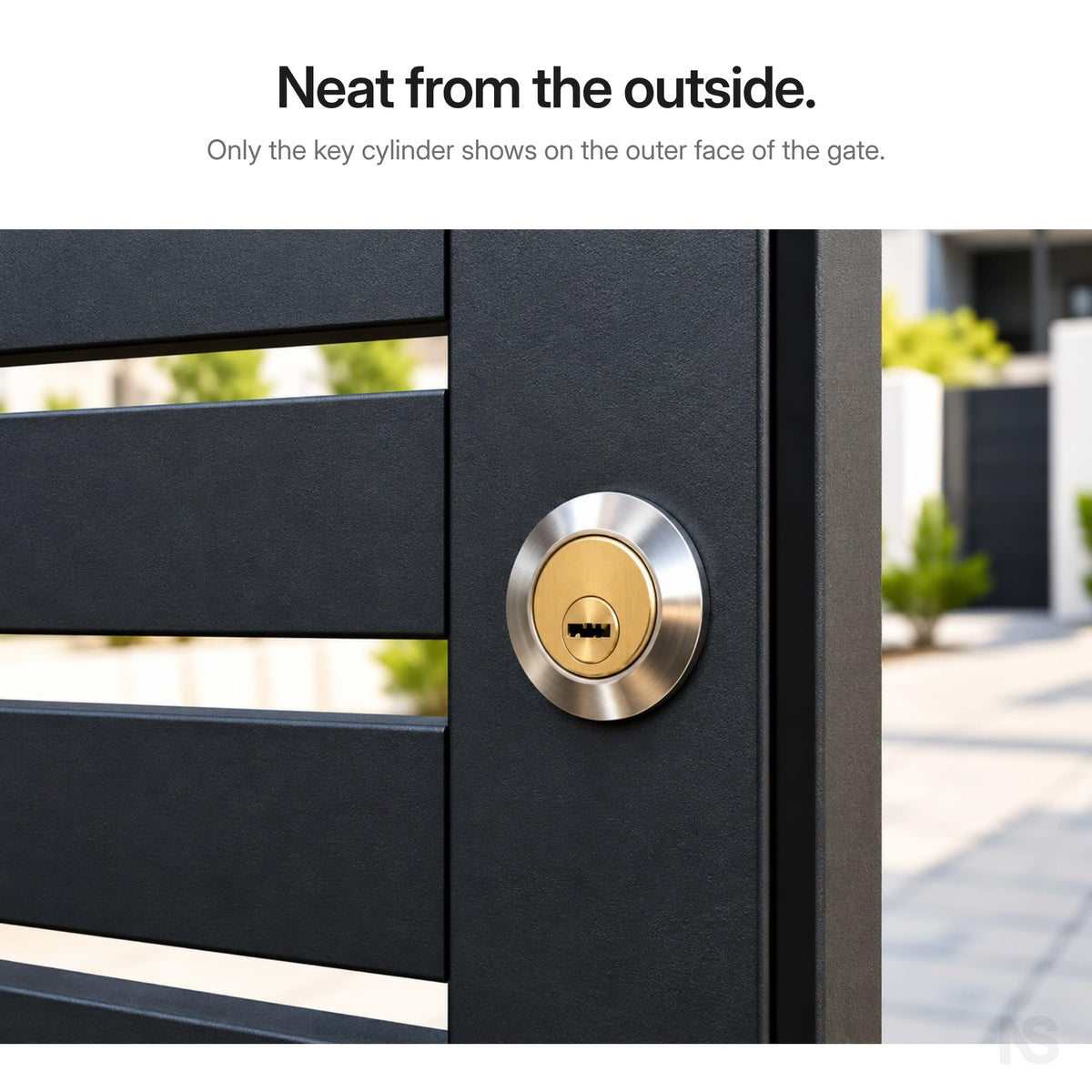

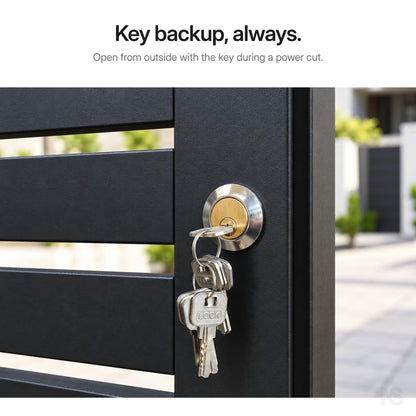

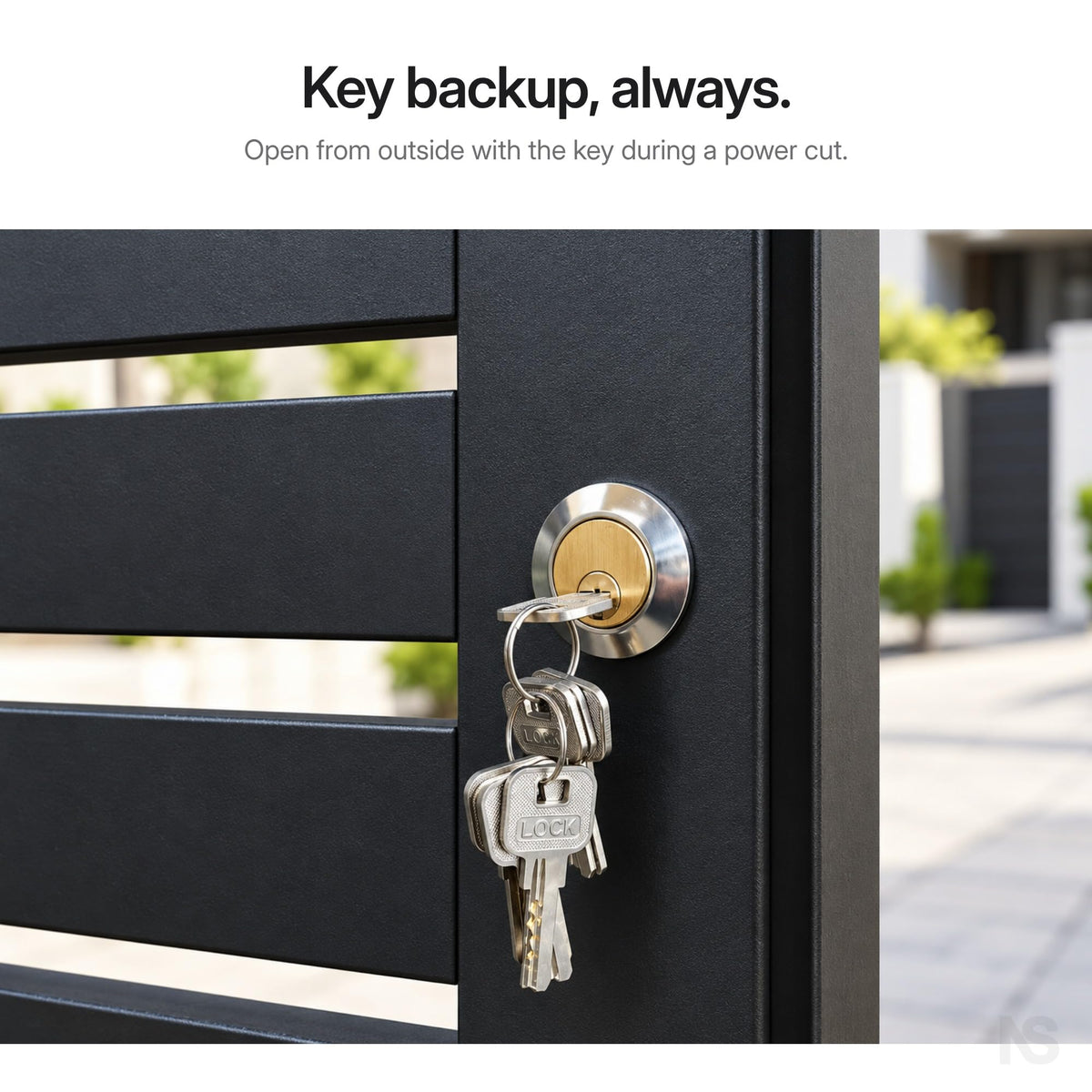

• Key backup. A 32 mm brass key cylinder with computerised keys opens the gate from outside during a power cut.
• Works with a video door phone. Wire the lock output of a video door phone outdoor station, or a push-button exit switch, to the supply.
• Easy pairing. Press ADD on the supply, then any key on the remote. Pair up to 20 remotes.

In the box

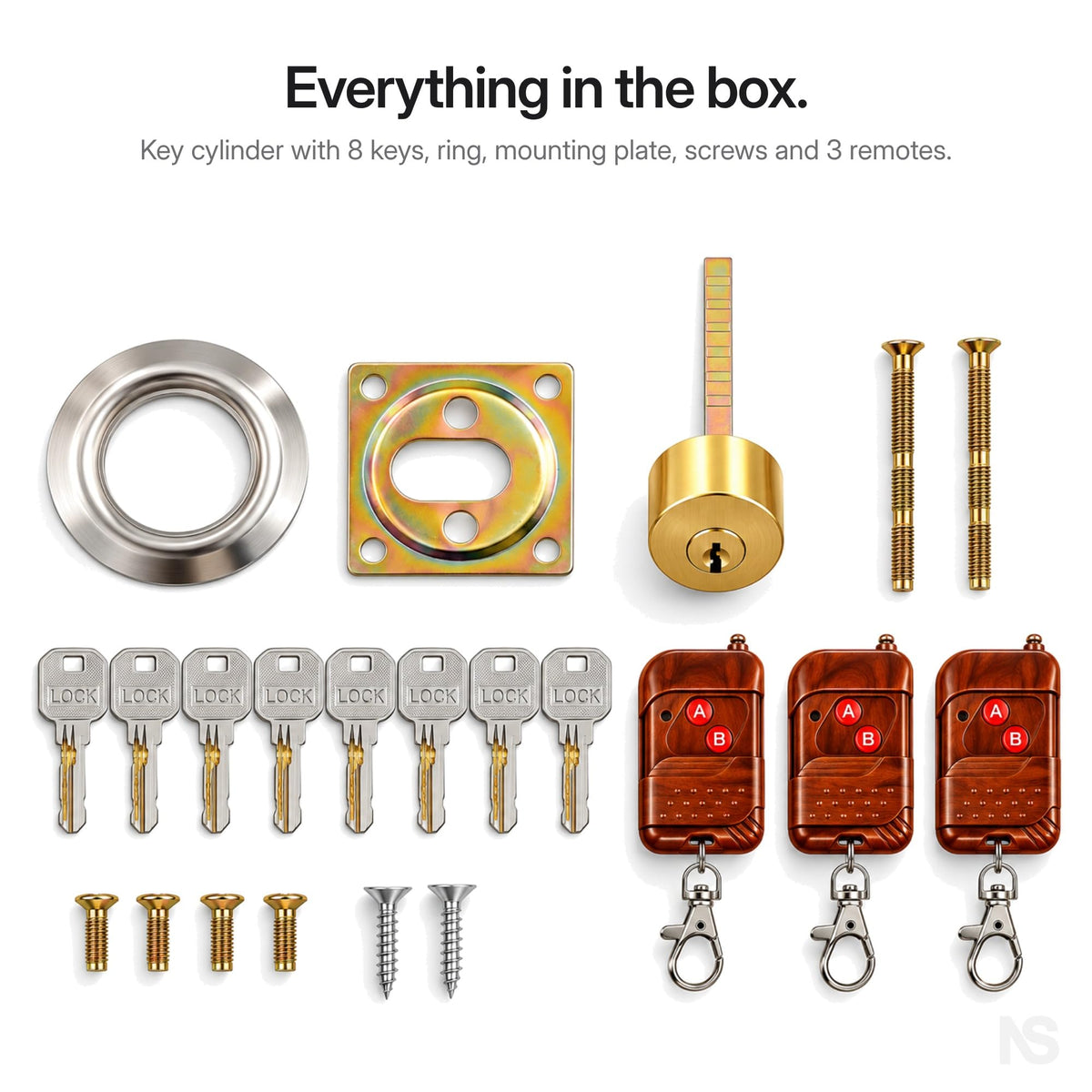

1 x RML-8K lock, 1 x PSRM-01 remote lock supply, 3 remotes, keys and fitting kit. 1-year warranty with bill.

Good to know

• Mount the supply indoors on a dry wall, away from water.
• Mounting on a metal gate may need welding of a plate. Wiring should be done by a trained electrician.

Set up in minutes.

Three steps from the box to your open gate.

1

Fit the rim lock

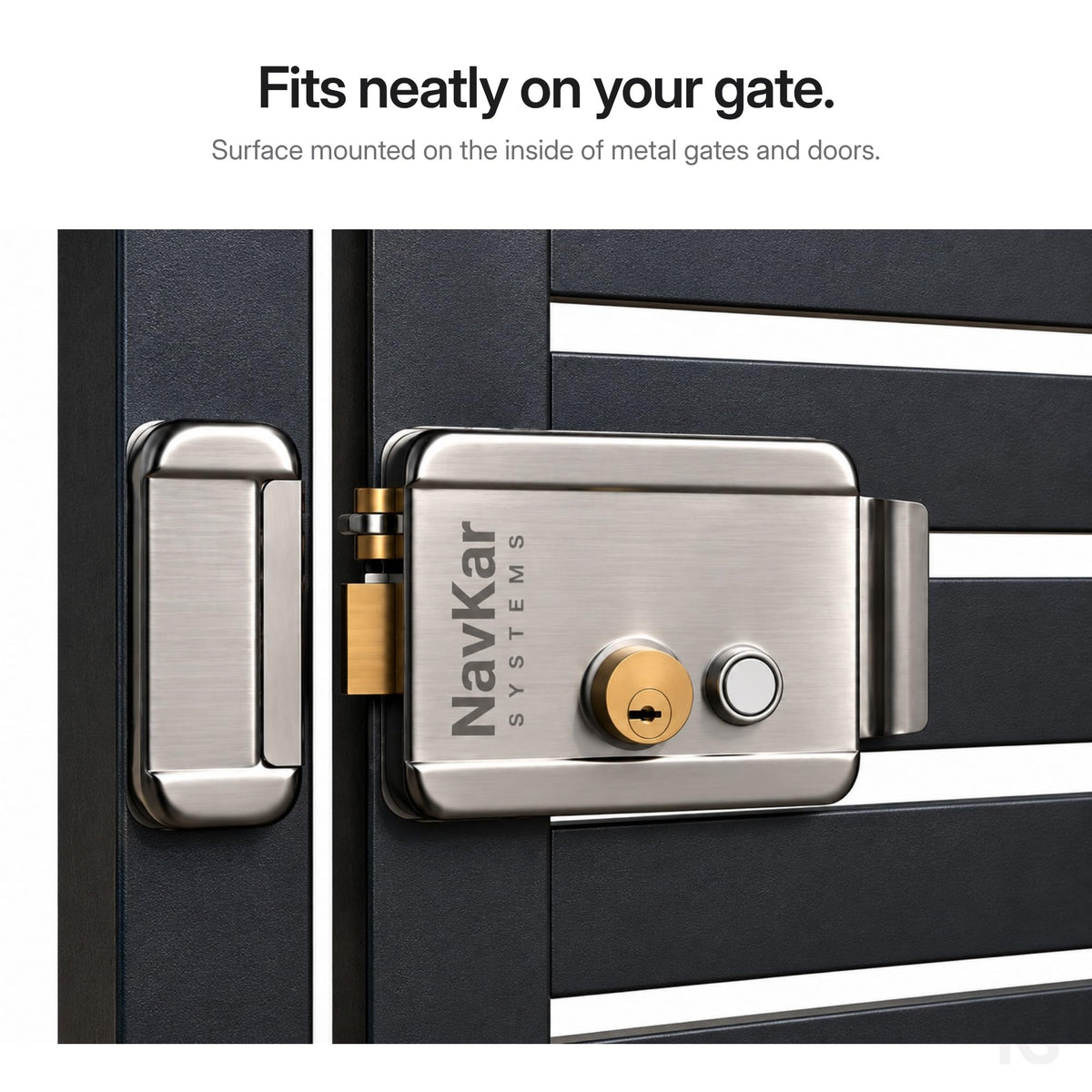

Mount it on the inside face of your metal gate or door, with the strike plate on the frame.

2

Connect the power supply

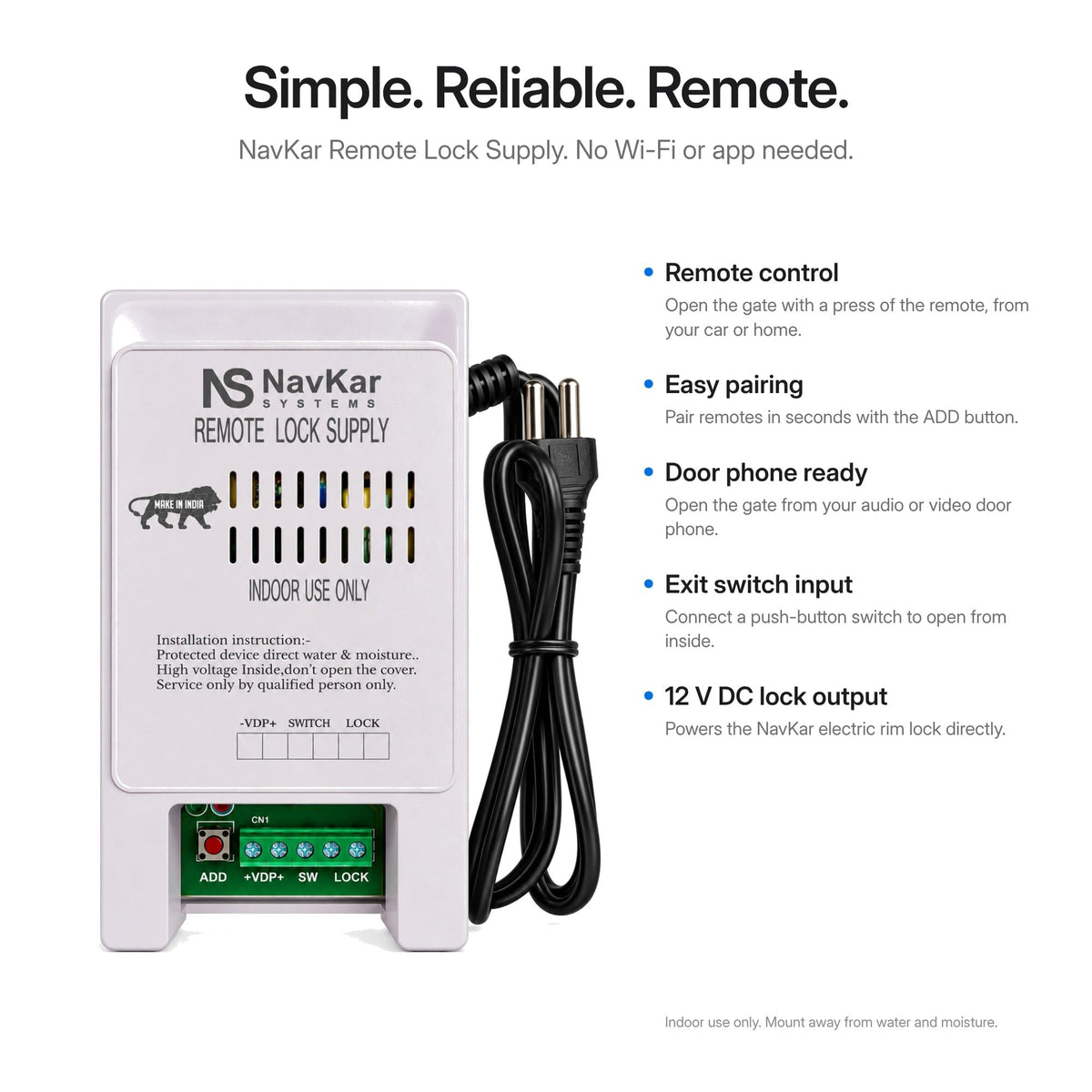

Fix the supply indoors on a dry wall and wire it to the lock using the diagram below.

3

Pair your remotes

Add your remotes, then open the gate in one press.

Watch it in action.

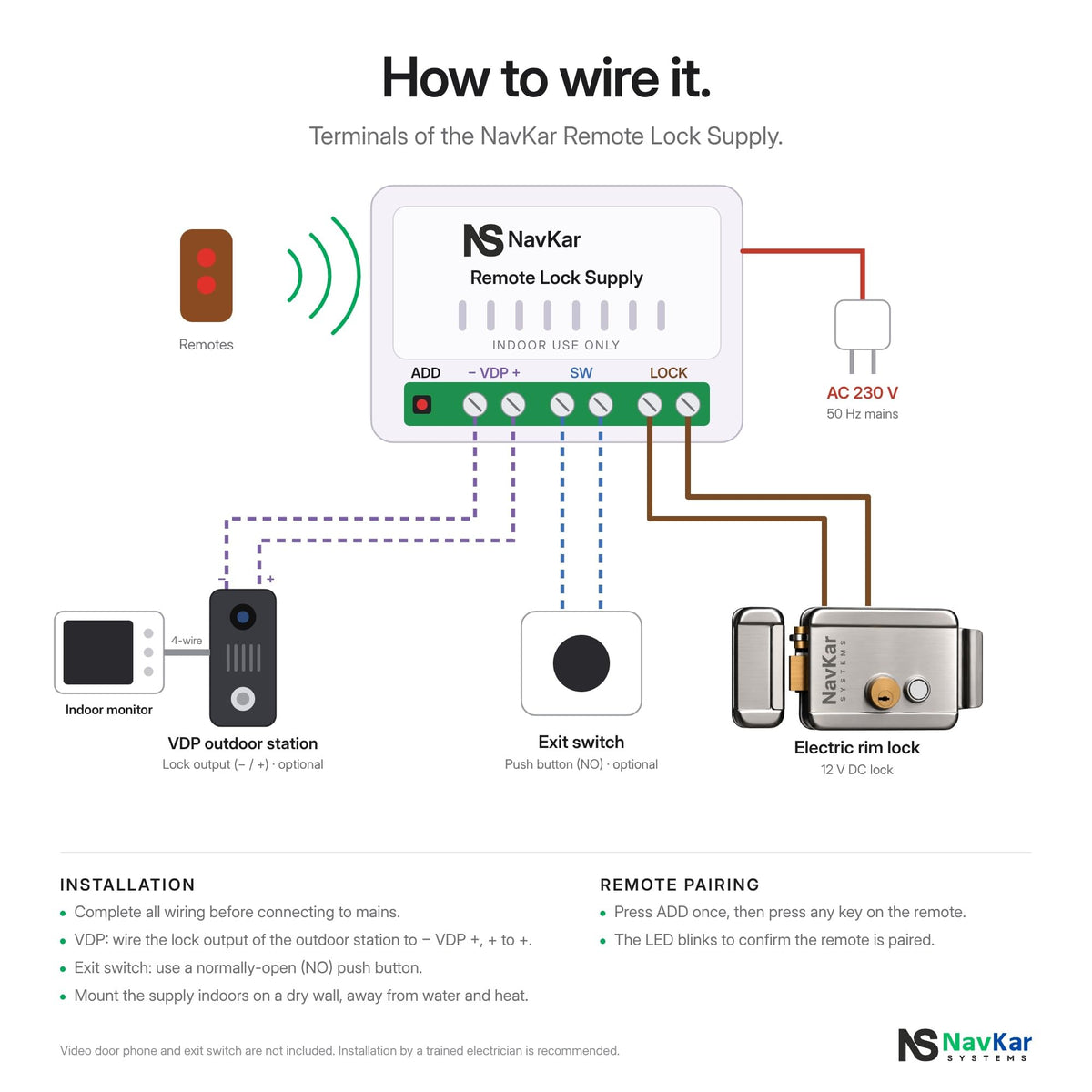

Wiring diagram.

Follow it exactly, or hand it to your electrician.

Download the installation manual (PDF)

Specifications.

At a glance

Remote range: 80 to 100 m, depending on the area
Remotes: 3 in the box, up to 20 compatible remotes
Locking: self-locking latch, locks again as the gate closes
Fitting: surface mount on metal gates and doors

Questions, answered.

Will the remotes work if the internet is down?

Yes. The remotes talk to the receiver directly by radio, so they need no Wi-Fi or internet.

How many remotes can I add?

You get 3 remotes in the box and can pair up to 20 compatible remotes.

What range can I expect?

80 to 100 m, depending on the area. Walls and metal near the receiver can reduce it.

Who should install it?

A trained electrician or carpenter. Mounting on a metal gate may need a welded plate.

NavKar Systems designs and supplies electronic locks and gate automation for Indian homes. Every kit is a matched set.
