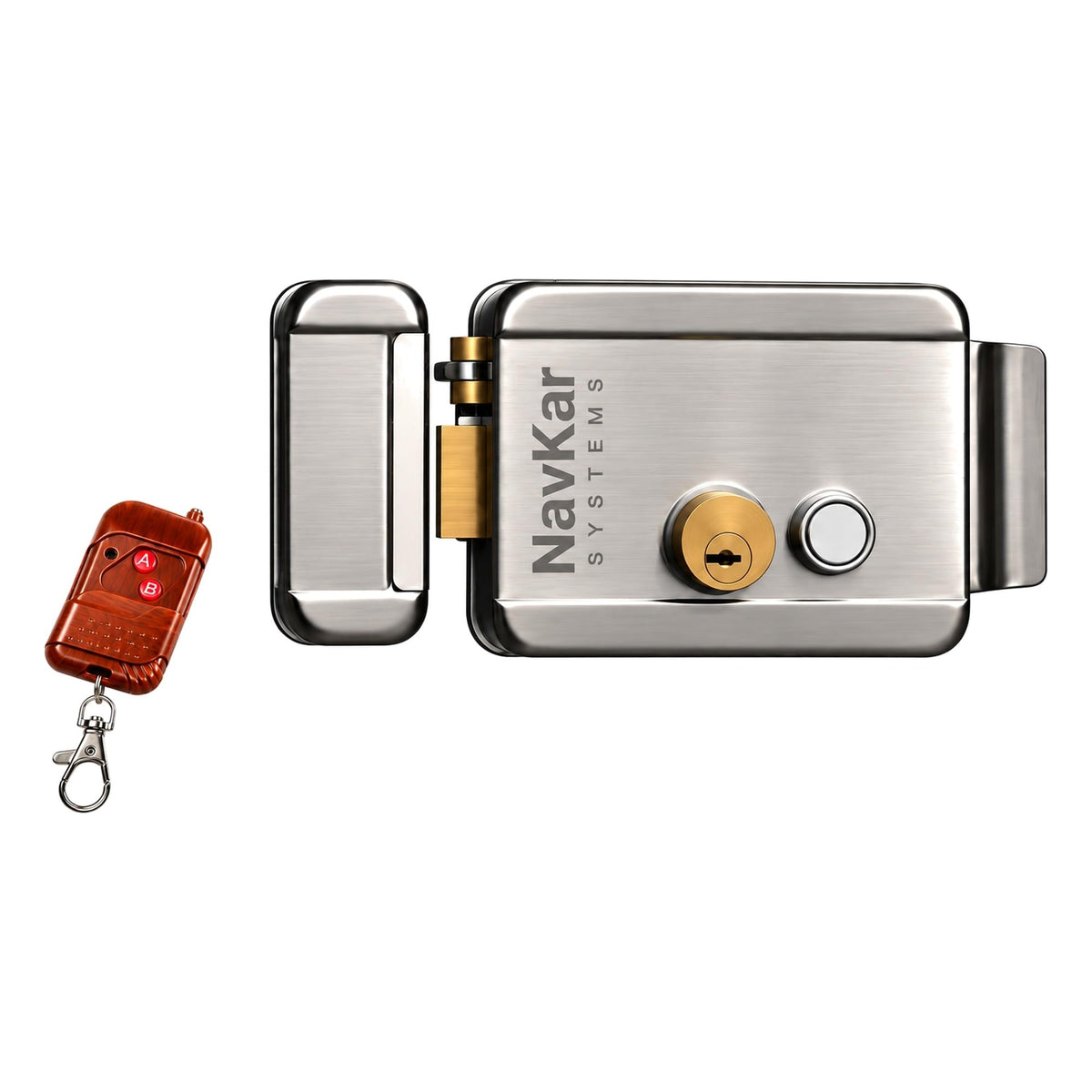

Combo-CN222 Steel Body Standard Size Electronic Lock with Remote receiver, Adapter & 2 Remotes

The NavKar Systems Combo-CN222 is the budget way to open your main gate by remote. The steel body electric rim lock comes with a remote receiver, a 12 V 2 A adapter and 2 remotes.

Highlights

• Remote gate opening. Open your main gate with one press of the remote from your car or home.

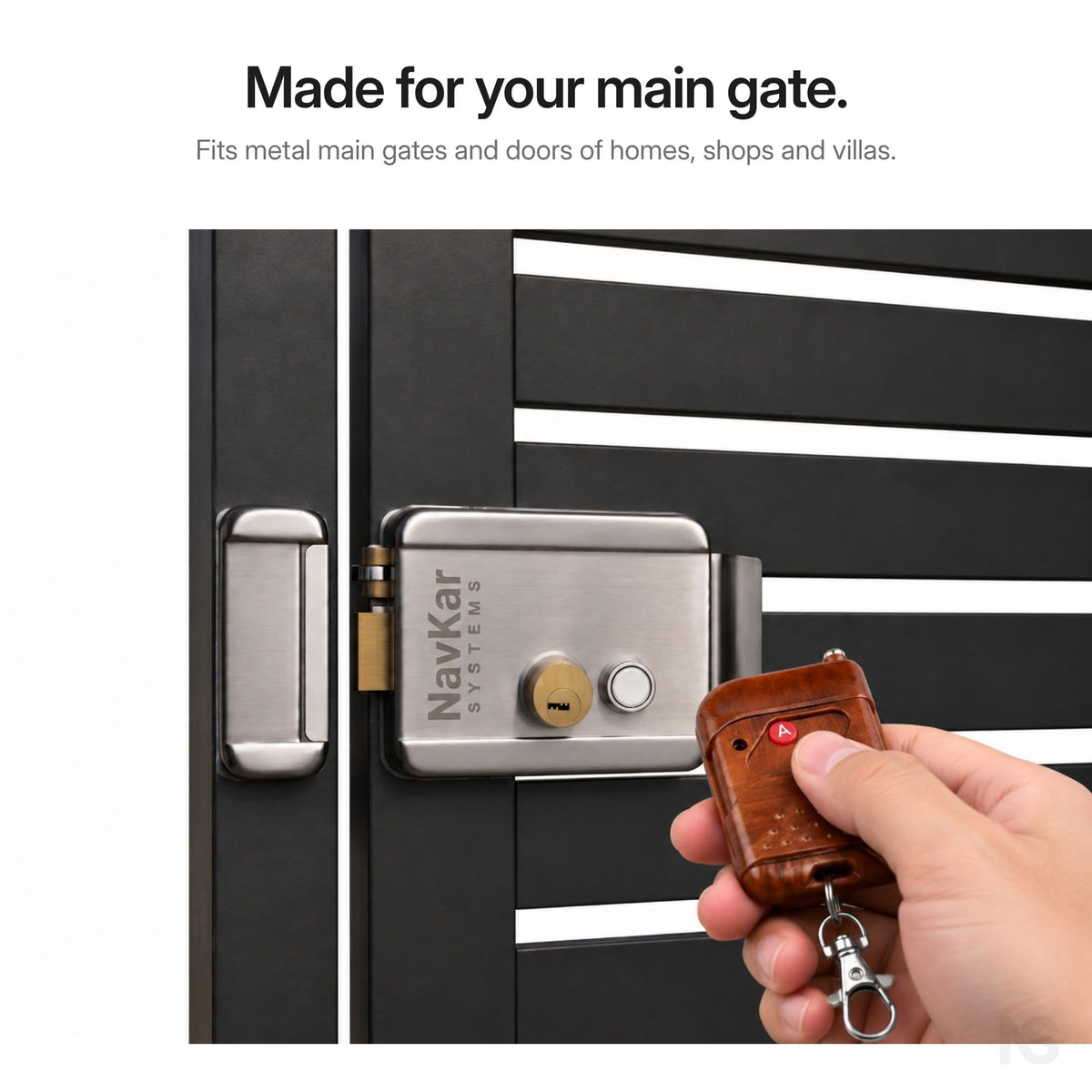

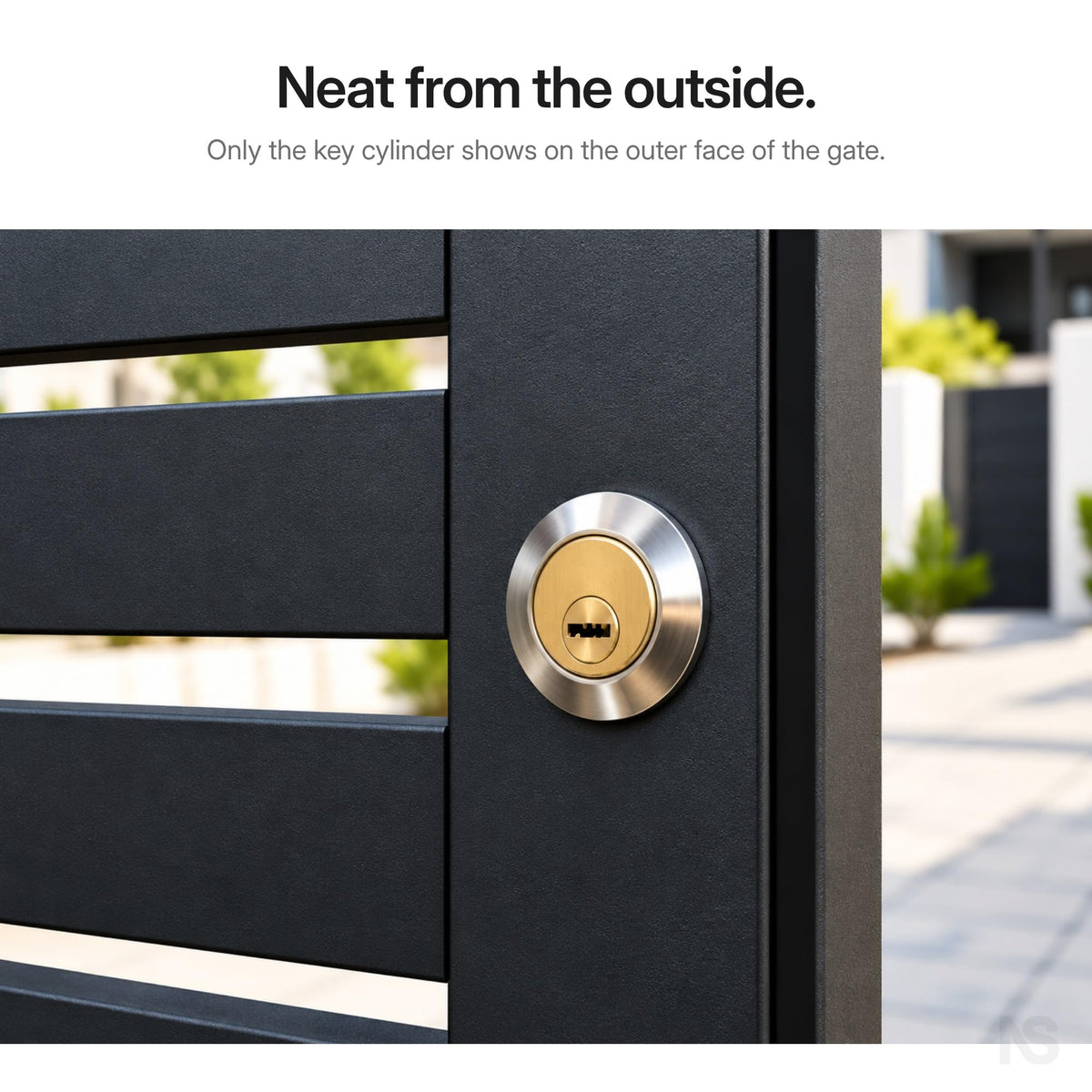

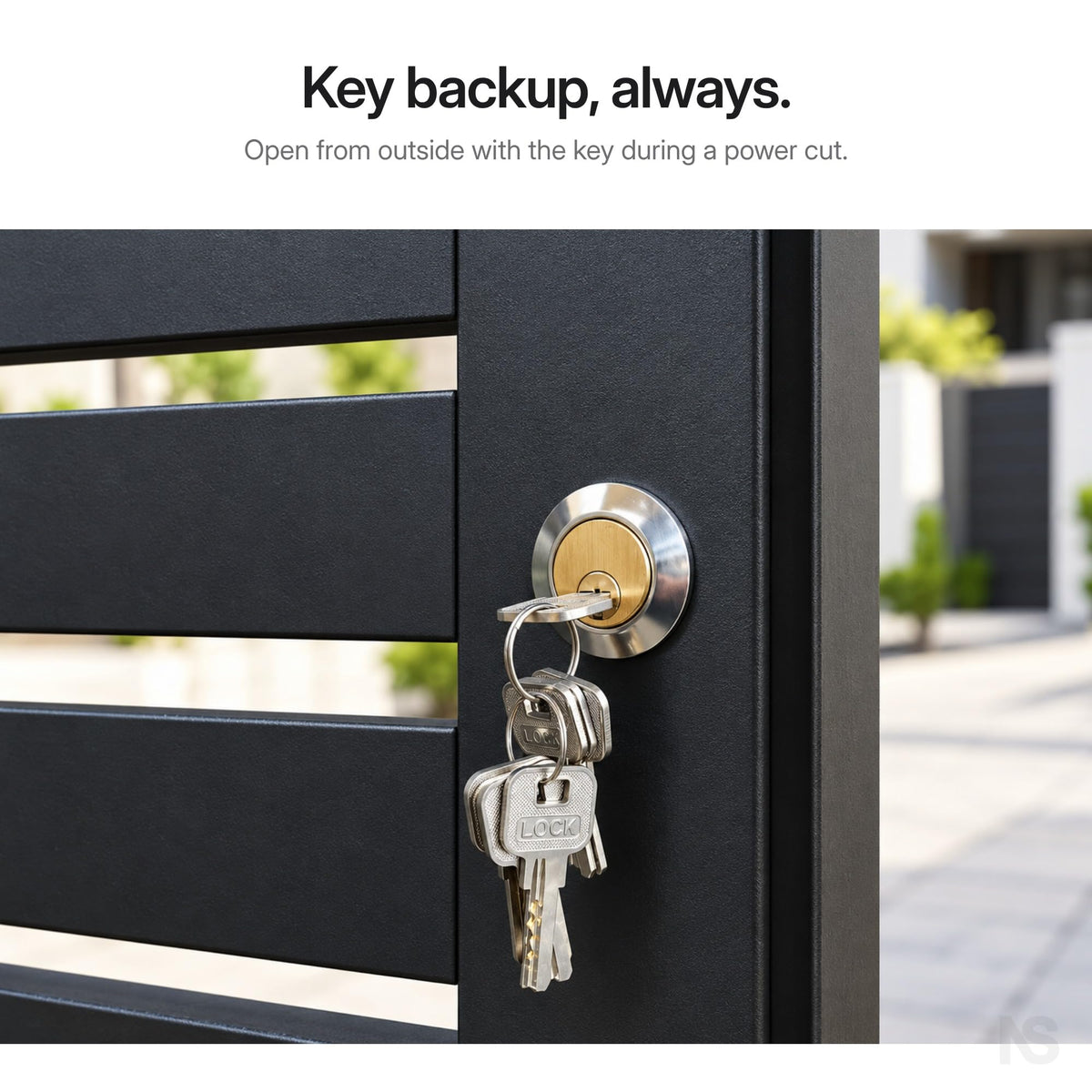

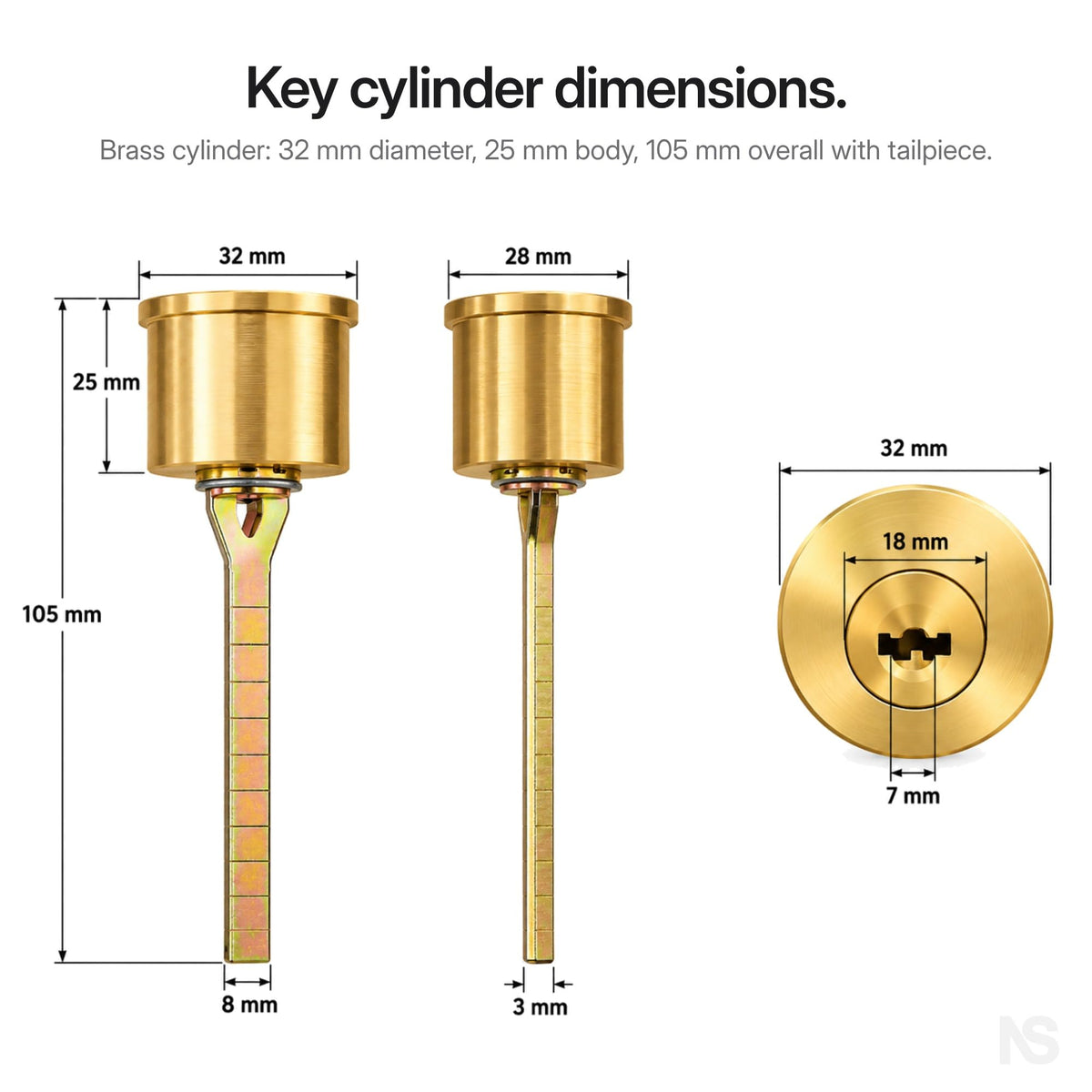

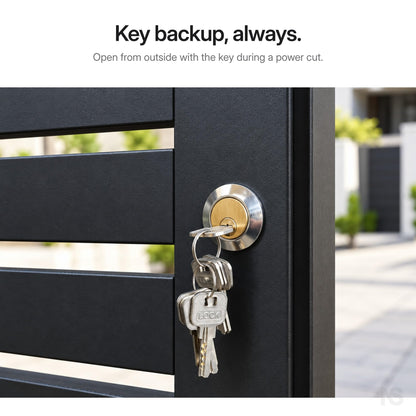

• Strong steel body. Standard size electric rim lock for metal main gates, with a key cylinder for manual opening.
• Self-locking latch. The latch locks again by itself as the gate closes.
• Simple wiring. The receiver switches 12 V to the lock for a moment. Wiring diagram included in the images.
• Budget remote-only kit. For an exit switch or door phone, choose the NavKar kit with the remote lock supply and 3 remotes.

In the box

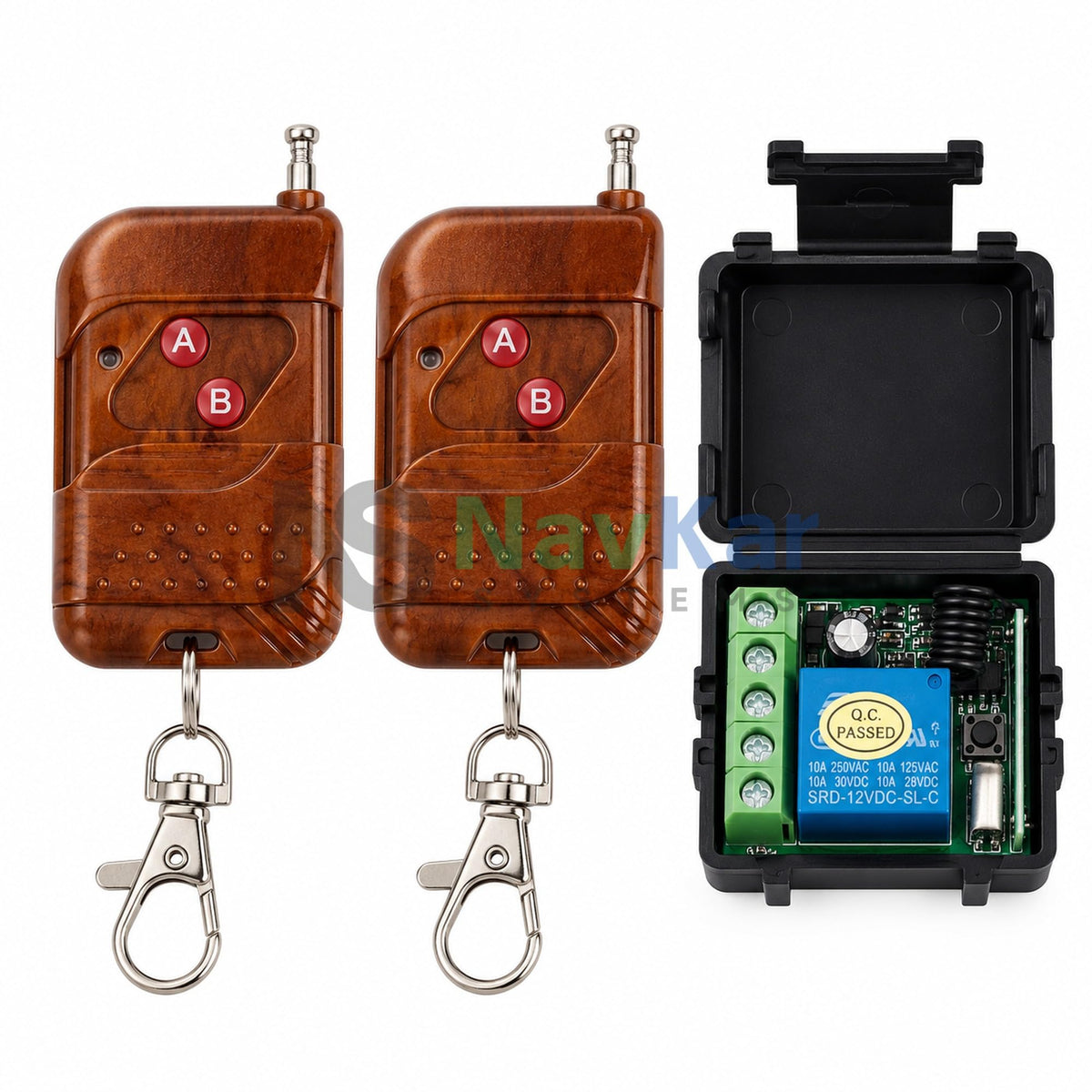

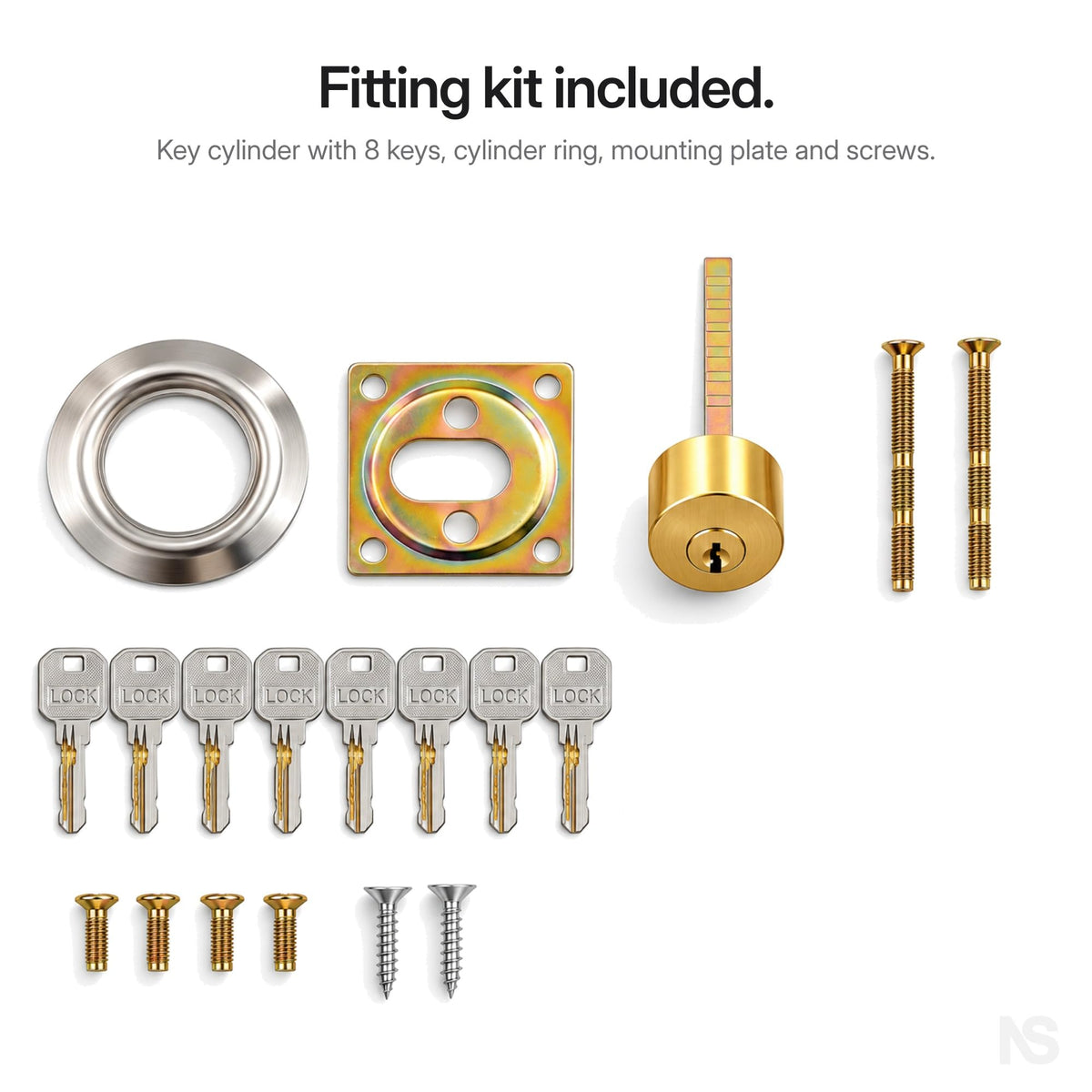

1 x electric rim lock, 1 x remote receiver, 1 x 12 V 2 A adapter, 2 x remotes, keys and fitting kit.

Good to know

• Warranty does not cover physical damage, the adapter or a burnt lock coil.
• Keep the receiver and adapter indoors, away from water.
• Colour, shape and size may change without prior notice.

Set up in minutes.

Three steps from the box to your open gate.

1

Fit the rim lock

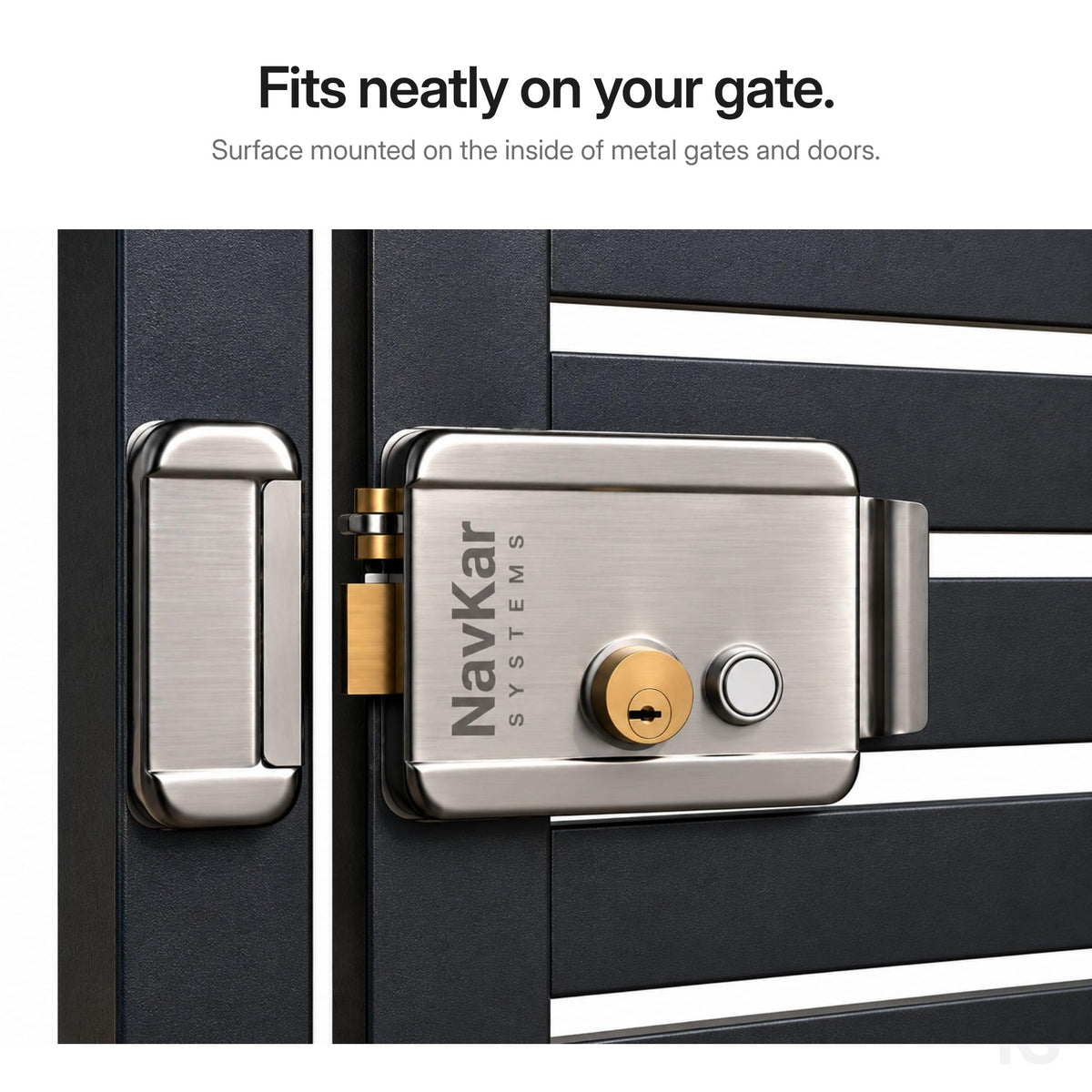

Mount it on the inside face of your metal gate or door, with the strike plate on the frame.

2

Connect the power supply

Fix the supply indoors on a dry wall and wire it to the lock using the diagram below.

3

Pair your remotes

Add your remotes, then open the gate in one press.

Watch it in action.

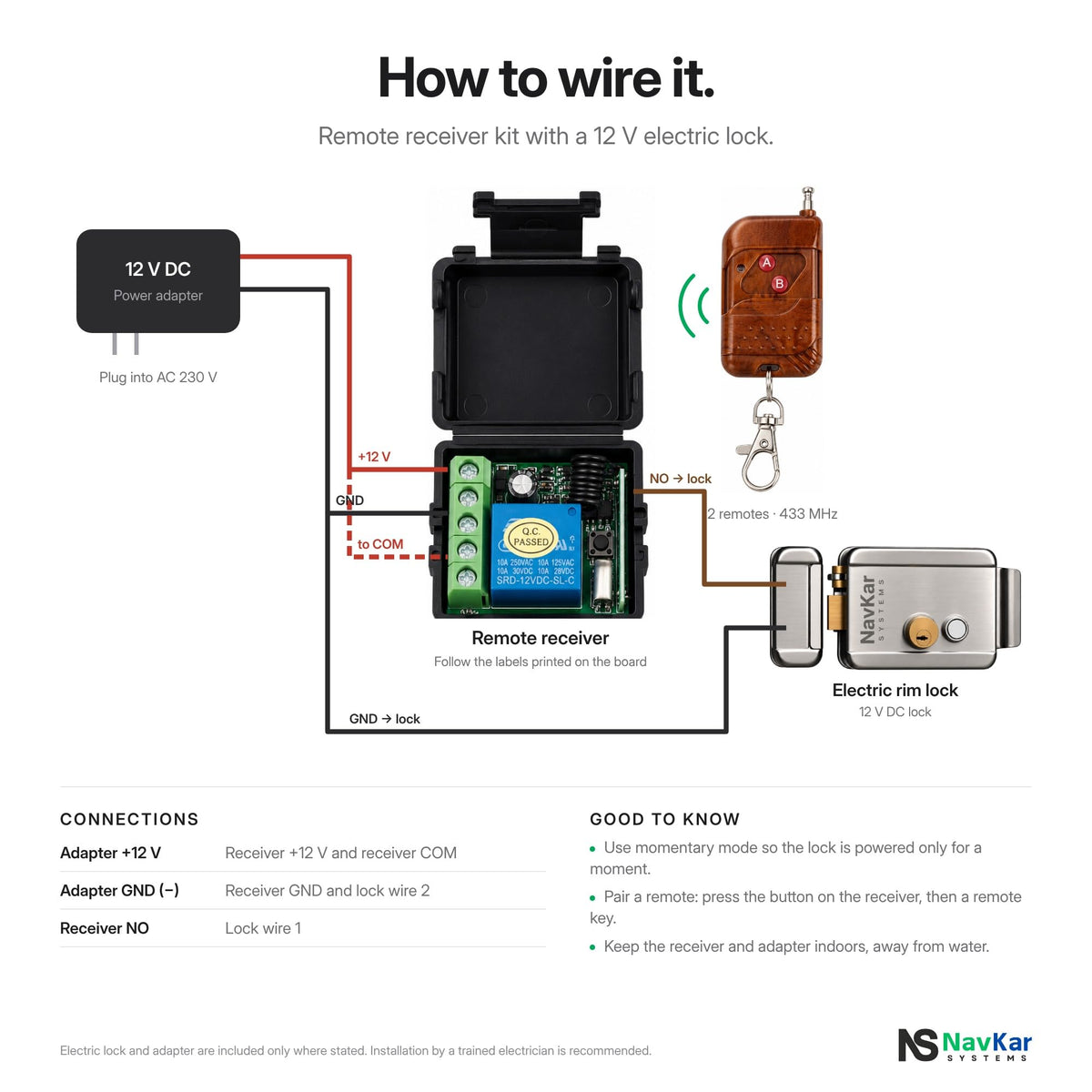

Wiring diagram.

Follow it exactly, or hand it to your electrician.

Download the installation manual (PDF)

Specifications.

At a glance

Remote range: 80 to 100 m, depending on the area
Remotes: 3 in the box, up to 20 compatible remotes
Locking: self-locking latch, locks again as the gate closes
Fitting: surface mount on metal gates and doors

Questions, answered.

Will the remotes work if the internet is down?

Yes. The remotes talk to the receiver directly by radio, so they need no Wi-Fi or internet.

How many remotes can I add?

You get 3 remotes in the box and can pair up to 20 compatible remotes.

What range can I expect?

80 to 100 m, depending on the area. Walls and metal near the receiver can reduce it.

Who should install it?

A trained electrician or carpenter. Mounting on a metal gate may need a welded plate.

NavKar Systems designs and supplies electronic locks and gate automation for Indian homes. Every kit is a matched set.
