BioMax

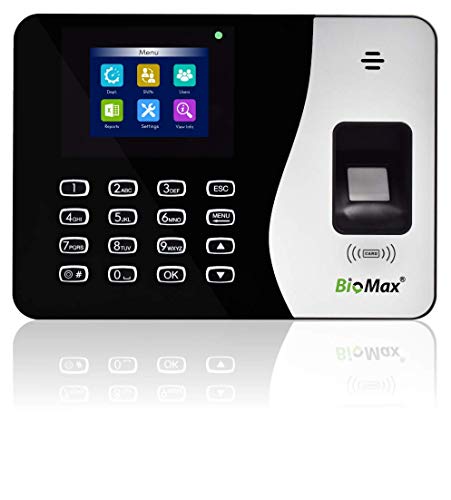

BioMax N-BM20 Biometric Time Attendance Machine with Inbuilt Battery
BioMax N-BM20 Biometric Time Attendance Machine with Inbuilt Battery
Buying here, direct, gets you the same warranty and prices inclusive of GST, plus free setup help on call and WhatsApp.
View on Amazon.inCouldn't load pickup availability
BIOMAX N-BM20 Biometric Time Attendance Machine with Inbuilt Battery is a state-of-the-art solution designed for accurate attendance management. This machine features advanced biometric technology to capture employee attendance data efficiently. With its inbuilt battery, it ensures uninterrupted operation even during power outages, maintaining attendance records without interruption. It offers a reliable and convenient way to manage attendance and enhance workplace efficiency. Ideal for various industries, this system provides hassle-free attendance tracking with the added advantage of an inbuilt battery for continuous operation.

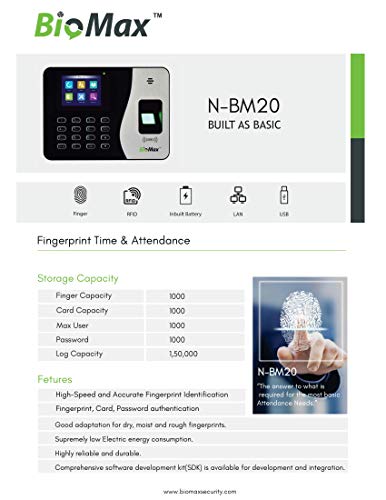

Storage Capacity
Finger Capacity : 1000
Card Capacity: 1000
Log Capacity : 1,50,000
Password Capacity : 1000
Max. User : 1000
Communication
TCP/IP, USB Host
Push Data : Yes
OS : Linux
Audio/Visual
Display : 2.4" TFT LCD color screen 320x240 pixel
Voice instruction : 16-bit Hi-Fi voice & sound indication
Language : English
Biometric
FAR : 0.00001%
FRR : 0.001%
Sensor type : 500 DPI
Identification Mode : Fingerprint, Card, PIN
Power & Environment
Inbuilt Battery : Yes
Operating Temperature : 0°c ~ 50°c
Power : 5VDC/1A

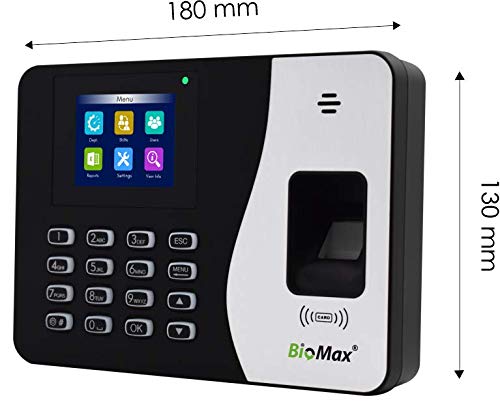

Dimension (L*H*W) : 180 x 130 x 35 mm

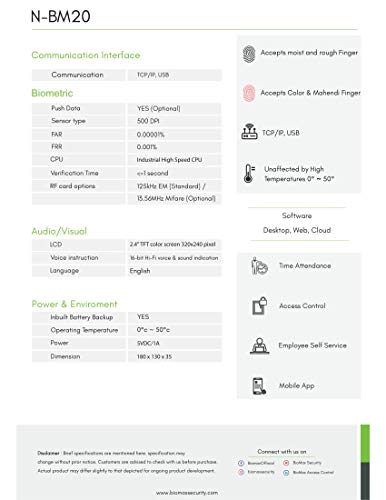

Download Brochure:- https://www.biomaxsecurity.com/storage/app/media/catalogue/n-bm20-idpro.pdf
BioMax N-BM20 + ID Pro
Specifications
The BioMax N-BM20 is a fingerprint, card and PIN attendance machine for up to 1,000 users with an inbuilt battery. It connects over LAN (TCP/IP) or USB and uses push data, which suits small offices that want simple wired attendance.
| Finger capacity | 1000 |
|---|---|
| Card capacity | 1000 |
| Password capacity | 1000 |
| Max users | 1000 |
| Log capacity | 1,50,000 |
| Communication | TCP/IP, USB host |
| Push data | Yes |
| OS | Linux |
| Display | 2.4-inch TFT LCD colour, 320 x 240 |
| Voice | 16-bit Hi-Fi voice and sound |
| Language | English |
| FAR | 0.00001% |
| FRR | 0.001% |
| Sensor | 500 DPI |
| Identification | Fingerprint, card, PIN |
| Inbuilt battery | Yes |
| Operating temperature | 0 °C to 50 °C |
| Power | 5 V DC, 2 A |
| Dimensions (L x H x W) | 180 x 130 x 35 mm |
Specifications checked against BioMax's published details for this model. All prices include GST.
Frequently asked questions
Does the N-BM20 work in a power cut?
Yes. It has an inbuilt battery backup.
How many employees can it hold?
Up to 1,000 users, 1,000 fingerprints and 1,000 cards, with 1,50,000 logs.
Does it have Wi-Fi?
No. It connects over LAN (TCP/IP) and USB host. For Wi-Fi, see the N-WL20 or N-BM30W Pro.
Can it open a door lock?
No lock relay is listed by BioMax for this model, so use it for attendance.
What power does it need?
5 V DC at 2 A, as per BioMax.
Which ways can staff punch?
Fingerprint, RFID card or PIN.
How does a biometric attendance machine work?
It identifies each person by fingerprint, face, palm or card and records the exact punch time. Reports can be downloaded as Excel or PDF, and many models connect to software over LAN or Wi-Fi, depending on the model.
What do I need to install it?
A wall mount or desk stand, a power adapter and, for network models, a LAN cable or Wi-Fi. Our team gives free technical support for setup.
Is technical support available?
Yes. Free technical support is available for installation and setup.
