Combo-CN66 Electronic Lock for Metal Gate to Operate by Remote & Mobile App Silver Gold with Installation

The NavKar Systems Combo-CN66 is an electronic gate lock kit for metal main gates that you can open with a remote or from your phone. It pairs the weatherproof RML-8K electronic rim lock with the NavKar Wi-Fi lock supply.

Highlights

• Remote or mobile app. Unlock the gate with the remote, or tap the switch in the Smart Life app on Android or iOS from anywhere. Works with Alexa and Google Home.

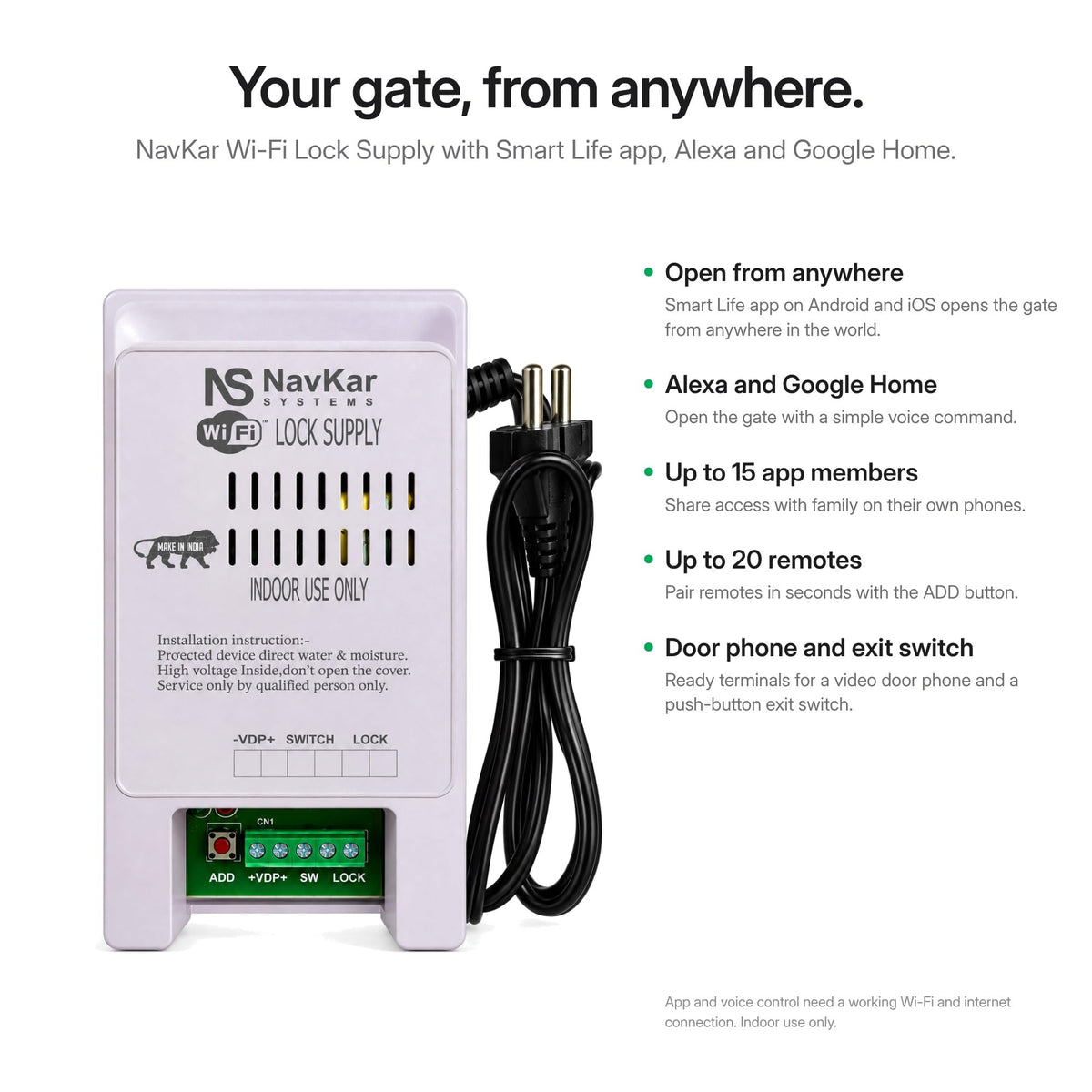

• Wi-Fi lock supply. Powers the lock and connects it to your home Wi-Fi router. Pair up to 20 remotes and add up to 15 app members.

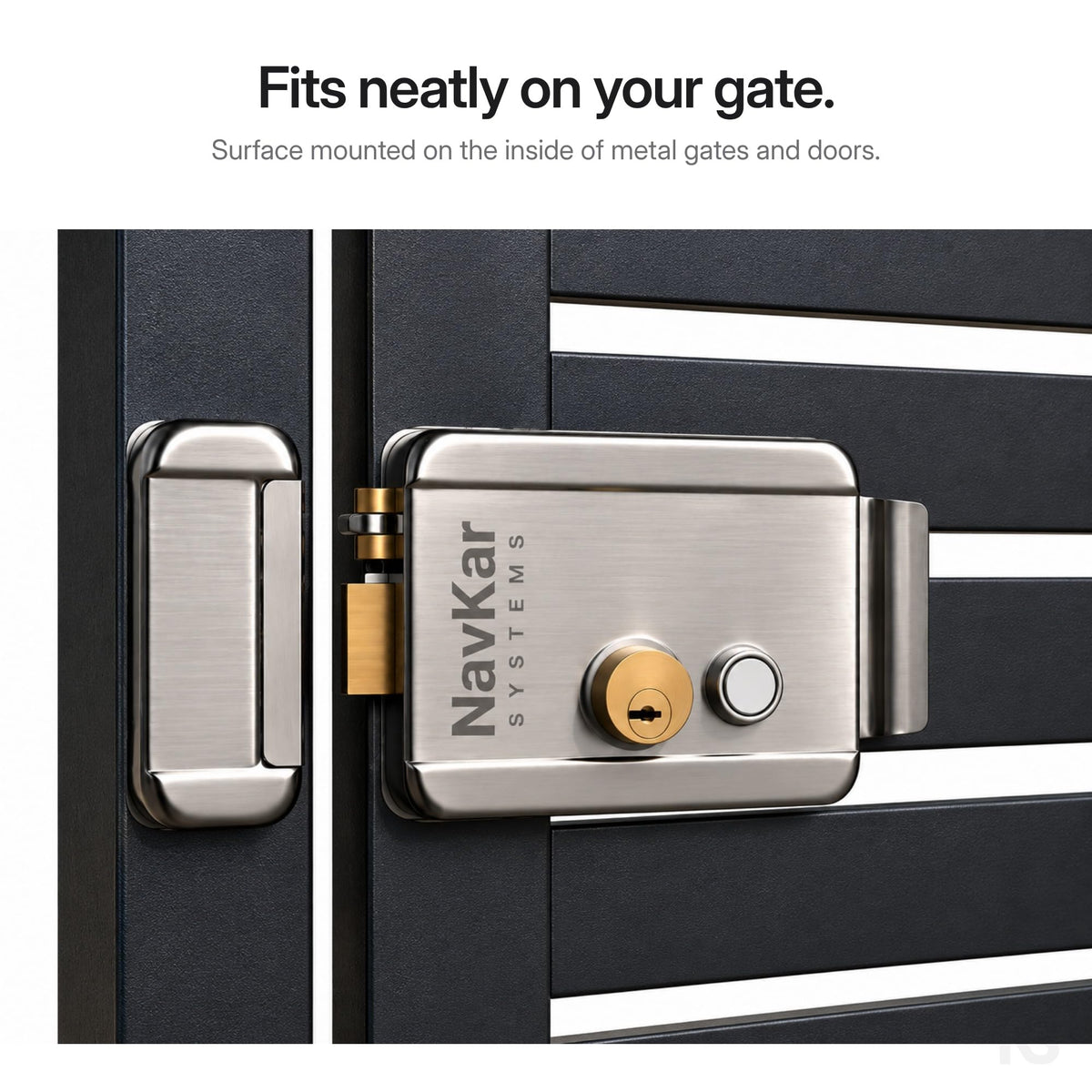

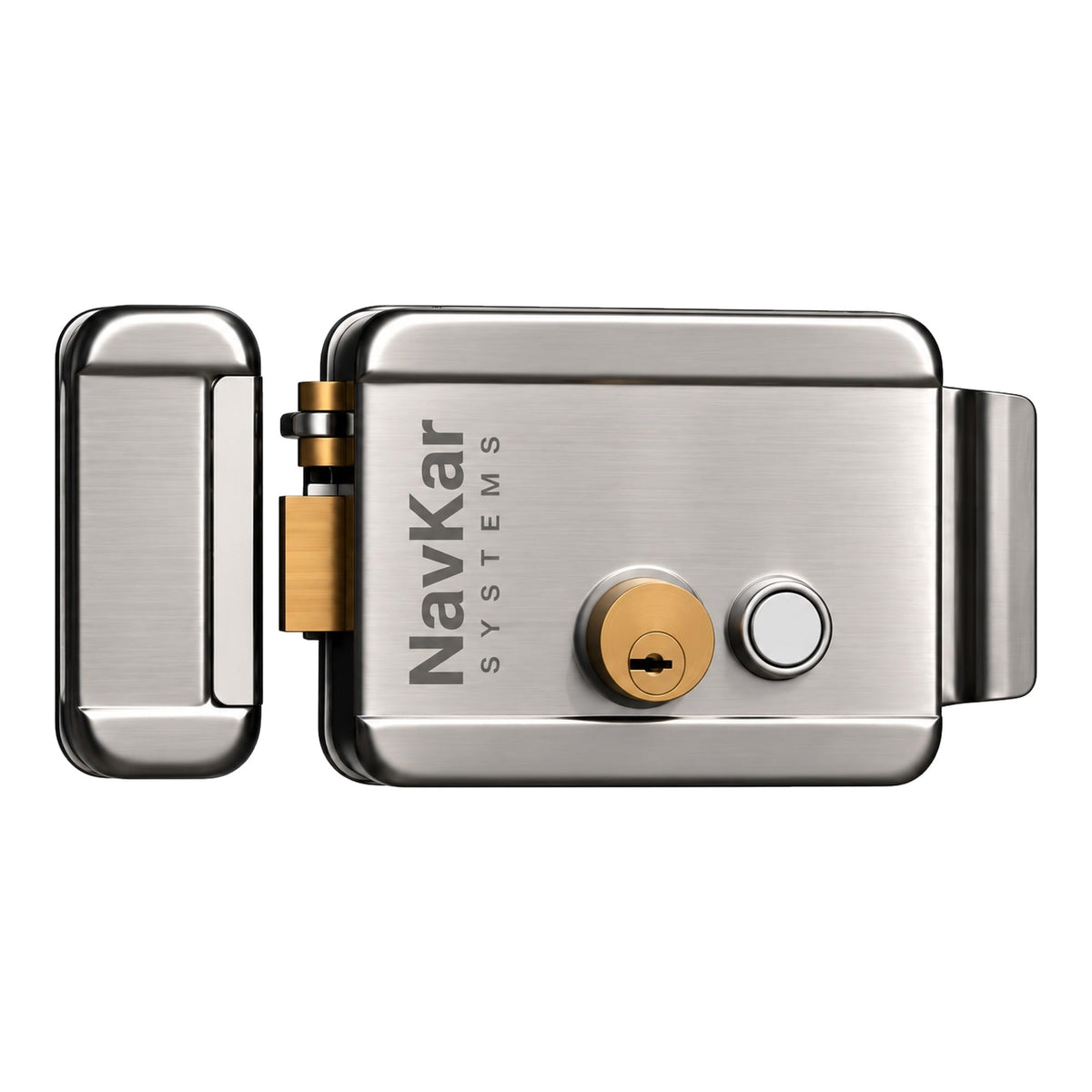

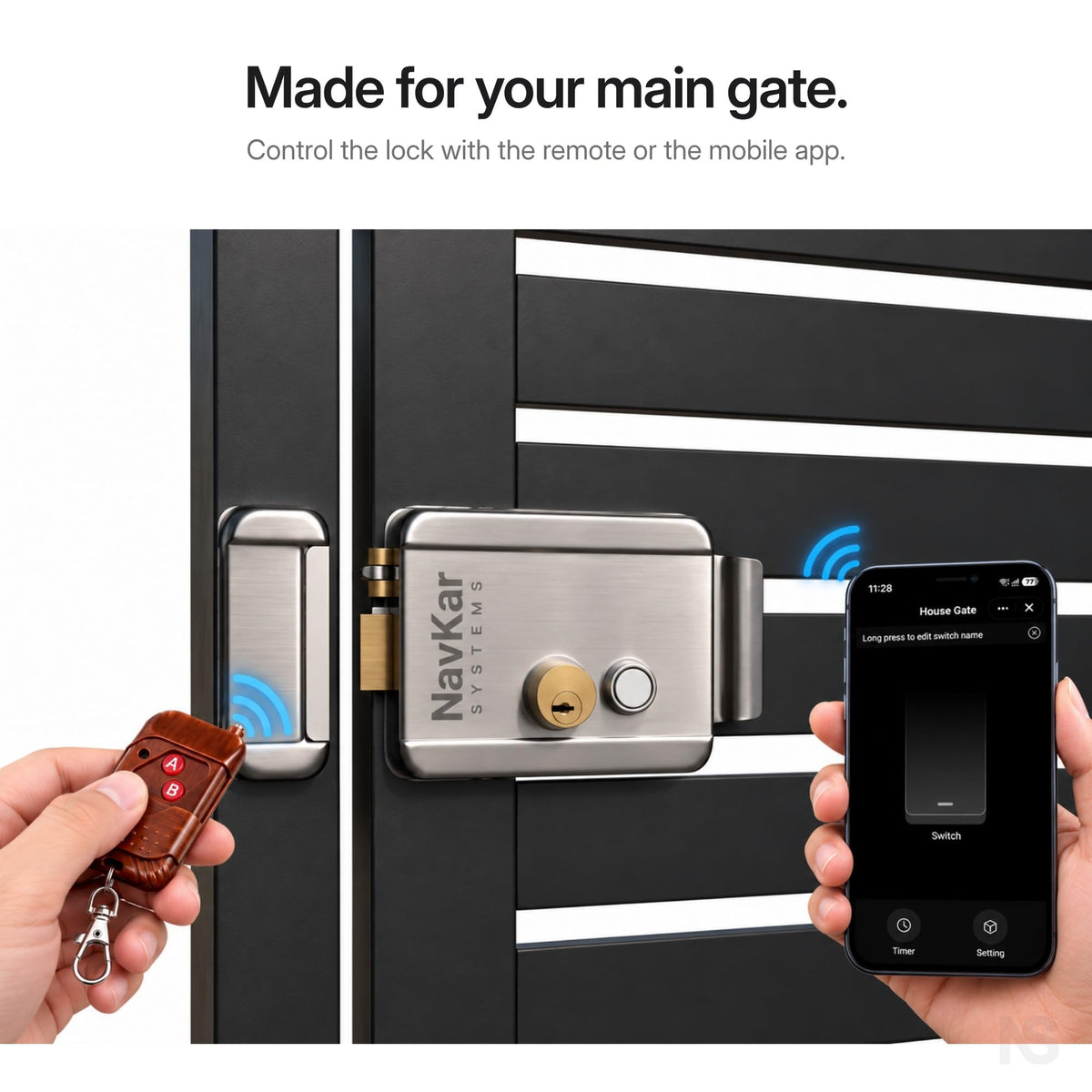

• Weatherproof RML-8K rim lock. Steel lock body made for outdoor main gates. It mounts on the inside face of a metal gate or door, with a strike on the frame.
• Self-locking latch. The latch locks again by itself as the gate closes.

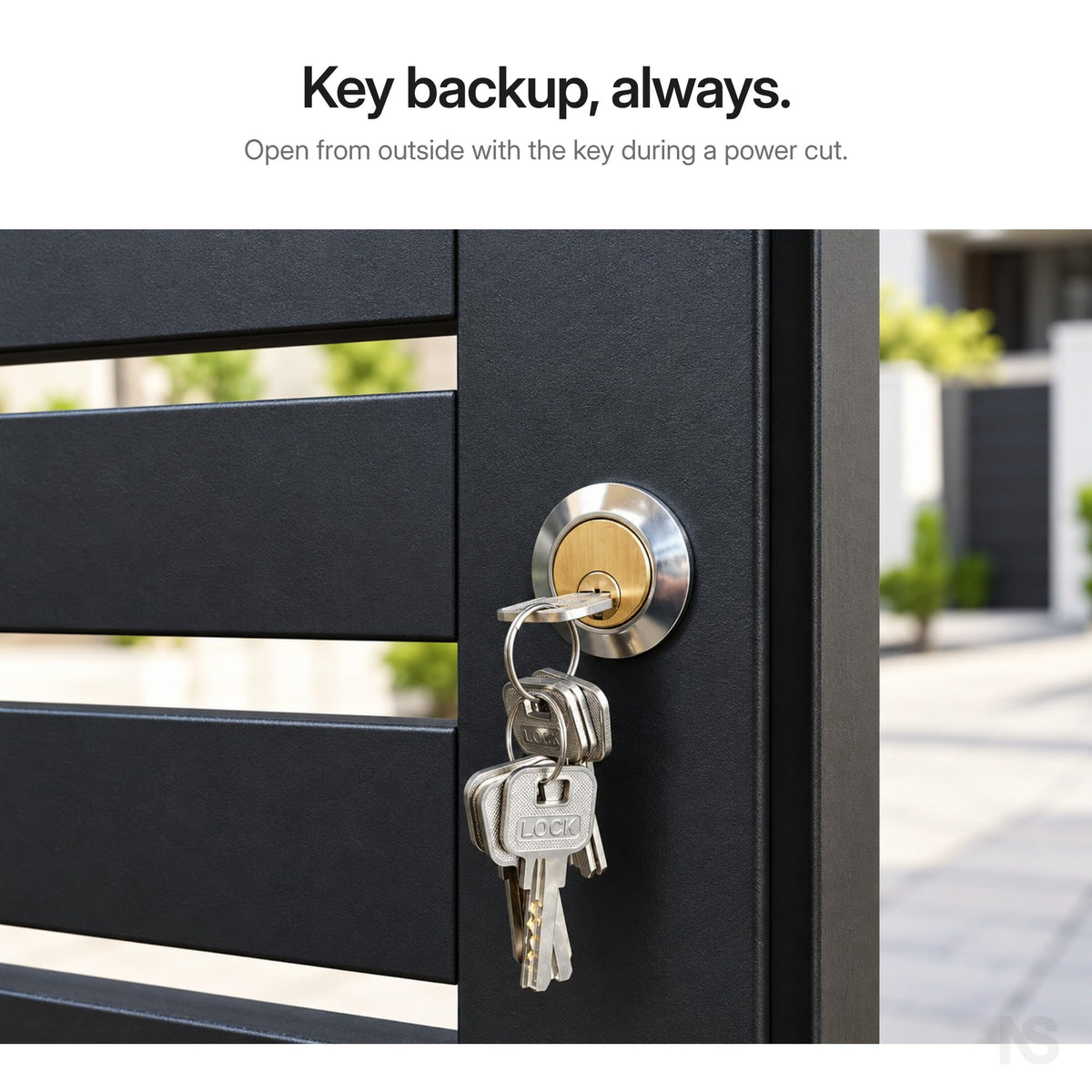

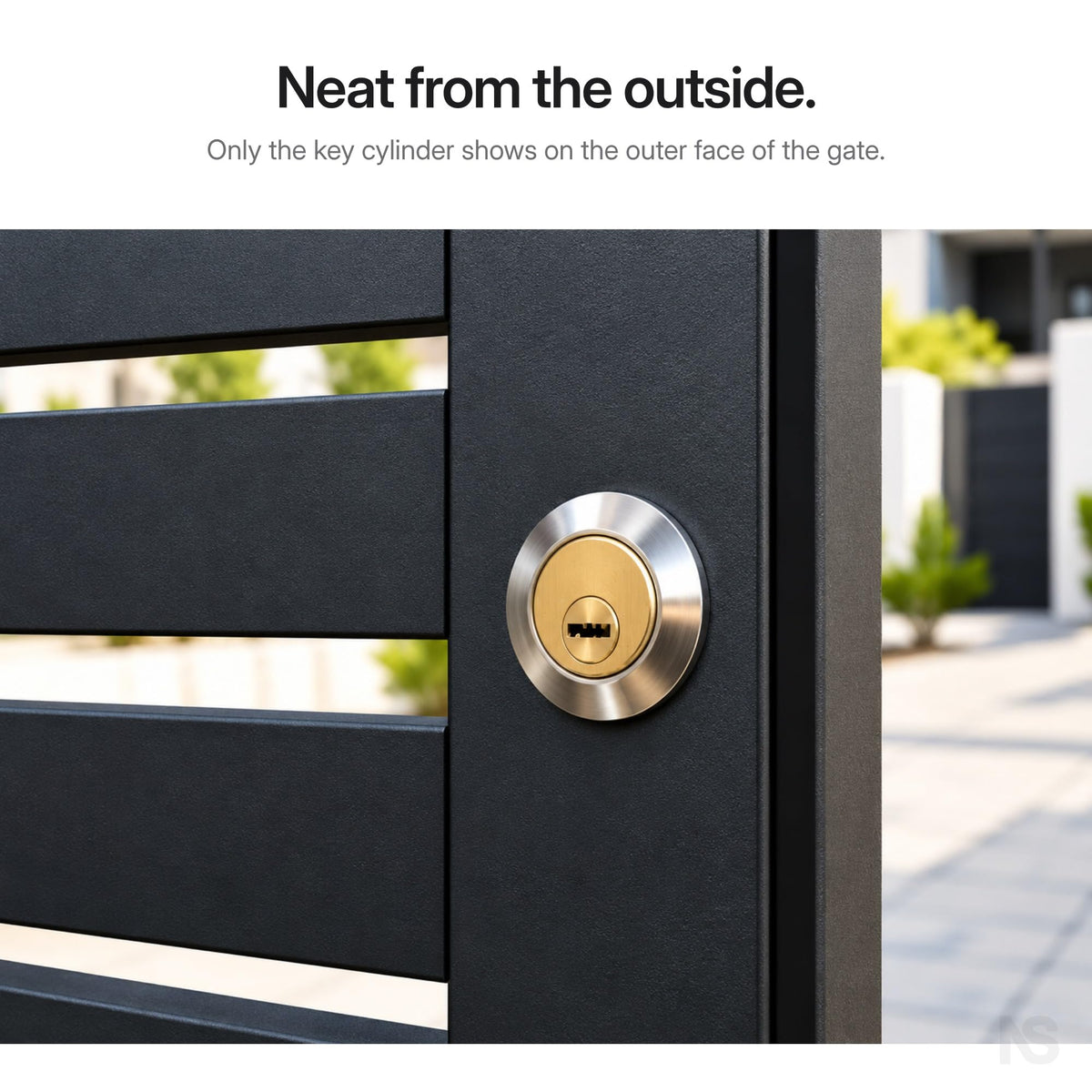

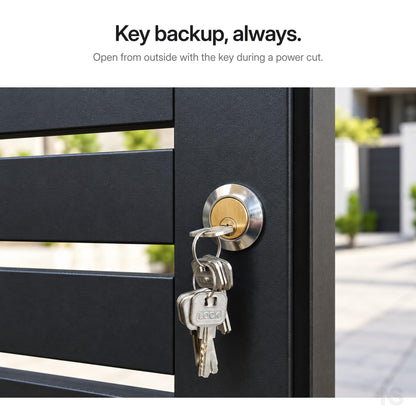

• Key backup. A 32 mm brass key cylinder with computerised keys opens the gate from outside during a power cut.
• Add an exit switch or door phone. A push-button exit switch or the door-release output of a video door phone can be wired to the SW and VDP terminals (not included).

In the box

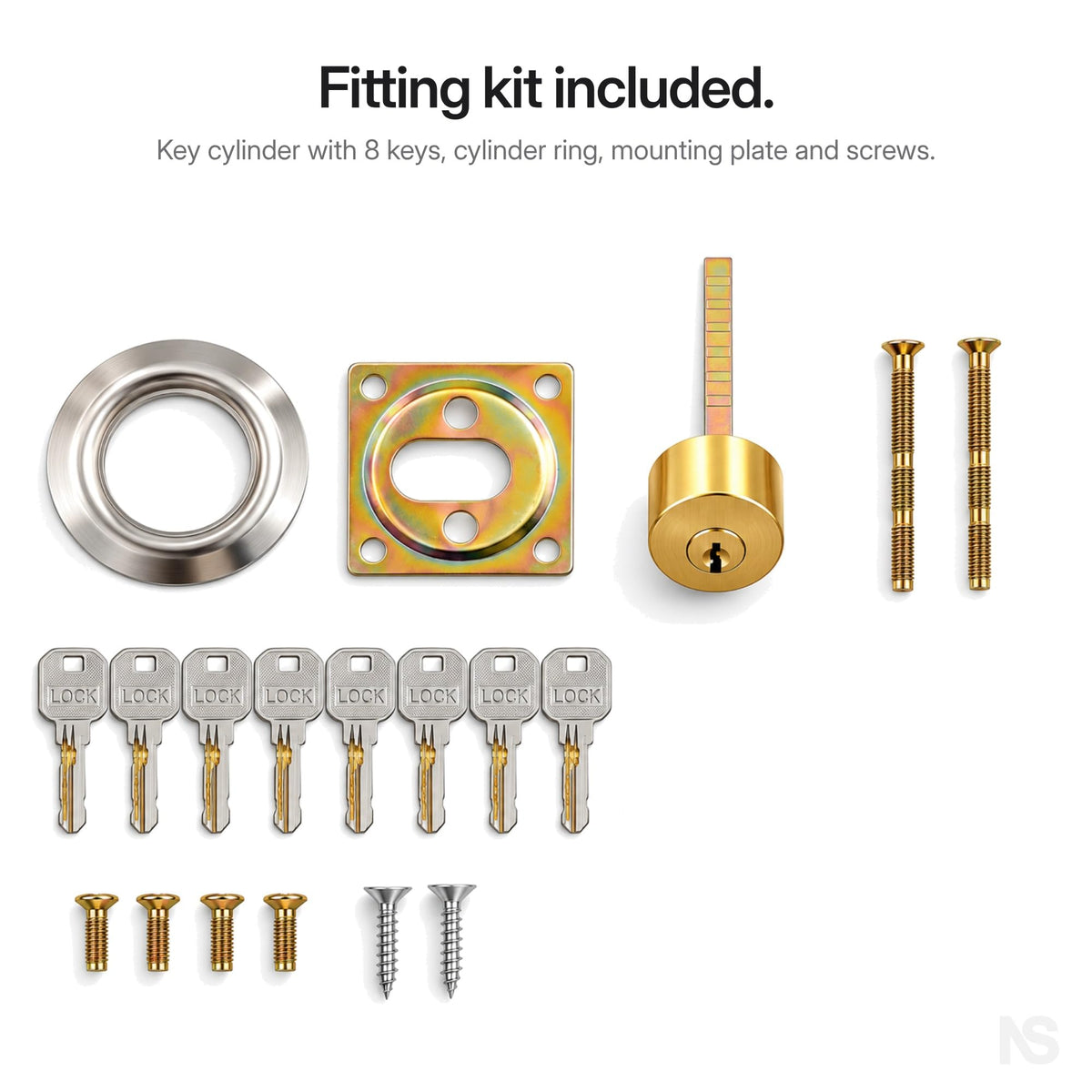

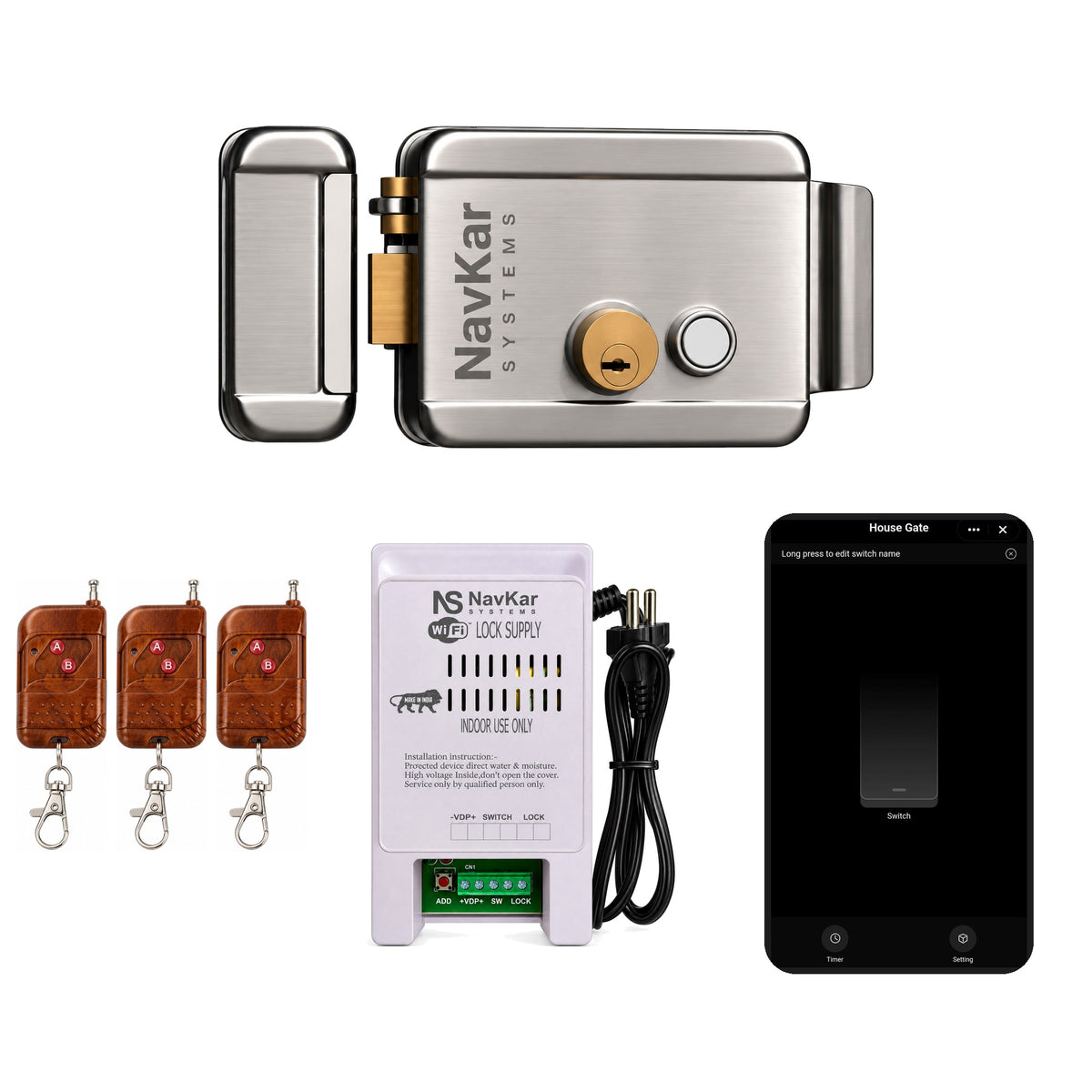

RML-8K electronic rim lock with 8 keys and fitting kit, NavKar Wi-Fi lock supply and remote. Silver body with gold-coloured brass cylinder.

Good to know

• Use 2.4 GHz home Wi-Fi. 5 GHz is not supported.
• In the Smart Life app, open Timer and keep Inching on at 1 second so the lock coil gets only a short pulse.
• Mount the supply indoors on a dry wall, away from water.
• Mounting on a metal gate may need welding of a plate. Wiring should be done by a trained electrician.

Set up in minutes.

Three steps from the box to your open gate.

1

Fit the rim lock

Mount it on the inside face of your metal gate or door, with the strike plate on the frame.

2

Connect the power supply

Fix the supply indoors on a dry wall and wire it to the lock using the diagram below.

3

Pair remotes and the app

Add your remotes, then connect the Smart Life app on 2.4 GHz Wi-Fi and open the gate in one press.

Watch it in action.

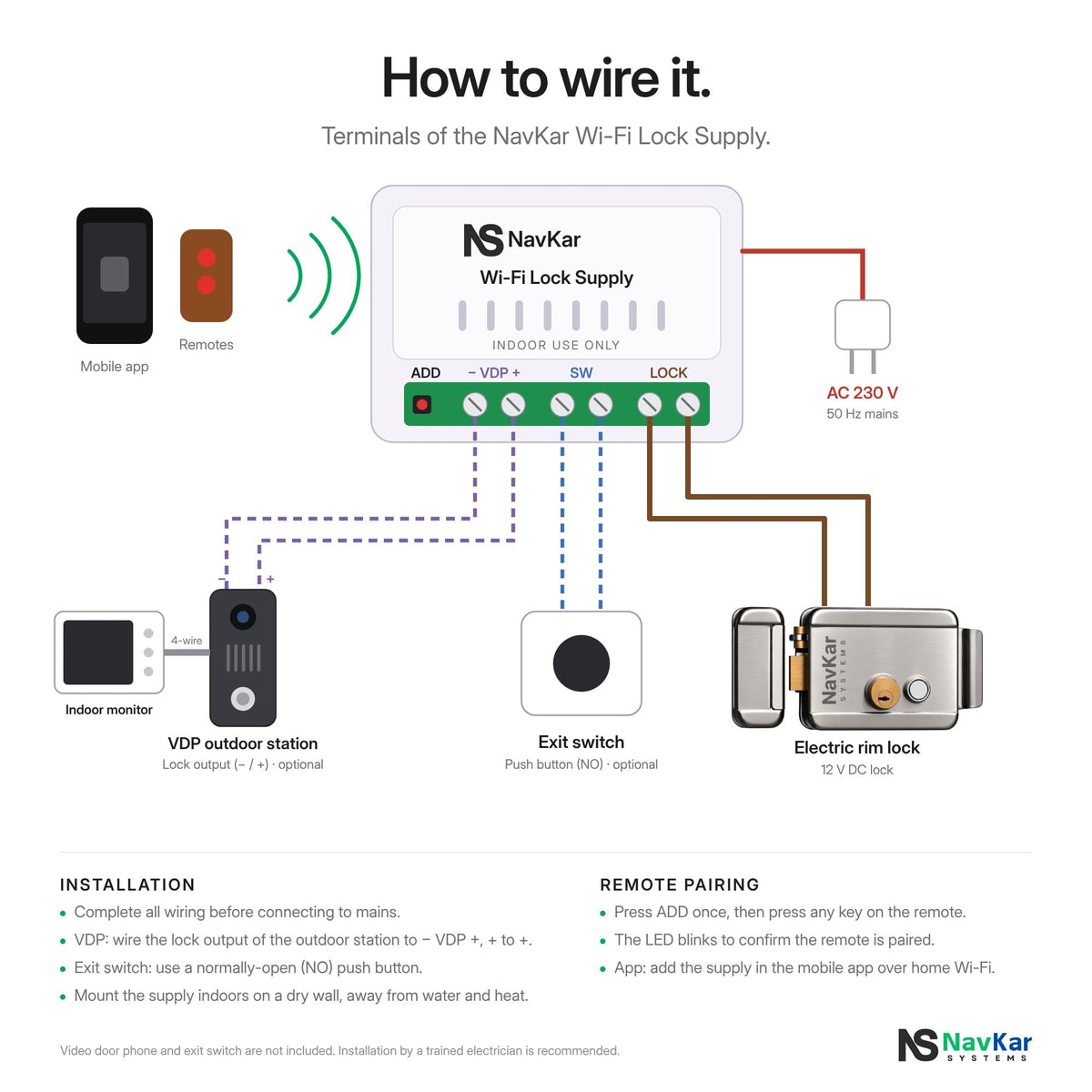

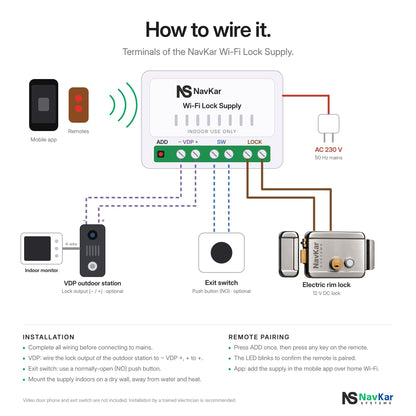

Wiring diagram.

Follow it exactly, or hand it to your electrician.

Download the installation manual (PDF)

Specifications.

At a glance

Remote range: 80 to 100 m, depending on the area
Remotes: 3 in the box, up to 20 compatible remotes
Locking: self-locking latch, locks again as the gate closes
Fitting: surface mount on metal gates and doors
App: Smart Life (Tuya) on Android and iOS, 2.4 GHz Wi-Fi

Questions, answered.

Will the remotes work if the internet is down?

Yes. The remotes talk to the receiver directly by radio, so they need no Wi-Fi or internet.

How many remotes can I add?

You get 3 remotes in the box and can pair up to 20 compatible remotes.

What range can I expect?

80 to 100 m, depending on the area. Walls and metal near the receiver can reduce it.

Who should install it?

A trained electrician or carpenter. Mounting on a metal gate may need a welded plate.

Does the app need 5 GHz Wi-Fi?

No. Use a 2.4 GHz network; 5 GHz is not supported.

NavKar Systems designs and supplies electronic locks and gate automation for Indian homes. Every kit is a matched set.
