CP Plus

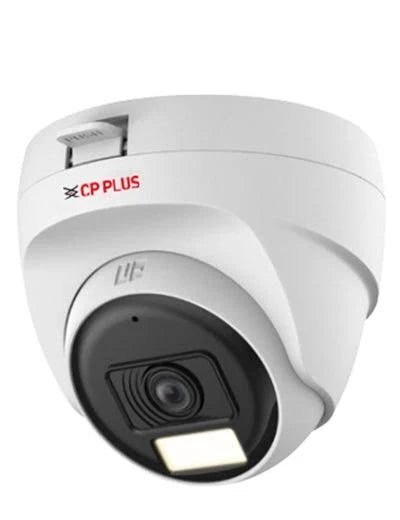

CP-URC-DC24PL3C-L-V2 2.4MP Dual Light Dome Camera - 30Mtr
CP-URC-DC24PL3C-L-V2 2.4MP Dual Light Dome Camera - 30Mtr
Regular price
Rs. 1,750
Regular price
MRP
Sale price
Rs. 1,750
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping, pan-India
Secure online payment
Prices include GST
Free tech support
CP-URC-DC24PL3C-L-V2
2.4MP Dual Light Dome Camera - 30Mtr.
- 2.4MP PS CMOS Image Sensor
- Max. 2.4MP (1920 × 1080) @
- DWDR, Day/Night (ICR), 2D DNR, BLC, HLC
- 3.6mm fixed lens (2.8 mm Optional)
- IR Range of 30 Mtr., Warm Light Range of 20 Mtr., Smart IR
- 4 Signals over 1 Coaxial Cable
- Support Built-in
- DataSheet
- User Maual
| Image Sensor | 2.4MP PS CMOS Image Sensor |
| Minimum Illumination | 0.02 lux@F2.0 (Color, 30 IRE), 0.002 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on) |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360° |
| Shutter Speed | PAL: 1/25 s–1/100,000 s, NTSC: 1/30 s–1/100,000 s |
| White Balance | Auto, Area white Balance |
| Lens Type | Fixed-foca |
| Lens | 3.6mm (2.8mm optional) |
| DORI Distance | Lens 3.6 mm: Detect-55.0 m, Observe-22.0 m, Recognize - 11.0 m, Identify-5.5 m Lens 2.8 mm: Detect-44.7 m, Observe-17.9 m, Recognize-8.9 m, Identify-4.5 m |
| Max. Aperture | F2.0 |
| Lens Mount | M12 |
| Close Focus Distance | 3.6 mm: 0.8 m, 2.8 mm: 0.5 m |
| Gain Control (AGC) | Auto/Manual |
| S/N Ratio | >55 dB |
| Angle of View | 3.6 mm: H: 80°, V: 43°, D: 94°; 2.8 mm: H: 100°, V: 54°, D: 117° |
| Back Light Compensation | BLC/HLC/DWD |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Resolution | 1080p (1920 × 1080), 960H (960 × 576/960 × 480) |
| Frame Rate | CVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps AHD: PAL: 1080p@25 fps NTSC: 1080p@30 fps TVI: PAL: 1080p@25 fps NTSC: 1080p@30 fps CVBS: PAL: 960H NTSC: 960H |
| Noise Reduction | 2D DNR |
| Privacy Mask | Off/On (8 areas, rectangle) |
| Day/Night | Auto(ICR)/Color/B/W |
| IR Number | 2 Warm Light, 2 IR Light |
| IR | IR Range of 30 Mtr., |
| IR Control | Auto, Manual |
| Mirror Function | Support |
| Iris Control | Fixed |
| IR Mode | Smart IR&WL, WL Mode, IR Mode |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Power Source | 12 VDC ± 30% |
| Power Consumption | Max 2.1 W (12 VDC, LED on) |
| Dimension | 85.0 mm × 77.1 mm |
| Weight | 0.11kg |
