Diplomat

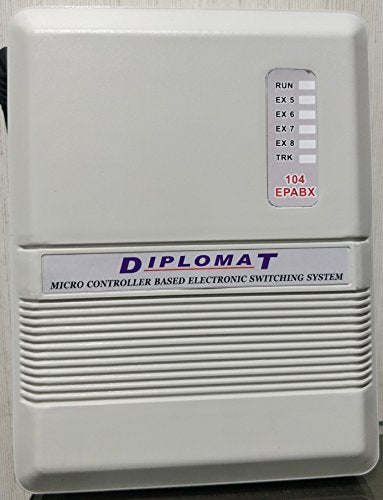

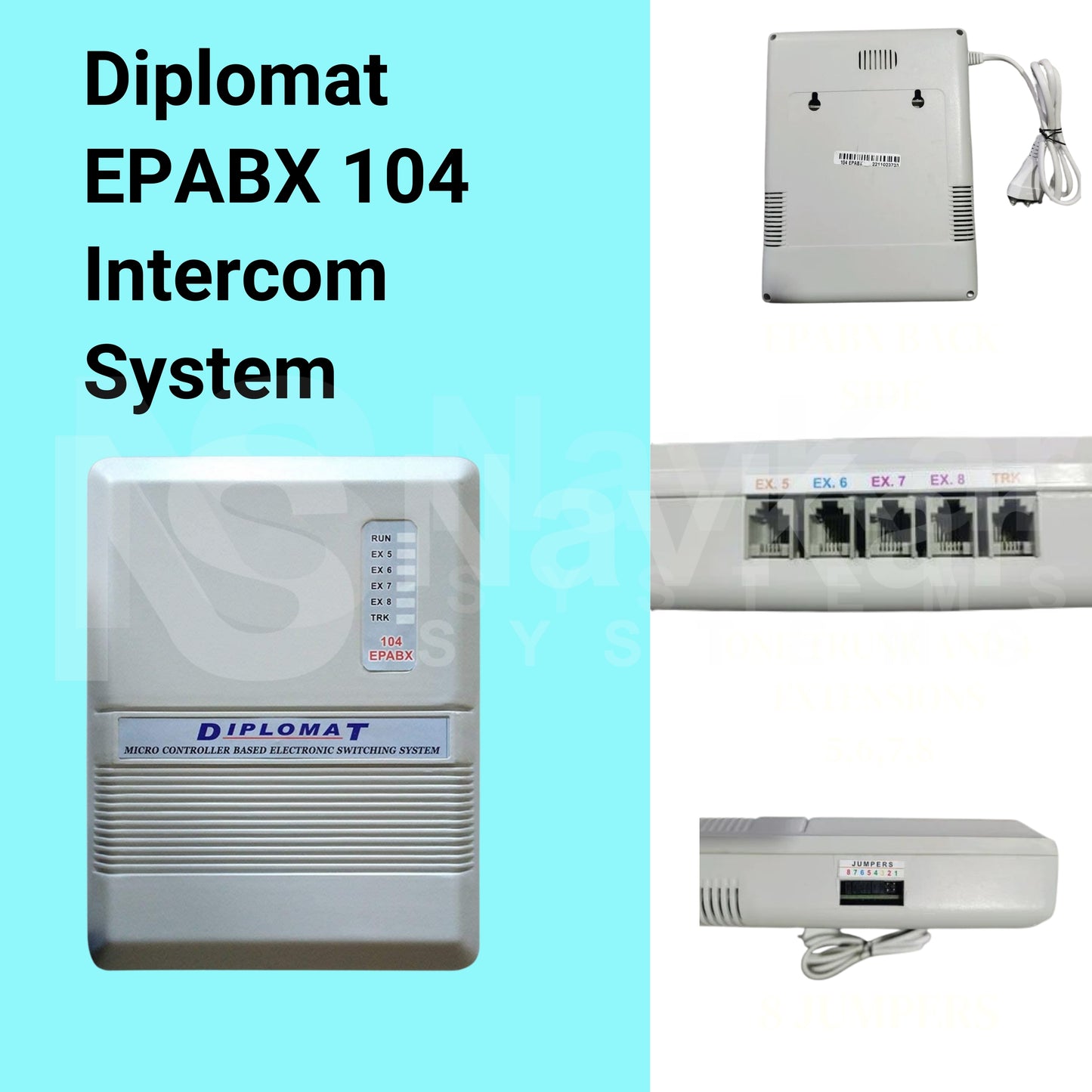

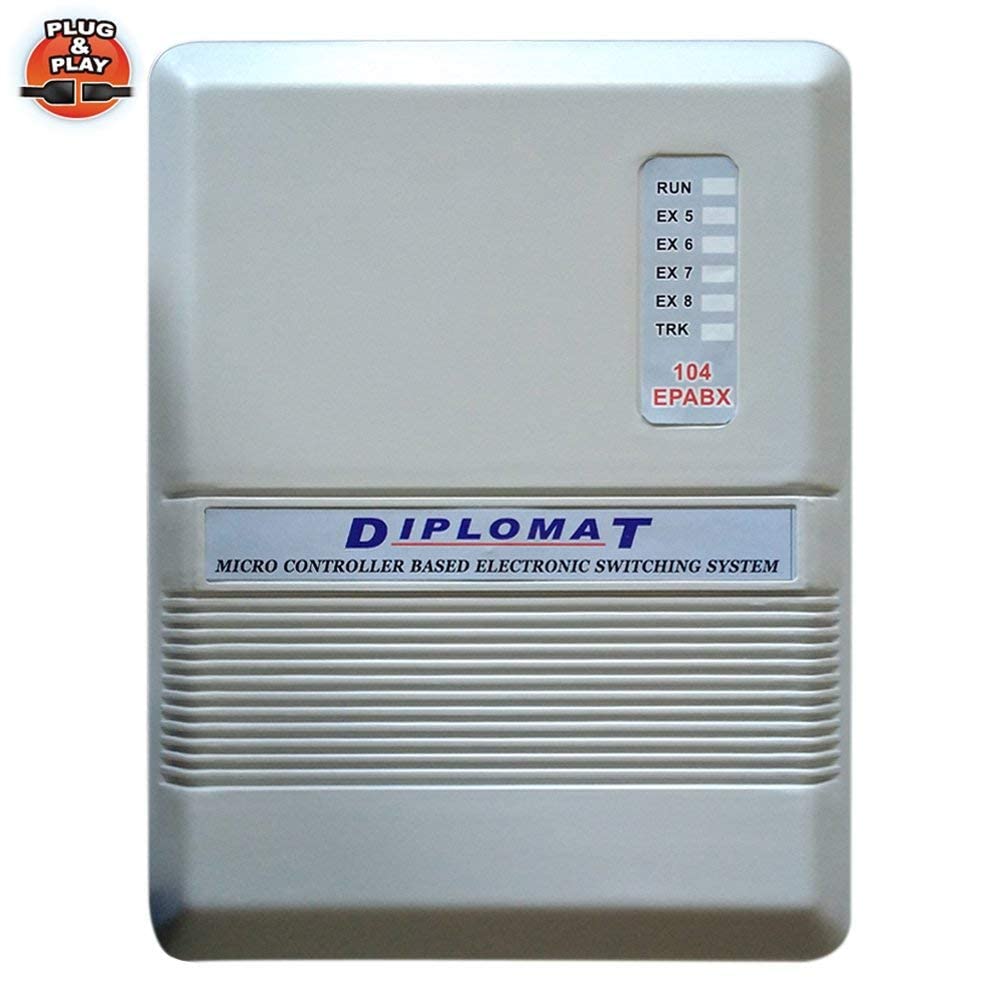

EPABX 104 Intercom System
EPABX 104 Intercom System
. Cheaper here, direct.
- Amazon.in price
- Rs. 2,499
- Here, direct
- Rs. 2,374
- You save
- Rs. 125 (5% less)
Amazon price checked 28 Oct 2026; Amazon prices change often. All our prices include GST, with the same warranty and free support.
Couldn't load pickup availability
Brand: Diplomat
Color: White
Features:
104 Line Intercom System
Easy to Connect and Install Phones, Used to make communication between 4 phones
Plain or Caller Id Phones can be used
1 Main and 4 Intercom Lines can be connected
model number: DIP104
Details: High-Quality System for 1 Main Line-In and 4 Intercoms / Extensions Best for Office, Small Office, Home Office, Shop, Showroom, Apartment, Home etc. Use it as office EPABX System with P&T Line-In or Use as a Simple Intercom System (No Need of P&T Line-In works as the only Intercom) Very Easy to Install just Plug 'n' Play, Easy Programming Any Normal Telephone Instrument can be Connect
EAN: 8536581356530
Package Dimensions: 9.8 x 6.9 x 2.0 inches
Every call, connected.
The DP-104 connects 1 outside telephone line to 4 internal phones. Every phone can call every other phone free by dialling its extension number, and all phones share the outside line for incoming and outgoing calls. It suits homes, clinics and small shops.
Who it suits.
Size
Plan for about 20 percent more phones than you have today. This system fits up to 4 phones and 1 line.
Features
Call transfer, hold, call pickup and day / night mode. See the feature list above for this exact model.
Add-ons
No landline? Add a GSM gateway to use a mobile SIM as a line. Add a door phone and lock kit to open the gate from any phone.
How to install.

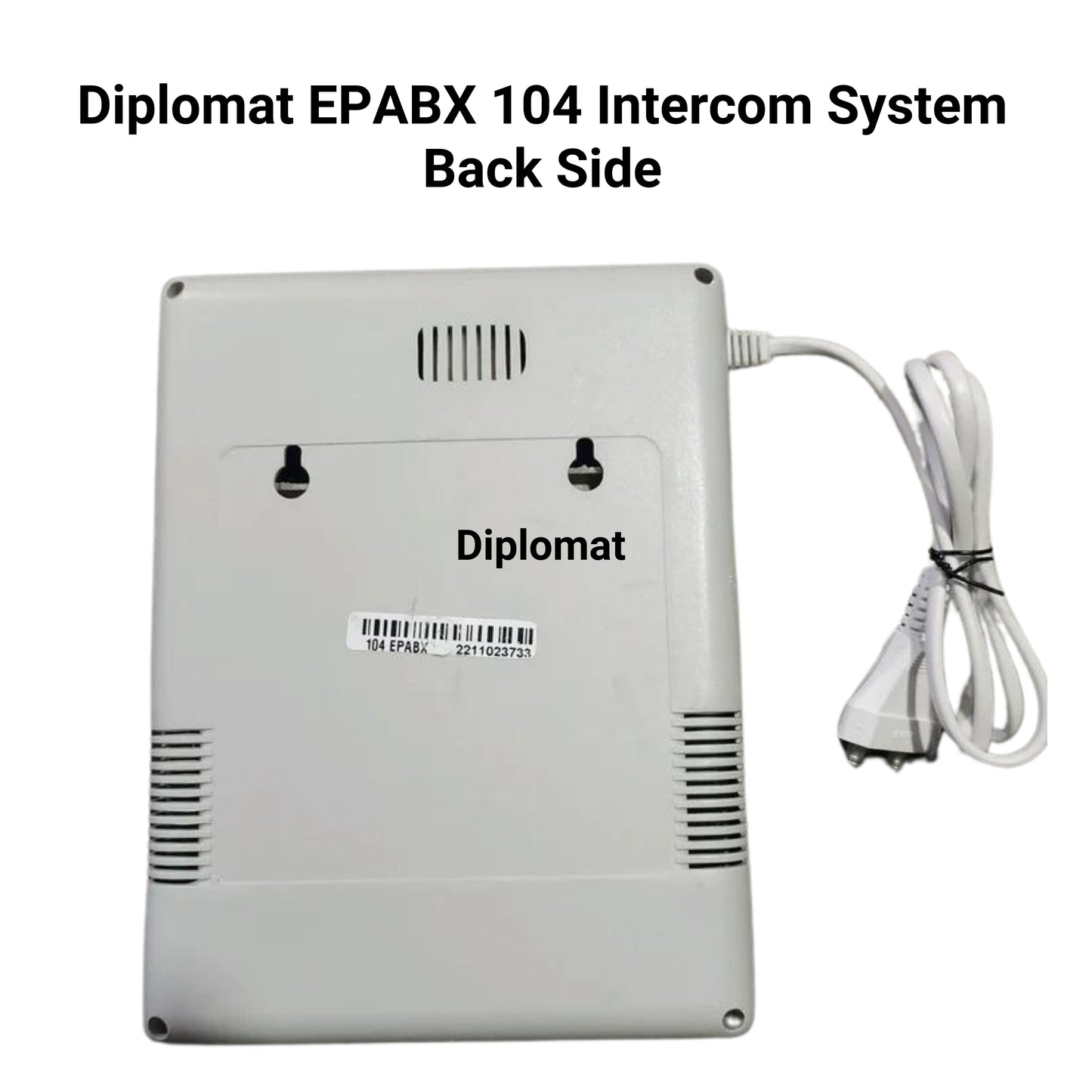

- Mount the unit on a dry, ventilated indoor wall near the telephone line socket and a power point.
- Cable each phone point back to the system with 2-core telephone cable. Keep it 30 cm away from mains wiring and label both ends.
- Terminate with a rosette at each phone; use an MDF box when you have 8 or more phones.

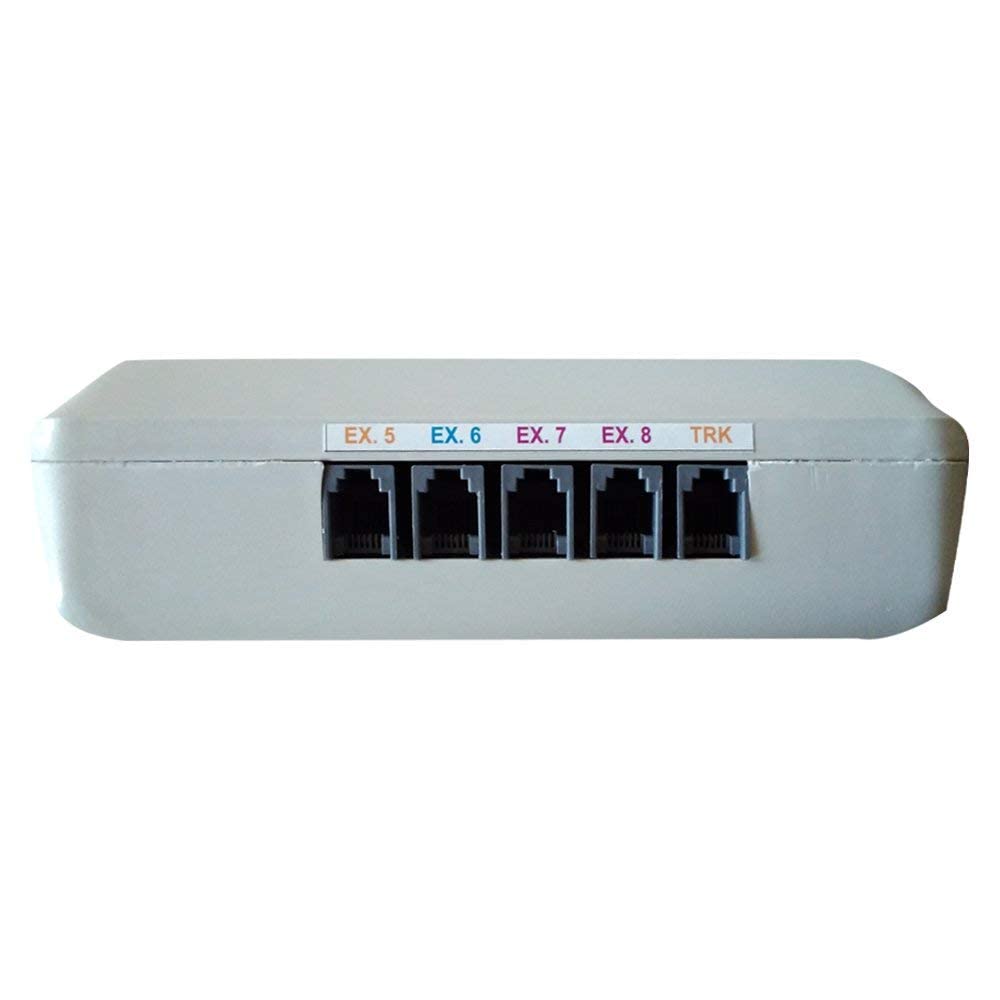

- Connect outside lines to the LINE / CO ports and each extension cable to an EXT port.
- Power-backup compatibility is model-specific. Follow the manual for the exact supplied model; do not connect batteries directly without an explicitly supported battery input and voltage.

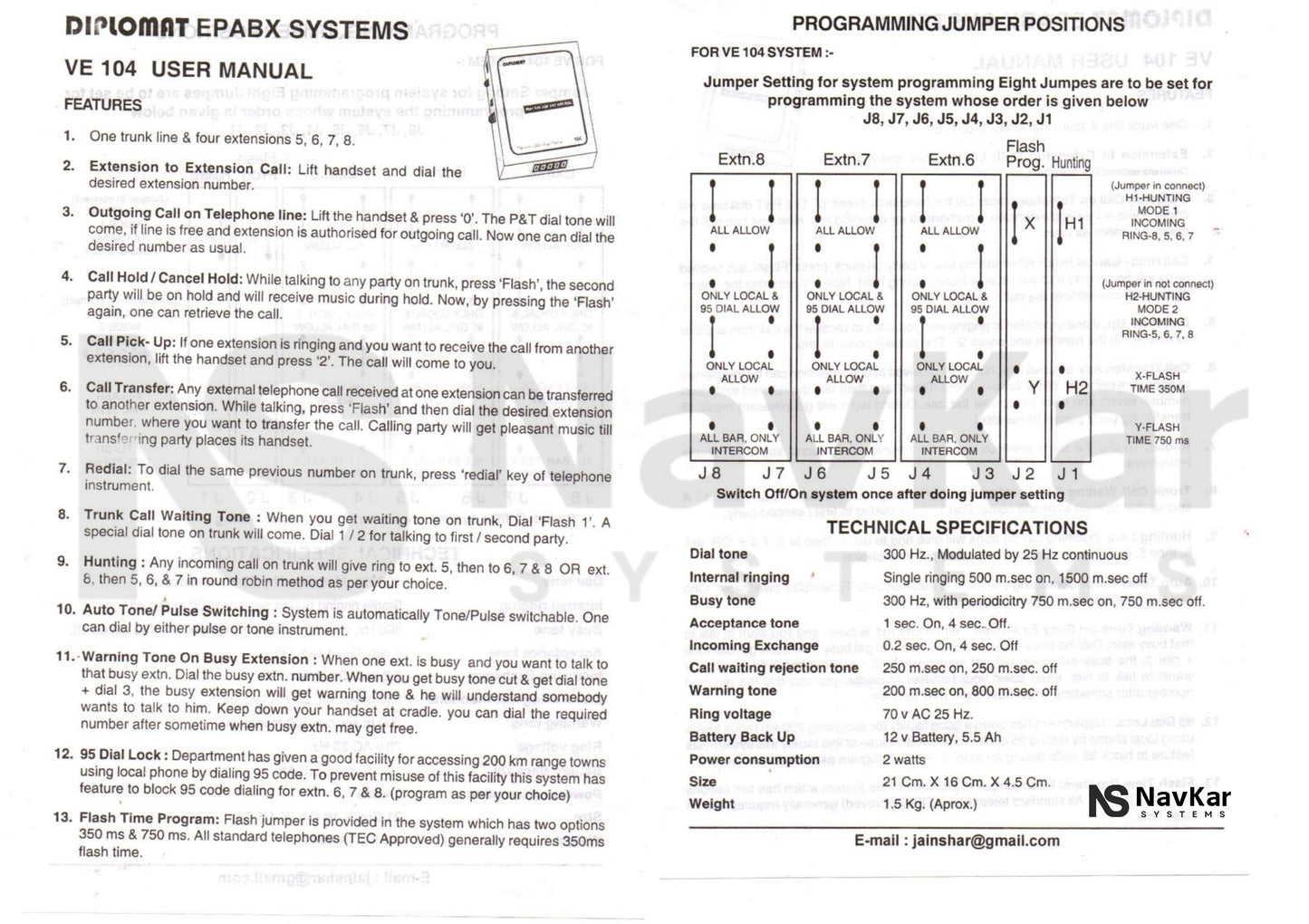

- Test extension to extension and an outside call, then programme extension numbers and restrictions from the manual.
Questions, answered.
Can I use it without an outside line?
Yes. It works as an internal intercom with no line connected.
Which phones work with it?
Any standard analogue phone in tone or pulse mode. Use caller ID phones such as the Beetel C51 or M71 where you want to see who is calling.
Will it work in a power cut?
Power-backup compatibility is model-specific. Follow the manual for the exact supplied model; do not connect batteries directly without an explicitly supported battery input and voltage.
How far can phones be from the system?
Hundreds of metres on good 2-core telephone cable. CCL specifies under 600 ohms loop resistance per extension.
Frequently asked questions
What is an EPABX?
An EPABX is a small phone exchange. It shares a few outside lines between many extensions and lets staff call each other free of charge on an intercom.
Do I need special phones?
No. Standard corded or cordless telephones work as extensions. Simple 2 core telephone wire connects each extension to the exchange.
How do I choose the number of lines and extensions?
Pick the number of outside lines that can be in use at the same time and the number of desks or rooms to connect, then add some spare extensions for growth.
Do prices include GST?
Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.
Is technical support available?
Yes. Free technical support is available for installation and setup.
