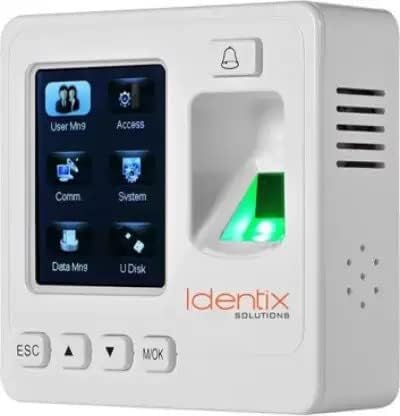

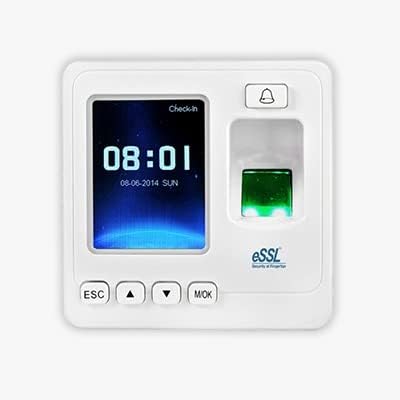

Fingerprint - SF100 IP based Fingerprint Time Attendance & Access Control System
Fingerprint - SF100 IP based Fingerprint Time Attendance & Access Control System
Couldn't load pickup availability
Specifications
Technical Specifications
- Fingerprint Capacity : 1500
- Card Capacity : 5000
- Transactions : 80000 Logs
- Fingerprint Sensor : 500 DPI Optical sensor
- Display : 2.4” TFT
- Algorithm : VX10.0 version
- Communication : TCP/IP, RS485, USB-host
- Power : DC 12V/3A
- Operating Temperature : 0°C - 45°C
- Operating Humidity : 20% - 80%
- Dimension (W x L x H): 90 90 x 34.5 mm

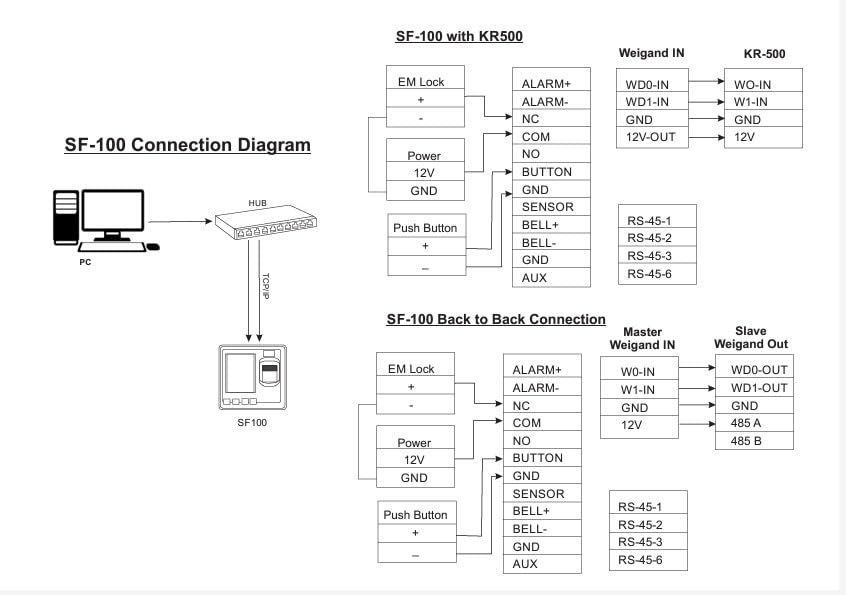

- Access Control Interface:
- Support : Exit Reader KR500E, Electric lock, Door sensor, Alarm, Exit button, Door bell
- Wiegand Signal : Wiegand input & output
Features
- Voice prompt for acceptance and rejection of valid/invalid fingers
- Compact and lightweight, small size for 86x86mm soket installation
- Upto 15 multi-verification methods to enhance securiy level
- Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc
- Duress alarm offers effective protection against duress by threats
- Tamper-proofs switch and multiple alarm outputs
Frequently asked questions
How does a biometric attendance machine work?
It identifies each person by fingerprint, face, palm or card and records the exact punch time. Reports can be downloaded as Excel or PDF, and many models connect to software over LAN or Wi-Fi, depending on the model.
Can the same machine also open a door?
Many models have a relay output that can control an electronic door lock, so one device can mark attendance and give door access. Check the product specifications for the relay or access control feature.
What do I need to install it?
A wall mount or desk stand, a power adapter and, for network models, a LAN cable or Wi-Fi. Our team gives free technical support for setup.
Do prices include GST?
Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.
Is technical support available?
Yes. Free technical support is available for installation and setup.
