Hikvision DS-K1T343EWX Face Attendance Machine

Enhance your attendance management system with the Hikvision DS-K1T343EWX Face Attendance Machine. This Recognition Terminal boasts a remarkable capacity to store up to 1500 faces and 3000 cards, ensuring comprehensive access control. The 4.3-inch LCD touch screen provides a user-friendly interface for seamless operation, while the built-in 2-megapixel wide-angle lens guarantees precise face recognition. Additionally, the integrated EM card reading module adds versatility, making it an all-in-one solution for your attendance and security needs.

Specifications

• System
• Operation System Linux

• Display
• Dimensions4.3-inch
• Resolution480 × 272
• Type LCD
• Operation Method Capacitive touch screen

• Video
• Pixel2 MP
• Lens× 2
• Video Standard PAL (Default) and NTSC

• Network
• Wired Network10 M/100 M self-adaptive
• Wi-Fi Support

• Interface
• Network Interface1
• RS-4851
• Wiegand1
• Lock Output1
• Exit Button1
• Door Contact Input1
• IO Output-
• TAMPER1
• USB1

• Capacity
• Card Capacity3,000
• Face Capacity1,500
• Event Capacity150,000

• Authentication
• Card Type EM card
• Card Reading Frequency125 KHz
• Face Recognition Duration＜ 0.2 s
• Face Recognition Accuracy Rate＞99%
• Face Recognition Distance0.3 to 1.5 m

• General
• Power Supply12 VDC/1 A (power adapter included)
• Working Temperature-10 °C to 40 °C (14 °F to 104 °F)
• Working Humidity0 to 90% (No condensing)
• Dimensions118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")
• Application Environment Indoor
• Installation Wall Mounting; Base Mounting
• Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean; Japanese
• Weight

  Gross weight: 0.71 kg (1.57 lbs), Net weight: 0.23 kg (0.51 lbs)

• Function
• Face Anti-Spoofing Support
• Audio Prompt Support
• Time Synchronization Support

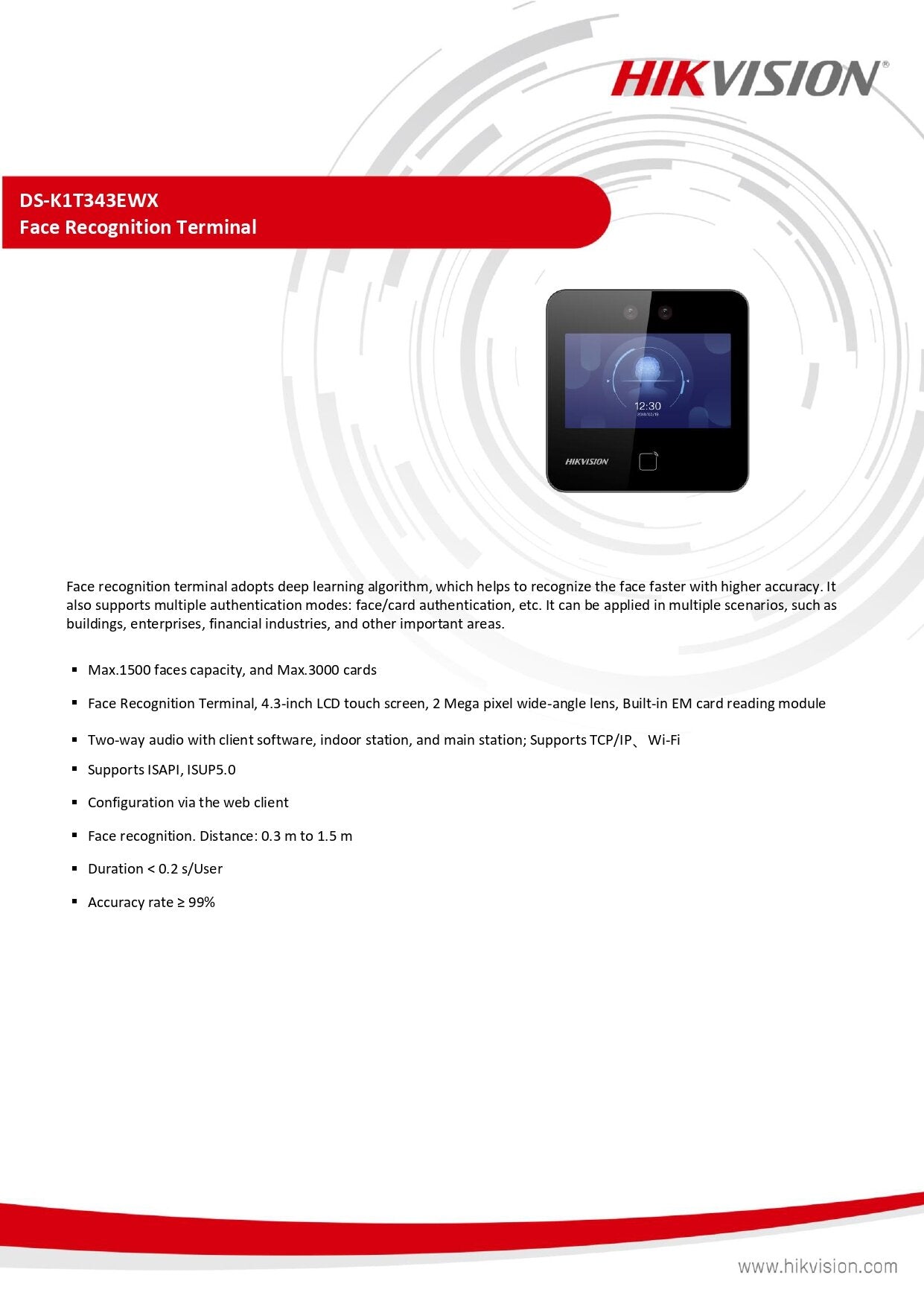

Brochure:
