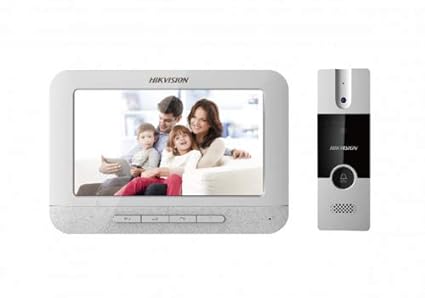

Hikvision DS-KIS204T 7-Inches Analog Video Door Phone

HIKVISION DS-KIS204T 7-inch Villa Analog Kit video door phone is a sophisticated and reliable solution for enhancing home security. With a 7-inch color screen, it provides clear and crisp video communication with visitors at your doorstep. This kit includes everything you need for installation, ensuring a seamless experience. It offers convenient features like two-way audio communication, night vision, and weatherproof design for day and night protection. Elevate your home's security and communication with this easy-to-use and efficient video door phone system from HIKVISION.

Specifications

• Door Station/Video Parameters
• Resolution 1920 × 1080 Stream resolution: 960 × 576
• Lens1/2.7" CMOS
• FOVHorizontal: 66.2°，Vertical: 37.2°

• Door Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker

• Door Station/Device Interfaces
• I/O Output1 relay output
• Four-Wire1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)

• Door Station/General
• Power Supply12 VDC
• Power ConsumptionMax. 5W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity10% to 90%
• Dimensions128 mm × 42 mm × 24.8 mm

• Indoor Station/Display Parameters
• Operation MethodPhysical button
• Type7-inch colorful TFT LCD
• Resolution800 × 480

• Indoor Station/Audio Parameters
• Audio InputBuilt-in omnidirectional microphone
• Audio OutputBuilt-in loudspeaker
• Audio QualityNoise suppression and echo cancellation

• Indoor Station/General
• Power Supply12 VDC
• Power Consumption≤5 W
• Working Temperature-10° C to + 55° C (14° F to 131° F)
• Working Humidity10% to 90%
• Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")

Download Brochure:

https://www.hikvision.com/content/dam/hikvision/products/S000000001/S000000083/S000000088/S000000089/OFR000117/M000051228/Data_Sheet/DS-KIS204T-Four-Wire-Analog-Bundle_Datasheet_20230908.pdf
