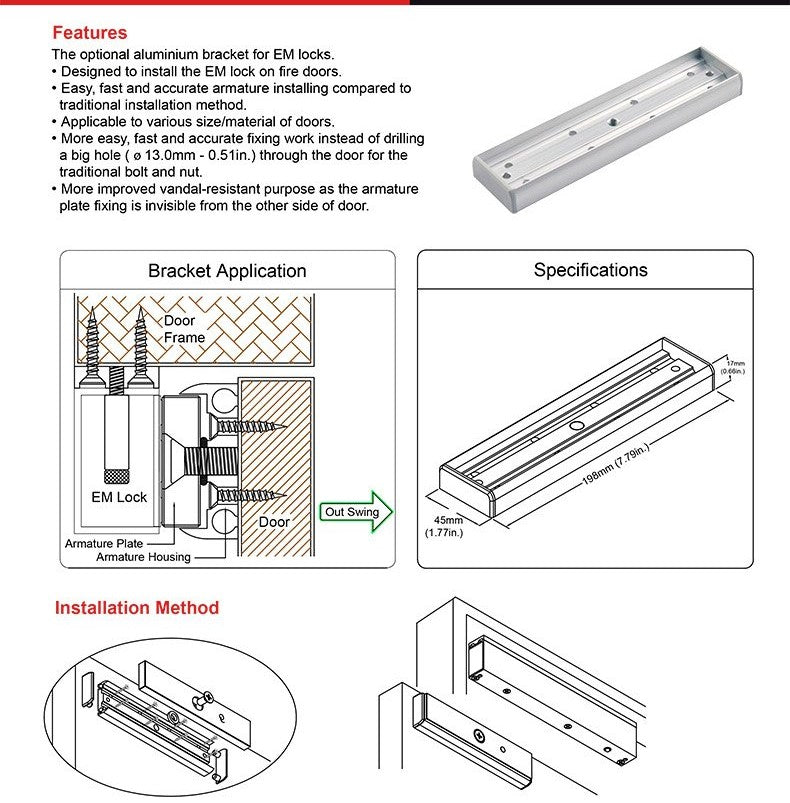

I Bracket Installation Groove of Armature Plate for 280KG 600Lbs Magnetic Lock

• I bracket is used to install the plate on the door leaf.
• Material are High Strength Aluminum,Firm and Durable.
• Easy, fast and accurate armature installing compared to traditional installation method.
• Special Design, Suitable for metal door,narrow frame door, fire door, particularly thick door, and the door that is not easy to penetrate through the screw, etc.
• If the door frame is too thick, armature plate housing is needed to be installed for the armatur plate

Features:

• I bracket is used to install the plate on the door leaf.
• Material are High Strength Aluminum, Firm and Durable.
• Special Design, Suitable for metal door,narrow frame door, fire door, particularly thick door, and the door that is not easy to penetrate through the screw, etc.
• Easy, fast and accurate armature installing compared to traditional installation method.
• More improved vandal-resistant purpose as the armature plate fixing is invisible from the other side of door.

Specifications:

• Dimensions: 7-19/32"x1-57/64"x43/64" (193x48x17mm)
• Material: High Strength Aluminum, Sandblast Finished
• Suitable: Narrow Door
• Opening Mode: 90 Degree Door
• Finished for Shell: Anodized aluminum
• Product Weight: 190g

Package:

• 1 x I Bracket
