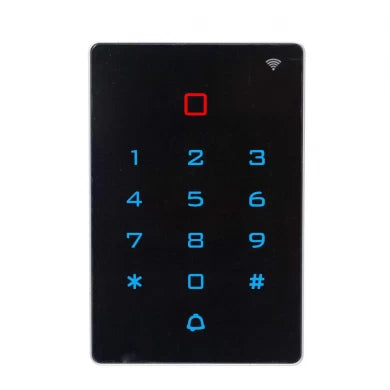

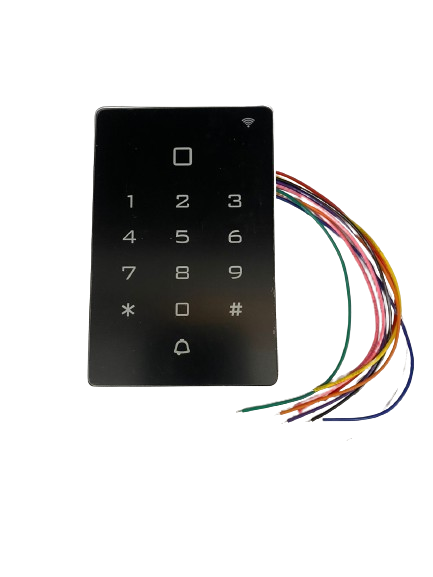

The device is a standalone access control and proximity card reader which supports EM & MF card types. It builds-in STC microprocessor, with strong anti-interference ability, high security and reliability, powerful function and convenient operation. It's widely used in high-end buildings, residential communities and other public places.
Features :-
Ultra-low Power
Standby current is less than 30mA
Wiegand Interface
WG26 or WG34 input and output
Searching time
Less than 0.1s after reading card
backlight Keypad
Operating easily at night
Access ways
Card, Pin code, Card & Pin code
Doorbell interface
Support external wired doorbell
Change codes
Users can change codes by themselves
Delete users by card no.
The lost card can be deleted by Keyboard
Specifications :-
Working Voltage: DC12V
Standby Current: ≤30mA
Card Reading Distance 2~ 5 cm
Capacity: 2000 users
Working Temperature: -40℃ ~ 60℃
Working Humidity: 10% ~ 90%
Lock output load: ≤3A
Door Relay time: 0 ~99S (Adjustable)
Installation :-

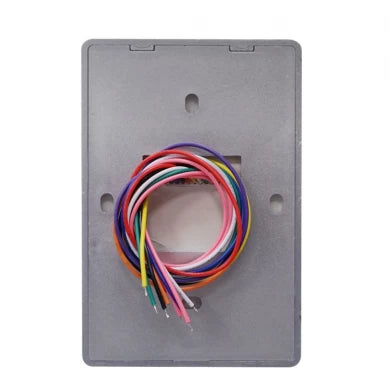

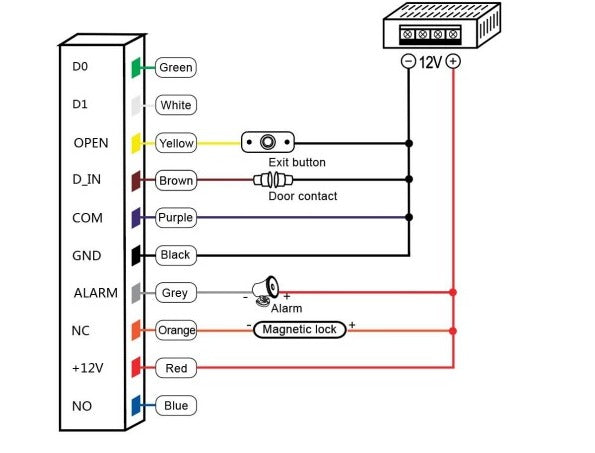

Drill hole according to the size of the device and fix the back shell with the equipped screw. Thread the cable through the cable hole, connect the wires according to your required function, and wrap the used wires to avoid short circuit. After connecting the wire, install the machine.
