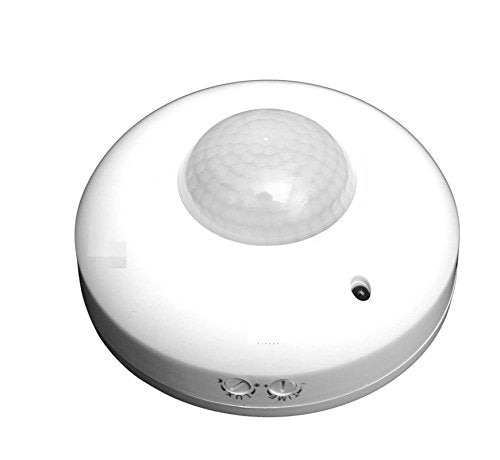

PIRC-22 360 Degree PIR Motion Sensor with Light Sensor, Energy Saving Motion Detector Switch with 12 Months Warranty (Ceiling Mounted)

Brand: NavKar SYSTEMS

Color: White

Features:

• Plz check before buying >> Sold/Reviewed and fulfilled by 'NAVKAR' only. Warranty of 12 Months with sold by NAVKAR only.
• Good solution for energy saving & easy in installation. & Delay adjustment: 10 Seconds - 7 Minutes & Adjustable Lux: turn on the lights during the day or night.
• Using the automatic control product of infrared technology, when people walk into the sensor range, and the sensor can detect the spectral change of the human body infrared ray, during this time, the switch will connect the load automatically until the person leaves the sensor range. 2, Through the photosensitive control , it will not turn on the lights in the daytime or light environment, but also can be adjusted in any lighting environment sensing lights .
• Sensitivity Adjustable: Turn On Lights during Day or nights.
• It can use with lamps, incandescent lamps (bulbs), old-fashioned fluorescent lamps, electronic fluorescent ring lamps, spotlights, transformers, small electrical appliances, and other all other appliance. Customer Care Ph: 9053635607

model number: PIRW-22

Part Number: NS-SENSOR-2

Details: NAVKAR 360 degree PIR Motion Sensor : The Product is new Energy Saving Device, it adopts good sensitivity detector, integrated ckt. It gathers automatism, convenience, Safety, Saving energy & physical functions. It works by receiving Human motion Infrared rays. Now Switch ON/OFF your Lights, Bulb, CFL, etc. by AUTOMATIC Use INFRARED PIR MOTION SENSOR Life: More than 5 years Use: Home, Office, Shops, Hospitals, Bathroom, Corridor, Step, Parking area & etc QUALITY CONTROL STANDARDS: Operating Volt: AC 220-250V 50Hz-60Hz. Load power: Up to 300/1200W Max Ambient Light: 3-2000 (Adjustable) Load type: Incandescent lamp, LED light, CLF, fans, etc. Detecting distance: 0~7M Detecting Angle: 360 Degree. Installation Hight: 2.2-4 Mtr Motion Detection Speed: 0.6~1m/s Power Cusumption:0.1W (static) & 0.4(Work) Working Humidity: less than 93%RH Delay: 10 Seconds -7 Minutes (Adjustable) PRODUCT INSTALLATION: 1.Keep Sensor unit 1.6 Mtr higher from the ground level. 2. The light, such as incandescent lamp which emits high heat should be kept from the switch away, or it will be turn on/off voluntarily. 3. On being fixed to the wire first time, the switch' initialization will take 1-2 minutes. It's natural for the switch to turn on/off voluntarily. 4. When you install the switch on daytime, the Default State of the switch will make the light off. Keep the detector of the switch from illumination, & then the light will turn ON. The darker, the switch will be more sensitive. If it is not very sensitive, turn the yellow port counterclockwise with a long and thin tool to get a proper light sensitivity. PACKAGE INCLUDES: 1 x Infrared Switch Board 1 x Wall /Celling fitting Plate 1 x Intones Manual 2 x Mounting Screw Bill

Package Dimensions: 5.5 x 5.5 x 2.0 inches
