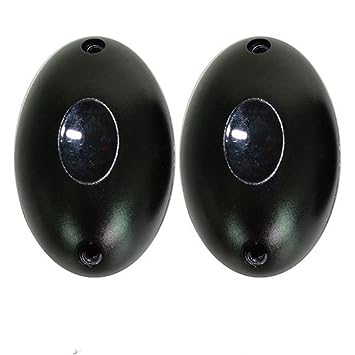

SB-10 Black Photoelectric Infrared Detector Single Beam Alarm Sensor

SB-10 Black Photoelectric Infrared Detector" is a reliable alarm sensor that utilizes a single beam to detect intrusions. It operates by sending an invisible infrared beam and triggers an alert when the beam is disrupted by any object or movement. This sensor offers enhanced security and is suitable for various applications, including perimeter protection, door/window alarms, and more.

FEATURES

• IP55 Weather proof chemical proof : fully sealed against rain, fog,chemical and dust proof, enables it to work properly in any environment.
• Anti-glare - Anti-glare up to 50,000LUX, it is built in automatic adjustment of light filter system, to avoid the impact of light or car lights.
• Automatic Induction- The detector automatically increases sensitivity when it comes to the thick fog or bad weather.
• High Power Transmission - The photosensitive margin reaches 90%, high power infrared transmission tube and low power consumption processing technology.
• Indoor alert distance: 20m ; Outdoor alert distance: 10m

PRODUCT DESCRIPTION

Description:

Item type: Infrared Detector.

Applicable: Home, door security system.

Color: Black.

Size: 8 * 5 * 2.5cm(L*W*H).

Net weight: 150g.

Shell material: PC.

Alarm linkage: Yes ( NO and NC Type, adjust using Jumper, By Default is NO ).

Working voltage: DC12-24V.

Operating current: Receive 15mA, Launch 30mA.

Indoor alert distance: 20m.

Outdoor alert distance: 10m.

Working frequency: 1.92KHZ.

Sensing speed: 30ms.

Operating temperature: -25-55℃.

Relay output: 1A MAX 36V.

Package includes: 2 * Infrared Detector, 1 * Instruction.

Features: Integrated Structure Design, Automatic Induction, High Power Transmission.
