Combo-CN106 CCL 232 EPABX Intercom with 32 Pcs BEETEL C11 Phones
Combo-CN106 CCL 232 EPABX Intercom with 32 Pcs BEETEL C11 Phones
. Cheaper here, direct.
- Amazon.in price
- Rs. 32,900
- Here, direct
- Rs. 31,255
- You save
- Rs. 1,645 (5% less)
Amazon price checked 28 Oct 2026; Amazon prices change often. All our prices include GST, with the same warranty and free support.
Couldn't load pickup availability

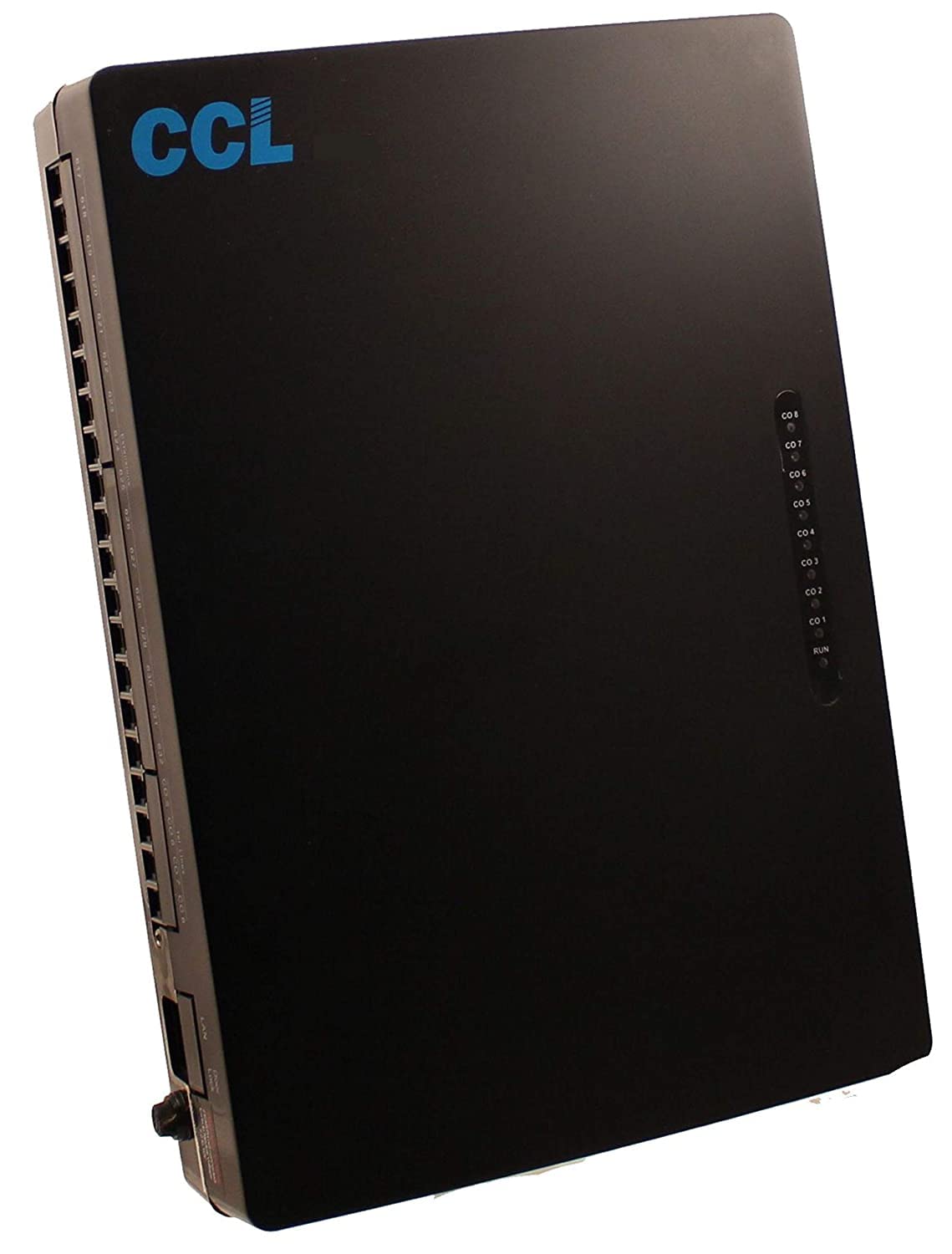

CCL 232 EPABX Intercom with 32 Pcs BEETEL C11 Phones

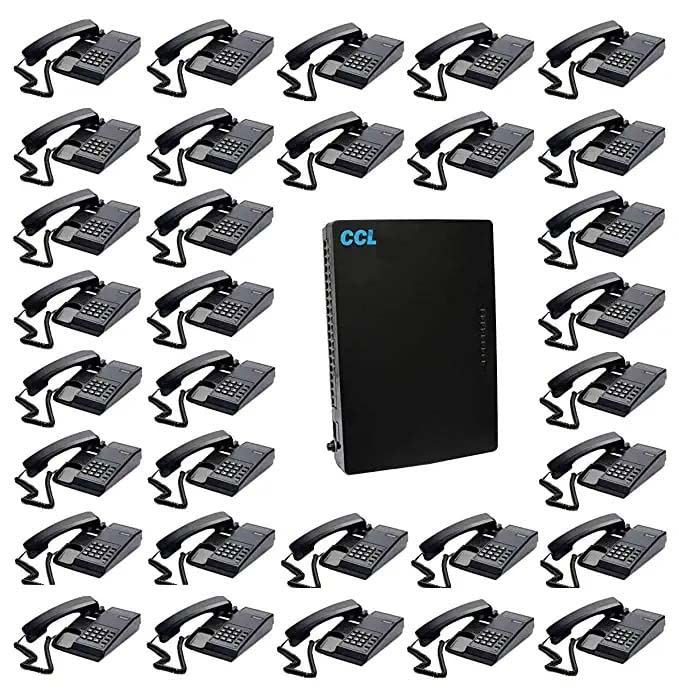

This Package Includes
CCL-232=1pcs
C11=32pcs
Every call, connected.
The CCL 232 connects 2 outside telephone lines to 32 internal phones. Every phone can call every other phone free by dialling its extension number, and all phones share the outside lines for incoming and outgoing calls. It suits large offices, schools, hospitals and hotels.
In this kit
1 x CCL 232 system and 32 x Beetel C11 basic phones (no caller ID screen). Ready to wire and use.
Room to grow
Every extension port is used by the phones in this kit.
Who it suits.
Size
Plan for about 20 percent more phones than you have today. This system fits up to 32 phones and 2 lines.
Features
Call transfer, hold, call pickup and day / night mode. See the feature list above for this exact model.
Add-ons
No landline? Add a GSM gateway to use a mobile SIM as a line. Add a door phone and lock kit to open the gate from any phone.
How to install.
- Mount the unit on a dry, ventilated indoor wall near the telephone line socket and a power point.
- Cable each phone point back to the system with 2-core telephone cable. Keep it 30 cm away from mains wiring and label both ends.
- Terminate with a rosette at each phone; use an MDF box when you have 8 or more phones.
- Connect outside lines to the LINE / CO ports and each extension cable to an EXT port.
- Power-backup compatibility is model-specific. Follow the manual for the exact supplied model; do not connect batteries directly without an explicitly supported battery input and voltage.
- Test extension to extension and an outside call, then programme extension numbers and restrictions from the manual.
Questions, answered.
Can I use it without an outside line?
Yes. It works as an internal intercom with no line connected.
Which phones work with it?
Any standard analogue phone in tone or pulse mode. Use caller ID phones such as the Beetel C51 or M71 where you want to see who is calling.
Will it work in a power cut?
Power-backup compatibility is model-specific. Follow the manual for the exact supplied model; do not connect batteries directly without an explicitly supported battery input and voltage.
How far can phones be from the system?
Hundreds of metres on good 2-core telephone cable. CCL specifies under 600 ohms loop resistance per extension.
CCL with Beetel Combo-CN106
Specifications
This NavKar combo pairs a CCL 232 EPABX (2 outside lines and 32 extensions) with 32 Beetel C11 phones, ready to wire and use. It suits large offices, schools, hospitals and hotels. The C11 is a simple basic phone with no caller ID screen.
| EPABX: Model | CCL 232 |
|---|---|
| EPABX: Outside (CO) lines | 2 |
| EPABX: Extensions | 32 |
| EPABX: Spare extension ports | None, all ports used by the kit phones |
| Phones: Model | Beetel C11 |
| Phones: Quantity | 32 |
| Phones: Type | Basic corded phone, no caller ID screen (listing) |
In the box
- 1 x CCL 232 EPABX
- 32 x Beetel C11 phones
Specifications from NavKar Systems' product details for this model. All prices include GST.
Frequently asked questions
Can I add more phones later?
Not on this unit. All 32 extension ports are used by the 32 phones in the kit, so choose a bigger model if you expect to grow.
Do I need a landline for it to work?
No. The phones work as an intercom without any line. Connect up to 2 landlines or GSM gateways when you want outside calls.
Will the phones show who is calling?
No. The Beetel C11 is a basic phone with no caller ID screen.
How far can phones be from the system?
Hundreds of metres on good 2 core telephone cable. CCL specifies less than 600 ohms loop resistance per extension.
Will it work in a power cut?
Power backup depends on the exact supplied model. Follow the manual and do not connect a battery unless the manual gives a battery input and voltage.
Can NavKar help me set it up?
Yes. NavKar gives free technical help on WhatsApp for setup and programming questions.
What is an EPABX?
An EPABX is a small phone exchange. It shares a few outside lines between many extensions and lets staff call each other free of charge on an intercom.
Do I need special phones?
No. Standard corded or cordless telephones work as extensions. Simple 2 core telephone wire connects each extension to the exchange.
How do I choose the number of lines and extensions?
Pick the number of outside lines that can be in use at the same time and the number of desks or rooms to connect, then add some spare extensions for growth.
Is technical support available?
Yes. Free technical support is available for installation and setup.
