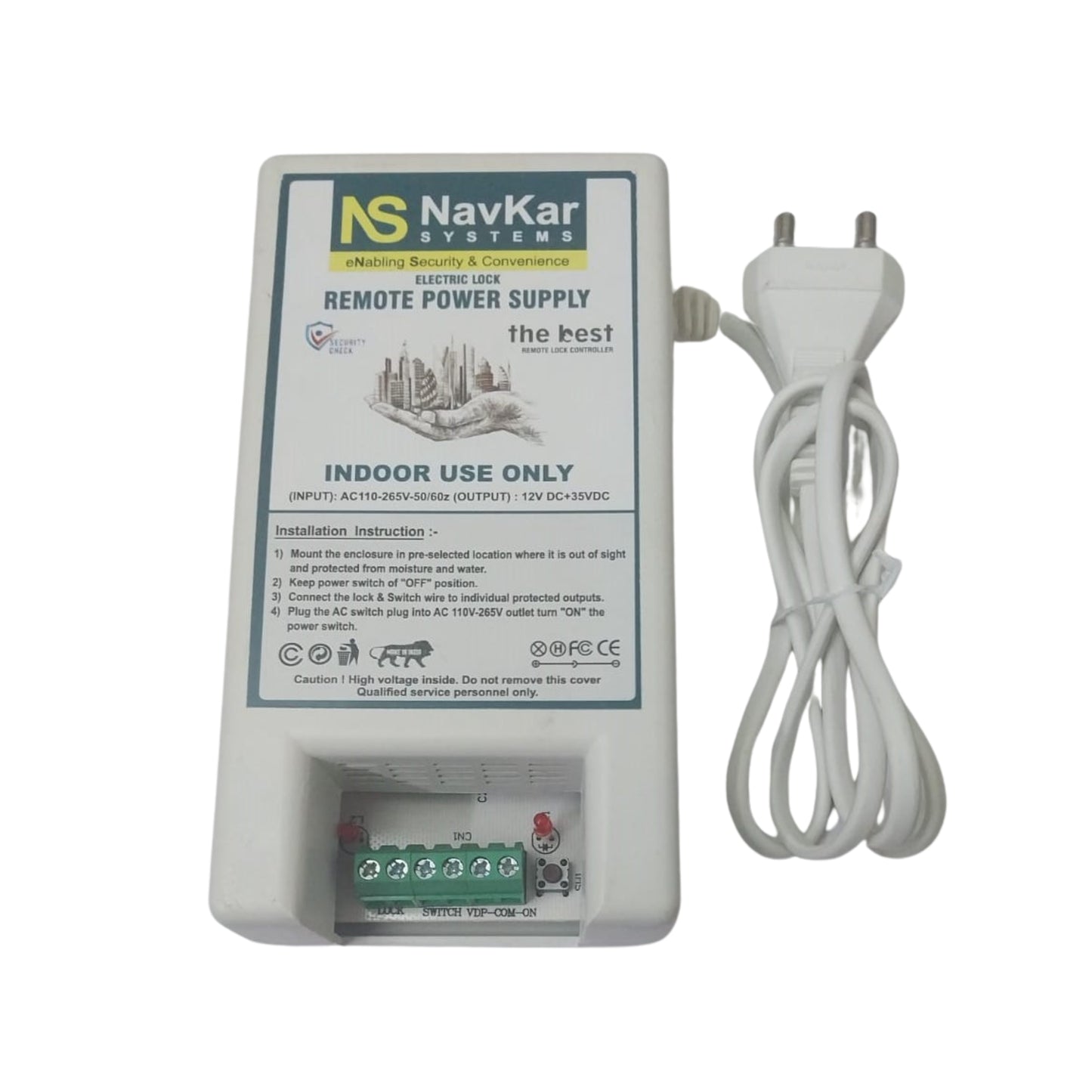

Combo-CN146 Relay Power Supply with Remote RECIVER and 3 REMOTES for Electronic Door Lock

Brand: NAVKAR SYSTEMS

Color: Silver

Features:

• Support all types of Audio/Video Door Phones
• Suitable for Residential Building, Commercial Office, Hotel, School etc.
• Easy Installation
• No Expert Required, High Quality & Reliable, Branded Product with 1 Year Warranty & Bill,

Part Number: NS-Relay Supply-3Remote

Details: 24 Volt AC power Supply for your electronic door lock with 3 remotes and receiver is inside the power supply. It does not include electronic door lock. Only buy from Navkar Systems, Other sellers like ...

Package Dimensions: 6.7 x 4.7 x 2.2 inches

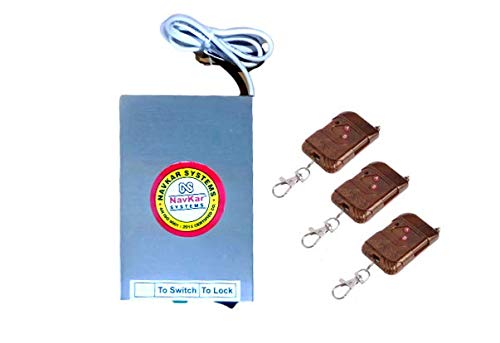

This Package Includes

PSRM-01=1pcs

RM-BR0243=3pcs

[Product Name]

• Buy on Amazon: CLICK HERE TO BUY ON AMAZON

Product Overview

The NAVKAR SYSTEMS Combo-CN146 Relay Power Supply with Remote Receiver and 3 Remotes is designed to operate compatible electronic door locks through wireless remote controls. It combines a 24V AC power supply with a built-in remote receiver, providing convenient remote-based lock operation. The package includes three RM-BR0243 remotes, and a wired switch can also be connected for local operation. It is suitable for residential buildings, commercial offices, hotels and schools, and supports compatible audio/video door phone systems.

Note: The electronic door lock is not included.

Main Purpose

• Electronic Door Lock Control – Operates compatible electronic door locks through wireless remote controls.
• Remote Access – Allows users to unlock the connected electronic lock without using a physical key.
• Lock Power Supply – Provides the required power connection for the compatible electronic lock.
• Wired Switch Support – Allows a wired switch to be connected for local operation.

Key Benefits

• Convenient Remote Operation – Control the connected lock from a distance.
• 50m Open-Area Range – Remote operation up to 50 metres in open areas.
• Multiple User Access – Includes 3 remote controls for different users.
• Easy Integration – Can be used with compatible electronic locks and audio/video door phone systems.
• Indoor Installation – The supplied unit is designed for indoor use.
• Complete Remote Control Kit – Includes the relay power supply/receiver and 3 remotes.

Important Features

• Built-in Remote Receiver – Wireless receiver is integrated into the power supply unit.
• 24V AC Power Supply – Designed for compatible electronic door lock applications.
• 3 Wireless Remotes – Includes 3 × RM-BR0243 remotes.
• Remote Range: Up to 50 metres in open area.
• Wired Switch Connection – Supports operation through a wired switch.
• Door Phone Compatibility – Suitable for integration with compatible audio/video door phone systems.
• Indoor Use Only – The supplied unit is marked for indoor use.
• Electronic Lock Not Included – The package contains the Remote Power Supply and remotes; the door lock is purchased separately

Product Specifications

• Model: PSRM-01
• Product Type: Relay Power Supply with Built-in Remote Receiver and 3 Remotes for Electronic Door Locks
• Brand: NAVKAR SYSTEMS
• Power Supply: AC mains-powered unit; 24V AC lock supply
• Communication: RF Wireless Remote Control + Wired Switch Connection
• Operating Range: Up to 50 metres in open areas
• Material: Plastic enclosure
• Dimensions: Not specified
• Weight: Not specified
• Other Specifications:
  • Built-in Wireless Receiver
  • Electronic Door Lock Support
  • Wired Switch Connection
  • Audio/Video Door Phone Compatibility
  • Indoor Use Only
  • 3 × RM-BR0243 Wireless Remotes Included
  • Electronic Door Lock Not Included
  • Wired Switch Not Included

Applications

• Residential Main Doors – Remote operation of compatible electronic locks for house entrances and main gates.
• Commercial Offices – Convenient electronic lock operation for office entrances and controlled-access doors.
• Hotels, Schools & Other Buildings – Suitable for compatible electronic door-lock installations requiring remote or wired-switch operation.

Suitable For

• Electronic Door Lock Users – For operating compatible electronic locks using wireless remotes.
• Indoor Installations – Suitable for protected indoor locations away from water and moisture.
• Remote & Wired-Switch Operation – Suitable for installations requiring RF remote control with wired-switch connectivity.
• Compatible Door Phone Systems – Suitable for compatible audio/video door-phone systems with electronic locks.

Not Suitable For

• Outdoor or Wet Locations – Indoor-use unit; protect from water and moisture.
• Incompatible Electronic Locks – Not suitable for locks requiring different power or control arrangements.
• WiFi/App Control – Designed for RF remote and wired-switch operation; WiFi/app control is not specified.
• Standalone Door Locking – Does not include an electronic door lock and cannot secure a door by itself.
• Beyond Remote Range – 50m range applies to open areas; walls and interference may reduce actual range.

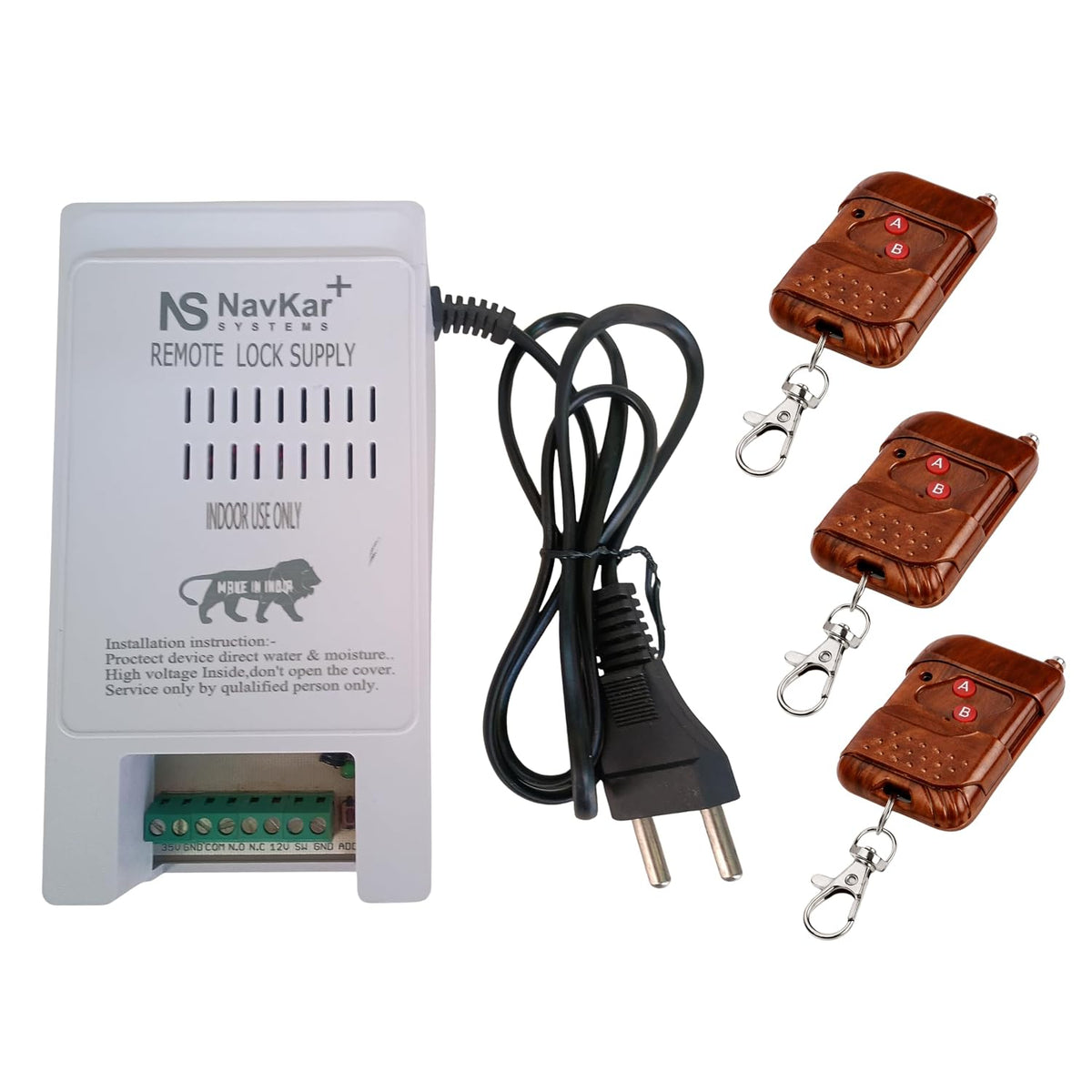

Package Contents

• PSRM-01 Relay Power Supply – 1 Piece
• RM-BR0243 Wireless Remotes – 3 Pieces

Installation

1. Select a Suitable Location – Install the PSRM-01 power supply indoors, away from direct water and moisture exposure.
2. Mount the Power Supply – Secure the unit at a suitable location near the electronic door lock and available power connection.
3. Connect the Electronic Lock – Connect the compatible electronic door lock to the relay power-supply terminals according to the lock and power-supply wiring requirements.
4. Connect the Remotes – Pair the supplied RM-BR0243 remotes with the built-in receiver and test remote operation.
5. Test the System – Check that the remote operates the connected electronic lock correctly before regular use.

Wiring

The PSRM-01 is designed as a 24V AC power supply for compatible electronic door locks, with the remote receiver built into the power-supply unit. The exact terminal labels are visible on the supplied product image.

• Power: Connect the PSRM-01 to the appropriate AC mains supply as specified for the unit.
• Input: The built-in receiver receives the wireless signal from the paired RM-BR0243 remotes.
• Output: Connect the compatible electronic door lock to the relay/power output terminals of the PSRM-01.
• Other Connections: A wired switch can also be connected to operate the electronic lock locally.

Safety: Switch off the electrical supply before making or changing wiring connections. Installation should be carried out by a qualified person.

Programming

1. Power On the Unit – Switch on the PSRM-01 after completing the required wiring.
2. Pair the Remotes – Register the supplied RM-BR0243 remotes with the built-in receiver using the receiver's learning/pairing procedure.
3. Test Each Remote – Press the programmed remote button and confirm that the connected electronic lock operates correctly.
4. Set Up Wired Operation – If required, connect and test a compatible wired switch for local lock operation.

Operation

1. Press the Remote Button – Use a paired RM-BR0243 remote to send the wireless command to the built-in receiver.
2. Relay Operates the Lock – The PSRM-01 activates its relay/output to operate the connected electronic door lock.
3. Open the Door – The user can open the door while the electronic lock is released.
4. Use Wired Switch if Required – A connected wired switch can also be used to operate the lock.
5. Repeat as Required – Additional supplied remotes can be used by other authorized users. The stated remote range is up to 50 metres in an open area.

Troubleshooting

• Problem: Remote does not operate the electronic door lock.
  Solution: Check that the remote is paired with the receiver, replace the remote battery if required, and check the power supply.
• Problem: Electronic door lock does not operate.
  Solution: Check the PSRM-01 power connection, relay output wiring and compatibility of the connected lock.
• Problem: Remote operation works only at a short distance.
  Solution: Check for walls, metal obstructions or electromagnetic interference. The stated range is up to 50m in open areas.

Common Problems

• Remote not responding – Check remote battery and pairing with the receiver.
• Lock not releasing – Check power supply, relay connections and electronic lock wiring.
• Reduced remote range – Keep the receiver away from metal obstructions and sources of electromagnetic interference.

FAQs

Q: How many remotes are included?
A: The package includes 3 × RM-BR0243 wireless remotes.

Q: What is the remote operating range?
A: The stated remote range is up to 50 metres in open areas. Actual range may vary depending on walls and interference.

Q: Can a wired switch be connected?
A: Yes. The system supports connection of a wired switch for operating the compatible electronic door lock.

Q: Is the electronic door lock included?
A: No. The package includes the PSRM-01 power supply/receiver and 3 remotes. The electronic door lock is purchased separately.

Q: Can it be used with an audio/video door phone?
A: Yes. It is designed to work with compatible audio or video door phone systems.

Spare Parts

• RM-BR0243 Remote Control – Replacement remote, subject to availability.
• PSRM-01 Power Supply/Receiver – Replacement unit, subject to availability.
• Relay/Receiver Components – Replacement components may be available depending on model and stock.

Note: Spare parts will be provided subject to availability. Design, size and appearance of replacement parts may vary due to product upgrades or model changes.

Warranty

Warranty Period: 1 Year

• Warranty Coverage: Covers manufacturing defects under normal and proper use.
• Exclusions: Does not cover physical damage, incorrect wiring, improper installation, unsuitable power supply, water/moisture damage, misuse, unauthorized modification or electrical damage.
• Remote Control: Damage caused by physical impact, battery leakage or improper use is not covered.
• Warranty Claim: Warranty service is subject to product inspection and verification of the reported issue.
• Installation: Professional installation is recommended for correct electrical connections and safe operation.

Videos

• [Installation Video]

• [Programming Video]

• [Product Demonstration Video]

Manuals

• [User Manual]
• [Installation Manual]

Downloads

• [Datasheet]: NA
• [Wiring Diagram] : NA
• [Catalogue / Brochure]: NA
• [Other Download]: NA

Customer Questions

Q: What is this relay power supply used for?
A: It is designed to operate compatible electronic door locks using wireless RF remotes and a wired switch connection.

Q: How many remotes are included?
A: The package includes 3 RM-BR0243 wireless remotes.

Q: Does it include the electronic door lock?
A: No. The electronic door lock is not included and needs to be purchased separately.

Q: Can I connect a wired push button?
A: Yes. The unit supports a wired switch connection for compatible electronic door-lock installations.

Q: What is the remote operating range?
A: The stated range is up to 50 metres in an open area. Walls and other obstacles may reduce the actual range.

Q: Can it be used with an audio/video door phone?
A: Yes, it can be used with compatible audio/video door-phone systems and electronic locks.

Q: Does it support WiFi or mobile app control?
A: No WiFi or mobile-app control is specified for this model. It is designed for RF remote and wired-switch operation.

Q: Can the power supply be installed outdoors?
A: No. It is specified for indoor use and should be protected from water and moisture.

Q: What type of power does it provide to the electronic lock?
A: The product information specifies a 24V AC lock supply for compatible electronic door locks.

Q: Can it operate any electronic door lock?
A: It should be used only with an electronic door lock that is compatible with the unit's power and control requirements.

Q: Is the wired switch included?
A: No. The unit supports a wired switch connection, but the wired switch is not included in the package.

Q: What is included in the package?
A: The package includes 1 PSRM-01 relay power supply with built-in remote receiver and 3 RM-BR0243 wireless remotes.

Q: Can the unit be used to lock a door by itself?
A: No. The PSRM-01 is a power and remote-control unit; a compatible electronic door lock is required for physical locking and unlocking.

Q: Is installation included?
A: Onsite installation is not included. Electrical connections should be made by a suitably qualified installer.

Escalation to Support

If the issue cannot be resolved using the information above, Please contact Navkar Systems at Whatsapp Support number: 91384 68548 with the following information:

• Product Model:
• Purchase Date:
• Problem Description:
• Installation Details:
• Photos / Videos:
• Previous Troubleshooting Performed:
