Combo-CN41 RFID Pin Access Control System, EM Lock 600 Lbs, U Bracket, K80 Supply, PVC Button, Keychain Tag 10 Nos for Toughened Glass Door
Combo-CN41 RFID Pin Access Control System, EM Lock 600 Lbs, U Bracket, K80 Supply, PVC Button, Keychain Tag 10 Nos for Toughened Glass Door
. Cheaper here, direct.
- Amazon.in price
- Rs. 5,499
- Here, direct
- Rs. 5,224
- You save
- Rs. 275 (5% less)
Amazon price checked 28 Oct 2026; Amazon prices change often. All our prices include GST, with the same warranty and free support.
Couldn't load pickup availability
- NAVKAR SYSTEMS RFID Pin Access Panel, EM Lock 600 Lbs, U Bracket, K80 Supply, PVC Button, Keychain Tag 10 Nos for Toughened Glass Door
- 1 year Warranty, No Warranty on Burning or Physical Damage
- Onsite Installation Not Included.
- This Package includes
- SA-32=1pcs
- EM-602=1pcs
- BRUG-EM=1pcs
- PK-80=1pcs
-
PSW-44=1pcs
KCT-125=1pcs
NavKar Systems Combo-CN41
Specifications
A kit for a toughened glass door with an RFID PIN reader and a 600 lbs EM lock fitted with a U bracket. An exit button, a K80 power supply and key tags are included.
| Suitable door | Toughened glass door |
|---|---|
| Warranty | 1 year (no warranty on burning or physical damage) |
| Reader: Type | RFID card and PIN access controller, wired |
| Reader: Access modes | Card, PIN, or card + PIN |
| Reader: Card type | EM card |
| Reader: Card read distance | More than 8 cm |
| Reader: Supply voltage | 12 V DC |
| Reader: Outputs | 1 relay output and 1 push (low) output |
| Reader: Ports | 1 door button port and 1 doorbell port |
| Reader: Lock release time | Programmable |

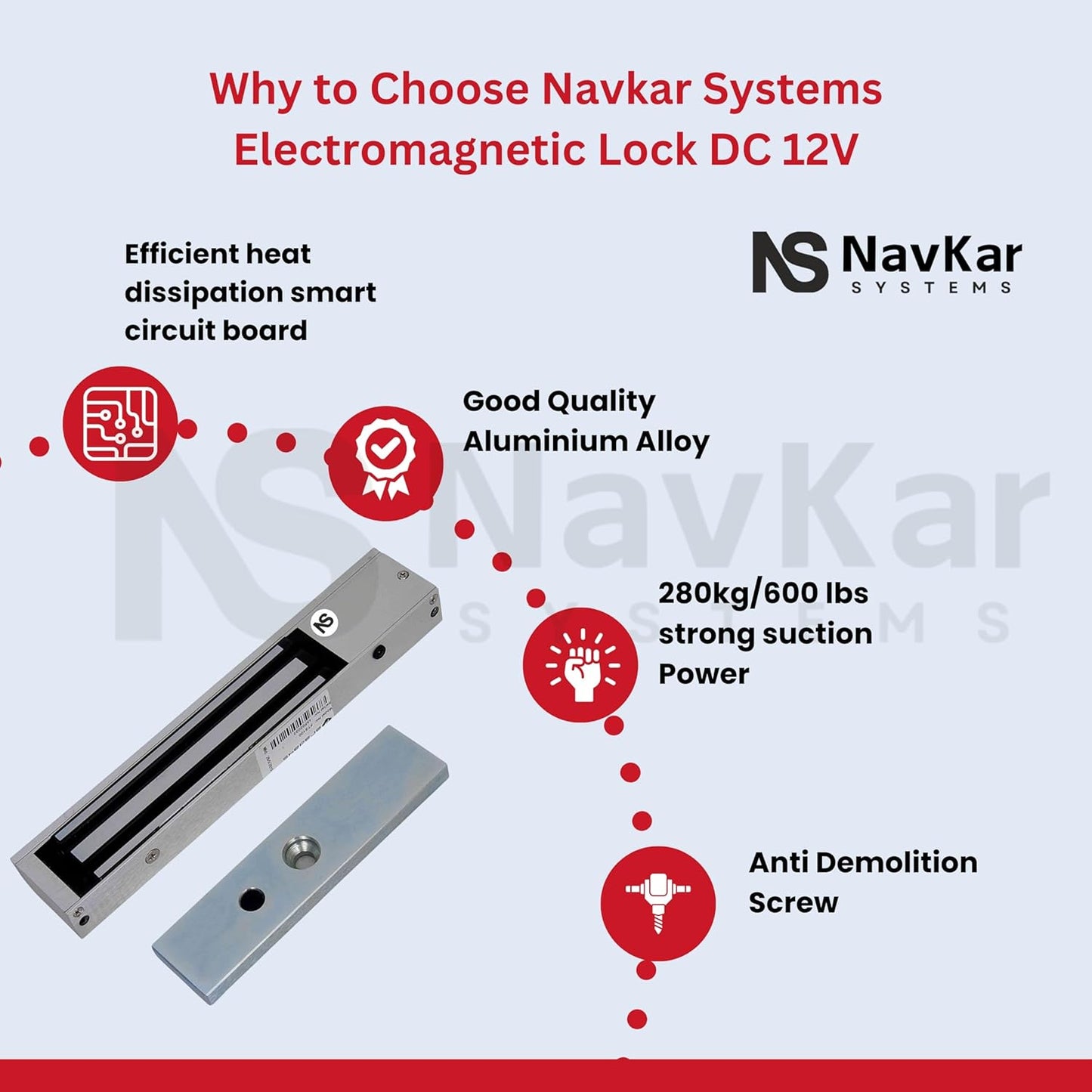

| Lock: Type | Electromagnetic lock, single leaf |
| Lock: Holding force | 600 lbs (about 280 kg) |
| Lock: Voltage | 12 V DC or 24 V DC, plus or minus 10 percent |
| Lock: Current | About 0.5 A at 12 V, 0.25 A at 24 V |
| Lock: Operation | Fail-safe (power off to unlock) |
| Lock: Feedback | Inbuilt relay and door status feedback (NO/NC/COM) |
| Lock: Lock body | About 250 x 42 x 25 mm |
| Lock: Armature plate | About 180 x 38 x 11 mm |
| Lock: Weight | About 1.8 to 2.0 kg |
| Lock: Suitable doors | Wooden, metal, glass, fireproof |
| U bracket: Type | U bracket, aluminium alloy, sandblasted finish |
| Supply: Output | 12 V DC, 3 A |
| Supply: Input | AC 110 to 240 V |
| Exit button: Type | Push release button, fireproof PC plastic, white |
| Exit button: Size | 86 x 86 mm |
| Key tags: Quantity | 1 |
| Key tags: Type | PVC 125 kHz RFID key tag, read only (not HID) |
In the box
- 1 x SA-32 RFID card and PIN access controller
- 1 x EM-602 electromagnetic lock, 600 lbs
- 1 x BRUG-EM U bracket for 600 lbs EM lock
- 1 x PK-80 (K80) access control power supply, 12 V 3 A
- 1 x PSW-44 plastic exit button
- 1 x KCT-125 125 kHz RFID key tag
Specifications from NavKar Systems' product details for this model. All prices include GST.
Frequently asked questions
What is in the Combo-CN41 kit?
The package list shows 1 x SA-32 card and PIN reader, 1 x EM-602 EM lock (600 lbs), 1 x BRUG-EM U bracket, 1 x PK-80 (K80) 12 V 3 A power supply, 1 x PSW-44 plastic exit button, 1 x KCT-125 key tag.
How can people open the door with the SA-32 reader?
The SA-32 reader accepts a card, a PIN, or card + PIN. It has one relay output for the lock, a door button port and a doorbell port.
How strong is the EM-602 lock and what happens in a power cut?
The EM-602 has a holding force of 600 lbs (about 280 kg). It is fail-safe, so it releases when power is off.
Is there a warranty?
Yes. The listing says 1 year warranty, with no warranty on burning or physical damage.
Is installation included?
No. Onsite installation is not included.
What power supply comes with this kit?
The kit has the PK-80 (K80) supply, rated 12 V DC 3 A, with an input of AC 110 to 240 V. The EM-602 lock runs on 12 V or 24 V DC and draws about 0.5 A at 12 V.
How do I open the door from inside?
Press the PSW-44 exit button, an 86 x 86 mm fireproof plastic push release button made to work with electric locks and access control. The SA-32 reader has a door button port for it.
Can I add more cards or key tags later?
Yes. The package list has 1 key tag to start with. Extra KCT-125 key tags and THK-125 or TNC-125 125 kHz cards are sold separately by NavKar.
Is a mounting bracket included with the EM lock?
Yes. The package list has the BRUG-EM U bracket.
What does an access control system include?
A reader (fingerprint, card, PIN or face), a controller, a power supply and an electronic lock such as an EM lock or strike lock, plus an exit button. Complete kits include most of these parts.
Which lock should I use with it?
Use an EM lock for glass and wooden doors that must fail open in a power cut, or a strike lock for doors that must stay locked. Match the lock voltage with the power supply.
Is technical support available?
Yes. Free technical support is available for installation and setup.
