Combo-CN14 Secure Metal Electronic Door Lock with WiFi Controller Main Gate Lock with 1 Remote | Heavy Duty Lock | Suitable for SS Steel MS Aluminium Wooden Gates | Mobile App Remote Key Based

Also available on Amazon India: Buy Combo-CN14 Secure Metal Electronic Door Lock with WiFi Contr on Amazon

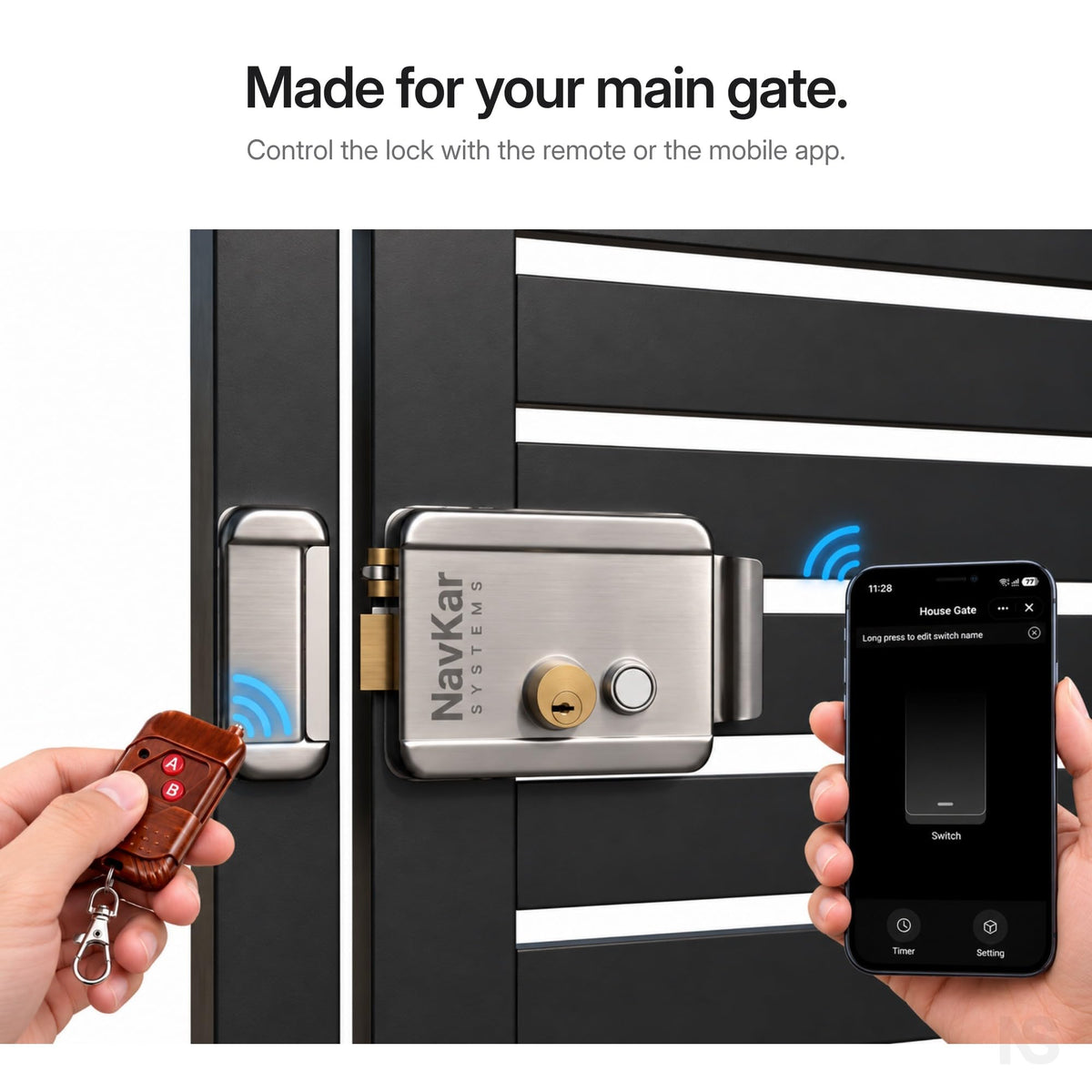

The NavKar Systems Combo-CN14 is a smart electronic gate lock kit for metal main gates. Open it with the remote, the Smart Life app, or a voice command through Alexa or Google Home. It combines the weatherproof RML-8K rim lock with the TYP-12 Wi-Fi controller.

Highlights

• Remote, app and voice. Press the remote, tap the switch in Smart Life on Android or iOS, or ask Alexa or Google Home.

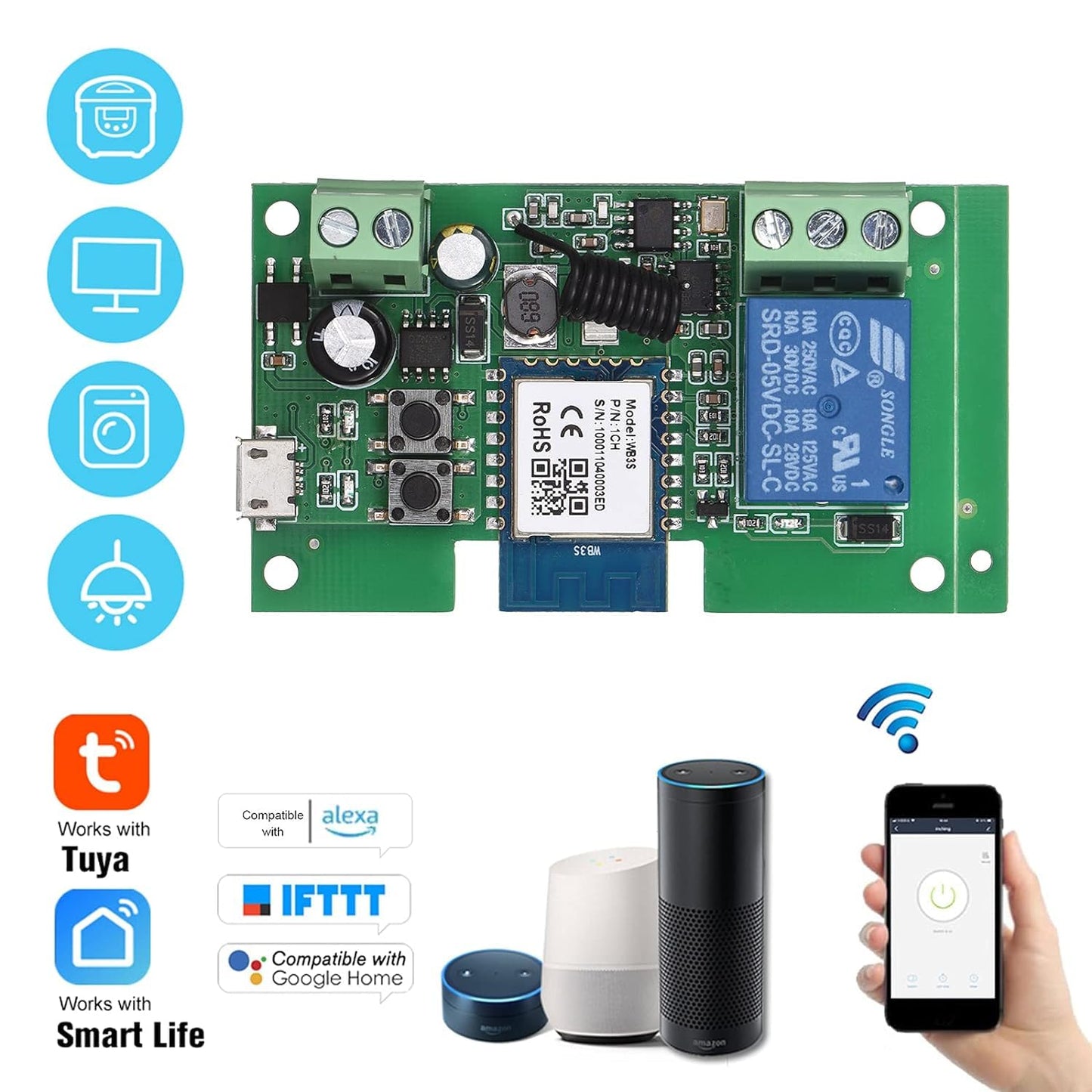

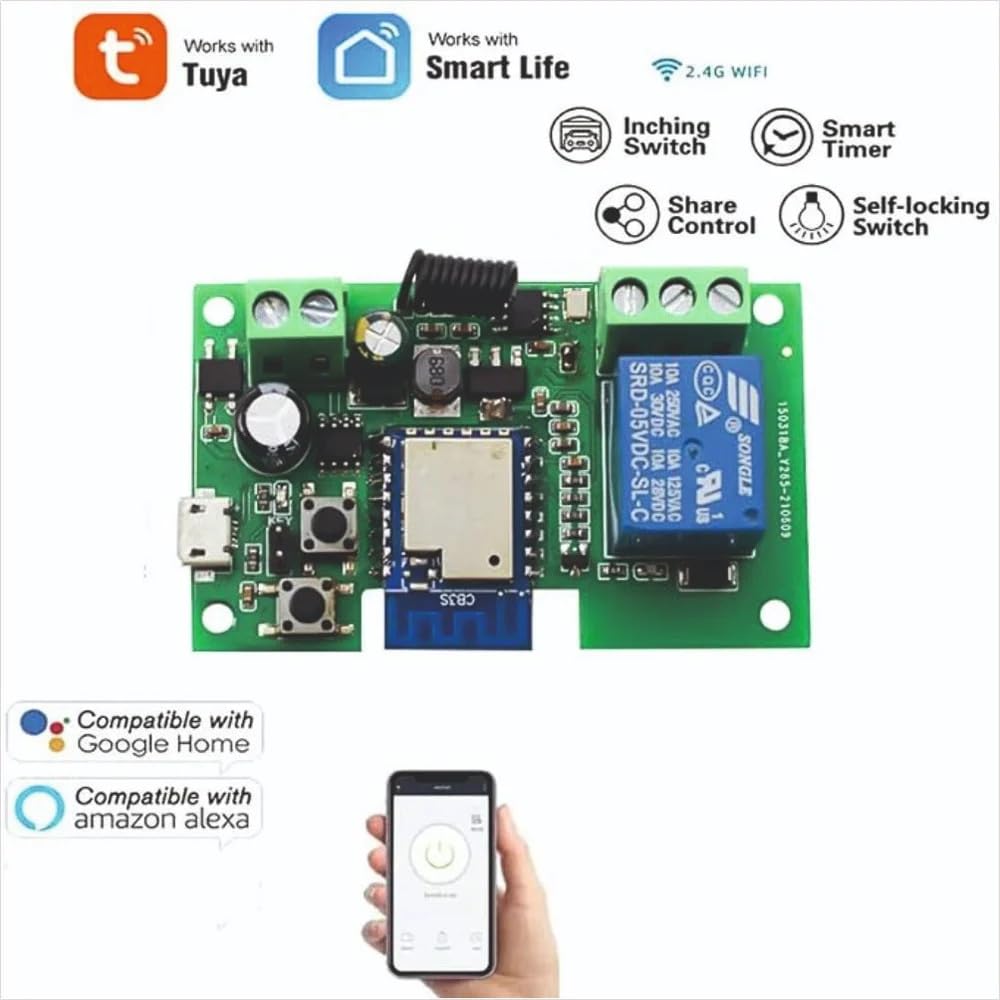

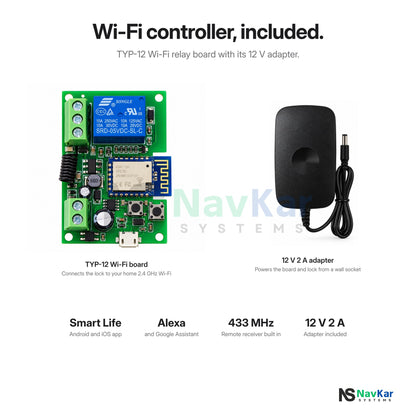

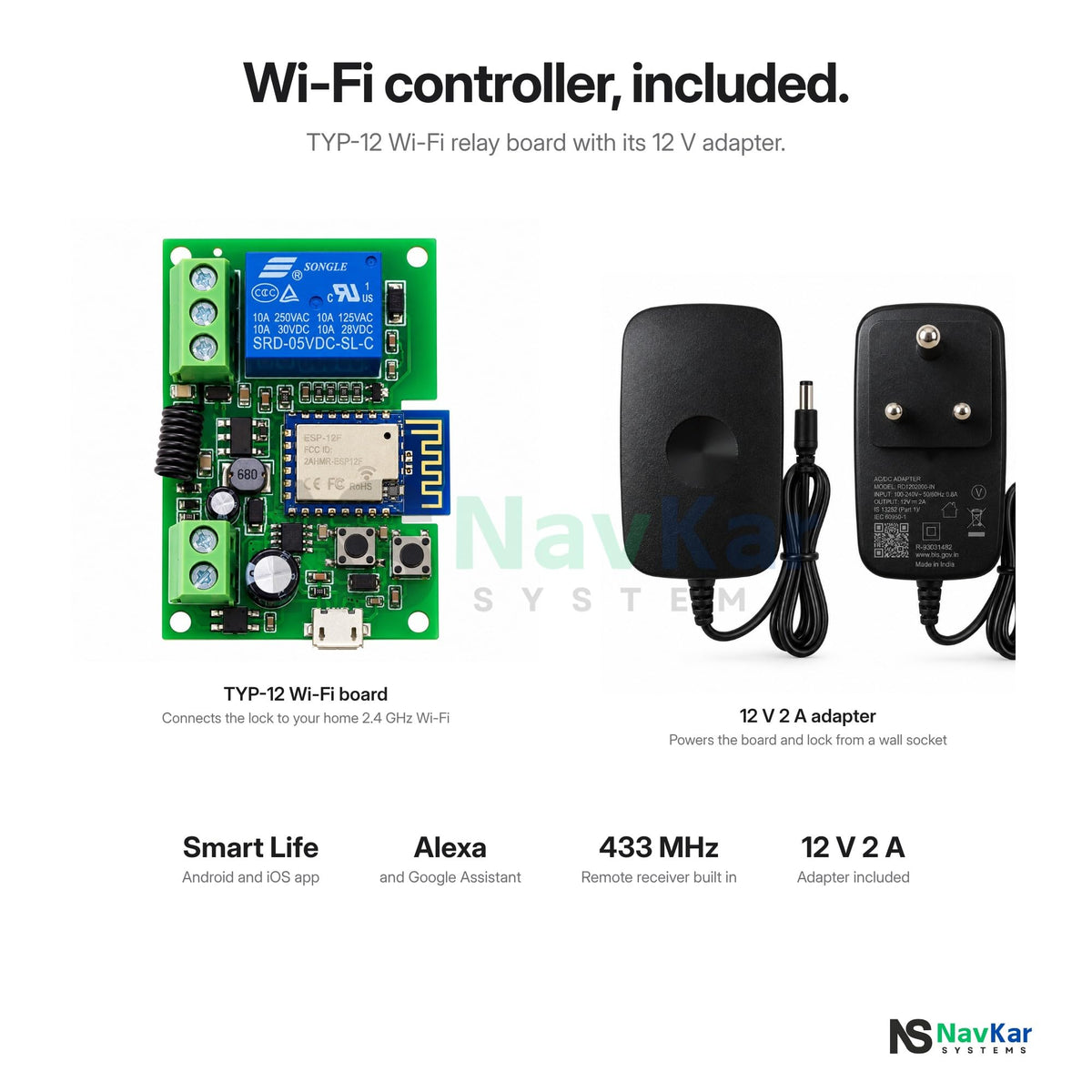

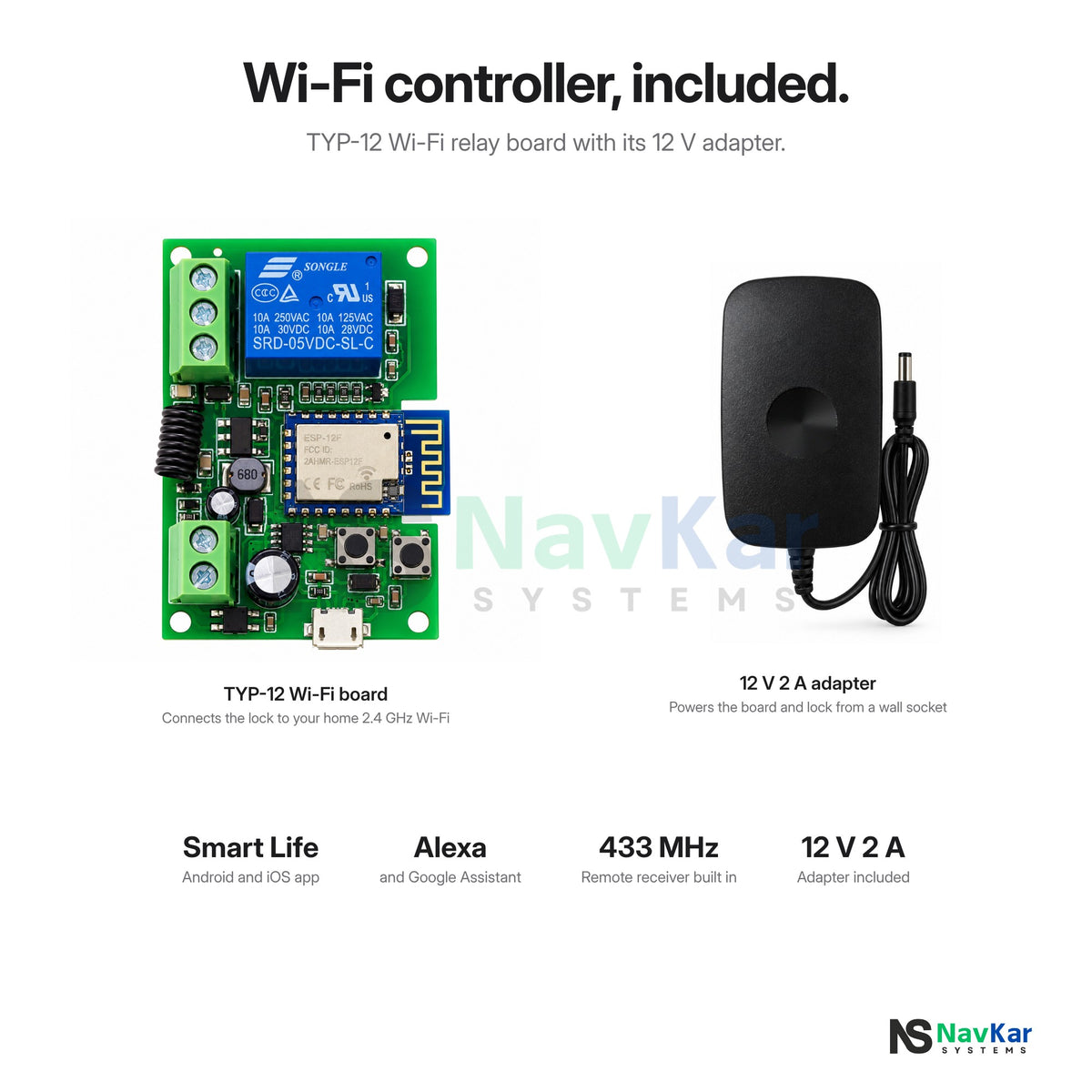

• Wi-Fi controller included. The TYP-12 board with its 12 V 2 A adapter powers the lock and connects it to your home Wi-Fi.

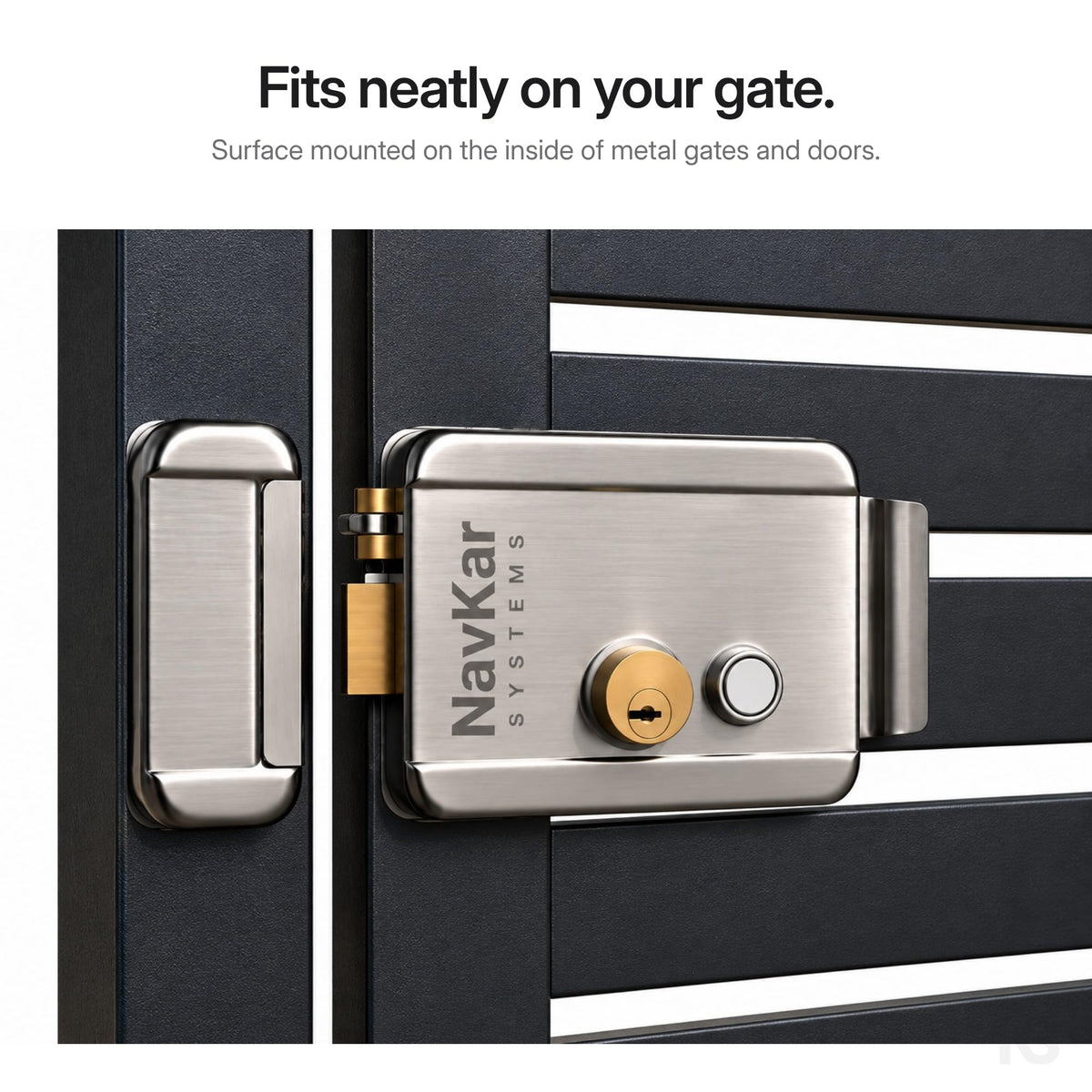

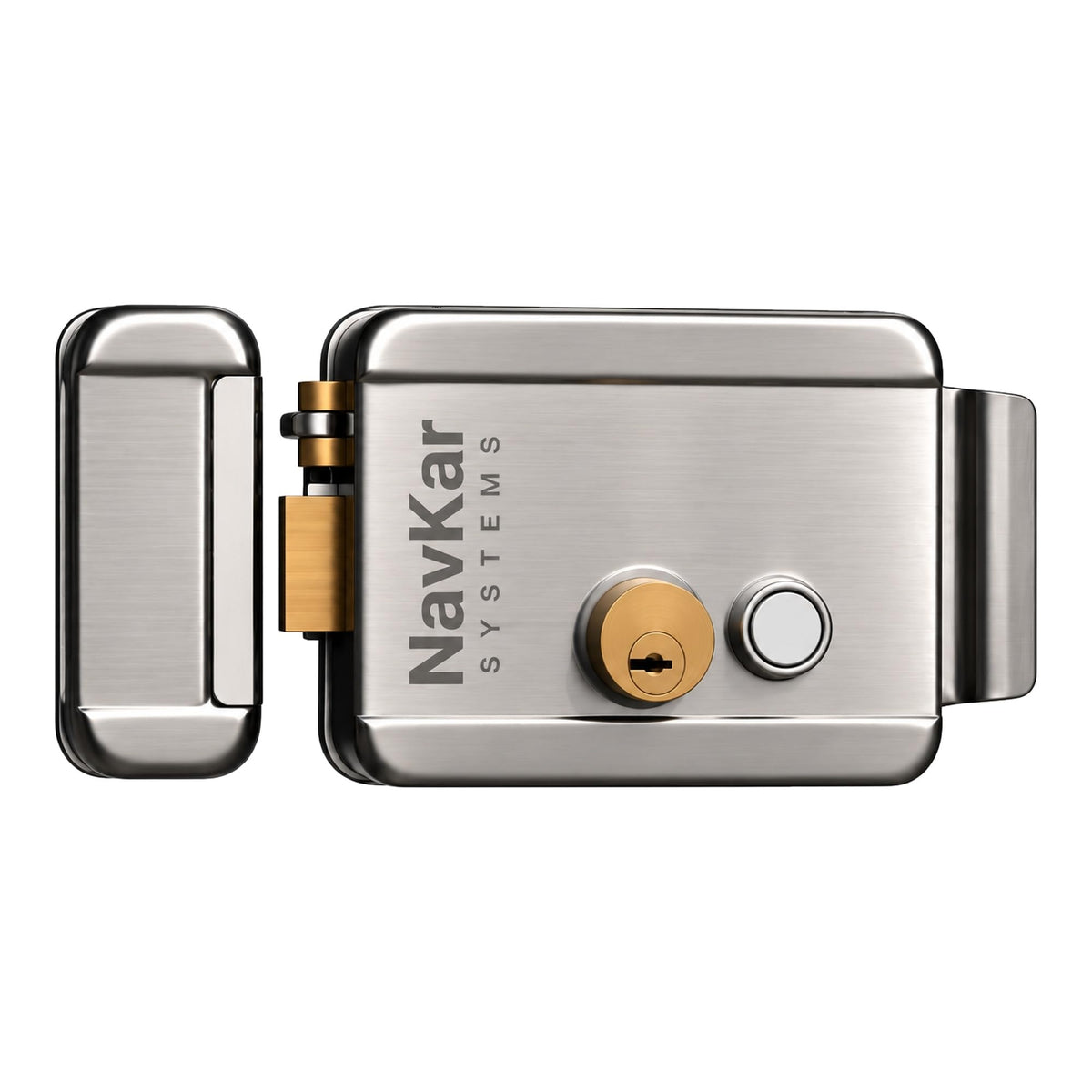

• Weatherproof RML-8K rim lock. Steel lock body made for outdoor main gates. It mounts on the inside face of a metal gate or door, with a strike on the frame.
• Self-locking latch. The latch locks again by itself as the gate closes.

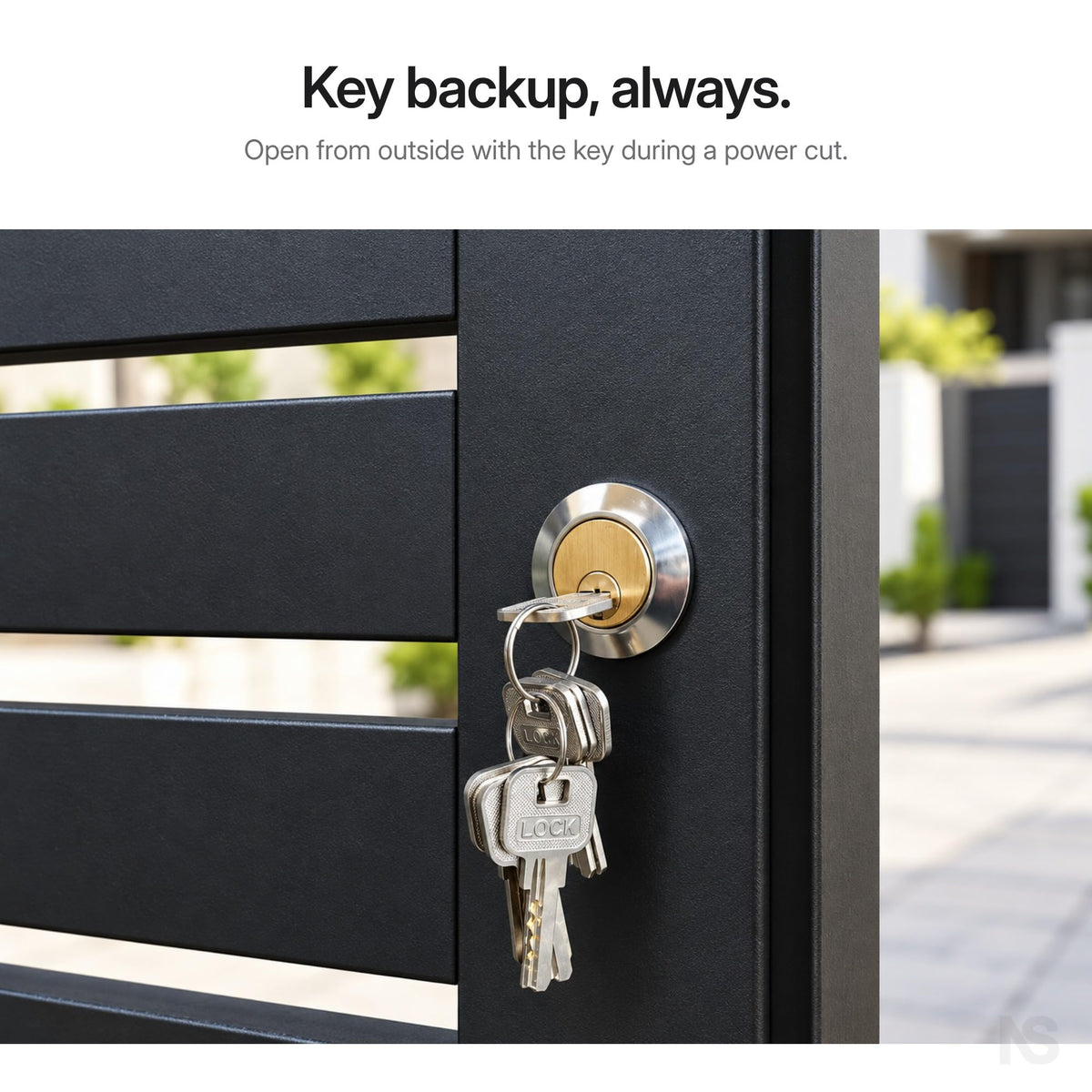

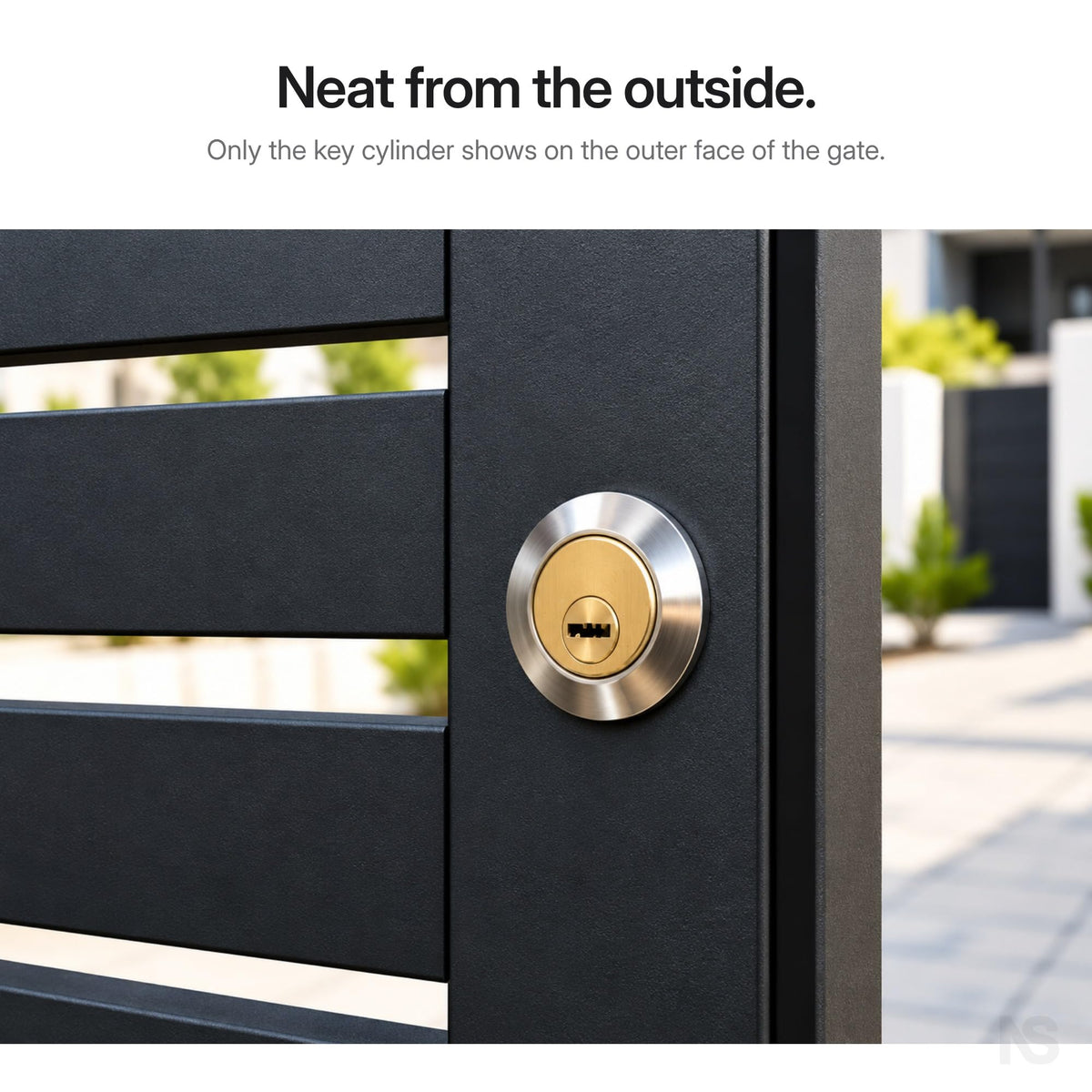

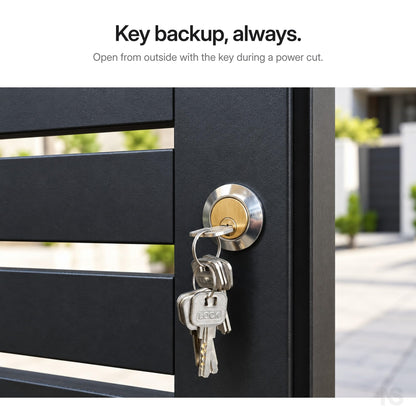

• Key backup. A 32 mm brass key cylinder with computerised keys opens the gate from outside during a power cut.

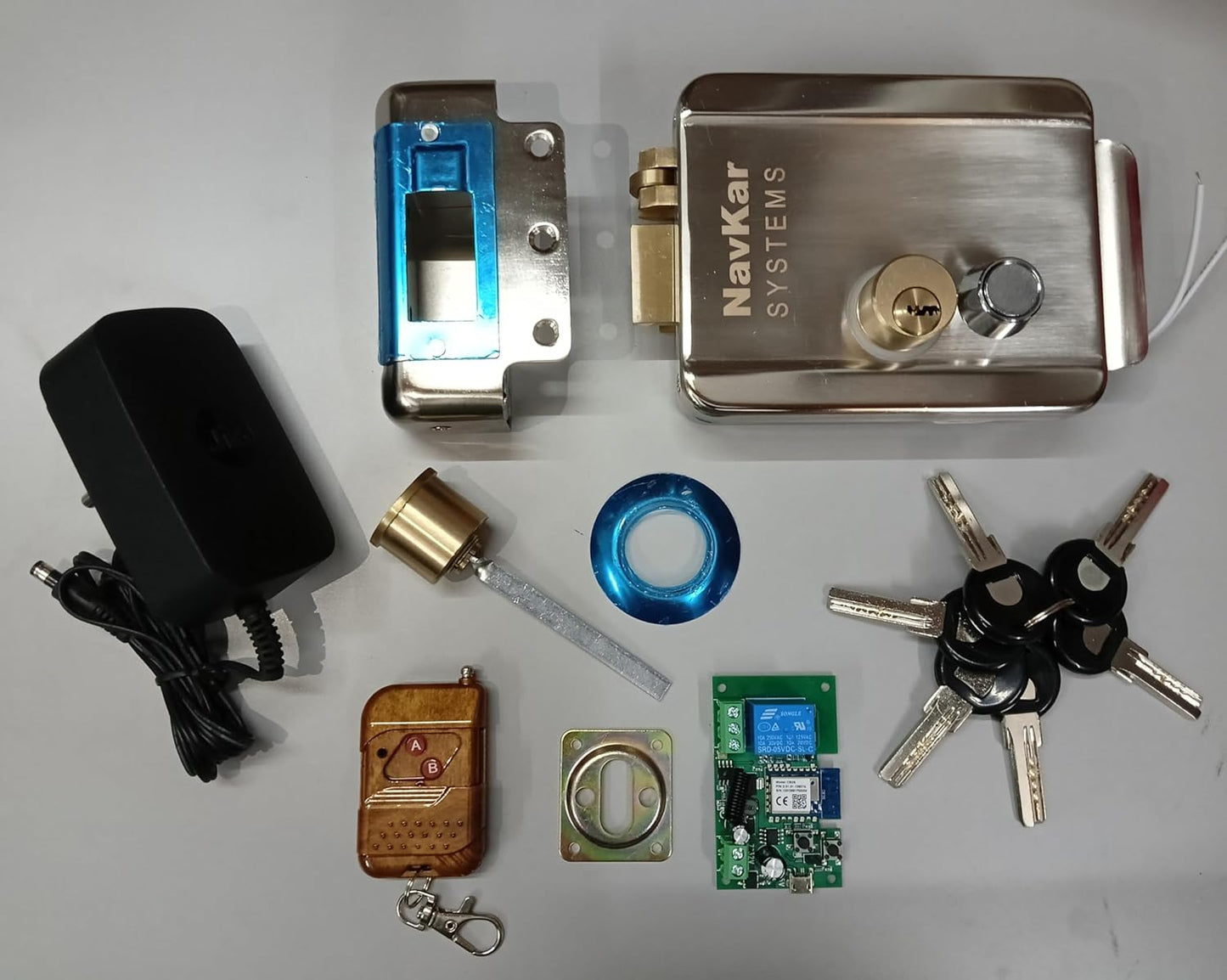

In the box

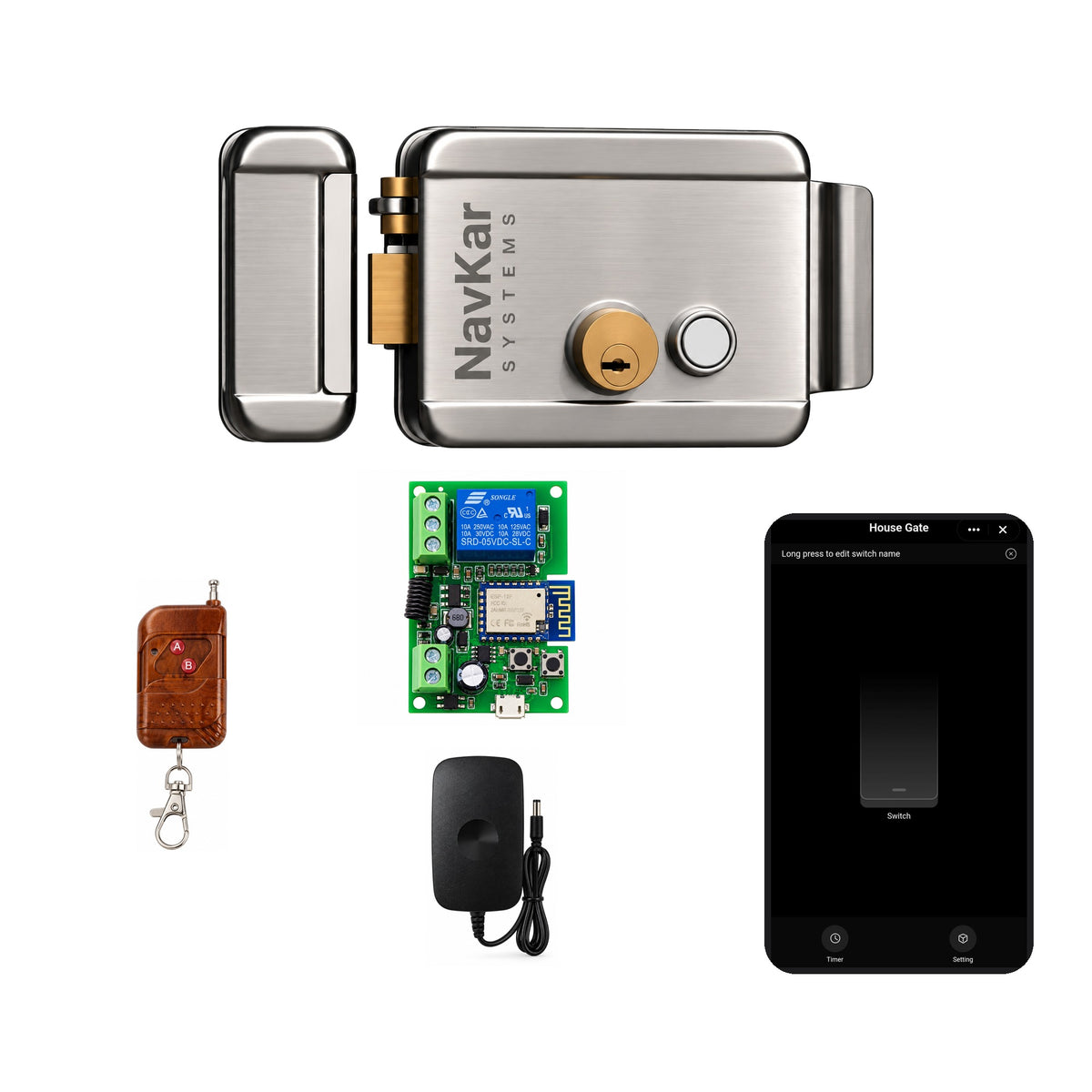

1 x RML-8K electronic lock, 1 x TYP-12 Wi-Fi controller with 12 V 2 A adapter, 1 x RM-BR0243 brown remote.

Good to know

• Use 2.4 GHz home Wi-Fi. 5 GHz is not supported.
• In the Smart Life app, open Timer and keep Inching on at 1 second so the lock coil gets only a short pulse.
• Mount the supply indoors on a dry wall, away from water.
• Mounting on a metal gate may need welding of a plate. Wiring should be done by a trained electrician.

Set up in minutes.

Three steps from the box to your open gate.

1

Fit the rim lock

Mount it on the inside face of your metal gate or door, with the strike plate on the frame.

2

Connect the power supply

Fix the supply indoors on a dry wall and wire it to the lock using the diagram below.

3

Pair remotes and the app

Add your remotes, then connect the Smart Life app on 2.4 GHz Wi-Fi and open the gate in one press.

Watch it in action.

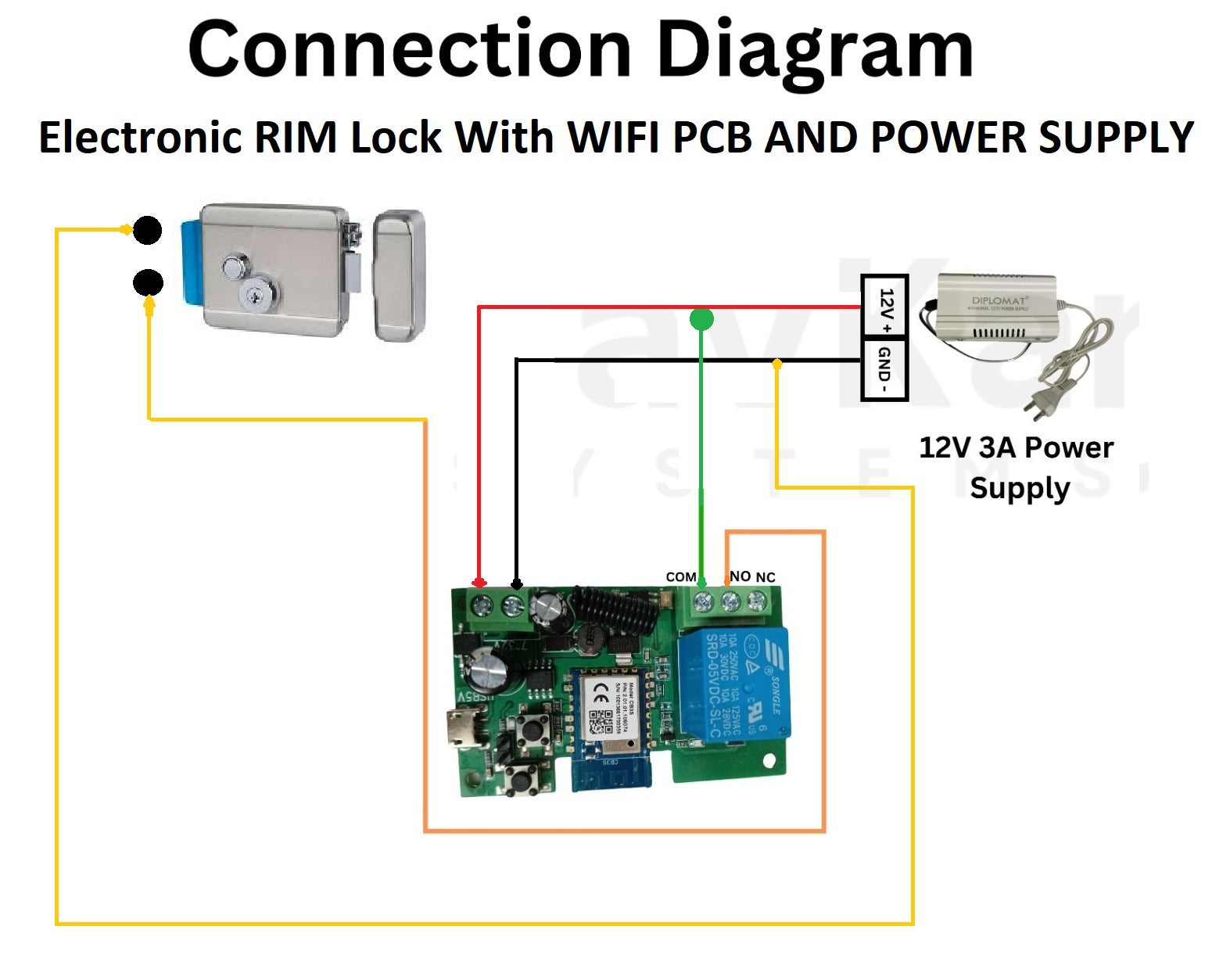

Wiring diagram.

Follow it exactly, or hand it to your electrician.

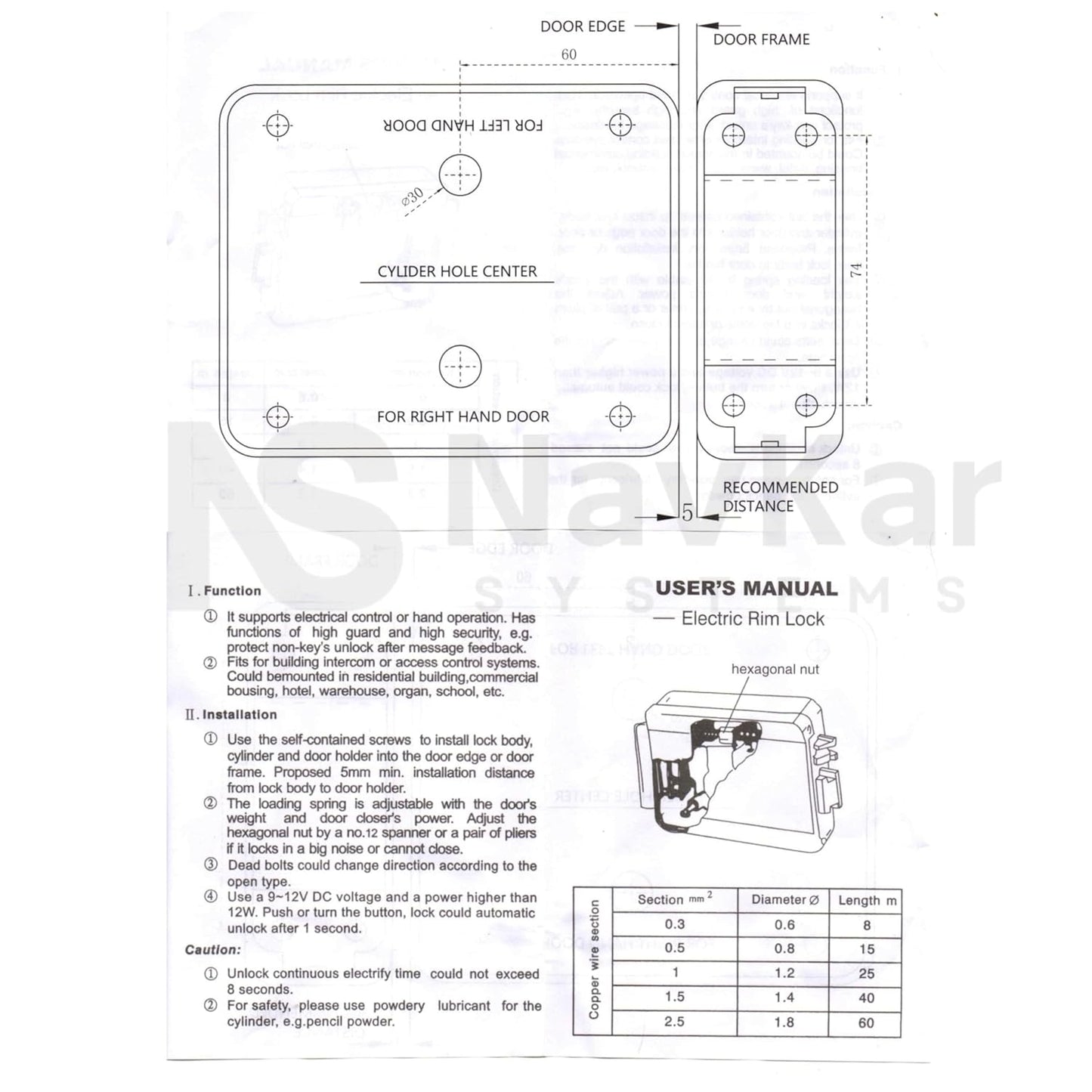

Download the installation manual (PDF)

Specifications.

At a glance

Remote range: 80 to 100 m, depending on the area
Remotes: 3 in the box, up to 20 compatible remotes
Locking: self-locking latch, locks again as the gate closes
Fitting: surface mount on metal gates and doors
App: Smart Life (Tuya) on Android and iOS, 2.4 GHz Wi-Fi

Questions, answered.

Will the remotes work if the internet is down?

Yes. The remotes talk to the receiver directly by radio, so they need no Wi-Fi or internet.

How many remotes can I add?

You get 3 remotes in the box and can pair up to 20 compatible remotes.

What range can I expect?

80 to 100 m, depending on the area. Walls and metal near the receiver can reduce it.

Who should install it?

A trained electrician or carpenter. Mounting on a metal gate may need a welded plate.

Does the app need 5 GHz Wi-Fi?

No. Use a 2.4 GHz network; 5 GHz is not supported.

NavKar Systems designs and supplies electronic locks and gate automation for Indian homes. Every kit is a matched set.
