Combo-CN59 Stainless Steel Polished Electronic Lock for House Main Metal Door with Remote

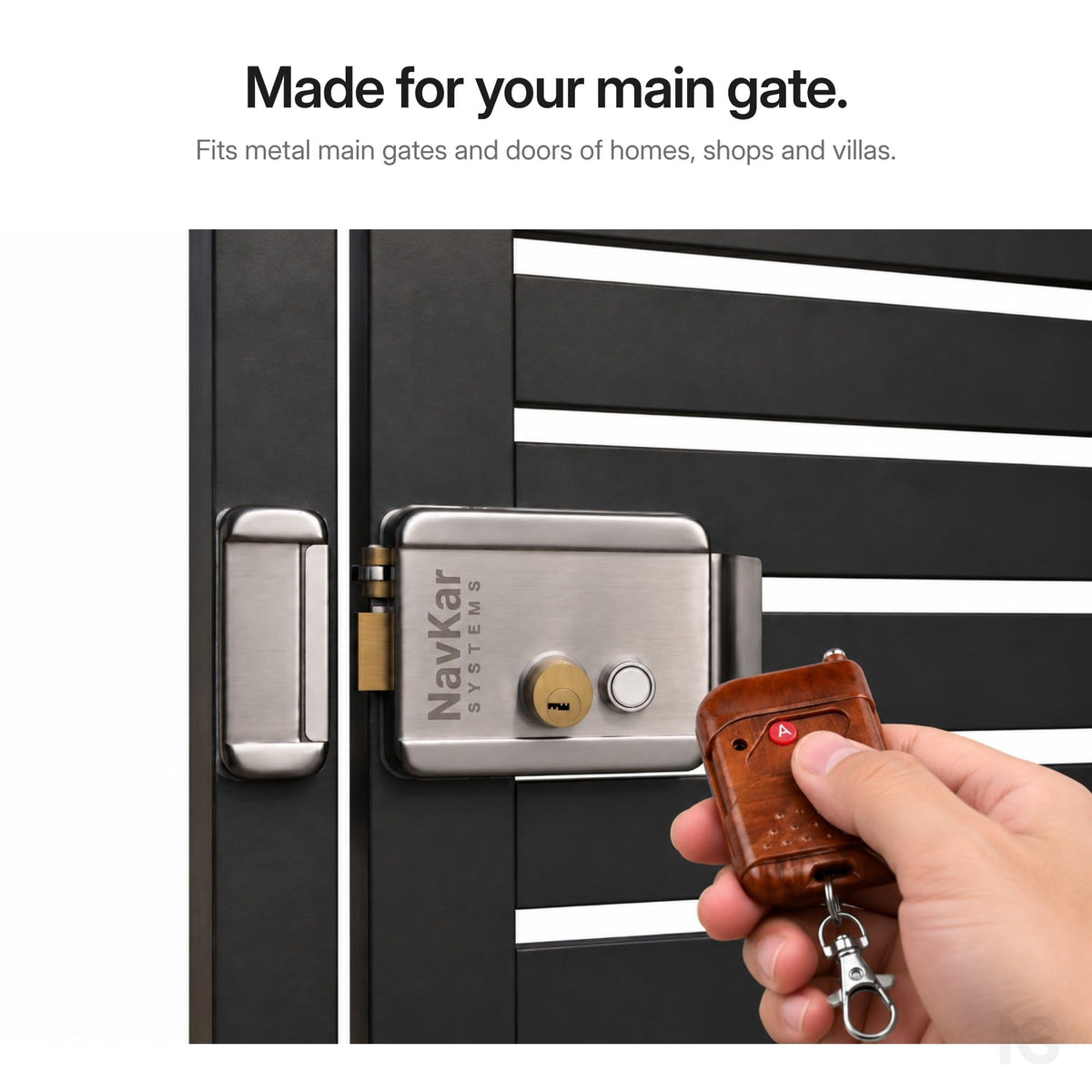

The NavKar Systems Combo-CN59 is a remote control electronic lock kit for house main gates and metal doors. Press a remote and the lock releases; the deadlocking latch locks again by itself as the gate closes.

Highlights

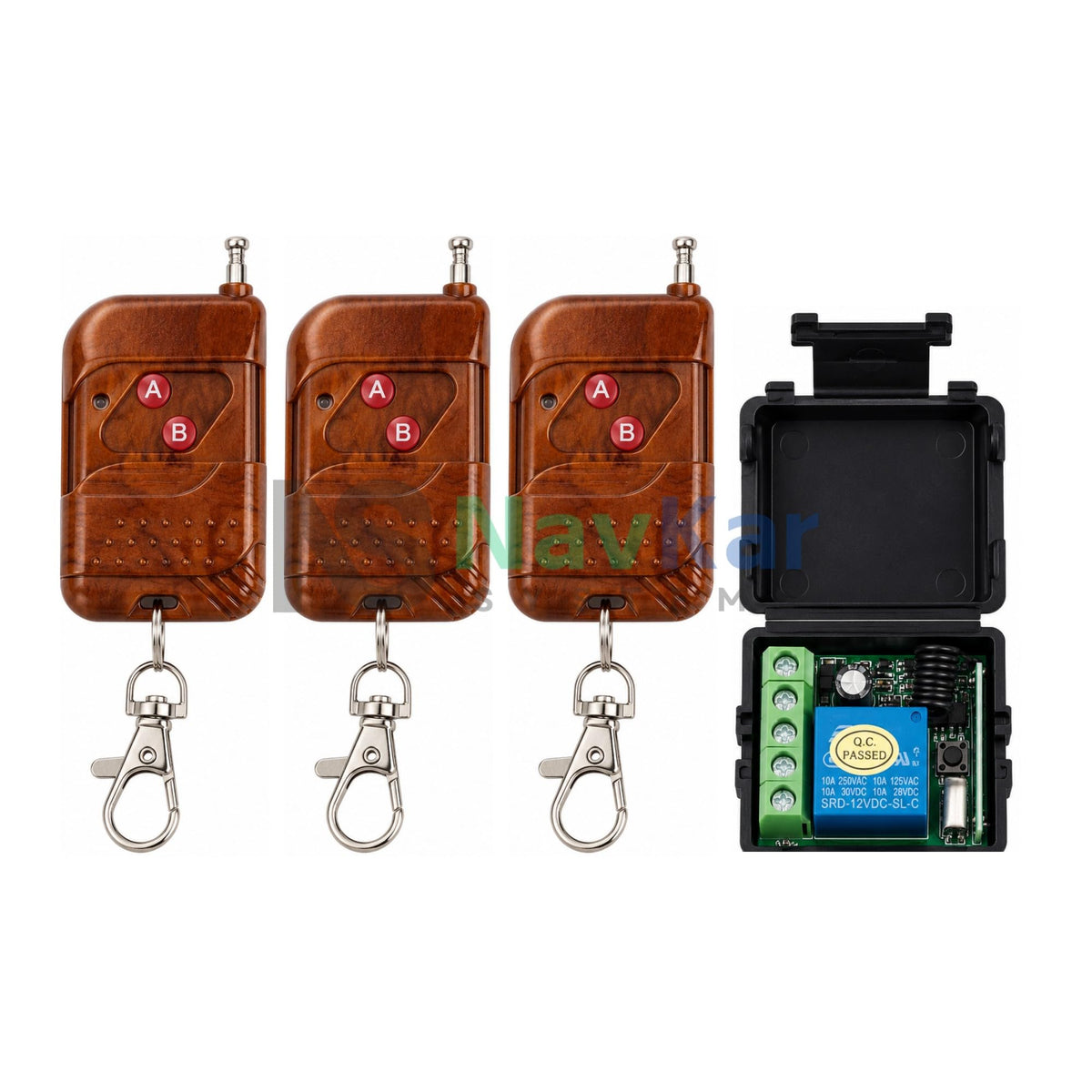

• Remote control 80 to 100 m, depending on the area. 3 remotes are supplied, pre-paired with the RR-120143 receiver. Range is shorter through walls or metal.
• Self-locking deadlatch. Reversible latch fits left-hand and right-hand gates.
• Computerised key backup. Open the gate by key during a power cut or if a remote is misplaced.

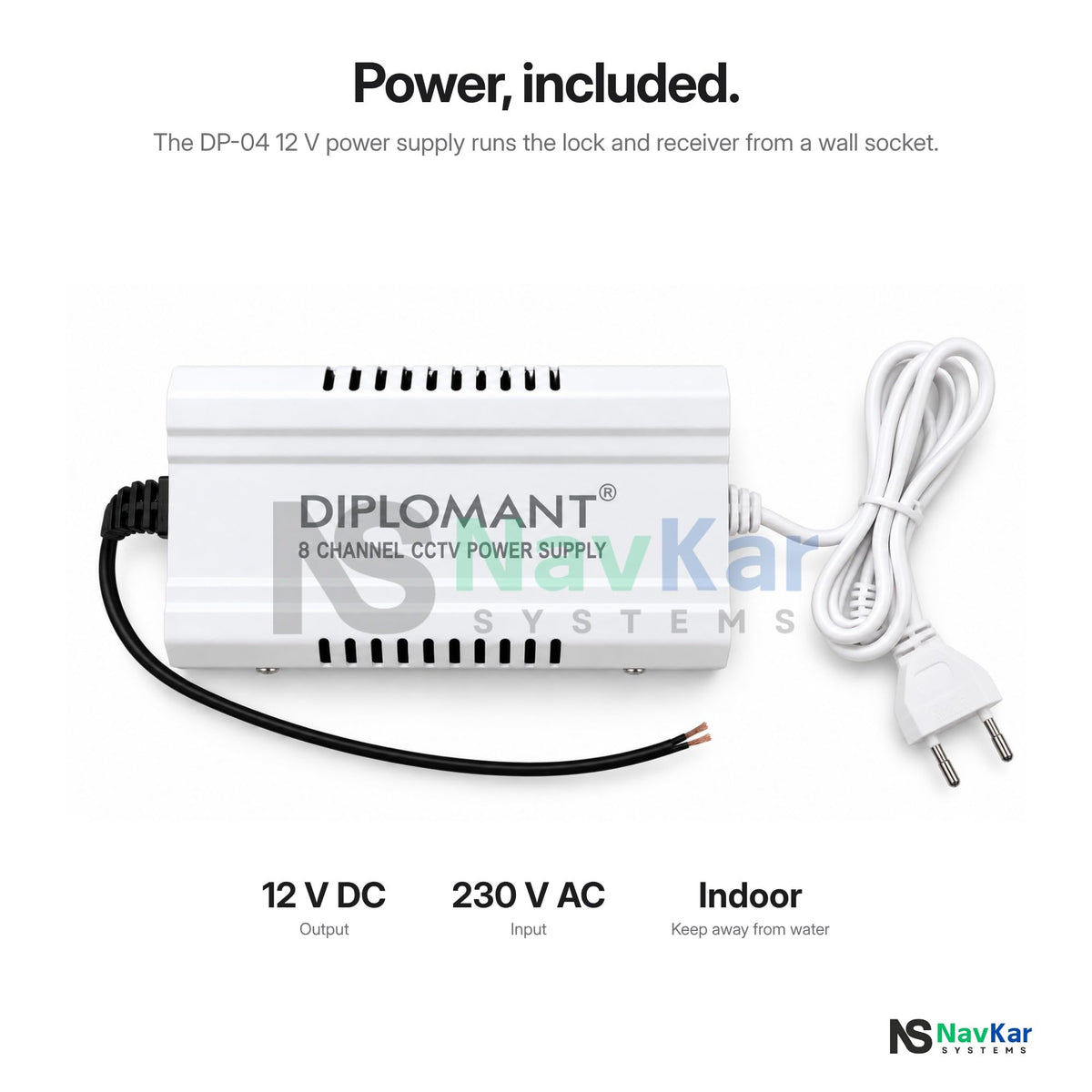

• Power included. The DP-04 12 V adapter powers the receiver and lock from a wall socket.
• Add-ons. The receiver input also works with a wired push button or a compatible door phone.

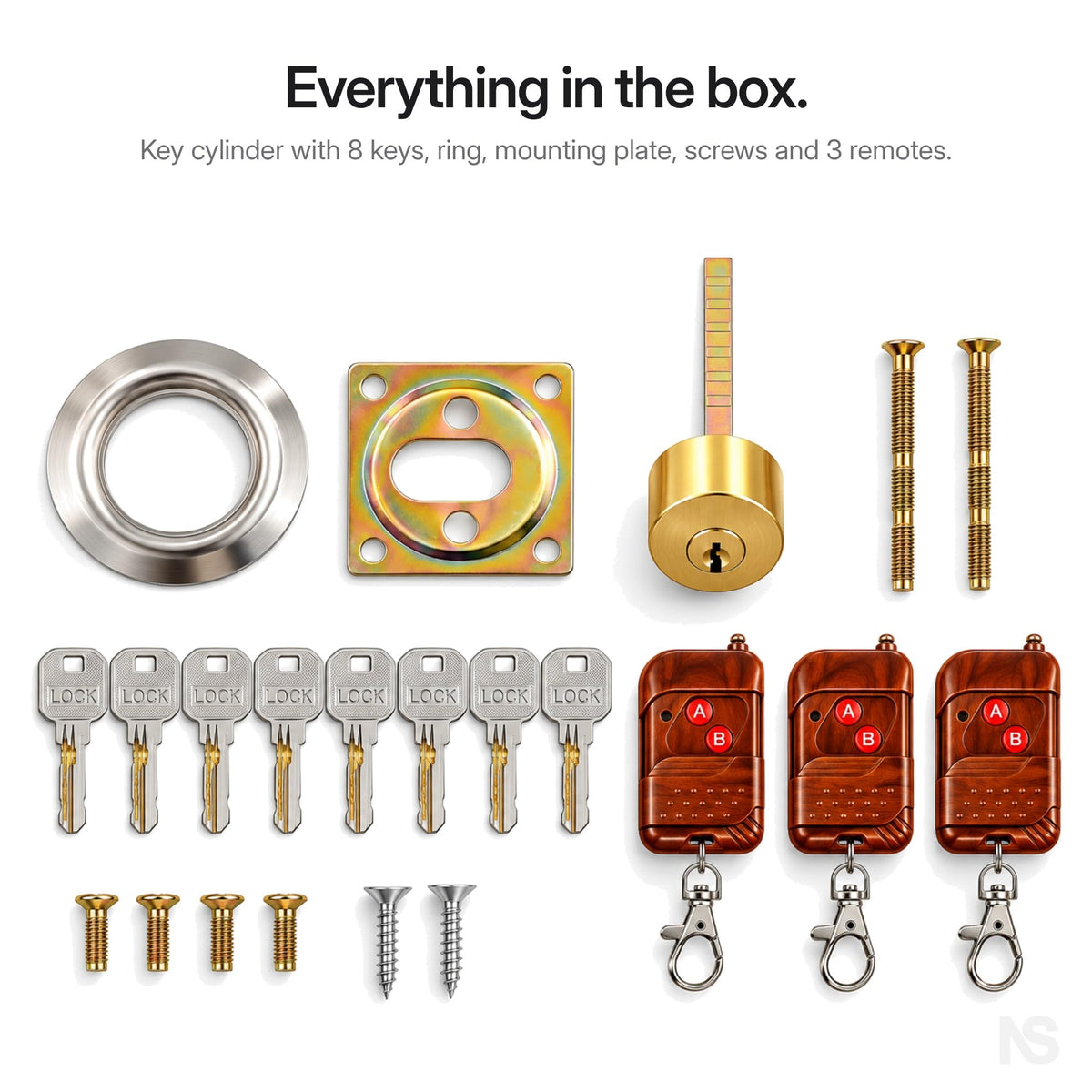

In the box

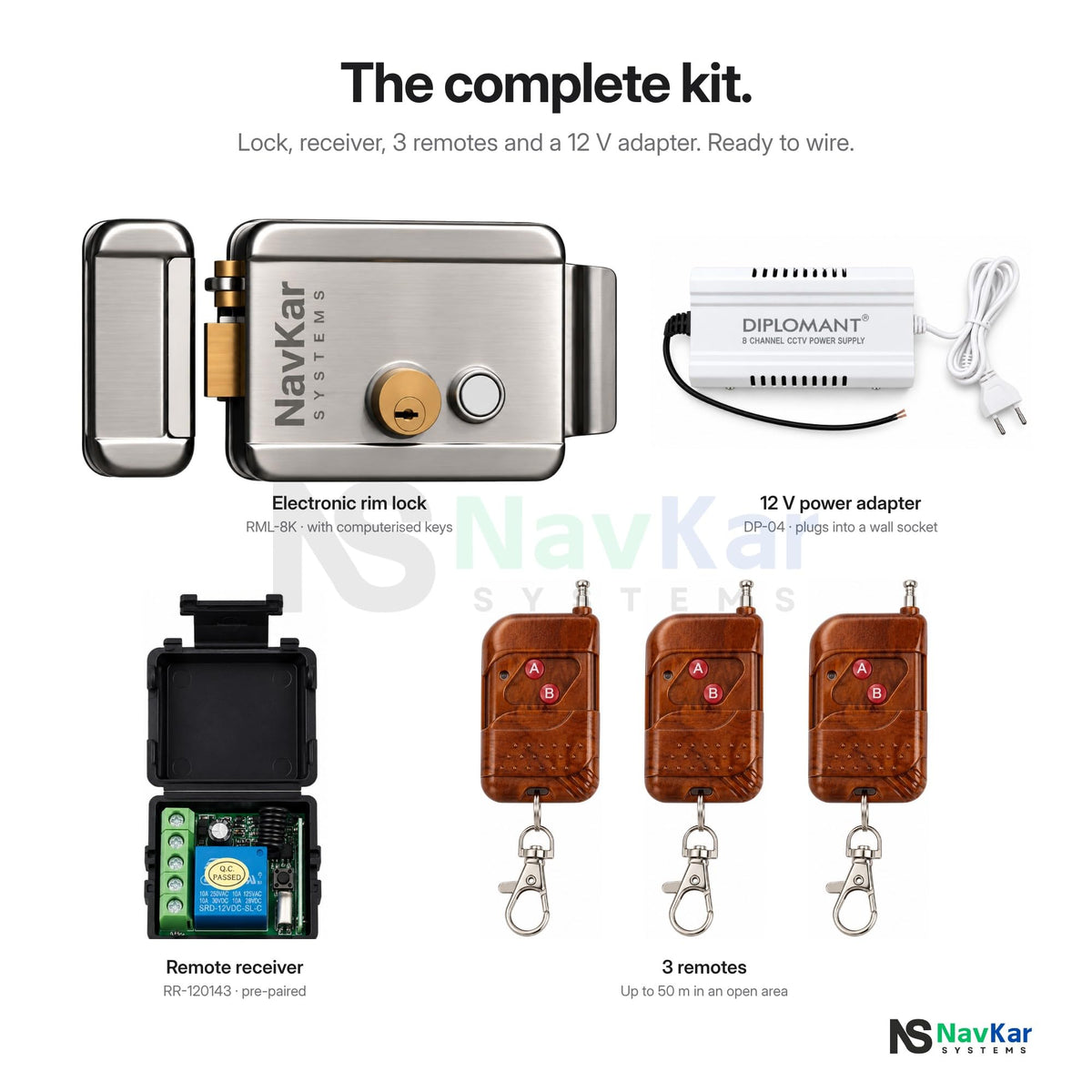

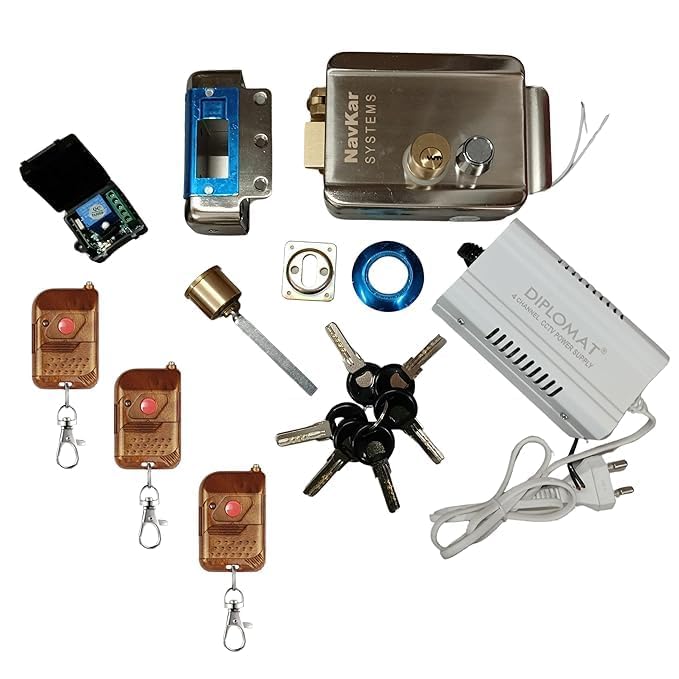

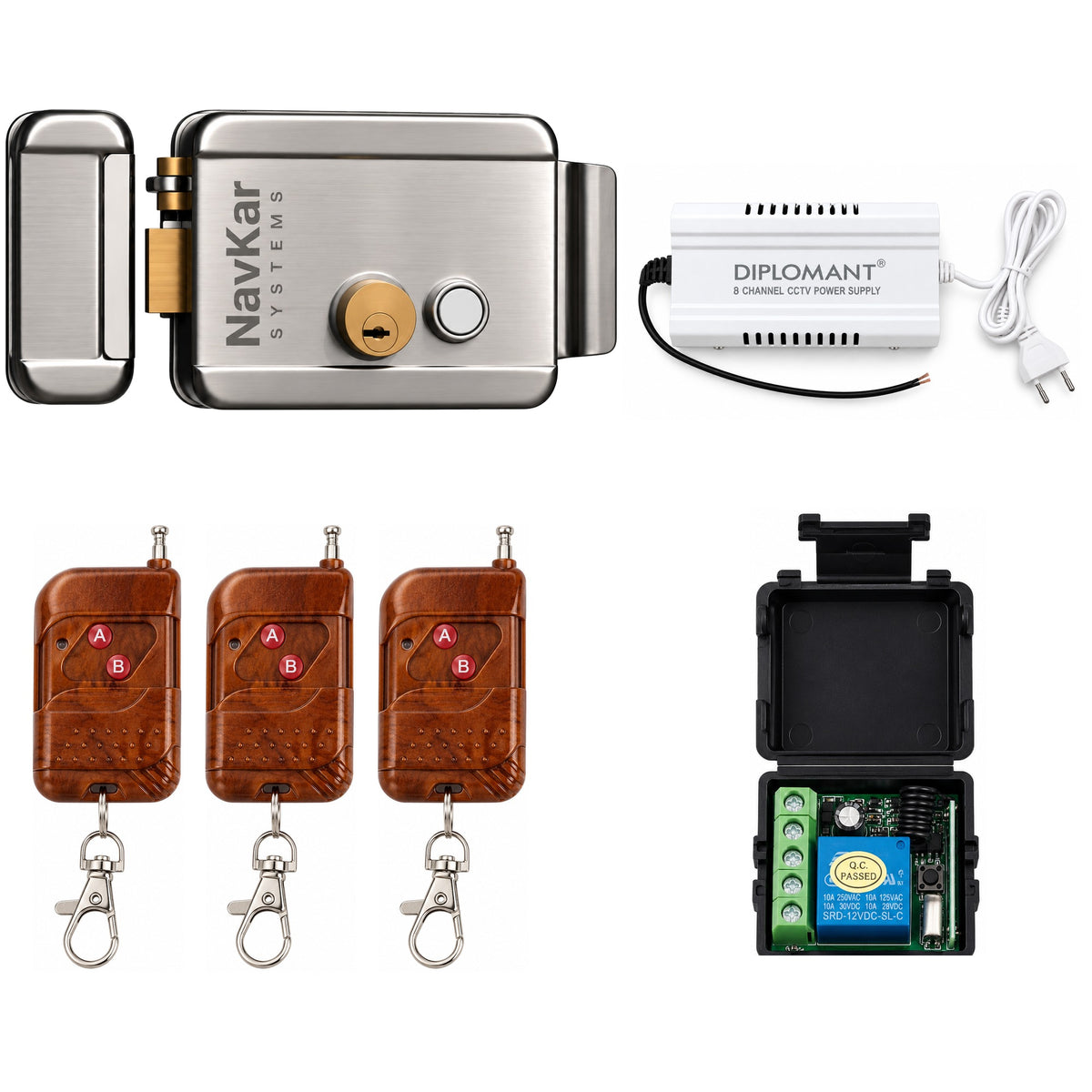

1 x RML-8K electronic rim lock, 1 x RR-120143 remote receiver, 3 x remotes, 1 x DP-04 12 V power adapter, computerised keys and fitting kit.

Good to know

• Keep the adapter and receiver indoors or in a weatherproof box.
• Installation by a trained electrician is recommended.

Set up in minutes.

Three steps from the box to your open gate.

1

Fit the rim lock

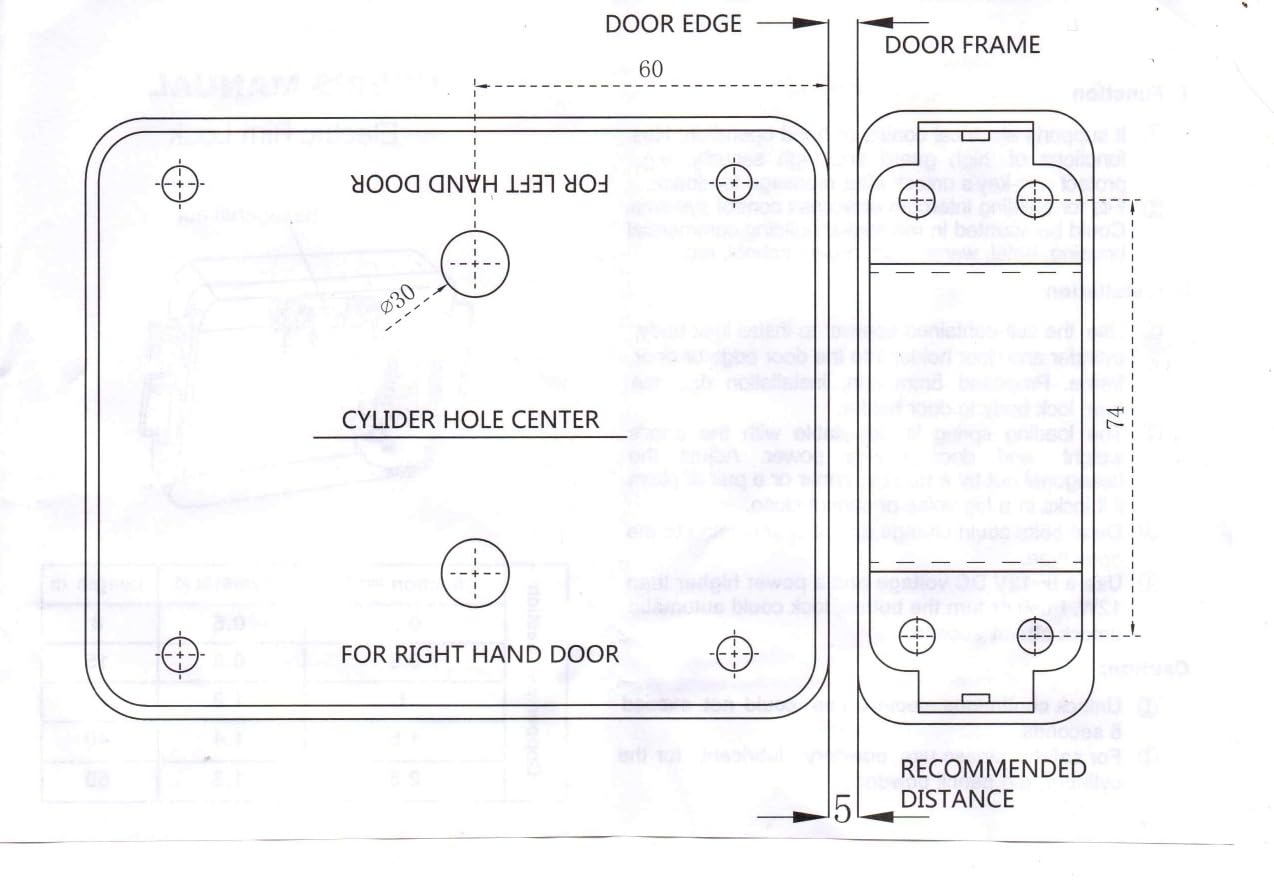

Mount it on the inside face of your metal gate or door, with the strike plate on the frame.

2

Connect the power supply

Fix the supply indoors on a dry wall and wire it to the lock using the diagram below.

3

Pair your remotes

Add your remotes, then open the gate in one press.

Watch it in action.

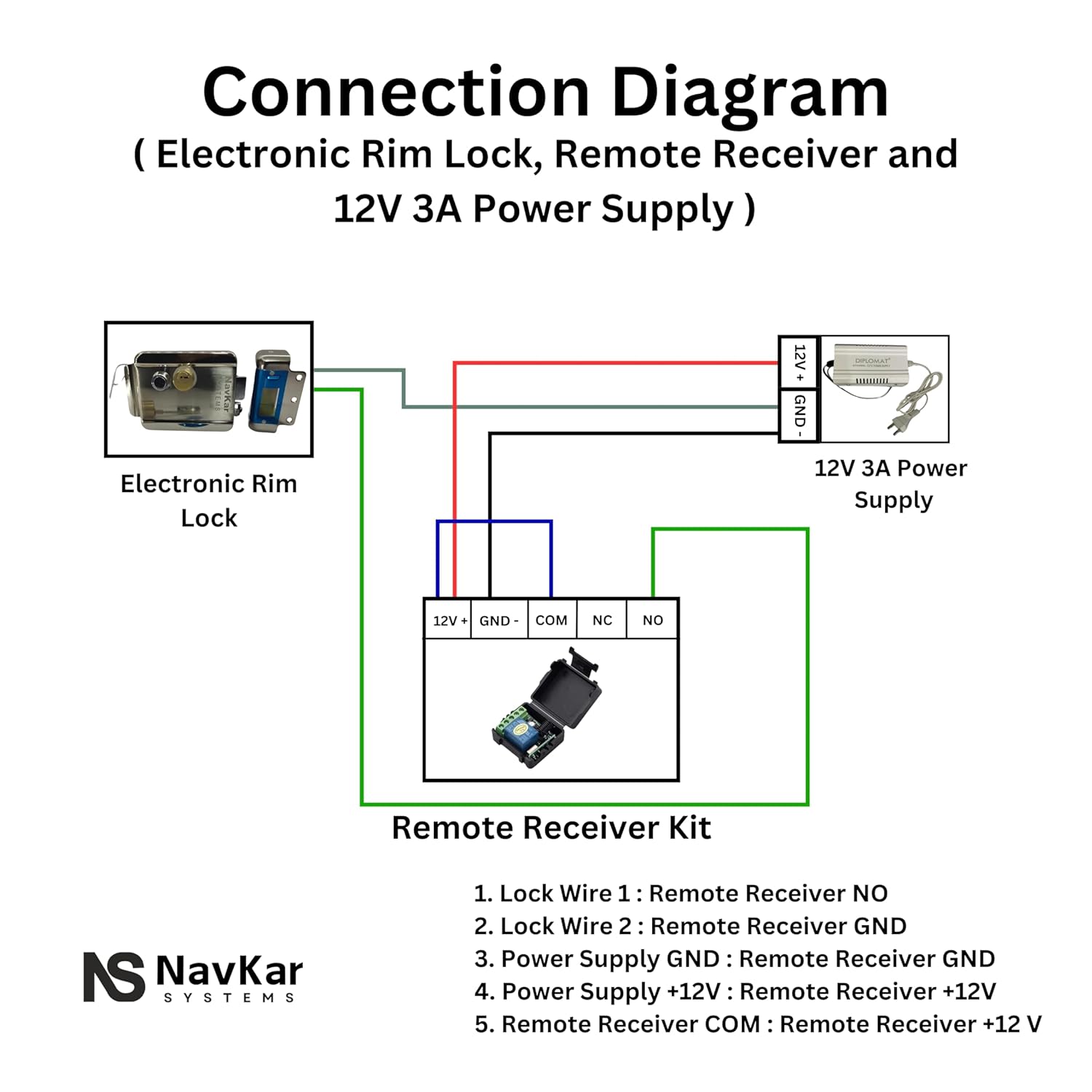

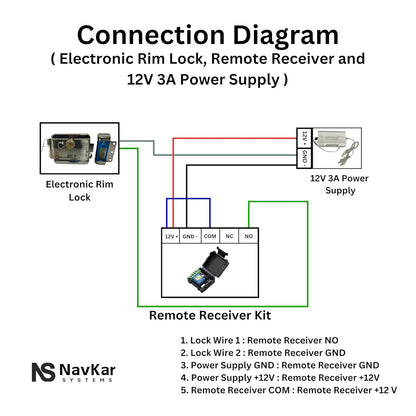

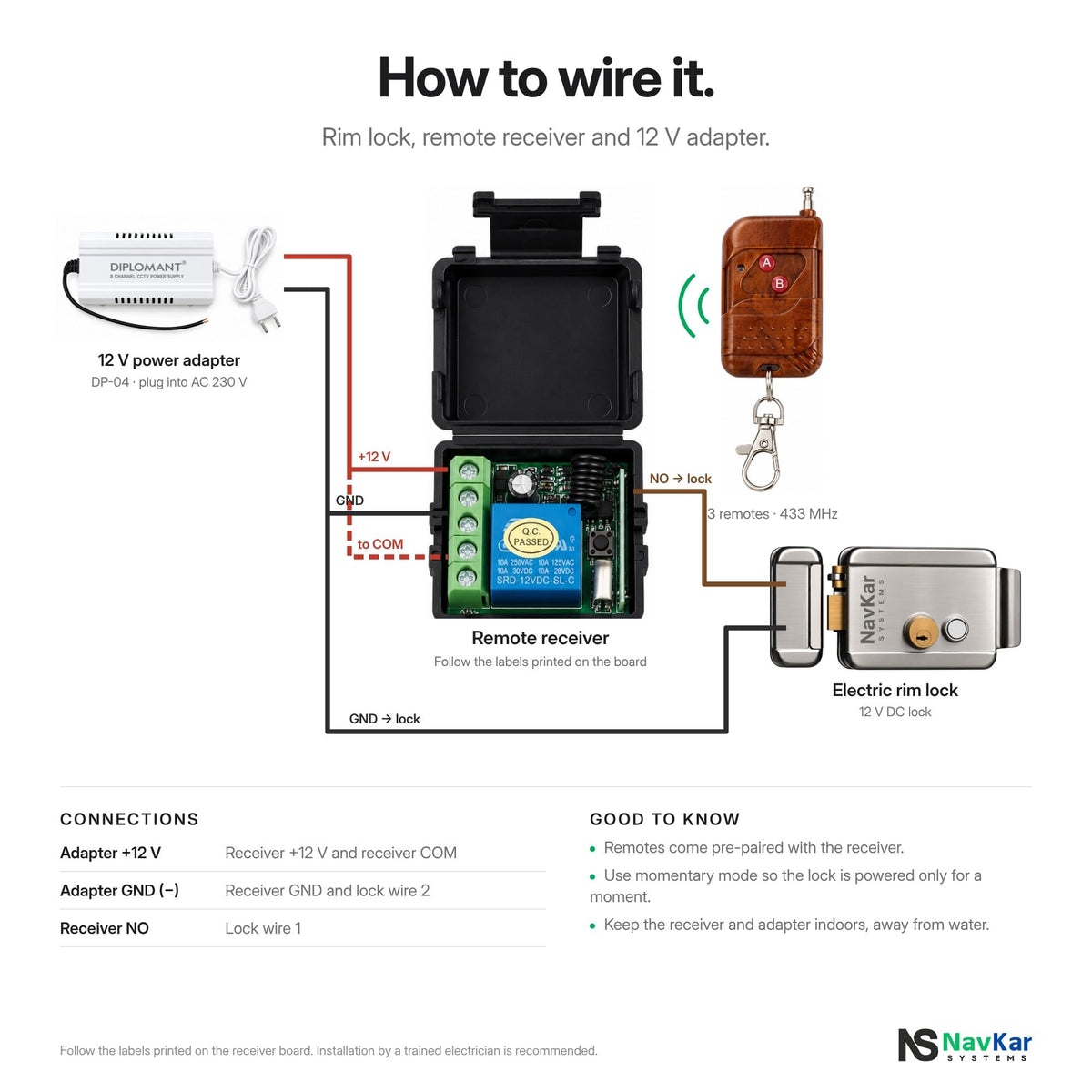

Wiring diagram.

Follow it exactly, or hand it to your electrician.

Download the installation manual (PDF)

Specifications.

At a glance

Remote range: 80 to 100 m, depending on the area
Remotes: 3 in the box, up to 20 compatible remotes
Locking: self-locking latch, locks again as the gate closes
Fitting: surface mount on metal gates and doors

Questions, answered.

Will the remotes work if the internet is down?

Yes. The remotes talk to the receiver directly by radio, so they need no Wi-Fi or internet.

How many remotes can I add?

You get 3 remotes in the box and can pair up to 20 compatible remotes.

What range can I expect?

80 to 100 m, depending on the area. Walls and metal near the receiver can reduce it.

Who should install it?

A trained electrician or carpenter. Mounting on a metal gate may need a welded plate.
