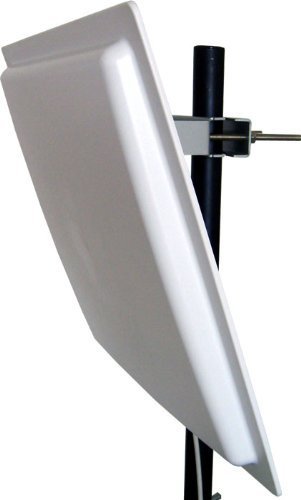

NAVKAR SYSTEMS UHF Long Range Reader 15M EPC Class 1 GEN2 with SDK FCC

NAVKAR SYSTEMS UHF Long Range Reader 15M EPC Class 1 GEN2 with SDK FCC

Regular price Rs. 42,076.00
Regular price Rs. 92,000.00 Sale price Rs. 42,076.00
Sale Sold out
Tax included. Shipping calculated at checkout.


Color: multicolour

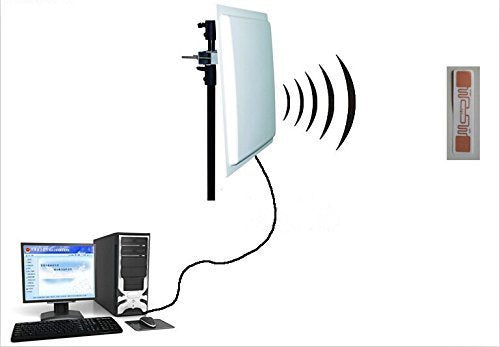

  • Complete automation of gate helps you keep detailed logs of events, enhance security and reduce manpower cost. Our solution based on latest long range RFID can help automate the complete operations. Communication port: RS232/485 ,Wiegand ,RJ45(TCP/IP)
  • Multi-protocol support: ISO 18000-6B&ISO 18000-6C(EPC Gen2)
  • Frequency Range: ISM 902~928MHZ (FCC) or 865~868MHz (EU)
  • Long range read/write range: 1-15m
  • Antenna ports: Built-in 12dBi vertical polarization antenna

Binding: Electronics

model number: NS-UHF-Long-Range-1

Part Number: NS-UHF-Long-Range-1

Details: Product Description Features: Integrated, high performance 12dBi circular antenna ensure long-range reading&writing and easy installation. Multi-protocol support: ISO 18000-6B&ISO 18000-6C(EPC Gen2). Super anti-interference ability for its FHSS frequency working method. Multi-reader synchronise. Software with different Programming languadge allows easy upgrade. Waterproof and sunshine defending, idea for outdoor applications. All kinds of communication interfaces and customizing is available too. Technology Parameter: Frequency Range: 902MHz~928MHz (Ajustable for local regulations) Tag protocols: ISO18000-6B,EPC Class 1,EPC Class 1 GEN 2 Operating Method: FHSS or fixed frequency(setted by software) Antenna ports: Built-in 12dBi vertical polarization antenna Max RF power: 30 dBm Power smoothness: <0.5 DB RF power range: 20~30 dBm,Adjustable by software Identify tag mode: Identify tag mode can be setted as: Reads the tag in fixed time automatically or; read tag after external triggering or software command. Identify tag time: <8ms(Identify single tag) Reading/Writing tag time: No more than 5ms every 8 bytes when reading, 25ms every 4bytes when writing. Reading/Writing tag distance: More than 8m when reading, writing range is 70% of reading range(depend on antenna) Communication interface: RS485?RS232?Wiegand26?Wiegand34?RJ45(TCP/IP)?CANBUS Input/output: 1triggering input, 2 electric relay outoput Power supply: DC 9V/DC12V Power consumption: ?5W Size: 460mm×460mm×50mm Package dimension: 540mm×540mm×140mm Gross Weight: 4.82kg Net Weight: 2.66kg Work Temperature: -45°C~+75°C (-49°F~ 167°F) Storage Temperature: -50°C~+85°C (-58°F~ 185°F) Work status indication: Buzzer
