Realtime Fingerprint Reader RS9+
Realtime Fingerprint Reader RS9+
Couldn't load pickup availability
|
Model Name/Number : RS 9+ |
|
Brand : Realtime |
|
Usage/Application : Office, Home, Malls |
|
Model Name/Number : RS 9+ |
|
Brand : Realtime |
|
Usage/Application : Office, Home, Malls |
|
Frequency Mode: Fixed Frequency Emission Mode |
|
Type Of System : Fingerprint Reader |
|
Color : Black |
|
Installation Type : Wall Mounted |
|
Language : English |
|
Power Supply : DC 12V |
|
Power Source : Power Adapter |
|
Identification Time : < 1s |
|
Body Material : Plastic |
|
Device Support : T304F+, RS 70F, Pro 1700F |
|
Voice Prompt : Dual LED, Red and Green |
|
Communication : RS485 |
|
Humidity: 60% |
|
Identification Style : Fingerprint, Card |
|
Working: Working with Master Machine |

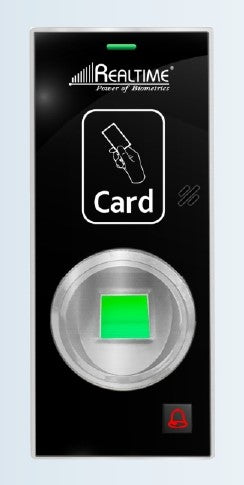

Realtime RS 9+
Specifications
Realtime RS 9+ is a fingerprint and card slave reader that connects to a Realtime master machine over RS485. It is fitted on the other side of a door so staff can punch in and punch out. It works only with a supported master device.
| Type | Fingerprint slave reader |
|---|---|
| Identification | Fingerprint, card |
| Identification time | less than 1 s |
| Communication | RS485 |
| Power supply | 12 V DC, power adapter |
| Indicator | Dual LED, red and green |
| Body | Plastic, black |
| Installation | Wall mounted |
| Language | English |
| Supported masters | T304F+, RS 70F, Pro 1700F |
| Working | Works with master machine only |
Specifications from NavKar Systems' product details for this model. All prices include GST.
Frequently asked questions
Can the RS 9+ work on its own?
No. It is a slave reader and works only when connected to a Realtime master machine.
Which Realtime machines does it support?
Realtime lists the T304F+, RS 70F and Pro 1700F as supported masters.
How does it connect to the master machine?
Through an RS485 cable.
What can staff use on the RS 9+?
Fingerprint or card.
What power does it need?
12 V DC from a power adapter.
Can I use it for punch out on the exit side?
Yes. That is its usual use: the master is on one side of the door and the RS 9+ on the other.
