SGM-750 vs SGM-1200: Motors for Heavy Sliding Gates up to 2000 kg
Short answer: choose the SGM-750 (₹32,500) for heavy sliding gates comfortably under 1500 kg, such as most society, school and factory gates. Choose the SGM-1200 (₹35,000) for gates near or above 1500 kg, up to its 2000 kg rating, or for a heavy gate that opens many times a day. The difference is ₹2,500, so when the weight is uncertain the bigger motor is cheap insurance. Prices are our live website prices, include GST, and delivery across India is free.
SGM-750 vs SGM-1200 side by side
All figures are from the two product listings. Where a listing does not state something, the table says so.
| Point | SGM-750 | SGM-1200 |
|---|---|---|
| Motor power | 750 W | 1200 W |
| Rated gate weight | Up to 1500 kg | Up to 2000 kg |
| Power supply | 220 V AC 50 Hz | 220 V AC 50 Hz |
| Motor speed | Not stated | 1400 r/min |
| Reduction ratio | 30:1 | 30:1 |
| Protection | IP55, thermal protection at about 125 degrees C | IP55, thermal protection at 125 degrees C in the winding |
| Limit switch | Magnetic or mechanical | Magnetic or mechanical |
| Listed size | 27 x 20.5 x 33 cm with pinion; base plate 27 x 17 cm | 27 x 20.5 x 33 cm with pinion; base plate 27 x 17 cm |

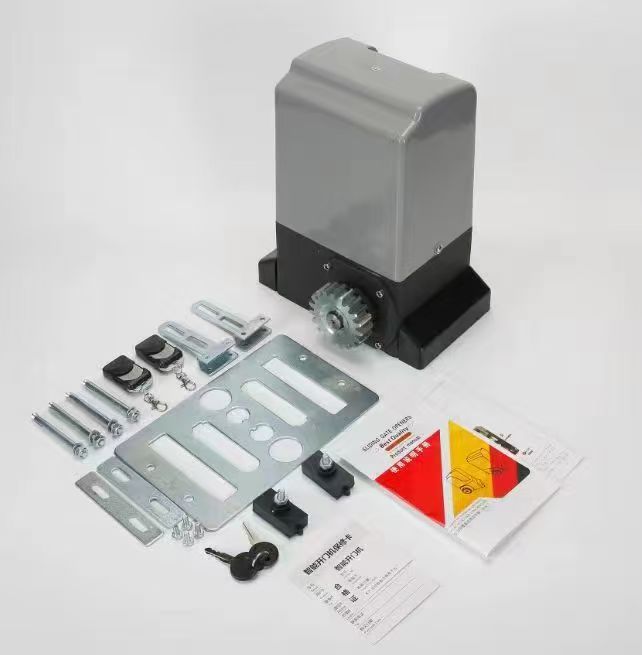

| In the box | 2 remotes, limit switches, 2 release keys, base plate, manual | 2 remotes, limit switches, 2 release keys, base plate, manual |
| Gear rack, photocell, Wi-Fi | Bought separately | Bought separately |
| Price | ₹32,500 | ₹35,000 |
The SGM-750 listing describes it for residential, commercial and industrial sliding gates, including factories, warehouses and parking entrances, and says plainly that it is not for swing gates. Both are motor-only listings; neither comes as a kit with rails.
What changes when a gate is this heavy?
A gate of 1000 kg or more behaves differently from a house gate, and it is worth planning for that before you choose the motor.
- Starting and stopping take more effort. Getting a tonne of steel moving, and stopping it at the limit, puts the most load on the motor and the gear rack. A motor that is near its limit works hard at every start.
- Heat builds up with traffic. Both motors have thermal protection in the winding at about 125 degrees C, which cuts the motor out before it is damaged. On a busy society or factory gate that cycles all day, a motor with headroom runs cooler and is less likely to pause on a hot afternoon.
- The track matters more. A heavy gate on worn wheels or a bent track can need far more force than its weight suggests. Get the gate rolling freely by hand first.
- Manual release is harder. Both motors release with the supplied keys in a power cut, but pushing 1500 kg by hand needs two people on a good track. Plan your power backup accordingly.
- The rack takes more load. For a heavy gate, many buyers choose the 12 mm GR-12M galvanised iron rack (₹1,399 per metre); its listing notes that rail supplied with motors is generally 8 mm.
Choose the SGM-750 if...
- Your fabricator puts the gate comfortably below 1500 kg, for example 1000 to 1200 kg.
- The gate opens a moderate number of times a day: a school, a bungalow with a long gate, a small factory.
- The track and wheels are in good condition and the gate rolls easily by hand.
Choose the SGM-1200 if...
- The gate is near or above 1500 kg, up to 2000 kg.
- Nobody can give you a reliable weight for a large, fully clad gate.
- The gate is a busy society, warehouse or factory entrance that opens many times an hour.
- It is very long, solid and exposed to wind.
For gates under 1200 kg, the SGM-370 and SGM-550 are cheaper and come in ready kits; see our SGM-370 vs SGM-550 comparison.
What a complete heavy gate setup costs
Neither motor includes gear rack or a safety beam, so budget the full setup. Here are two worked examples with live prices.
| Item | 8 m factory gate, about 1200 kg | 10 m society gate, about 1700 kg |
|---|---|---|
| Motor | SGM-750: ₹32,500 | SGM-1200: ₹35,000 |
| GR-12M gear rack, ₹1,399 per metre | 8 m: ₹11,192 | 10 m: ₹13,990 |
| SB-10 safety beam pair | ₹799 | ₹799 |
| SF-2T warning light | ₹850 | ₹850 |
| Extra RM-SGM remotes, ₹1,249 each | 2: ₹2,498 | 4: ₹4,996 |
| Total | ₹47,839 | ₹55,635 |
The quantities are assumptions: rack equal to the gate length rounded up, one beam pair, one warning light, and extra remotes for guards or staff on top of the 2 in the box. Our gear rack guide explains how to measure. Installation, cable and the concrete base are not included.
Useful add-ons for a busy gate
| Add-on | Why it helps on a heavy gate | Price |
|---|---|---|
| SB-10 single beam sensor | Stops a closing gate if a person or vehicle is in the way; 12 to 24 V DC, IP55 | ₹799 |
| SF-2T warning light | Strobe with 110 dB buzzer while the gate moves | ₹850 |
| SW-3B push button | 3-way IP65 button unit for the guard cabin | ₹899 |
| RTU5024 GSM gate opener | Open with a free call from up to 200 authorised numbers instead of handing out remotes | ₹3,999 |
| RM-SGM remote | 4-button remote for staff; works only with Navkar Systems sliding gate motors | ₹1,249 |
For entry rules, guard routines and access control at a residential complex, read the housing society gate security guide. For every motor and kit price in one place, see the sliding gate motor price guide, or browse sliding gate motors. The Gate Builder picks the motor and rack from your gate weight and length.
FAQ
Which motor do I need for a 1500 kg sliding gate?
The SGM-750 is rated up to 1500 kg, so a gate at that weight is at its limit. Choose the SGM-1200, rated up to 2000 kg, for ₹2,500 more.
Do the SGM-750 and SGM-1200 need three-phase power?
No. Both listings give a 220 V AC 50 Hz supply, the normal single-phase supply in Indian homes and buildings.
Is gear rack included with the SGM-750 or SGM-1200?
No. Both listings say gear rack, photocell sensor and Wi-Fi PCB are bought separately. GR-12M rack costs ₹1,399 per metre.
Can I open a heavy gate by hand in a power cut?
Yes. Both motors release with the 2 supplied keys so the gate can be moved by hand. On a very heavy gate this needs a good track and often two people.
Can the SGM-750 be used on a swing gate?
No. Its listing says it is designed for sliding gates and is not suitable for swing gates. Hinged gates need a swing opener, such as an arm or rolling operator.
Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
