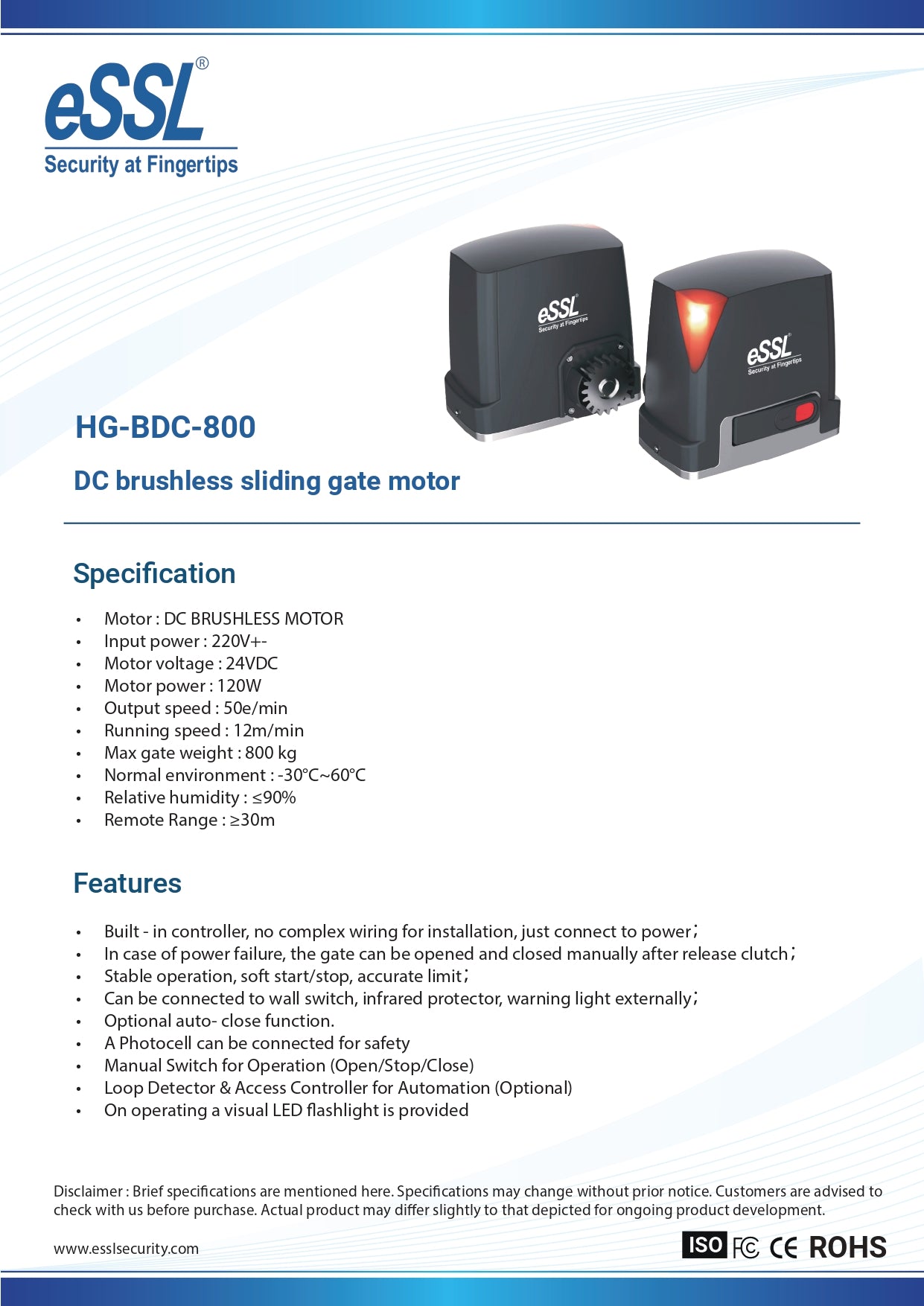

essl 24V DC HG-BDC-800 Brushless Sliding Gate Motor

Technical Specifications

• Motor : DC BRUSHLESS MOTOR
• Input power : 220V+
• Motor voltage : 24VDC
• Motor power : 120W
• Output speed : 50e/min
• Running speed : 12m/min
• Max gate weight : 800 kg
• Normal environment : -30°C~60°C
• Relative humidity : ≤90%
• Remote Range : ≥30m

Features

• Built - in controller, no complex wiring for installation, just connect to power；
• In case of power failure, the gate can be opened and closed manually after release clutch；
• Stable operation, soft start/stop, accurate limit；
• Can be connected to wall switch, infrared protector, warning light externally；
• Optional auto- close function.
• A Photocell can be connected for safety
• Manual Switch for Operation (Open/Stop/Close)
• Loop Detector & Access Controller for Automation (Optional)
• On operating a visual LED flashlight is provided
