How Much Does It Cost to Automate a House Gate in India?
Short answer: automating a house gate in India costs about ₹30,000 to ₹53,000 in parts on our store, depending on the gate's weight, its length and how you want to open it. A small sliding gate with a safety beam, warning light and phone control comes to about ₹31,795; a heavy, fully clad kothi gate about ₹38,641; a long farmhouse gate with GSM control about ₹52,739. Installation, cable and civil work are extra. Prices are our live website prices, include GST, and delivery across India is free.
What you need to automate a gate, and why
- A motor sized to the gate's weight. This is the biggest cost. Our sliding motors run from ₹22,500 (600 kg) to ₹35,000 (2000 kg); swing openers from ₹37,999.
- Gear rack for a sliding gate. Bolted along the gate so the motor can drive it. Our motor-only listings do not include it; GR-12M is ₹1,399 per metre.
- A safety beam. Stops the gate closing on a person, child or car. The SB-10 pair is ₹799.
- A warning light. Flashes while the gate moves so people on the road are warned. The SF-2T is ₹850.
- Remotes. Every SGM motor comes with 2. Extra RM-SGM remotes are ₹1,249 each.
- A way to open it from your phone, if you want one. Wi-Fi (₹1,849) where the gate has 2.4 GHz Wi-Fi, GSM (₹3,999) where it does not.
- Things we do not sell but you must budget: a 220 V supply on its own MCB at the gate, cable in conduit, a concrete base for the motor, and any fabricator work such as a straight strip for the rack or new wheels.
Budget 1: small house gate, about 3.5 m and 350 kg
A typical sliding gate on a 30 to 40 feet plot, open grill with partial sheet. Assumed: 3.5 m leaf (about 11.5 ft), around 350 kg, Wi-Fi reaches the gate.
| Item | Qty | Why | Price |
|---|---|---|---|
| SGM-370 with single beam sensor, no rack | 1 | 600 kg motor with 2 remotes, safety beam in the box | ₹23,500 |
| GR-12M gear rack, 1 m | 4 | 3.5 m rounded up to 4 m | ₹5,596 (4 x ₹1,399) |
| SF-2T warning light | 1 | Warns people while the gate moves | ₹850 |
| WFC-SGM Wi-Fi module | 1 | Open from the Smart Life app | ₹1,849 |
| Total | ₹31,795 | ||

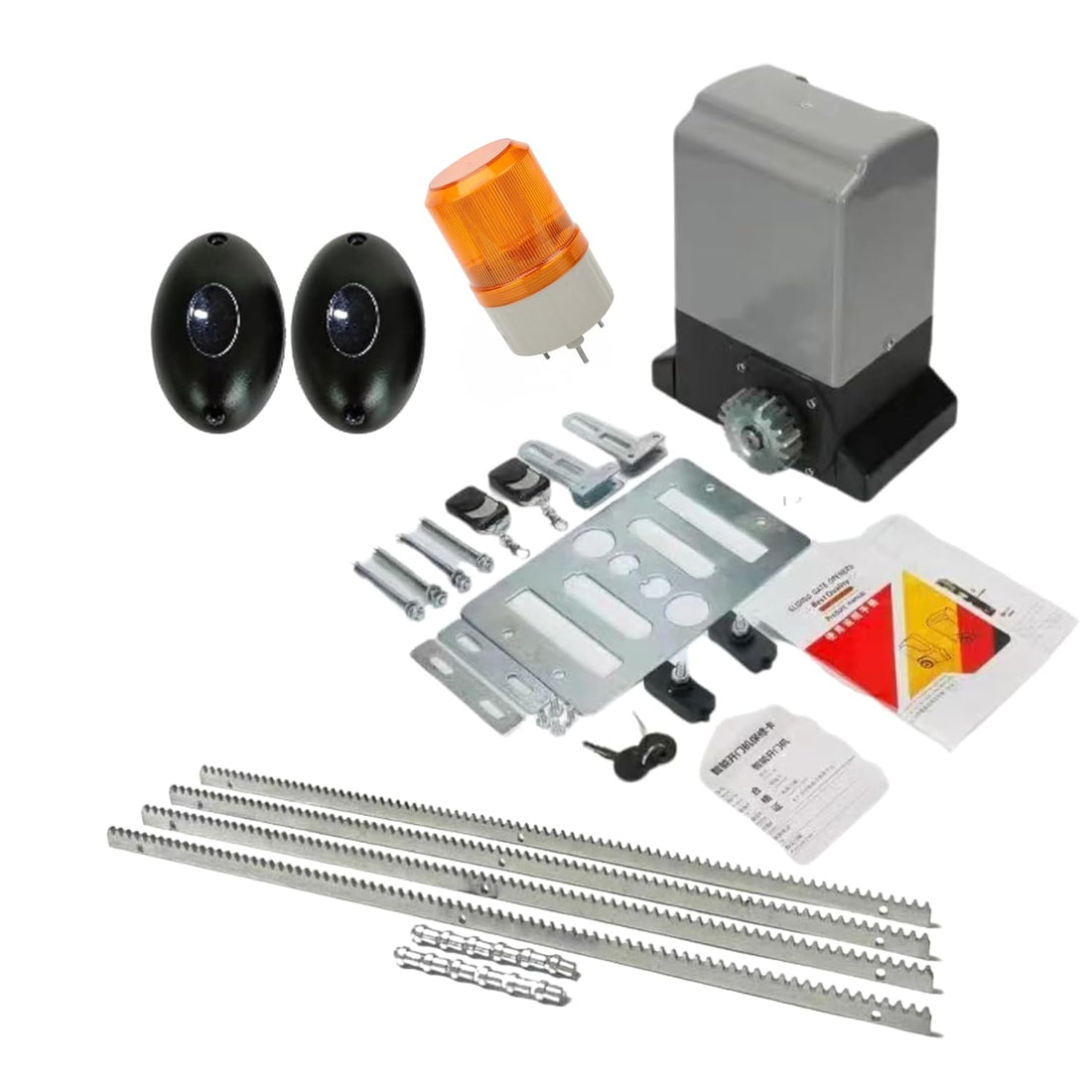

Without the Wi-Fi module the same gate costs ₹29,946. The ready SGM-370 kit with 4 rails (about 13 ft of rail, sensor, siren lamp and 2 remotes in one box) is ₹32,950, or ₹34,799 with Wi-Fi. The kit is simpler to order; the separate route is cheaper here and gives you the heavier 12 mm rack, since the GR-12M listing notes that rail supplied with motors is generally 8 mm.
Budget 2: heavy kothi gate, about 5.5 m and 800 kg
A fully clad MS gate with a wicket door at a bungalow. Assumed: 5.5 m leaf (about 18 ft), around 800 kg, Wi-Fi at the gate, one extra remote for the driver.
| Item | Qty | Why | Price |
|---|---|---|---|
| SGM-550 sliding gate motor | 1 | Rated 1200 kg, comfortable headroom over 800 kg | ₹25,500 |
| GR-12M gear rack, 1 m | 6 | 5.5 m rounded up to 6 m | ₹8,394 (6 x ₹1,399) |
| SB-10 single beam sensor | 1 pair | Safety beam across the opening | ₹799 |
| SF-2T warning light | 1 | Warns people on the road | ₹850 |
| WFC-SGM Wi-Fi module | 1 | Phone control | ₹1,849 |
| RM-SGM remote | 1 | Third remote for the driver | ₹1,249 |
| Total | ₹38,641 | ||
The kit alternative is the SGM-550 kit with 6 rails (about 20 ft) at ₹38,500, which comes to ₹41,598 with the Wi-Fi module and extra remote. Not sure whether your gate needs the SGM-370 or SGM-550? See our SGM-370 vs SGM-550 comparison.
Budget 3: long farmhouse gate, about 8 m and 1400 kg
A wide entrance for tractors and cars, no Wi-Fi at the gate, a caretaker's room nearby. Assumed: 8 m leaf, around 1400 kg, opened by phone call and a wired button.
| Item | Qty | Why | Price |
|---|---|---|---|
| SGM-1200 sliding gate motor | 1 | Rated 2000 kg; 1400 kg is too close to the SGM-750's 1500 kg | ₹35,000 |
| GR-12M gear rack, 1 m | 8 | Full 8 m leaf | ₹11,192 (8 x ₹1,399) |
| SB-10 single beam sensor | 1 pair | Safety beam across the opening | ₹799 |
| SF-2T warning light | 1 | Warns people and animals near the gate | ₹850 |
| RTU5024 GSM gate opener | 1 | Open with a free call; up to 200 numbers; needs a SIM | ₹3,999 |
| SW-3B push button | 1 | Wired button in the caretaker's room | ₹899 |
| Total | ₹52,739 | ||
For more on heavy gates, read the SGM-750 vs SGM-1200 guide.
What if my gate swings open?
A hinged gate needs a swing opener instead. The SWM-700 rolling opener (₹37,999, under 700 kg per leaf) with an SB-10 beam and SF-2T light comes to ₹39,648; the ARM-3K arm opener is ₹39,999. Full details and site conditions are in the swing gate motor price guide.
Optional upgrades
- Wireless keypad for staff and children to enter with a PIN: DK-SGM, ₹3,450.
- Open from the car without a remote: in-car Bluetooth USB module, ₹3,999.
- Extra remotes for family members: RM-SGM, ₹1,249 each.
- Running through power cuts: wire the motor to a suitably sized inverter, checked by your electrician.
Costs that are not in these totals
Installation, electrical work and civil work depend on your site, so they are not in the prices above. Our team guides installation on call and WhatsApp for free and shares an installation video. On-site installation by our team is charged extra and quoted on distance from Ambala. Ask your fabricator to check the track, wheels and top guide before the motor goes in; a gate that is stiff by hand will strain any motor. For more prices, see the sliding gate motor price guide, browse gate automation, or enter your gate's weight and length in the Gate Builder.
FAQ
How much does it cost to automate a sliding gate in India?
On our store, parts for a typical house gate cost about ₹30,000 to ₹53,000, including motor, gear rack, safety beam and warning light. A small gate starts at ₹29,946 without phone control.
Is it cheaper to buy a kit or separate parts?
It depends on the gate. For a 3.5 m, 350 kg gate, separate parts cost ₹29,946 against ₹32,950 for the 4-rail kit, and give you 12 mm rack. The kit is simpler to order and includes a siren lamp.
Does the price include installation?
No. Our team guides installation on call for free. On-site installation is charged extra, based on distance from Ambala.
Can I automate my existing manual gate?
Usually yes, if it slides or swings freely by hand and the pillars and track are sound. Send us the gate size, rough weight and a photo on WhatsApp.
Do I need Wi-Fi to automate a gate?
No. The motor works with its 2 remotes. Wi-Fi (₹1,849) or a GSM opener (₹3,999) only adds phone control.
Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
