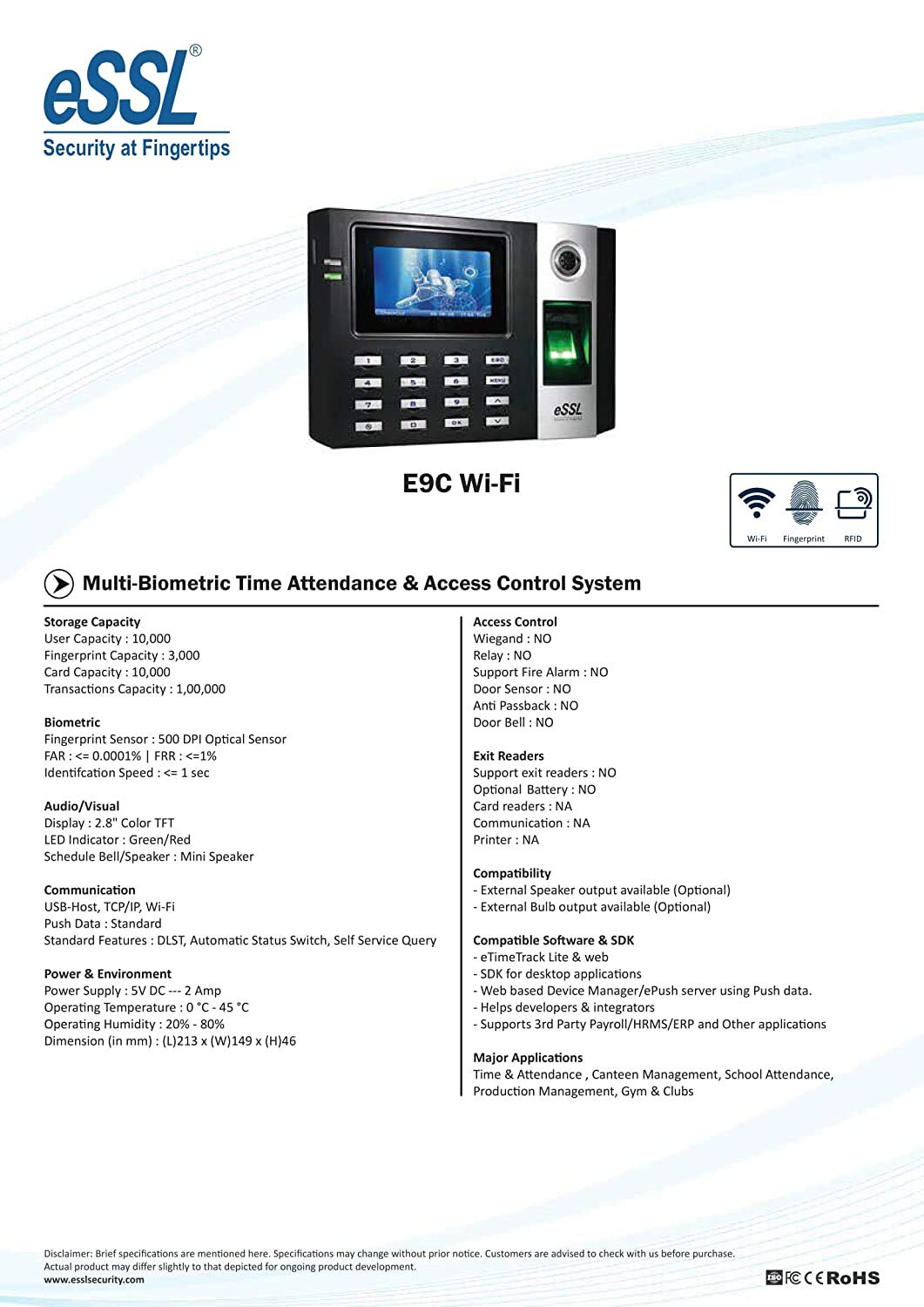

eSSL E9C Wi-Fi Fingerprint Time and Attendance System
eSSL E9C Wi-Fi Fingerprint Time and Attendance System
Couldn't load pickup availability
Features:
User Capacity : 10,000,
Fingerprint Capacity : 3,000 ,
Card Capacity : 10,000,
Transactions Capacity : 1,00,000.
Storage Capacity
- User Capacity : 10,000
- Fingerprint Capacity : 3,000
- Card Capacity : 10,000
- Transactions Capacity : 1,00,000
Biometric
- Fingerprint sensor : 500 DPI Optical sensor
- FAR : <=0.0001%
- FRR : <=1%
- Identification Speed : <= 1 sec
Audio & Visual
- Display : 2.8" Color TFT
- LED Indicator : Green/Red
- Schedule Bell/Speaker : Mini Speaker
Communication
- USB-Host, TCP/IP, Wi-Fi
- Push Data : Standard
- Standard Features : DLST, Automatic Status Switch, Self Service Query
Power & Environment
- Power Supply : 5V DC --- 2 Amp
- Operating Temp : 0 °C - 45 °C
- Operating Humidity : 20% - 80%
- Dimension (in mm) : (L)213 x (W)149 x (H)46
Access control
- Wiegand : NO
- Relay : NO
- Support Fire Alarm : NO
- Door Sensor : NO
- Anti Passback : NO
- Door Bell : NO
Exit Readers
- Support exit readers : NO
- Optional Battery : NO
- Card readers : NA
- Communication : NA
- Printer : NA
Compatibility
- External Speaker output available (Optional)
- External Bulb output available (Optional)
Compatible Software and SDK
- eTimeTrack Lite & web
- SDK for desktop applications
- Web based Device Manager/ePush server using Push data.
- Helps developers & integrators
- Supports 3rd Party Payroll/HRMS/ERP and Other applications
Major Applications
- Time & Attendance , Canteen management, School attedance, Production Management, Gym & clubs
eSSL E9C Wi-Fi
Specifications
The eSSL E9C Wi-Fi is a fingerprint and card attendance machine with built-in Wi-Fi and push data. It holds 10,000 users and 1,00,000 records. It is for attendance only and has no door control.
| User capacity | 10,000 |
|---|---|
| Fingerprint capacity | 3,000 |
| Card capacity | 10,000 |
| Transaction capacity | 1,00,000 |
| Fingerprint sensor | 500 DPI optical |
| FAR / FRR | 0.0001% or less / 1% or less |
| Identification speed | 1 second or less |
| Display | 2.8-inch colour TFT |
| LED indicator | Green and red |
| Speaker | Mini speaker |
| Communication | USB host, TCP/IP, Wi-Fi |
| Push data | Standard |
| Standard features | DLST, automatic status switch, self service query |
| Access control | No (no Wiegand, relay, door sensor or exit reader support) |
| Battery | No optional battery |
| Power supply | 5 V DC 2 A |
| Operating temperature | 0 °C to 45 °C |
| Operating humidity | 20% to 80% |
| Dimensions (L x W x H) | 213 x 149 x 46 mm |
| Software | eTimeTrackLite and web, SDK |
Specifications checked against eSSL's published details for this model. All prices include GST.
Frequently asked questions
Does the E9C have Wi-Fi?
Yes. It connects by Wi-Fi, TCP/IP or USB host, with push data as standard.
How many employees can it hold?
10,000 users and 10,000 cards, with 3,000 fingerprint templates and 1,00,000 records.
Can the E9C open a door lock?
No. eSSL lists no relay, Wiegand, door sensor or exit reader on the E9C. Choose the K30 Pro or X990 if you need door control.
Does it have a battery backup?
No. eSSL lists no optional battery for the E9C.
What power does it use?
5 V DC 2 A.
Which software works with it?
eSSL lists eTimeTrackLite and web software, an SDK, and support for third party payroll, HRMS and ERP software.
Who is the E9C best for?
Offices, schools and canteens that want Wi-Fi attendance only, without door control.
How does a biometric attendance machine work?
It identifies each person by fingerprint, face, palm or card and records the exact punch time. Reports can be downloaded as Excel or PDF, and many models connect to software over LAN or Wi-Fi, depending on the model.
Can the same machine also open a door?
Many models have a relay output that can control an electronic door lock, so one device can mark attendance and give door access. Check the product specifications for the relay or access control feature.
What do I need to install it?
A wall mount or desk stand, a power adapter and, for network models, a LAN cable or Wi-Fi. Our team gives free technical support for setup.
Is technical support available?
Yes. Free technical support is available for installation and setup.
