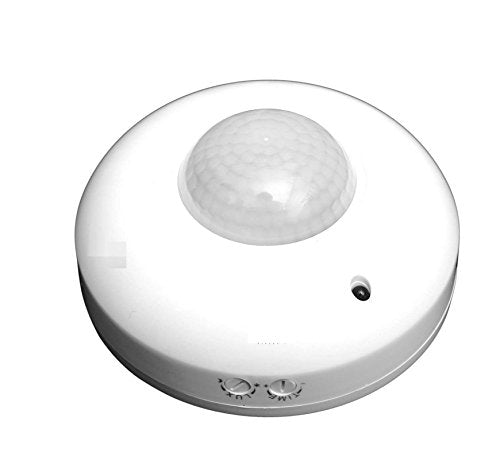

PIRC-22 360 Degree PIR Motion Sensor with Light Sensor, Energy Saving Motion Detector Switch with 12 Months Warranty (Ceiling Mounted)
PIRC-22 360 Degree PIR Motion Sensor with Light Sensor, Energy Saving Motion Detector Switch with 12 Months Warranty (Ceiling Mounted)
. Cheaper here, direct.
- Amazon.in price
- Rs. 699
- Here, direct
- Rs. 664
- You save
- Rs. 35 (5% less)
Amazon price checked 28 Oct 2026; Amazon prices change often. All our prices include GST, with the same warranty and free support.
Couldn't load pickup availability
Brand: NavKar SYSTEMS
Color: White
Features:
- Plz check before buying >> Sold/Reviewed and fulfilled by 'NAVKAR' only. Warranty of 12 Months with sold by NAVKAR only.
- Good solution for energy saving & easy in installation. & Delay adjustment: 10 Seconds - 7 Minutes & Adjustable Lux: turn on the lights during the day or night.
- Using the automatic control product of infrared technology, when people walk into the sensor range, and the sensor can detect the spectral change of the human body infrared ray, during this time, the switch will connect the load automatically until the person leaves the sensor range. 2, Through the photosensitive control , it will not turn on the lights in the daytime or light environment, but also can be adjusted in any lighting environment sensing lights .
- Sensitivity Adjustable: Turn On Lights during Day or nights.
- It can use with lamps, incandescent lamps (bulbs), old-fashioned fluorescent lamps, electronic fluorescent ring lamps, spotlights, transformers, small electrical appliances, and other all other appliance. Customer Care Ph: 9053635607
model number: PIRW-22
Part Number: NS-SENSOR-2
Details: NAVKAR 360 degree PIR Motion Sensor : The Product is new Energy Saving Device, it adopts good sensitivity detector, integrated ckt. It gathers automatism, convenience, Safety, Saving energy & physical functions. It works by receiving Human motion Infrared rays. Now Switch ON/OFF your Lights, Bulb, CFL, etc. by AUTOMATIC Use INFRARED PIR MOTION SENSOR Life: More than 5 years Use: Home, Office, Shops, Hospitals, Bathroom, Corridor, Step, Parking area & etc QUALITY CONTROL STANDARDS: Operating Volt: AC 220-250V 50Hz-60Hz. Load power: Up to 300/1200W Max Ambient Light: 3-2000 (Adjustable) Load type: Incandescent lamp, LED light, CLF, fans, etc. Detecting distance: 0~7M Detecting Angle: 360 Degree. Installation Hight: 2.2-4 Mtr Motion Detection Speed: 0.6~1m/s Power Cusumption:0.1W (static) & 0.4(Work) Working Humidity: less than 93%RH Delay: 10 Seconds -7 Minutes (Adjustable) PRODUCT INSTALLATION: 1.Keep Sensor unit 1.6 Mtr higher from the ground level. 2. The light, such as incandescent lamp which emits high heat should be kept from the switch away, or it will be turn on/off voluntarily. 3. On being fixed to the wire first time, the switch' initialization will take 1-2 minutes. It's natural for the switch to turn on/off voluntarily. 4. When you install the switch on daytime, the Default State of the switch will make the light off. Keep the detector of the switch from illumination, & then the light will turn ON. The darker, the switch will be more sensitive. If it is not very sensitive, turn the yellow port counterclockwise with a long and thin tool to get a proper light sensitivity. PACKAGE INCLUDES: 1 x Infrared Switch Board 1 x Wall /Celling fitting Plate 1 x Intones Manual 2 x Mounting Screw Bill
Package Dimensions: 5.5 x 5.5 x 2.0 inches
NavKar Systems PIRC-22
Specifications
A ceiling mount 360 degree PIR motion sensor switch that turns lights on when it senses people, and only when it is dark enough. Delay time and light level are adjustable. Suits homes, offices, shops, bathrooms, corridors and parking areas.
| Model | PIRC-22 (listing also writes PIRW-22) |
|---|---|
| Operating voltage | AC 220 to 250 V, 50 to 60 Hz |
| Load power | Up to 300 W / 1200 W (as listed) |
| Load types | Incandescent lamp, LED light, CFL, fans |
| Detecting distance | 0 to 7 m |
| Detecting angle | 360 degrees |
| Installation height | 2.2 to 4 m |
| Motion detection speed | 0.6 to 1 m/s |
| Ambient light setting | 3 to 2000 (adjustable) |
| Delay time | 10 seconds to 7 minutes (adjustable) |
| Power consumption | 0.1 W static, 0.4 W working |
| Working humidity | Less than 93% RH |
| Mounting | Ceiling or wall plate |
| Colour | White |
| Warranty | 12 months |
In the box
- 1 x Infrared switch board
- 1 x Wall or ceiling fitting plate
- 1 x Instruction manual
- 2 x Mounting screw
Specifications from NavKar Systems' product details for this model. All prices include GST.
Frequently asked questions
What does the PIRC-22 do?
It switches a light or appliance on when its infrared sensor detects a person, and off after the set delay.
What is the detection range?
0 to 7 m with a 360 degree angle, mounted at 2.2 to 4 m.
Can I set how long the light stays on?
Yes. The delay is adjustable from 10 seconds to 7 minutes.
Will it switch lights on in daytime?
It has a light sensor, so it keeps lights off in bright surroundings. The light level can be adjusted.
What loads can it run?
Incandescent lamps, LED lights, CFL and fans, at 220 to 250 V AC.
Why does the light blink on and off after first wiring?
The listing says the switch takes 1 to 2 minutes to start up the first time and may switch on and off by itself in that time.
Where should I not install it?
Keep heat sources such as incandescent lamps away from it, or it may switch on and off by itself.
What does the warranty cover?
The listing gives 12 months warranty when bought from NavKar.
What power does it use?
It runs on AC 220-250V 50-60Hz and handles loads up to 300/1200W.
What is the coverage?
0 to 7 meters, 360 degrees. Install it 2.2 to 4 m high.
Can I adjust it?
Yes. The delay is adjustable from 10 seconds to 7 minutes, and the light level setting decides if it works by day or only at night.
