EM Lock Price in India (October 2026): 300, 600 and 1200 lbs With Brackets
Short answer: in India a 600 lbs EM lock, the size most office and glass doors use, costs ₹1,499 to ₹2,450. A 300 lbs lock for light internal doors costs ₹1,500 to ₹1,799, and a 1200 lbs lock for double doors or heavy single doors costs ₹2,500 to ₹3,499. Brackets add ₹350 to ₹1,600 depending on your door. All prices below are our live website prices, include GST, and delivery across India is free.
What decides which EM lock size you need?
EM locks are sold by holding force, the pull the magnet resists before the door gives. It is written in pounds (lbs) or kilograms: 600 lbs is about 280 kg. Most of our 600 lbs listings state 280 kg. A 1200 lbs double-leaf lock is two 600 lbs magnets in one long body, one for each door leaf; the EMDL-1202 listing states 280 kg × 2. A 1200 lbs single-leaf lock puts all that force on one door.
After size, the price depends on extras: a door-status feedback output, an LED, a buzzer or timer, or a concealed body that hides inside the frame. If you only need the door to lock and release, a plain lock does the job.
EM lock price table (lock only, NavKar Systems, 27 October 2026)
| Model | Holding force | Key spec from the listing | Best for | Price |
|---|---|---|---|---|
| EM-102 | 100 lbs | About 45 kg; swing, sliding doors and gates | Cabinets, small light doors | ₹1,400 |
| EM-302 | 300 lbs | Plain lock | Light internal doors | ₹1,500 |
| EM-305 | 300 lbs | Feedback for lock status | Light doors that need monitoring | ₹1,799 |
| EM-602 | 600 lbs | 12/24 V DC, fail-safe, inbuilt relay, door sensor | Most office, cabin and glass doors | ₹1,499 |

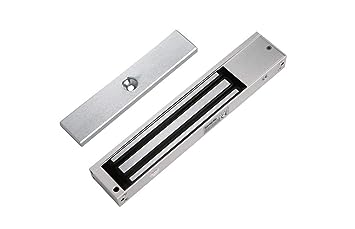

| EM-605 | 600 lbs | Feedback, 12 V DC, 110 mA; suits L, ZL and U brackets | Doors that need status output | ₹1,600 |
| SecureEye EM lock with LED | 600 lbs | LED; body 250 × 42 × 25 mm | Biometric access doors | ₹1,800 |
| EM-605BT | 600 lbs | Buzzer, dual LED, door sensor, 12/24 V | Doors left open by mistake | ₹2,450 |
| EMCON-62 concealed | 600 lbs | Fits inside the frame; 12/24 V DC; 420 mA at 12 V | Neat finish on wooden and metal frames | ₹2,450 |
| EMDL-1202 double leaf | 1200 lbs (2 × 600) | 12 V DC, LED, body 500 mm long | Double doors | ₹2,500 |
| EMSL-1202 single leaf | 1200 lbs | Single-leaf door | Heavy main doors, server rooms | ₹3,499 |
EM lock bracket prices
The bracket depends on how your door opens and what it is made of. Our EM lock bracket guide explains which door needs which.
| Bracket | Use | Price |
|---|---|---|
| BRL-EM L bracket | Narrow frame; 250 × 48 × 30 mm, zinc | ₹350 |
| BRUG-EM U bracket | Frameless glass door with a frame or wall above | ₹450 |
| BRZ-EM Z bracket | Door that opens towards the lock side (used with L) | ₹550 |
| BRI-EM I bracket | Armature plate on narrow-frame, thick or fire doors | ₹600 |
| BRUI-EM UI bracket | Framed top, frameless glass leaf, 10 to 15 mm glass | ₹850 |
| Combo-CN252 Z + L bracket set | Pull-side doors, 600 lbs series | ₹890 |
| BRGG-EM GG bracket | Toughened glass on all sides, no frame | ₹1,600 |
EM lock combos: lock with bracket, remote or app
| Combo | What is in it | Price |
|---|---|---|
| Combo-CN124 | 600 lbs EM lock + U bracket for glass doors | ₹1,999 |
| Combo-CN157 | 600 lbs EM lock with LED + Z and L brackets + exit button + adapter | ₹3,450 |
| Combo-CN126 | EM lock + L and U brackets + 12 V remote kit + 2 remotes | ₹3,599 |
| Combo-CN182 | 600 lbs EM lock + mobile app and remote kit + 2 remotes + adapter | ₹3,999 |
What does a full EM lock door cost, part by part?
The lock is only one part of the bill. A typical single office door bought part by part on our store comes to ₹6,566: EM-602 lock ₹1,499, PK-80 12 V 3 A power supply ₹1,450, PSW-44 exit button ₹217 and WP-25 card and PIN keypad ₹3,400. Add a bracket if your door needs one, plus cable and an electrician's time. A ready kit usually works out cheaper than buying the same parts separately.
For a complete door with a card, fingerprint or face reader, see our door access control system price guide. Kits with an EM lock start at ₹3,999 on our store.
What moves the price
- Holding force. Going from 600 lbs to 1200 lbs single leaf more than doubles the price of a plain lock (₹1,499 to ₹3,499).
- Double leaf vs single leaf. A double-leaf 1200 lbs lock (₹2,500) costs less than a single-leaf 1200 lbs lock (₹3,499). Its listing rates it at 280 kg per leaf, so each door gets 600 lbs, not 1200.
- Feedback and LED. A status output adds about ₹100 to ₹300 over the plain model of the same size.
- Buzzer, timer and concealed bodies. These sit at the top of the 600 lbs range, ₹2,450.
- Brackets. A plain push-side wooden door may need none. A frameless glass door can add ₹450 (U) to ₹1,600 (GG).
- Power and control. An EM lock alone cannot be opened. Budget for a power supply, an exit switch and a reader or remote kit, or buy a combo.
Which EM lock for your door
- Office cabin or internal wooden door: EM-602 (₹1,499). Add an L bracket (₹350) if the frame is narrow.
- Frameless glass door with a frame above: Combo-CN124 with U bracket (₹1,999).
- All-glass door with no frame: EM-602 plus BRGG-EM GG bracket (₹1,499 + ₹1,600 = ₹3,099).
- Door that opens towards you on the lock side: EM-602 plus the Z + L set (₹1,499 + ₹890 = ₹2,389).
- Double door: EMDL-1202 (₹2,500); stock is limited, so check availability.
- Heavy main door or server room: EMSL-1202 single leaf (₹3,499).
- Door people keep leaving open: EM-605BT with buzzer (₹2,450).
See every model in EM locks, the EM lock brackets and the LED, feedback and timer models. For help choosing between sizes, read the EM lock buying guide, or build a full door in the access control kit builder.
FAQ
What is the price of a 600 lbs EM lock in India?
On our store a 600 lbs EM lock costs ₹1,499 to ₹2,450, including GST. The plain EM-602 is ₹1,499; models with feedback, LED, buzzer or a concealed body cost more.
How much does a 1200 lbs EM lock cost?
The EMDL-1202 double-leaf lock for double doors is ₹2,500 and the EMSL-1202 single-leaf lock is ₹3,499.
Is 600 lbs enough for a glass door?
For most office glass doors, yes; 600 lbs (about 280 kg) is the standard size used with U and GG brackets.
Does the EM lock price include the bracket?
No, the lock-only listings do not include a bracket. Buy it separately (₹350 to ₹1,600) or choose a combo such as Combo-CN124 with a U bracket.
What else do I need to make an EM lock work?
A 12 V power supply, an exit switch and a way to release it, such as a card reader, keypad or remote kit. The EM lock wiring guide shows how they connect.
Do you help with installation?
We guide your electrician on call and WhatsApp, free. All prices include GST, and delivery across India is free.
Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
