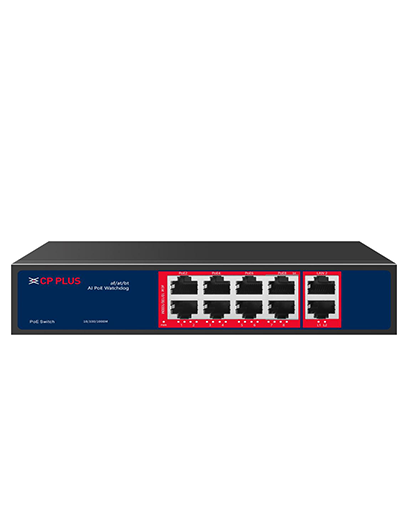

CP-ANW-GPU8G2-N12 8 Ports Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink Ports
CP-ANW-GPU8G2-N12 8 Ports Gigabit Unmanaged PoE Switch with 2 Gigabit Uplink Ports
Regular price
Rs. 3,450
Regular price
MRP
Sale price
Rs. 3,450
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping, pan-India
Secure online payment
Prices include GST
Free tech support
- 6 × RJ-45 10/100/1000 Mbps (PoE) Ports, 2 × RJ-45 Gigabit uplink Ports
- Transmission mode up to 130m
- Networking Standards: IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3x Flow Control, IEEE 802.3af/at/bt (PoE).
- PoE Power Budget: 120W (Max 30W/60W per port).
- Easy and safe installation: plug-and-play, desktop design.
| Network Port | 10 Ports |
| PoE Ports | 1-6 Ports: 10/100/1000Mbps PoE ports (RJ45); 7-8 Ports: 10/100/1000Mbps PoE ports (RJ45), Support bt 60W High Power |
| Uplink Ports | 2, 10/100/1000Mbps uplink ports (RJ45) |
| Network Standard | IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt Power over Ethernet |
| Bandwidth | 20Gbps |
| Network Latency | ≤16μs (use the 64byte package size) |
| MAC Address Table | 8K |
| AI Watchdog | Support |
| Transmission Rate | 1000Mbps: Full Duplex Only; 10/100Mbps: Full Duplex / Half Duplex |
| Transmission Distance | 130m |
| Power Source | Built-in Power Supply Input: AC 90~240V Total≤120W Output: PoE 1~6 Port: 1/2(+52V), 3/6(GND)≤30W PoE 7~8 Port:1245(+52V), 3678(GND) Compatible1/2(+52V), 3/6(GND)≤60W |
| Protection | ESD Protection:8KV Lightning Protection:6KV |
| Operating Temperature | -30°C ~60°C |
| Operating Humidity | 10%~90% Non-condensing |
| Storage Temperature | -40°C~70°C |
| Storage Humidity | 5%~90% Non-condensing |
| Dimensions | 190mm x 140mm x 43mm |
| Weight | 1000g |
| Certificates | ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE, FCC and RoHS, TEC/ MTCTE |
Frequently asked questions
How do I choose the right cable or switch?
Match the connector and speed rating to your devices, and check the length and the number of ports listed in the product details.
Is technical help available?
Yes. NavKar Systems provides free technical support for selecting and installing networking products.
Do you deliver across India?
Yes. We deliver across India, and all prices are inclusive of GST.
Do prices include GST?
Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.
Is technical support available?
Yes. Free technical support is available for installation and setup.
