CP Plus

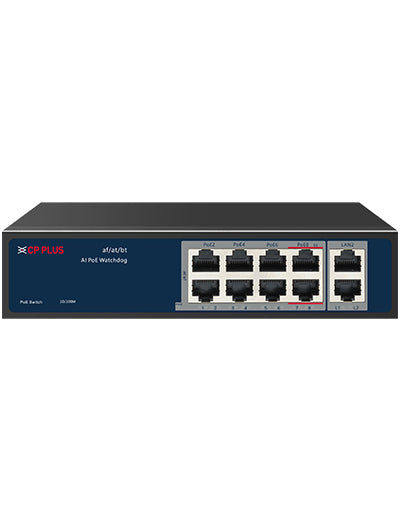

CP-ANW-HPU8H2-N12 8 Ports Unmanaged PoE Switch with 2 Uplink Ports

CP-ANW-HPU8H2-N12 8 Ports Unmanaged PoE Switch with 2 Uplink Ports

Rs. 0.00
Rs. 0.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • 8× RJ45 (10/100 Mbps) ports, 1–6 PoE/ 7–8 high-power PoE (60W support), 2× Uplink RJ45 ports (10/100 Mbps)
  • Transmission up to 130m
  • Networking standard: IEEE 802.3i (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3x (Flow control), IEEE 802.3af/at/bt (PoE support).
  • PoE Power Budget: 120W (Max 30W/60W per port).
  • Easy and safe installation: plug-and-play, desktop design.

Datasheet

User Manual

Specification

Network Port 10 Ports
PoE Ports 1-6 Ports: 10/100Mbps PoE ports (RJ45);
7-8 Ports: 10/100Mbps PoE ports (RJ45),Support bt 60W High Power
Uplink Ports 2, 10/100Mbps uplink ports (RJ45)
Network Standard IEEE 802.3i 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3x Flow Control, IEEE 802.3af/at/bt
Power over Ethernet
Bandwidth 2.0Gbps
Network Latency ≤16μs (use the 64byte package size)
Packet Forwarding Rate 1.5Mbps
MAC Address Table 2K
AI Watchdog Support
Transmission Rate 10/100Mbps: Full Duplex / Half Duplex
Transmission Distance 130m
Power Source Built-in Power Supply
Input: AC 90~240V Total≤120W
Output: PoE 1~6 Port:1/2(+52V),3/6(GND)≤30W
PoE 7~8 Port:1245(+52V), 3678(GND) Compatible1/2(+52V),3/6(GND)≤60W
Protection ESD Protection:8KV
Lightning Protection:6KV
Operating Temperature -30°C ~60°C
Operating Humidity 10%~90% Non-condensing
Storage Temperature -40°C~70°C
Storage Humidity 5%~90% Non-condensing
Dimension 190mm x 140mm x 43mm
Weight 1000g
Certificates ISO 9001: 2015, ISO 20000-1 : 2018, ISO 14001 : 2015, ISO 45001 : 2018, ISO 50001:2018, CE,
FCC and RoHS, TEC/ MTCTE
