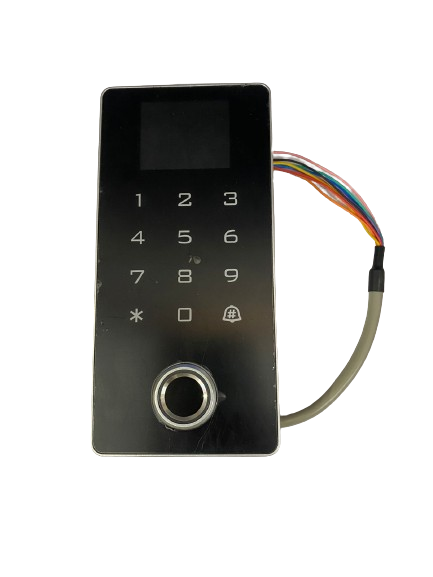

FP-45 Biometric, Card, PIN Access Control Panel

FP-45 Biometric, Card, PIN Access Control Panel

Regular price Rs. 4,900
Regular price MRP Rs. 4,900 Sale price Rs. 4,900
Sale Sold out
Taxes included. Free shipping across India.
Free shipping, pan-India
Secure online payment
Prices include GST
Free tech support
Buying for a project or in bulk?Why businesses buy from NavKar Systems
  • 16+ years in security and access control. Established as NavKar Systems in 2012.
  • A real office and warehouse you can visit. Vastu Building, 28–29 Jagadhari Road, Ambala Cantt, Haryana.
  • Also sold on Amazon.in by our seller account, NAVKAR SYSTEMS.
  • Volume pricing. 2 or more items save 3%, orders of ₹10,000 or more save 5%, applied at checkout. Larger projects get a written quote.
  • Safe prepaid checkout. UPI, cards or net banking through PayU. All prices include GST.
  • Free setup help on call and WhatsApp after delivery.

Introduction :-

This series product is a new generation on multifunctional standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode etc.. It's widely applied to different occasions, such as office, residential communities, villa, bank and prison etc..

Features :-

Card Type   Read 125 KHz Card and HID Card (optional)
Keypad Characteristic  Capacitive touch keypad
Output Way Contain reader mode, the transmission format could be adjusted by user.
Access Way  Fingerprint, card, code or multiple combination methods.
Admin Card Support admin add card and admin delete card.
User Capacity 10000
Unlock Signal   NO, NC, COM output using relay
Alarm Output  Use MOS tube output to directly drive the alarm.



Technical Specifications :-

 Operating Voltage: DC12-24V Standby Current: ≤60mA
Operating Current: ≤100mA Operating Temperature: 40℃-60℃
Operating Humidity: 0%-95% Access ways: Fingerprint, card, code, mobile phone app



Installation :-

  • Remove the back cover form the keypad using the supplied special screw drive
  • Drill 2 holes on the wall for the self-tapping screw and 1 hole for the cable
  • Put the supplied rubber bungs to into the two holes
  • Fix the back cover firmly on the wall with 2 self tapping screws
  • Thread the cable through the cable hole
  • Attached the keypad to the back cover
  • Model No:FP-45

Frequently asked questions

What does an access control system include?

A reader (fingerprint, card, PIN or face), a controller, a power supply and an electronic lock such as an EM lock or strike lock, plus an exit button. Complete kits include most of these parts.

Which lock should I use with it?

Use an EM lock for glass and wooden doors that must fail open in a power cut, or a strike lock for doors that must stay locked. Match the lock voltage with the power supply.

Can I add more users later?

Yes. Users are added with fingerprints, cards or PINs, and the number of users is listed in the product specifications.

Do prices include GST?

Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.

Is technical support available?

Yes. Free technical support is available for installation and setup.
