eSSL Aiface-Orcus Time & Attendance (Face, Fingerprint)
eSSL Aiface-Orcus Time & Attendance (Face, Fingerprint)
Couldn't load pickup availability

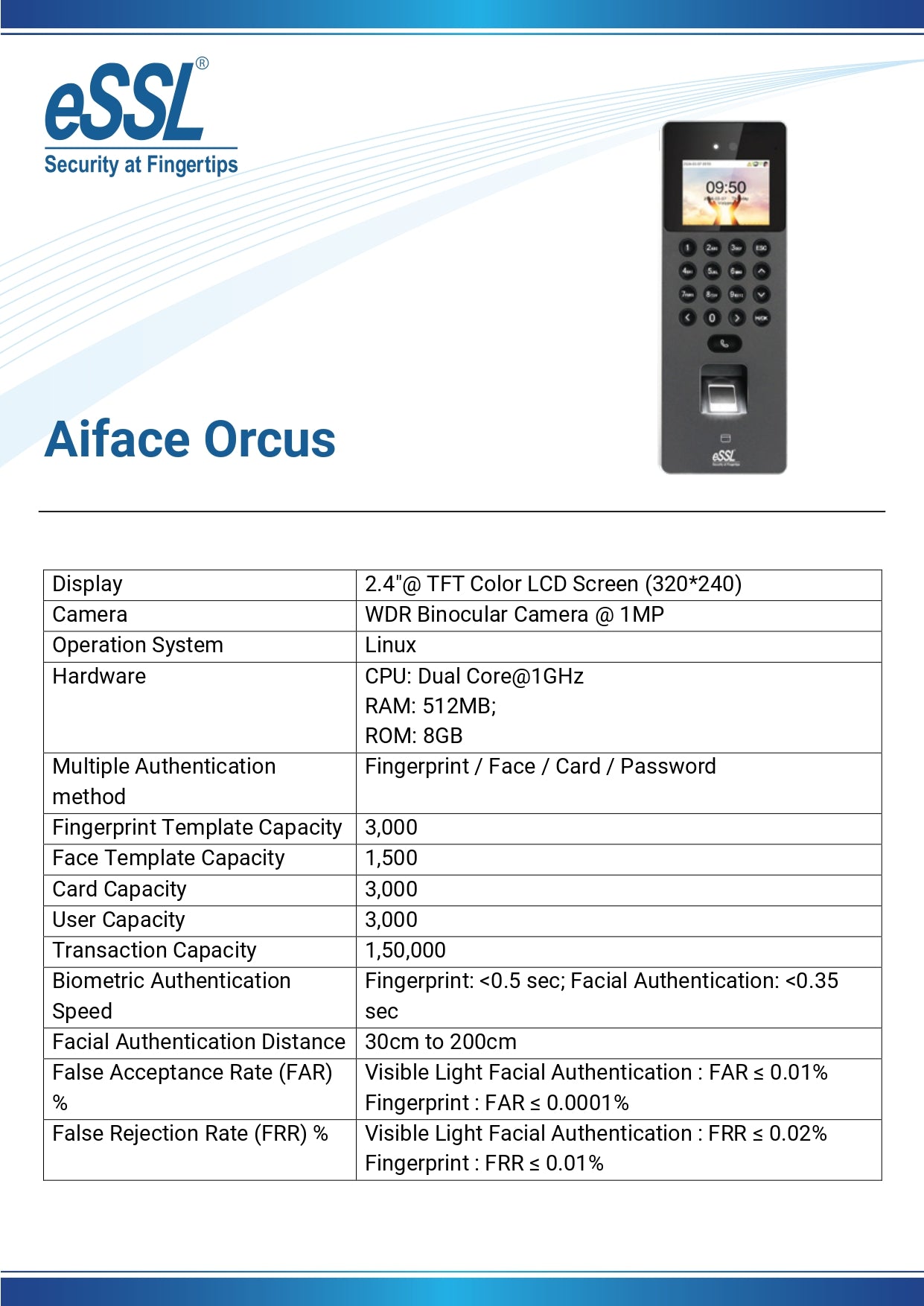

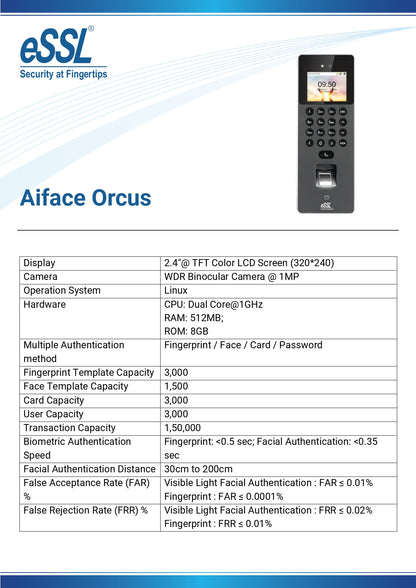

Technical Specifications
- Display : 2.4"@ TFT Color LCD Screen (320*240)
- Camera : WDR Binocular Camera @ 1MP
- Operation System : Linux
- Hardware : CPU: Dual Core@1GHz , RAM: 512MB , ROM: 8GB
- Multiple Authentication method : Fingerprint / Face / Card / Password
- Fingerprint Template Capacity : 3000
- Face Template Capacity : 1500
- Card Capacity : 3000
- User Capacity : 3000
- Transaction Capacity : 1,50,000
- Biometric Authentication Speed : Fingerprint: < 0.5 sec; Facial Authentication: < 0.35 sec
- Facial Authentication Distance : 30cm to 200cm
- False Acceptance Rate (FAR) % : Visible Light Facial Authentication : FAR ≤ 0.01% , Fingerprint : FAR ≤ 0.0001%
- False Rejection Rate (FRR) % : Visible Light Facial Authentication : FRR ≤ 0.02% , Fingerprint : FRR ≤ 0.01%

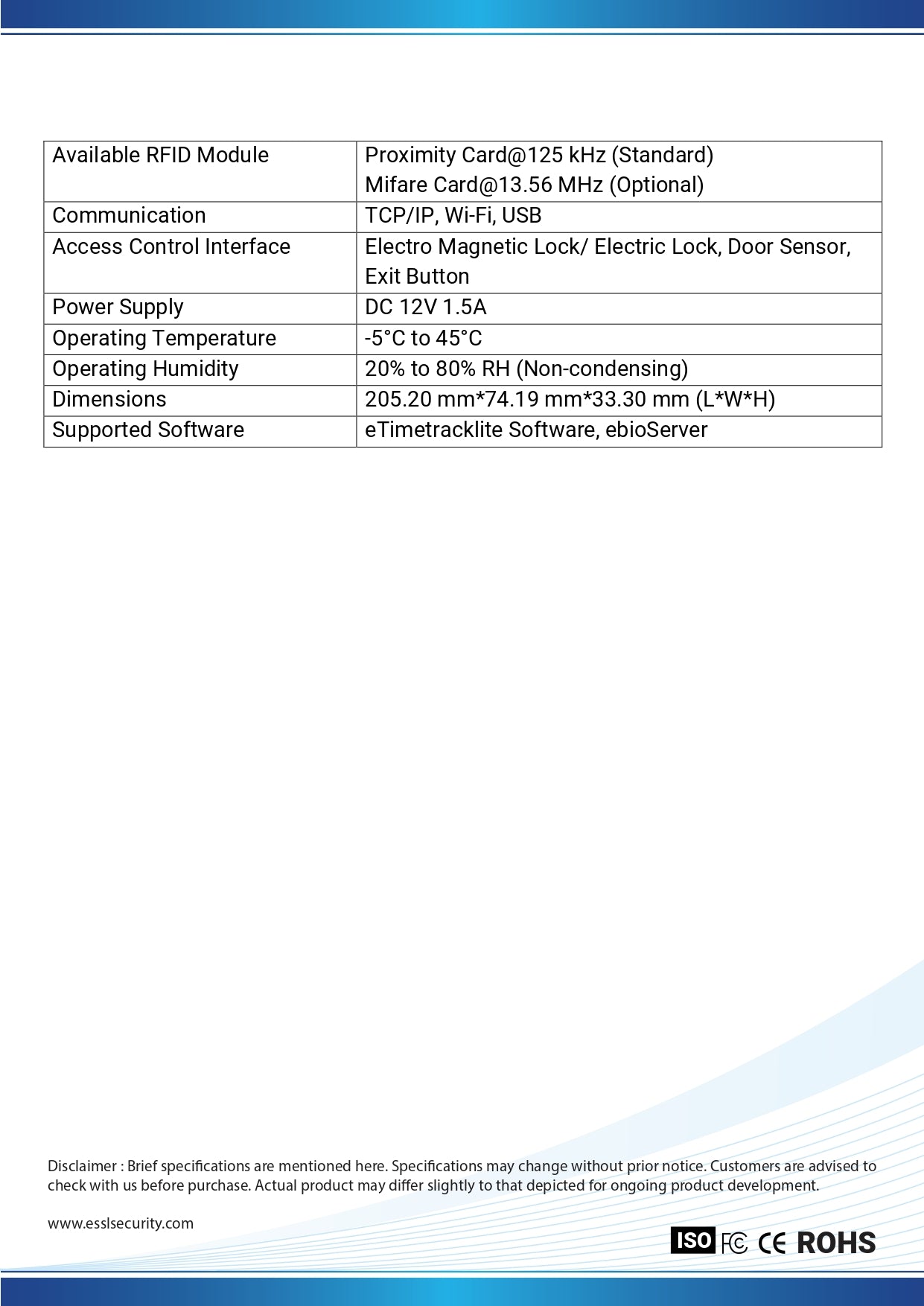

- Available RFID Module : Proximity Card@125 kHz (Standard) , Mifare Card@13.56 MHz (Optional)
- Communication : TCP/IP, Wi-Fi, USB
- Access Control Interface : Electro Magnetic Lock/ Electric Lock, Door Sensor, Exit Button
- Power Supply : DC 12V 1.5A
- Operating Temperature : -5°C to 45°C
- Operating Humidity : 20% to 80% RH (Non-condensing)
- Dimensions : 205.20 mm*74.19 mm*33.30 mm (L*W*H)
- Supported Software : eTimetracklite Software, ebioServer
eSSL AiFace Orcus
Specifications

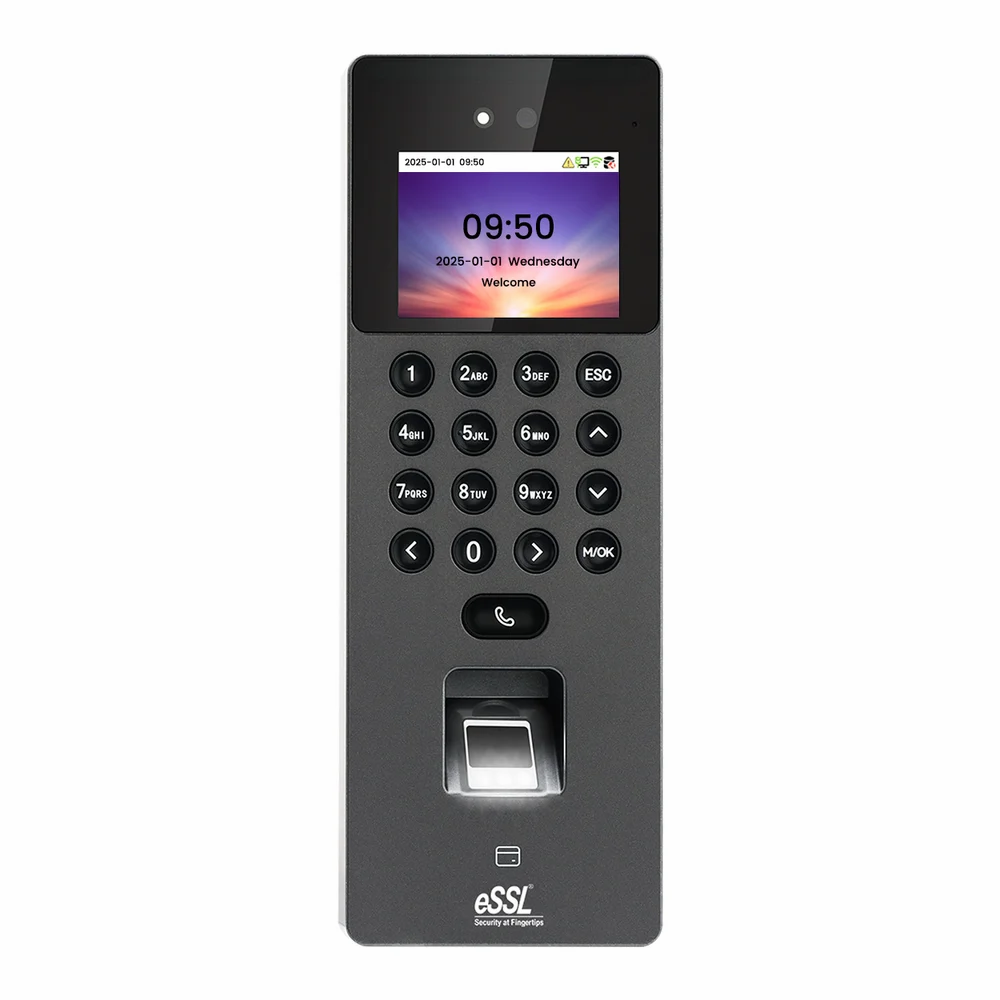

The eSSL AiFace Orcus is a face, fingerprint, card and password terminal with built-in Wi-Fi. It holds 3,000 users and recognises a face in less than 0.35 second. It suits offices and factories that want fast touch-free punching with fingerprint backup.
| Verification | Fingerprint, face, card, password |
|---|---|
| User capacity | 3,000 |
| Fingerprint capacity | 3,000 |
| Face capacity | 1,500 |
| Card capacity | 3,000 |
| Transaction capacity | 1,50,000 |
| Display | 2.4-inch TFT colour LCD (320 x 240) |
| Camera | 1 MP WDR binocular camera |
| Operating system | Linux |
| Hardware | Dual core 1 GHz CPU, 512 MB RAM, 8 GB ROM |
| Recognition speed | Fingerprint less than 0.5 sec; face less than 0.35 sec |
| Face recognition distance | 30 cm to 200 cm |
| FAR | Face 0.01% or less; fingerprint 0.0001% or less |
| FRR | Face 0.02% or less; fingerprint 0.01% or less |
| RFID module | 125 kHz proximity (standard); 13.56 MHz Mifare (optional) |
| Communication | TCP/IP, Wi-Fi, USB |
| Access control interface | EM lock or electric lock, door sensor, exit button |
| Power supply | DC 12 V 1.5 A |
| Operating temperature | -5 °C to 45 °C |
| Operating humidity | 20% to 80% RH (non-condensing) |
| Dimensions (L x W x H) | 205.20 x 74.19 x 33.30 mm |
| Software | eTimeTrackLite, eBioServer |
Specifications checked against eSSL's published details for this model. All prices include GST.
Frequently asked questions
How many employees can the AiFace Orcus hold?
3,000 users with 3,000 fingerprints, 1,500 faces and 3,000 cards, and 1,50,000 records.
How fast is it?
Face recognition takes less than 0.35 second and fingerprint less than 0.5 second.
Does the Orcus have Wi-Fi?
Yes. It connects by TCP/IP, Wi-Fi and USB.
Can it open a door?
Yes. It supports an EM lock or electric lock, door sensor and exit button.
Which cards does it read?
125 kHz proximity cards as standard; 13.56 MHz Mifare is optional.
From how far can it read a face?
From 30 cm to 200 cm.
What power does it need?
DC 12 V 1.5 A.
How does it compare with the AiFace Magnum?
The Magnum is IP65 rated and holds 5,000 fingerprints and 10,000 cards. The Orcus holds 3,000 of each, adds password, and has built-in Wi-Fi.
How does a biometric attendance machine work?
It identifies each person by fingerprint, face, palm or card and records the exact punch time. Reports can be downloaded as Excel or PDF, and many models connect to software over LAN or Wi-Fi, depending on the model.
What do I need to install it?
A wall mount or desk stand, a power adapter and, for network models, a LAN cable or Wi-Fi. Our team gives free technical support for setup.
Is technical support available?
Yes. Free technical support is available for installation and setup.
