eSSL

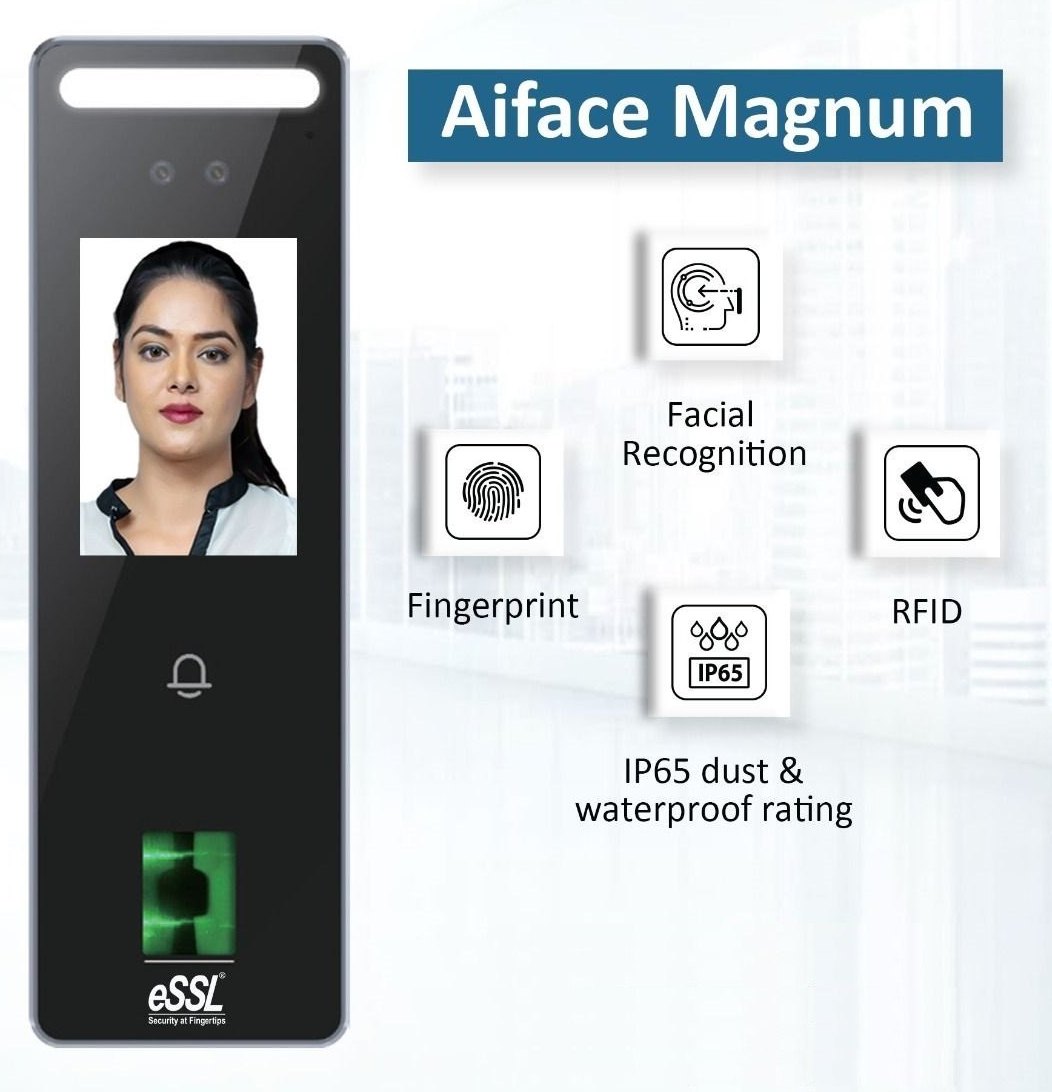

eSSL Multi Biometric Time Attendance & Access Control System Aiface Magnum
eSSL Multi Biometric Time Attendance & Access Control System Aiface Magnum
Couldn't load pickup availability
Specifications:
Face Capacity: 1500
Fingerprint Capacity: 5000
Card Capacity: 10,000
Transaction Capacity: 200,000
Display: 2.4-inch touch Screen
Facial Recognition Algorithm: eSSL Face 3.5
Facial Recognition Speed: <1s
Facial Recognition Distance: 0.5m to 2m
Communication: TCP/IP, WiFi (Optional), Wiegand Input/Output, RS485
Operation System: Linux
Standard Functions: ADMS, DST, Camera,14-digit User ID,
Access Levels, Groups, Holidays, Anti passback, Record Query,
Tamper Switch Alarm, Multiple Anti-Passback
Hardware:1.2GHz Dual Core CPU, 256 MB RAM/512 MB Flash,
1MP Binocular Camera Adjustable LED Fill Light
Access Control Interface: 3rd Party Electric Lock, Door Sensor,
Exit Button, Alarm output, Auxiliary Input
Power Supply: 12V3A
Ingress Protection Rating: IP65
Operating Temperature: -5°C to 45°C
Operating Humidity:10% to 90% RH
Dimensions(L*W*D):185*58.5*20mm
Supported Softwares: eTime Tracklite
Features:
- IP65 water and dust resistance
- Operating temperature from -5°C to 45°C
- Support Facial / Fingerprint /RFID
- Available card modules: 12.5 KHz ID card /13.56 MHz IC card
- Fill Light with adjustable brightness
- On Board Web Server for systemc onfiguration
Frequently asked questions
How does a biometric attendance machine work?
It identifies each person by fingerprint, face, palm or card and records the exact punch time. Reports can be downloaded as Excel or PDF, and many models connect to software over LAN or Wi-Fi, depending on the model.
Can the same machine also open a door?
Many models have a relay output that can control an electronic door lock, so one device can mark attendance and give door access. Check the product specifications for the relay or access control feature.
What do I need to install it?
A wall mount or desk stand, a power adapter and, for network models, a LAN cable or Wi-Fi. Our team gives free technical support for setup.
Do prices include GST?
Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.
Is technical support available?
Yes. Free technical support is available for installation and setup.
