NavKar 20-Point Wired Nurse Call & Staff Call Panel
NavKar 20-Point Wired Nurse Call & Staff Call Panel
Buying here, direct, gets you the same warranty and prices inclusive of GST, plus free setup help on call and WhatsApp.
View on Amazon.inCouldn't load pickup availability
Choose your point capacity.
Count the separately identified rooms or call points, then choose a capacity that covers them.
You’re viewing the 20-point wired panel. Choosing another capacity opens that model’s own product listing.
WIRED NURSE & STAFF CALL
A room calls.
Its number lights.
The NavKar 20-point wired nurse call panel helps the staff station identify which configured room or call location is requesting assistance.
20
Numbered points
Wired
Fixed call-point connection
LED + buzzer
Visual and audible indication
From the room.
To the staff station.
When a patient presses a connected switch, the light for that room’s assigned number glows on the central panel. Staff can identify the calling location without guessing which room requested assistance.
Illustrative Room 7 call example. Generic switch and room fittings shown for context; confirm compatible accessories and wiring.
01
A patient calls.
A patient or staff member presses the connected room switch.
02
The room number lights.
The corresponding numbered indicator glows on the central panel. Room 7 calls → indicator 7 lights.
03
Staff identify the room.
The team sees which location needs assistance and follows the facility’s response procedure.
Find the right fit.
Count the locations you want to identify separately on the panel—not the number of nurses or staff. Compare these four capacities and allow for any future requirement when planning your site.
| Wired panel | Capacity |
|---|---|
| View 15-point option → | Up to 15 separately identified call locations |
| View 18-point option → | Up to 18 separately identified call locations |
| 20 points · Selected | Up to 20 separately identified call locations |
| View 30-point option → | Up to 30 separately identified call locations |
Hospitals and clinics can use the panel at a nursing station. Hotels and offices can plan compatible wired staff-call points around a responsible reception or staff desk. Installation suitability depends on the site and accessories selected.
The essential details.

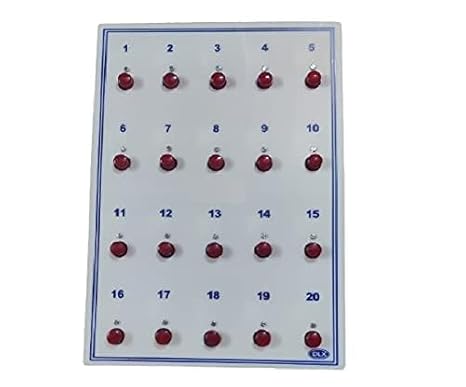

| Point capacity | 20 numbered positions |
|---|---|
| Face layout | 4 rows × 5 positions; labels 1–20 |

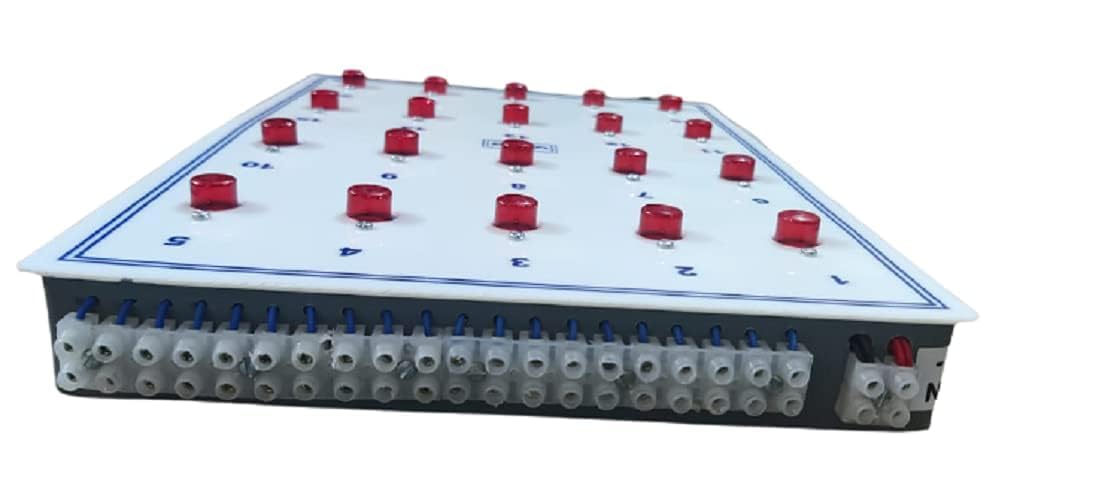

| Connection | Wired |
| Visual alert | Numbered LED indication |
| Audible alert | Inbuilt buzzer |
| Listed package | 1 central nurse/staff call panel |
Power requirements, dimensions and accessory compatibility should be confirmed for the supplied unit. No wireless range or mobile-app feature is claimed for this wired panel.
Plan once. Install properly.
- List the rooms or call locations and the panel number assigned to each.
- Choose the capacity and a visible, audible position at the staff station.
- Confirm compatible switches, the reset arrangement, cable routes and the required power supply with your installer.
- Confirm exactly what the quotation includes.
- Have every configured call point checked during commissioning before use.
Good questions. Clear answers.
What does 20-point mean?
The central panel has 20 numbered indicator positions for separately identified call locations. It does not mean 20 bedside switches are included.
What happens when someone presses a room switch?
The light assigned to that room’s number glows on the panel. For example, pressing the connected Room 7 switch lights indicator 7 at the staff station.
Is this nurse call system wired or wireless?
This is the wired model. It needs compatible connected call points and an appropriate cable installation; it is not a wireless pager or Wi-Fi panel.
Which capacity should I buy?
Count the locations that need separate identification, then choose a panel with enough numbered positions. Consider any spare capacity you may want and confirm the site plan with your installer.
Are switches, cables and power accessories included?
The listed package is one central panel. Confirm the compatible switches, reset arrangement, cable lengths, power accessories and installation in your quotation before ordering.
Does it provide sound as well as a light?
The listed features include LED indication and an inbuilt buzzer. Confirm acknowledgement and reset behaviour for your planned installation.
Let’s plan your call system.
Share your required point count, room layout and proposed staff-station location for a suitable wired-system quotation.
Request a project quote Ask NavKar a questionSelect, install and operate the system according to your facility’s procedures. A call panel does not replace an emergency-response plan. Application scenes are illustrative; room fittings, furniture and computers are not included.
