Combo-CN218 WiFi Power Supply with 3 Remotes

WiFi Power Supply with 3 Remotes

• Buy on Amazon: CLICK HERE TO BUY ON AMAZON

Product Overview

NAVKAR SYSTEMS Combo-CN218 is a WiFi + RF smart power supply designed to operate compatible electronic door locks through multiple control methods. It supports control through the Smart Life App, RF remote controls, Alexa, Google Home, and a wired switch, providing convenient access control for residential and commercial applications.

The package includes 1 PSWF-01 WiFi power supply and 3 RF remotes. The RF remotes provide a range of up to 50 metres in an open area, while the system's wireless range is specified as up to 30–40 metres. The electronic door lock is not included.

Main Purpose

• Smart Door Lock Control: Designed to operate compatible electronic door locks through WiFi, RF remote controls, Smart Life App, or a wired switch.
• Remote Access: Allows users to control a connected electronic door lock without being physically near the lock.
• Smart Home Integration: Supports compatible Alexa and Google Home setups for convenient smart-home control.

Key Benefits

• • Multiple Control Options: Operate the connected lock using the Smart Life App, 3 RF remotes, Alexa, Google Home, or a wired switch.
  • Remote Operation: RF remotes provide up to 50 m range in an open area.
  • Easy Installation: Designed for connection with compatible electronic door locks through the provided power-supply terminals.
  • Expandable Remote Control: Additional compatible RF remotes can be added later.
  • Wide Application: Suitable for residential buildings, offices, hotels, schools, and other compatible access-control installations.

Product Specifications

• Model: Combo-CN218
• Product Type: WiFi + RF Smart Power Supply for Electronic Door Locks
• Brand: NAVKAR SYSTEMS
• Power Supply: Input AC 220V; Output DC 24V AC
• Communication: WiFi + RF Wireless + Wired Switch
• Operating Range: RF Remote up to 50 m in open area; wireless range up to 30–40 m
• Material: ABS
• Dimensions:
• Weight:
• RF Remotes: 3 included; additional compatible remotes can be added, can be purchased separately.
• App: Smart Life App
• Smart Home Compatibility: Alexa and Google Home
• Wired Control: Supports connection of a wired switch
• Compatibility: Suitable for compatible electronic door locks
• Package Includes: 1 × PSWF-01 WiFi Power Supply + 3 × RM-BR0231 RF Remotes
• Electronic Door Lock: Not included
• Installation: Onsite installation not included
• Warranty: 1 Year

Applications

• Residential main doors and entry points with compatible electronic door locks
• Commercial offices, hotels, schools, and other controlled-access areas
• Smart home access control using Smart Life App, RF remotes, Alexa, or Google Home

Suitable For

• Compatible electronic door locks of various brands
• Indoor installations where AC 220V power and Wi-Fi connectivity are available
• Installations requiring multiple access methods such as mobile app, RF remote, or wired switch
• Users requiring remote operation of an electronic door lock

Not Suitable For

• Electronic door locks that are not electrically compatible with the power supply
• Outdoor installation where the power supply may be directly exposed to water or moisture
• Applications requiring operation beyond the specified wireless/RF range
• The electronic door lock itself is not included with this package

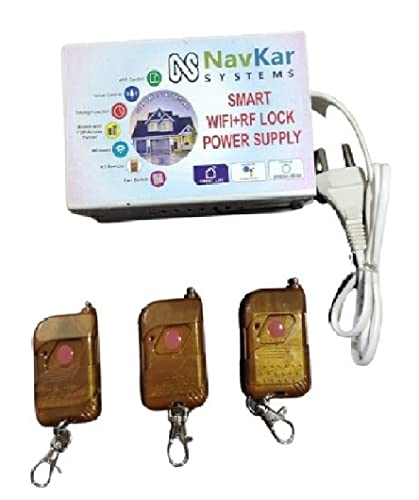

Package Contents

• 1 × PSWF-01 WiFi + RF Power Supply
• 3 × RM-BR0231 RF Brown Remote Controls

Installation

1. Mount the PSWF-01 WiFi power supply at a suitable indoor location near the electronic door lock.
2. Connect the AC 220V power input to the power supply according to the terminal markings.
3. Connect the compatible electronic door lock to the power supply output terminals.
4. Connect the system to the Smart Life App and pair the supplied RF remotes before testing the lock operation.
5. If required, connect a suitable wired switch for local lock operation.

Wiring

The PSWF-01 is designed to provide power and control for compatible electronic door locks through Wi-Fi, RF remote, and wired-switch operation. Follow the terminal markings on the actual unit during installation.

• Power: AC 220V input
• Input: AC 220V mains supply
• Output: DC 24V AC as specified by the product page
• Other Connections: Compatible electronic door lock, optional wired switch, Wi-Fi/Smart Life App, and RF remotes

Programming

1. Install the Smart Life App on an Android or iOS smartphone and add the WiFi power supply to the app.
2. Connect the power supply to the available Wi-Fi network and configure the required smart-control settings.
3. Pair the supplied RF remotes with the power supply and test the lock operation.
4. If using voice control, configure the device with Alexa or Google Home as supported.

Operation

1. Open the electronic door lock using the Smart Life App, paired RF remote, or connected wired switch.
2. For RF operation, press the programmed button on the remote; the specified remote range is up to 50 m in open area.
3. For smart-home operation, use the configured Alexa or Google Home command to operate the compatible lock.
4. Keep the power supply protected from water exposure during operation.

Troubleshooting

• Problem: Electronic door lock does not operate using the remote.
  Solution: Check that the power supply is receiving AC 220V power, verify the lock wiring, and ensure the remote is properly paired with the RF controller.
• Problem: Smart Life App cannot operate the lock.
  Solution: Check the Wi-Fi connection and confirm that the PSWF-01 is properly added and configured in the Smart Life App. The specified wireless range is up to 30–40 m.
• Problem: Remote operation is unreliable or has reduced range.
  Solution: Keep the remote within the specified operating range and reduce obstructions between the remote and receiver. The stated RF remote range is up to 50 m in an open area.


Common Problems

• No power to the system – Check the AC 220V input and power connections.
• Lock does not unlock – Check the electronic lock connection and confirm that the lock is compatible with the power supply.
• Remote not responding – Recheck remote pairing and operate within the specified range.
• App control not working – Check Wi-Fi connectivity and Smart Life App configuration.
• Wired switch not working – Check the switch wiring and terminal connections.


FAQs

Q: How can I operate the electronic door lock?
A: The system supports operation through the Smart Life App, RF remote, Alexa, Google Home, and a wired switch.

Q: How many remotes are included?
A: The package includes 3 RF remotes. Additional compatible remotes can be added later.

Q: What is the remote operating range?
A: The RF remote range is specified as up to 50 metres in an open area. The stated wireless range is up to 30–40 metres.

Q: Is the electronic door lock included?
A: No. The Combo-CN218 package is the WiFi + RF power supply and remote-control system; the electronic door lock is purchased separately.

Q: Can I use a wired switch?
A: Yes. The product supports opening the lock using a connected wired switch.

Spare Parts

• Additional compatible RF remote controls
• PSWF-01 WiFi + RF power supply/controller
• Other compatible components may be available separately, subject to availability


Warranty

• Warranty: 1 year.
• Warranty applies to the supplied product according to the manufacturer's warranty terms.
• Physical damage, incorrect wiring, water exposure, or damage caused by improper installation/use may not be covered.
• The electronic door lock is not included in this package and is therefore covered separately, if applicable.

Videos

• [Installation Video]
• [Programming Video]
• [Product Demonstration Video]

Manuals

• [User Manual]
• [Installation Manual]

Downloads

• [Datasheet]
• [Wiring Diagram]
• [Catalogue / Brochure]
• [Other Download]

Customer Questions

Q: What is included in the NAVKAR SYSTEMS Combo-CN218 package?
A: The package includes 1 × PSWF-01 WiFi + RF Power Supply and 3 × RM-BR0231 RF Remotes.

Q: Can this power supply operate an electronic door lock?
A: Yes. It is designed to operate compatible electronic door locks through the Smart Life App, RF remote, or wired switch.

Q: Can I control the lock using a mobile phone?
A: Yes. The system supports operation through the Smart Life App.

Q: Does it support Alexa and Google Home?
A: Yes. The product supports smart-home operation through Alexa and Google Home.

Q: How many remotes are provided?
A: 3 RF remotes are included. Additional compatible remotes can be added later.

Q: What is the remote range?
A: The stated RF remote range is up to 50 metres in an open area. The listed wireless range is up to 30–40 metres. Actual range can vary depending on walls and other environmental conditions.

Q: Can I connect a wired switch?
A: Yes. The system supports opening the connected electronic lock using a wired switch.

Q: Is the electronic door lock included?
A: No. The Combo-CN218 package contains the WiFi/RF power supply and three remotes. The electronic door lock is purchased separately.

Q: What power supply does the unit use?
A: The product page specifies AC 220V input and DC 24V AC output.

Q: Can this be used with all brands of electronic door locks?
A: It is intended for compatible electronic door locks. Compatibility should be confirmed based on the lock's required voltage, current, and wiring before installation.

Q: Is onsite installation included?
A: No. Onsite installation/service is not included with the product.

Q: Can the product be used outdoors?
A: The power supply should be installed in a location protected from water and direct moisture exposure.

Escalation to Support

If the issue cannot be resolved using the information above, Please contact Navkar Systems at Whatsapp Support number: 91384 68548 with the following information:

• Product Model:
• Purchase Date:
• Problem Description:
• Installation Details:
• Photos / Videos:
• Previous Troubleshooting Performed:
