Product Overview

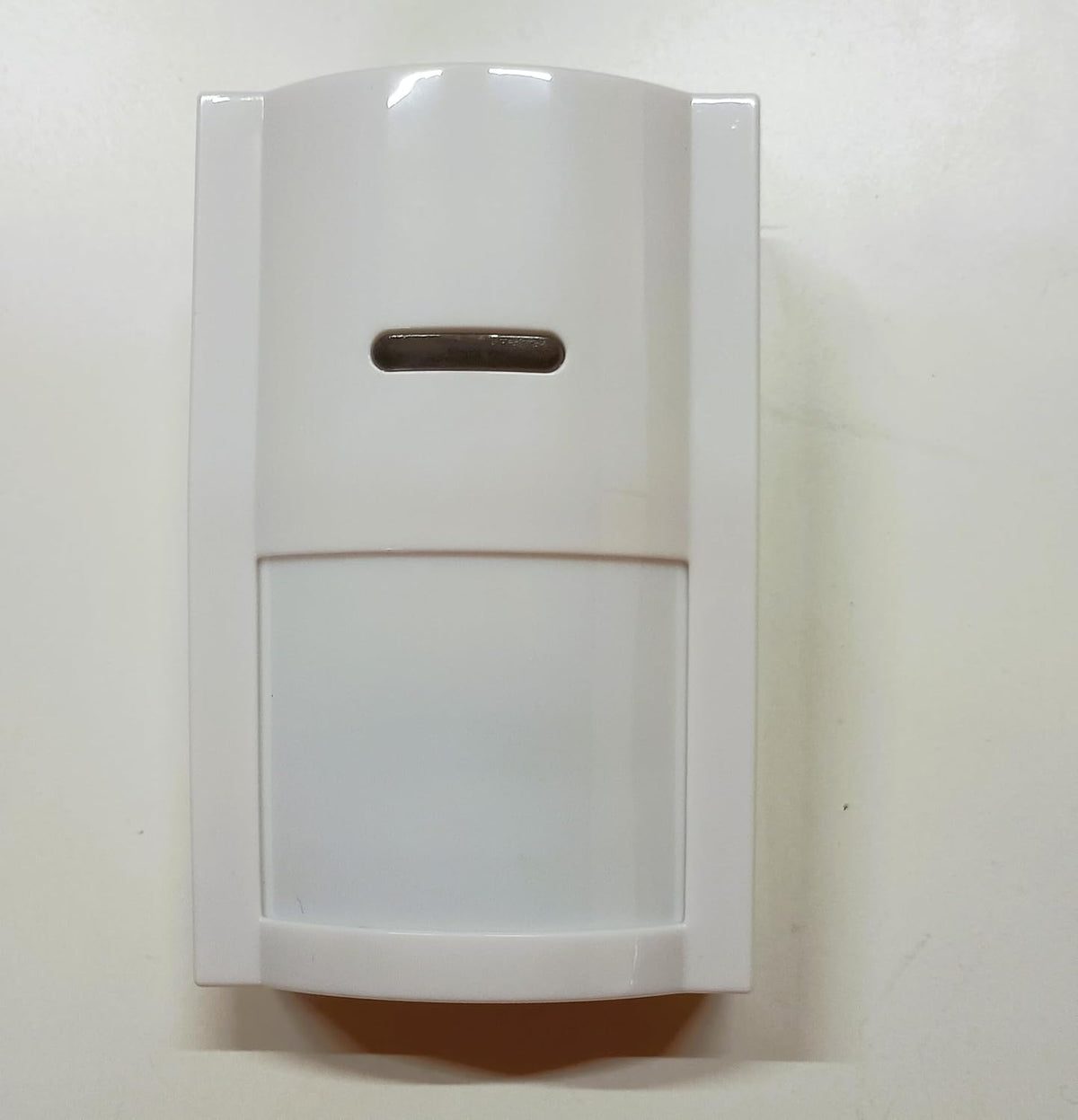

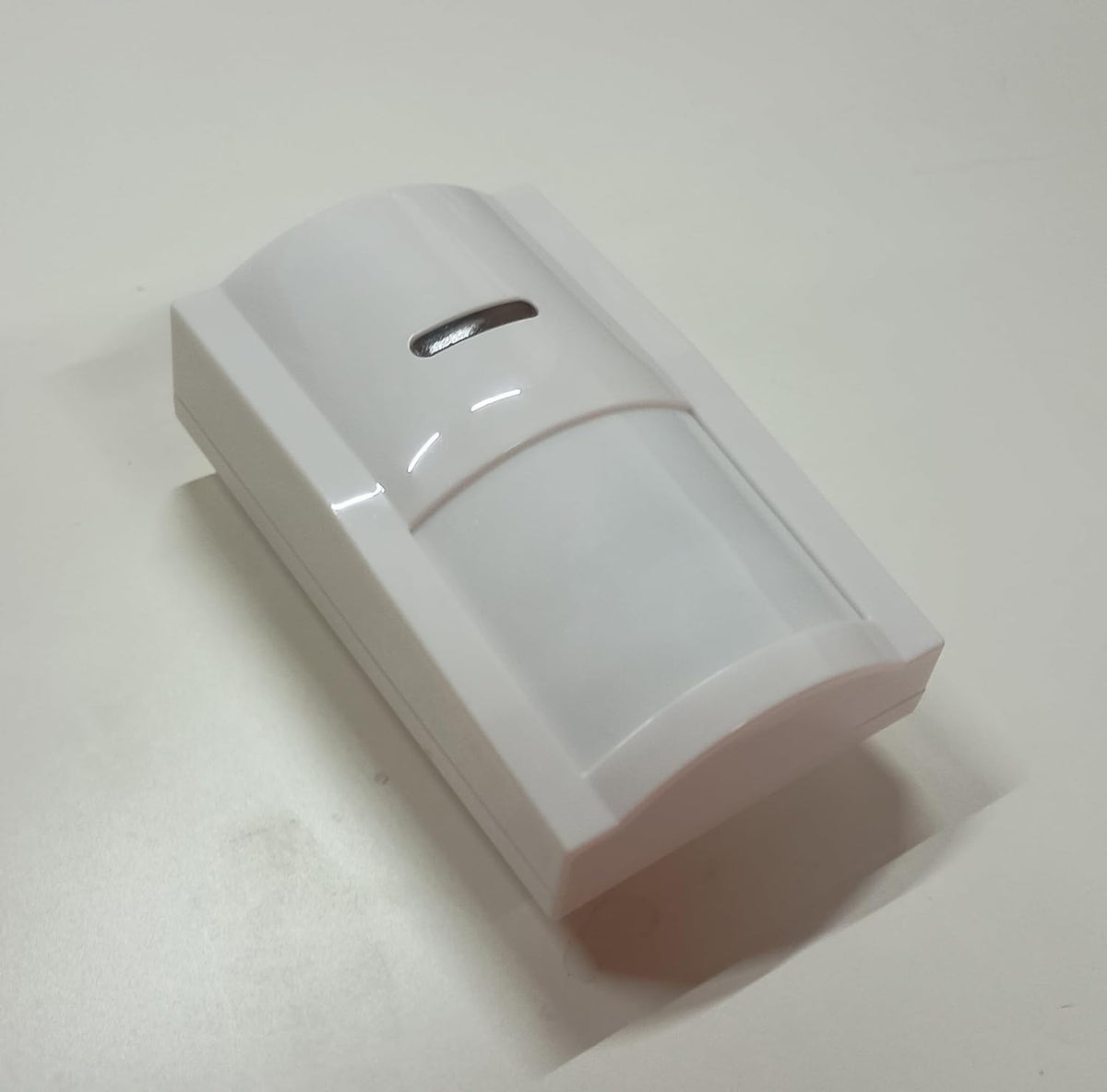

The NAVKAR SYSTEMS Passive Infrared Motion Detector is a dual-element PIR security sensor designed to detect movement within a protected indoor area. It uses a dual-element infrared sensing element with digital processing technology to identify motion and provide an alarm signal to a compatible security alarm system.

With a 12-meter detection range and 110° detection angle, the detector provides broad-area coverage when installed at the recommended height of approximately 2.2 meters. It operates on DC 12V power and provides a normally closed alarm relay output for connection to a compatible alarm panel. The built-in red LED indicator provides visual indication when motion is detected, while the LED jumper allows the installer to enable or disable the alarm indication during normal operation.

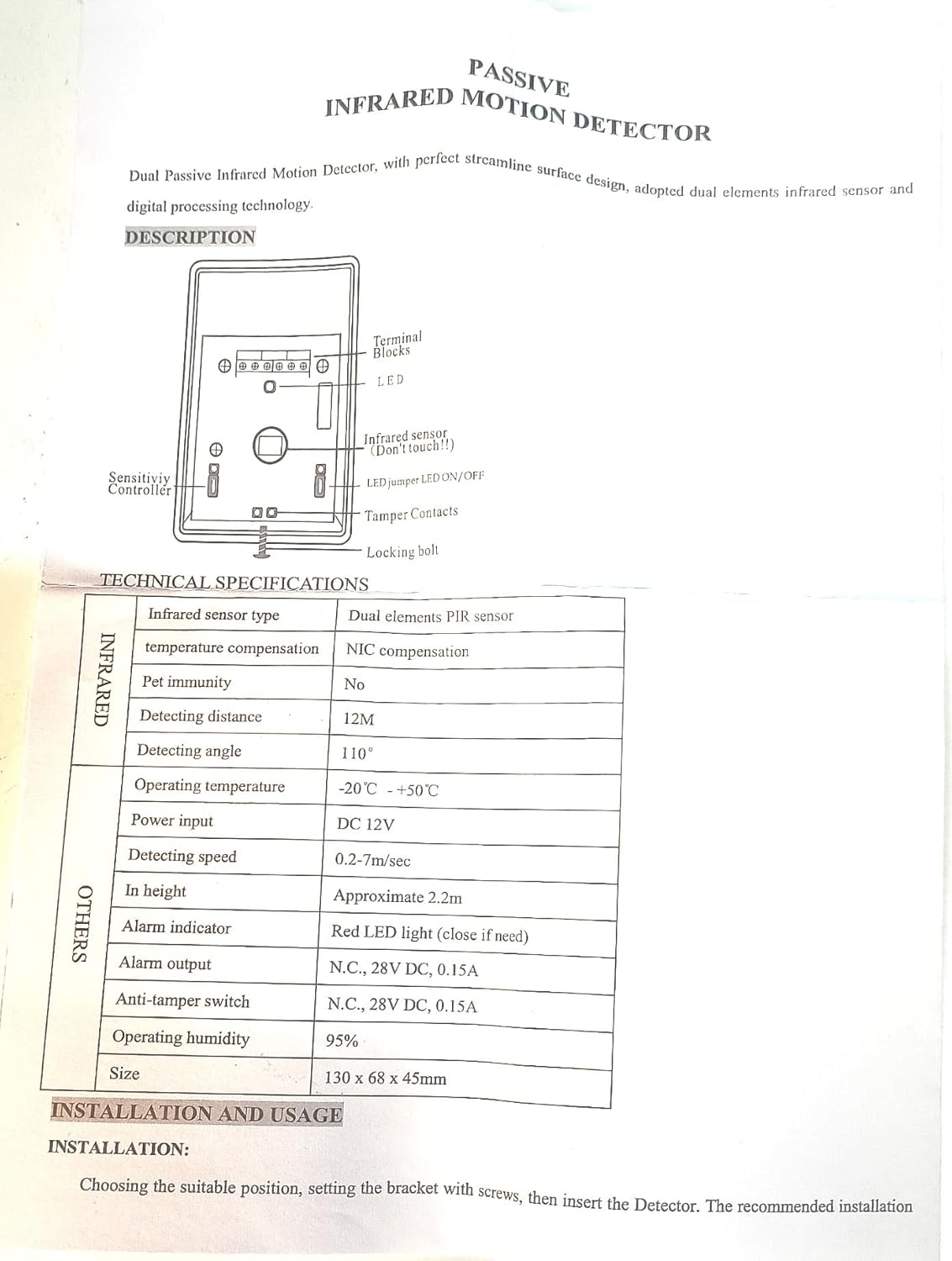

Product Specifications

• Model: PIRW-T10
• Product Type: Dual-Element Passive Infrared (PIR) Motion Detector
• Brand: NAVKAR SYSTEMS
• Power Supply: DC 12V
• Communication: Wired
• Operating Range: Up to 12 m detection distance with 110° detection angle
• Material: Plastic housing
• Dimensions: 130 × 68 × 45 mm
• Weight: 50g
• Other Specifications:
  • Sensor: Dual-element PIR sensor
  • Detection Speed: 0.2–7 m/sec
  • Recommended Installation Height: Approx. 2.2 m
  • Sensitivity: Adjustable
  • Temperature Compensation: NIC compensation
  • Alarm Indicator: Red LED
  • Alarm Output: N.C., 28V DC, 0.15A
  • Anti-Tamper Output: N.C., 28V DC, 0.15A
  • Operating Temperature: -20°C to +50°C
  • Operating Humidity: Up to 95%
  • Pet Immunity: No
  • LED Control: LED ON/OFF jumper
  • Installation: Wall-mounted indoor security application
  • Sensor Technology: Infrared sensing with digital processing


Applications

• Home Security – Motion detection for living rooms, bedrooms, hallways, entrances and other indoor areas.
• Office Security – Helps monitor offices, cabins, reception areas and other restricted indoor spaces for unauthorized movement.
• Shops & Commercial Premises – Suitable for detecting movement in retail shops, small commercial spaces and protected areas.
• Entrance & Passage Monitoring – Can be positioned to monitor areas where a person is expected to pass through the detector's detection pattern.
• Alarm System Integration – Provides an NC alarm output for connection to a compatible wired security alarm panel.

Suitable For

• Indoor Security Applications – Designed for indoor motion detection where a compatible wired alarm system is available.
• Homes, Offices & Shops – Suitable for residential and commercial environments requiring basic intrusion/motion monitoring.
• Wall Installation – The supplied manual specifies installation at approximately 2.2 m height with the detector positioned to cover the required area.
• Open Detection Areas – Best suited to locations with a clear view of the protected area and minimal obstructions.
• Controlled-Temperature Areas – Suitable within its specified -20°C to +50°C operating temperature range.

Not Suitable For

• Outdoor Installation – The supplied documentation describes the detector for indoor security use; it should not be treated as an outdoor/weatherproof PIR.
• Pet-Sensitive Installations – The supplied specification states Pet Immunity: No, so movement from pets may be detected.
• Areas Facing Heat Sources – Avoid pointing the detector toward heaters, ovens, radiators, air-conditioning vents or other sources of changing temperature, as these can affect PIR detection.
• Direct Sunlight or Windows – Avoid locations where direct sunlight or strong infrared sources can fall within the detector's field of view.
• Obstructed Detection Areas – Large furniture, curtains, plants or other objects that block the detector's field of view can reduce the effective detection coverage.
• Areas Requiring Wireless Communication – This is a wired PIR detector and requires physical wiring to a compatible alarm panel.

Package Contents

• PIRW-T10 Passive Infrared Detector – 1 × wired dual-element PIR motion detector.
• Mounting Accessories – Fixing components required for mounting the detector, as supplied with the product.
• Installation Documentation – User/installation instructions for setup and operation.

Installation

1. Select the Installation Location – Choose a stable indoor location where the detector has a clear view of the area to be protected. Avoid direct sunlight, strong heat sources and locations with excessive airflow.
2. Set the Mounting Height – Install the detector at approximately 2.2 m above the floor, as specified for the PIRW-T10.

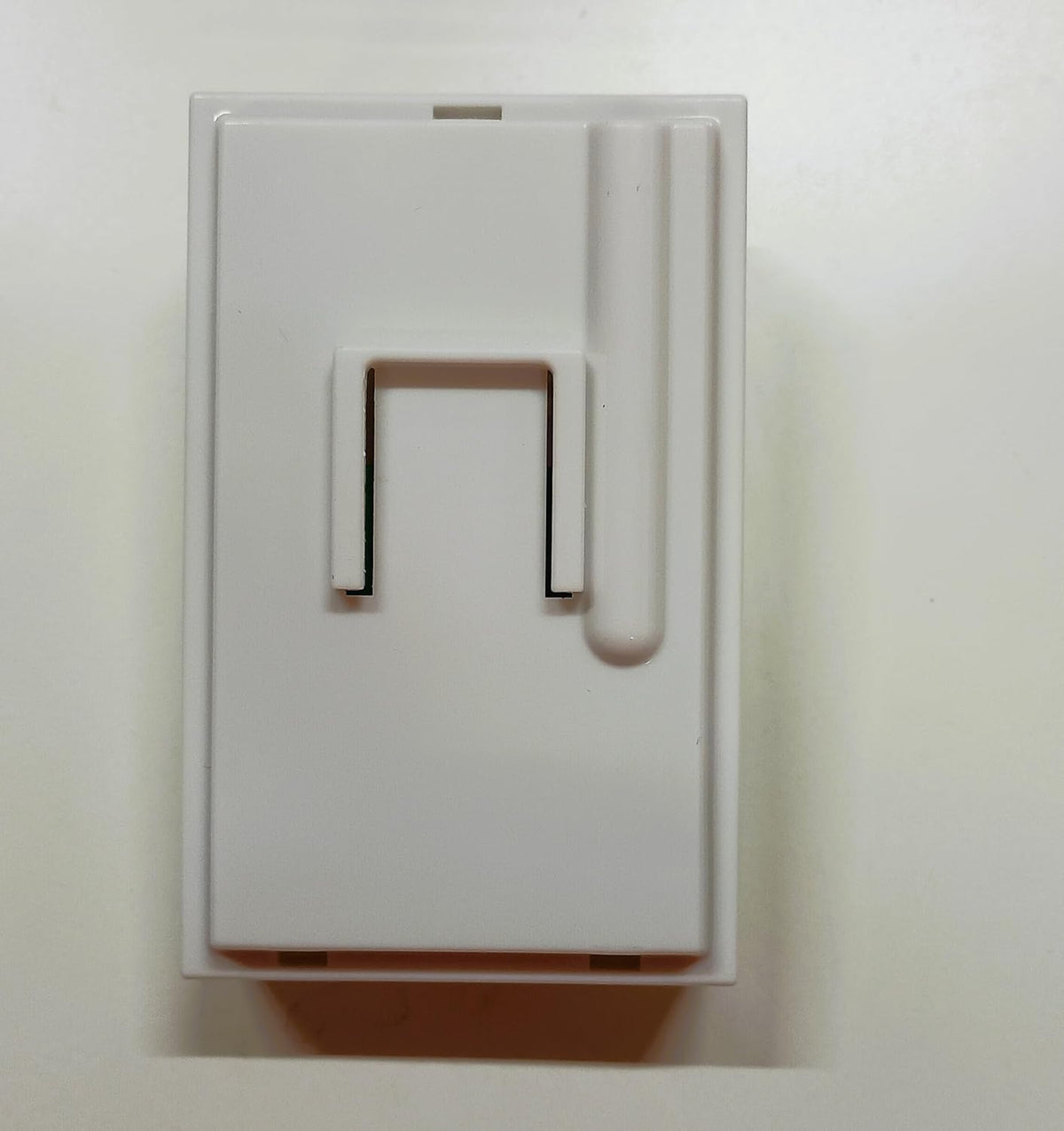

3. Fix the Detector – Secure the detector housing firmly to the wall using suitable fixing hardware. The mounting surface should be stable and free from excessive vibration.
4. Position the Detection Area – Orient the detector toward the area where movement is expected. Keep the 12 m / 110° detection area as unobstructed as practical.
5. Connect Power and Alarm Wiring – With the power switched OFF, connect the detector to the compatible security alarm panel according to the required terminals.
6. Adjust Sensitivity – Set the sensitivity according to the protected area and carry out a walk test to confirm the required detection coverage.

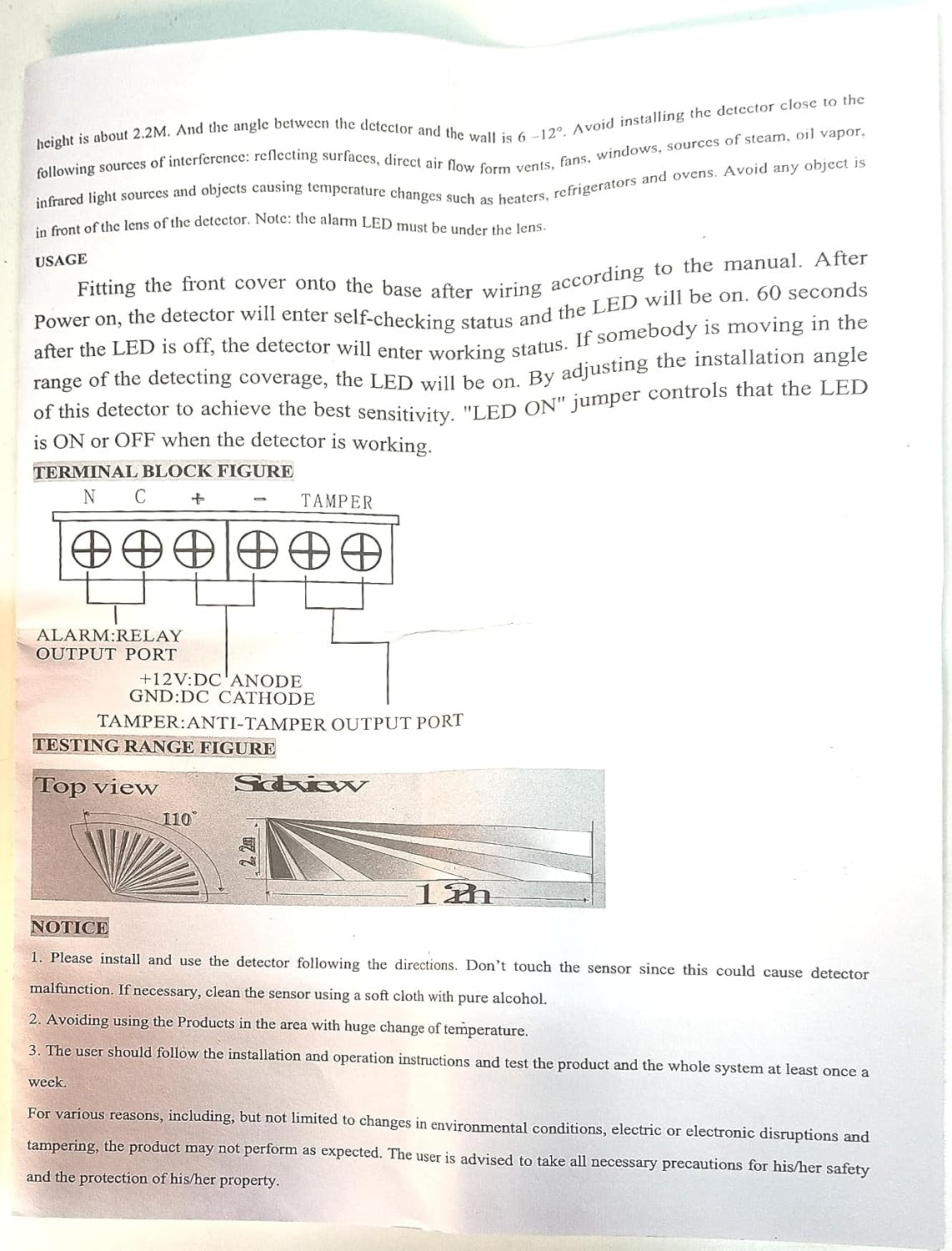

Wiring

The PIRW-T10 is a wired 12V DC PIR detector and should be connected to a compatible wired security alarm panel. The supplied specifications identify an NC alarm output and a separate NC tamper output.

• Power: Connect the detector to a suitable DC 12V power supply from the compatible alarm panel.
• Input: The detector receives its operating power from the alarm system; it does not use WiFi, GSM or RF wireless communication.
• Output: Connect the NC alarm output to a compatible alarm-panel zone input. The specified alarm contact rating is 28V DC, 0.15A.
• Other Connections: Connect the NC anti-tamper output to the appropriate tamper circuit of the alarm panel where supported.
• LED: The detector includes an LED ON/OFF jumper, allowing the visual alarm indication to be enabled or disabled.
• Important: Keep power OFF while making or changing wiring connections and verify the alarm-panel zone wiring before powering the detector.

Programming

The PIRW-T10 itself does not require wireless pairing or RF programming. It operates as a wired detector connected to a compatible alarm panel.

1. Connect the Detector – Complete the 12V power, alarm-zone and tamper connections according to the alarm-panel wiring requirements.
2. Configure the Alarm Zone – Program the connected alarm-panel zone according to the panel manufacturer's instructions for a wired PIR/motion detector.
3. Set Detection Sensitivity – Adjust the detector's sensitivity as required for the installation and perform a walk test to confirm the desired detection area.

Operation

1. Power the Detector – Once connected to the alarm panel and powered with DC12V, the PIRW-T10 becomes ready to detect movement after the system's normal stabilization period.
2. Detect Movement – When a person moves through the detector's infrared detection area, the dual-element PIR sensor detects the change and activates its alarm output. PIR sensors respond to changes in infrared/heat patterns within their field of view.
3. Send Alarm Signal – The NC alarm circuit changes state when motion is detected, allowing the connected alarm panel to process the event according to its programmed zone settings.
4. Visual Indication – When enabled, the red LED provides a visual indication of detection.
5. Tamper Monitoring – If the detector housing is opened or the tamper mechanism is activated, the NC tamper circuit can signal the connected alarm system when properly wired.
6. Walk-Test the Detector – After installation, walk through different parts of the protected area and verify that the detector and connected alarm panel respond as expected.

Troubleshooting

• Problem: PIRW-T10 does not detect movement.
  Solution: Check the DC 12V power supply, alarm wiring and zone connection. Verify that the person is moving within the detector's 12 m / 110° coverage area and adjust the sensitivity if required.
• Problem: Detector gives false alarms.
  Solution: Check the detection area for heat sources, direct sunlight, moving curtains/plants or strong airflow. Reposition the detector or reduce the sensitivity where appropriate.
• Problem: Detection is weak or inconsistent.
  Solution: Check for obstructions in front of the detector, verify the installation height and direction, and perform a walk test after adjusting the sensitivity.
• Problem: Alarm panel does not receive the PIR signal.
  Solution: Check the NC alarm-zone wiring and confirm that the connected alarm-panel zone is correctly configured for the detector.
• Problem: Tamper alarm remains active.
  Solution: Check that the detector cover is properly closed and that the NC tamper circuit is correctly connected to the alarm panel.

Common Problems

• No motion detection – Check power, wiring, installation position and detection coverage.
• Frequent false alarms – Check heat sources, sunlight, airflow and moving objects; adjust sensitivity if necessary.
• Short detection coverage – Check for obstructions and confirm the detector is installed at the recommended height and correctly oriented.
• LED not indicating detection – Check the LED ON/OFF jumper and confirm that the detector is receiving power.
• Alarm panel not responding – Check the NC alarm output, zone wiring and alarm-panel programming.
• Tamper indication – Check the detector cover and NC tamper wiring.

FAQs

Q: What type of sensor is the PIRW-T10?
A: The PIRW-T10 is a dual-element Passive Infrared (PIR) motion detector designed for wired security alarm systems.

Q: What is the detection range?
A: The specified detection range is up to 12 meters, with a 110° detection angle.

Q: Does the PIRW-T10 require a wireless connection?
A: No. It is a wired detector and connects to a compatible alarm panel through physical wiring.

Q: What power supply does it use?
A: The specified power supply is DC 12V.

Q: Does it have an alarm output?
A: Yes. The detector provides an NC alarm output for connection to a compatible alarm panel.

Q: Does it have tamper protection?
A: Yes. It has an NC anti-tamper output that can be connected to a compatible alarm panel.

Q: Can the detection sensitivity be adjusted?
A: Yes. The supplied specifications include adjustable sensitivity, allowing the detector to be tuned for the installation environment.

Q: Does the detector have an LED indicator?
A: Yes. It has a red LED indication, with an LED ON/OFF jumper for controlling the indication.

Q: Is the PIRW-T10 pet immune?
A: No. The supplied specification states Pet Immunity: No. Therefore, movement from pets may be detected.

Q: Where should the detector be installed?
A: The supplied specifications recommend an installation height of approximately 2.2 meters, with a clear view of the protected area.

Q: Can it be installed outdoors?
A: The supplied documentation supports indoor security use. It should not be treated as an outdoor/weatherproof detector.

Spare Parts

• PIR Sensor / Detector Unit – Replacement detector, subject to model compatibility and availability.
• Front Cover / Housing Components – Replacement housing parts, subject to availability.
• Mounting Accessories – Replacement fixing components, where available.

Spare parts will be provided subject to availability. Availability, design, size and appearance of replacement parts may vary depending on stock and product upgrades.

Warranty

Warranty: 1 year against manufacturing defects under normal and proper use.

Warranty does not cover: improper installation, incorrect wiring, unsuitable power supply, physical damage, water/moisture damage, misuse, unauthorized modification, or damage caused by external factors. Warranty claims are subject to product inspection and verification.

Videos

• [Installation Video]
• [Programming Video]
• [Product Demonstration Video]

Manuals

• [User Manual]

Downloads

• [Datasheet]:NA
• [Wiring Diagram]: Refer to manual
• [Catalogue / Brochure]: NA
• [Other Download]: NA

Q: What is the PIRW-T10?
A: The PIRW-T10 is a wired Passive Infrared (PIR) motion detector designed to detect movement and provide an alarm signal to a compatible security alarm panel.

Q: What is the detection range of the PIRW-T10?
A: The detector provides up to 12 metres of detection range with a 110° detection angle.

Q: Does the PIRW-T10 require a wired connection?
A: Yes. It is a wired PIR detector and must be connected to a compatible alarm panel using the required power, alarm and tamper wiring.

Q: What power supply does the detector use?
A: The specified power supply is DC 12V.

Q: Can the PIRW-T10 be connected to a security alarm system?
A: Yes. It provides an NC alarm output for connection to a compatible wired security alarm panel.

Q: Does it have tamper protection?
A: Yes. The detector has an NC anti-tamper output, which can be connected to the tamper circuit of a compatible alarm panel.

Q: Does the detector have an LED indicator?
A: Yes. It has a red LED alarm indicator. The LED ON/OFF jumper can be used to control the visual indication.

Q: Can the sensitivity be adjusted?
A: Yes. The PIRW-T10 includes adjustable sensitivity to help configure detection according to the installation environment.

Q: What installation height is recommended?
A: The supplied specifications recommend installing the detector at approximately 2.2 metres above the floor.

Q: Can the PIRW-T10 be installed outdoors?
A: The supplied product information is for indoor security applications. It should not be treated as an outdoor/weatherproof detector.

Q: Is the PIRW-T10 pet immune?
A: No. The supplied specification states Pet Immunity: No, so movement from pets may potentially be detected.

Q: What areas can the PIRW-T10 monitor?
A: It can be used for indoor motion detection in homes, offices, shops, corridors, entrances and other protected areas when connected to a compatible alarm system.

Q: What should I do if the detector gives false alarms?
A: Check for heat sources, direct sunlight, moving objects, strong airflow or other conditions within the detection area. Reposition the detector and adjust sensitivity if required.

Q: What should I check if the detector does not detect movement?
A: Check the DC12V power supply, alarm wiring, alarm-panel zone configuration, detector positioning and sensitivity, then perform a walk test.

Q: Can the detector work with any alarm panel?
A: It should be used with a compatible wired alarm panel that supports the detector's power and NC alarm/tamper connections. Always verify the panel's terminal configuration before wiring.

Q: Does the PIRW-T10 include a camera?
A: No. It is a motion detection sensor and does not provide video surveillance.
