Realtime Pro 1700F | 20000 Face, Finger, Card, PIN Attendance Machine | WiFi LAN Access| Weatherproof
Realtime Pro 1700F | 20000 Face, Finger, Card, PIN Attendance Machine | WiFi LAN Access| Weatherproof
Couldn't load pickup availability
Download Brochure PDF Catalogue
- Face Recognition
- Fingerprint
- RF Card
- TCP/IP
- Personal Identity Number
- USB Disk
- Access Control
- Camera
- Fingerprint Scanner
- Wi-Fi
Specification:
| Face capacity | 20000 |
| » Card capacity | 20000 |
| » Fingerprint capacity | 20000 |
| » Password capacity | 20000 |
| » Max Attendance log | 5,00,000 |
| » Identify mode | Face, Fingerprint, card, password and combinations |
| » Display | 8.5 inches (Color Display) |
| » Communication | USB Disk |
| » U-disk | Supported |
| » Working voltage | DC12V |
| » Working temperature | -10°c~ +50°c |
| » Working humidity(RH) | 20% ~ 80% |
| » Self-test function | Supported |
| » Power management | Sleep Mode |
| » FAR/ FRR | 0.001/1(%) |
| » Access Control | Built In |
| » Power Supply | 12V 2 Amp |
| » Idle Current | 400mA |
| » Working Current | 500mA |
| » Sound Indicator | Buzzer, Voice |
| » Wiegand | In/Out Supp |
Realtime Pro 1700F
Specifications

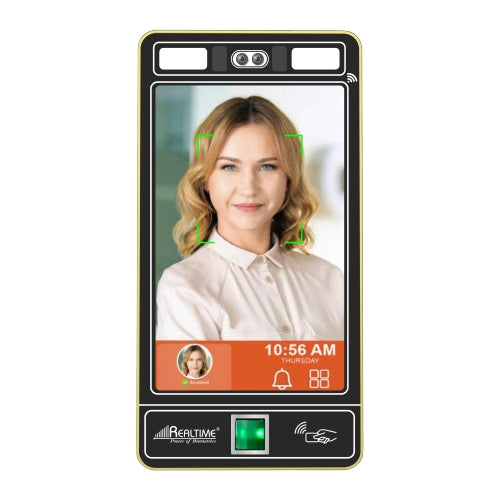

Realtime Pro 1700F is a large face and fingerprint attendance terminal with an 8.5 inch colour display that also takes QR code, card and password. It suits factories, campuses and large offices with up to 20,000 users. It has full access control outputs and supports slave readers and an external printer.
| Face capacity | 20,000 |
|---|---|
| Fingerprint capacity | 20,000 |
| QR code capacity | 20,000 |
| Card capacity | 20,000 |
| Password capacity | 20,000 |
| Attendance records | 5,00,000 |
| Working modes | Offline and online |
| Verification modes | Face, fingerprint, QR code, ID card, password and combinations |
| Screen | 8.5 inch colour display |
| Communication | TCP/IP, Wi-Fi, USB disk |
| Power supply | 12 V DC (12 V 2 A adapter) |
| Idle current | 400 mA |
| Working current | 500 mA |
| Sound indicator | Buzzer, voice |
| Wiegand | IN and OUT |
| Exit button support | Push button and no-touch button |
| Access control | EM lock, electric lock, door sensor, exit button, alarm output |
| External printer | Supported |
| Slave readers | Supported |
| Working temperature | -10 °C to +50 °C |
| Working humidity | 20% to 80% RH |
| Self-test function | Supported |
| Power management | Sleep mode |
| FAR / FRR | 0.001% / 1% |
Specifications checked against Realtime's published details for this model. All prices include GST.
Frequently asked questions
How many users can the Pro 1700F store?
It stores 20,000 each of faces, fingerprints, QR codes, cards and passwords, with up to 5,00,000 records.
Which locks can it control?
It supports EM locks and electric locks, with door sensor, exit button and alarm output connections.
Can I add a slave reader for punch out?
Yes. Realtime lists the Pro 1700F as a supported master for its RS 9+ and SFR7 slave readers.
Can it print a slip?
Yes. It supports an external printer, useful for canteen or visitor slips.
Does it have Wi-Fi?
Yes. It connects by Wi-Fi, TCP/IP LAN and USB disk.
Can staff punch with a QR code?
Yes. QR code is one of its verification modes along with face, fingerprint, card and password.
What power supply does it need?
12 V DC; the listing specifies a 12 V 2 A adapter.
What screen does it have?
An 8.5 inch colour display.
How does a biometric attendance machine work?
It identifies each person by fingerprint, face, palm or card and records the exact punch time. Reports can be downloaded as Excel or PDF, and many models connect to software over LAN or Wi-Fi, depending on the model.
Can the same machine also open a door?
Many models have a relay output that can control an electronic door lock, so one device can mark attendance and give door access. Check the product specifications for the relay or access control feature.
What do I need to install it?
A wall mount or desk stand, a power adapter and, for network models, a LAN cable or Wi-Fi. Our team gives free technical support for setup.
Is technical support available?
Yes. Free technical support is available for installation and setup.
