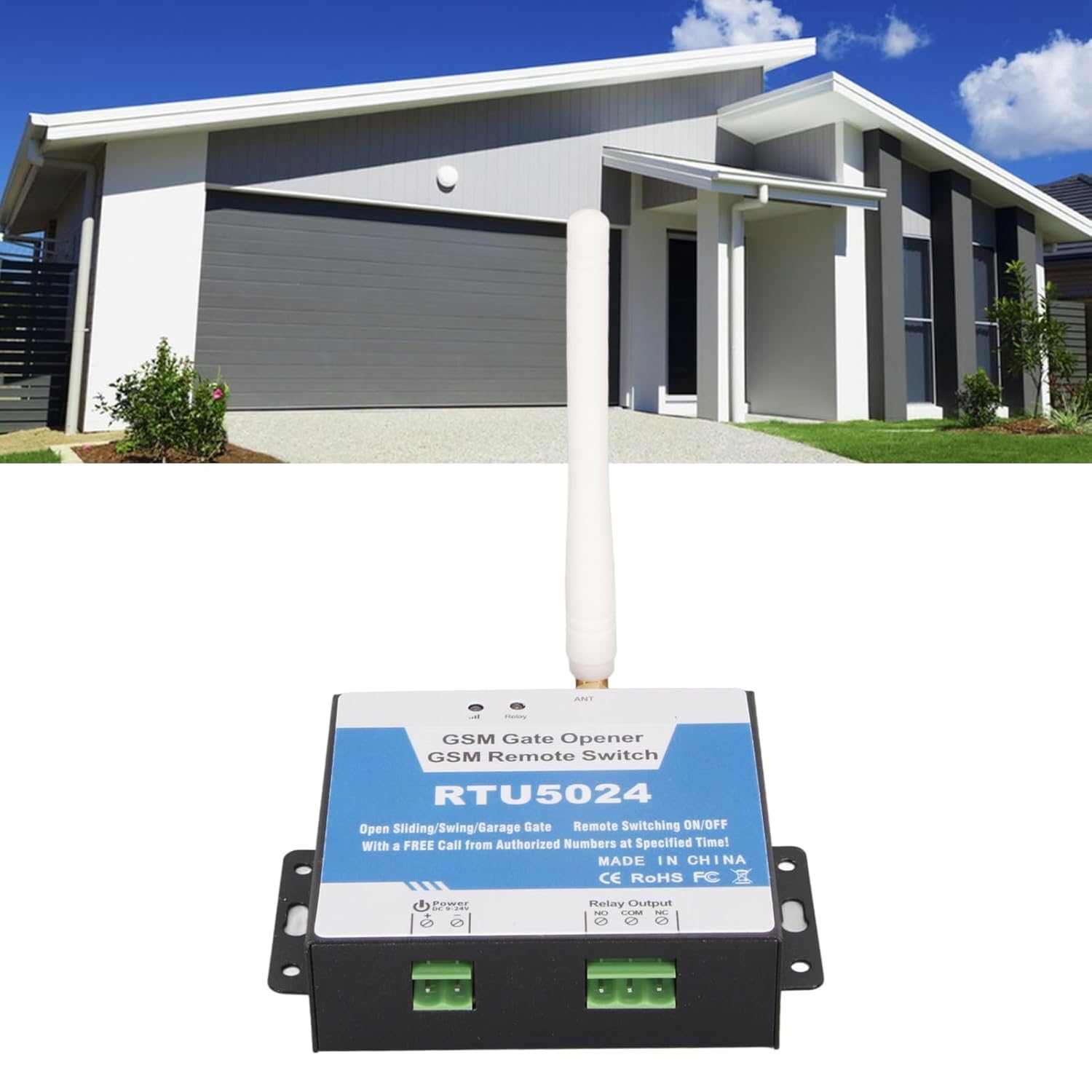

RTU5024 Smart GSM Gate Opener | Relay Switch | Wireless Remote Control Door Access Door Opener Free Call 850/900/1800/1900MHz
RTU5024 Smart GSM Gate Opener | Relay Switch | Wireless Remote Control Door Access Door Opener Free Call 850/900/1800/1900MHz
Buying here, direct, gets you the same warranty and prices inclusive of GST, plus free setup help on call and WhatsApp.
View on Amazon.inCouldn't load pickup availability

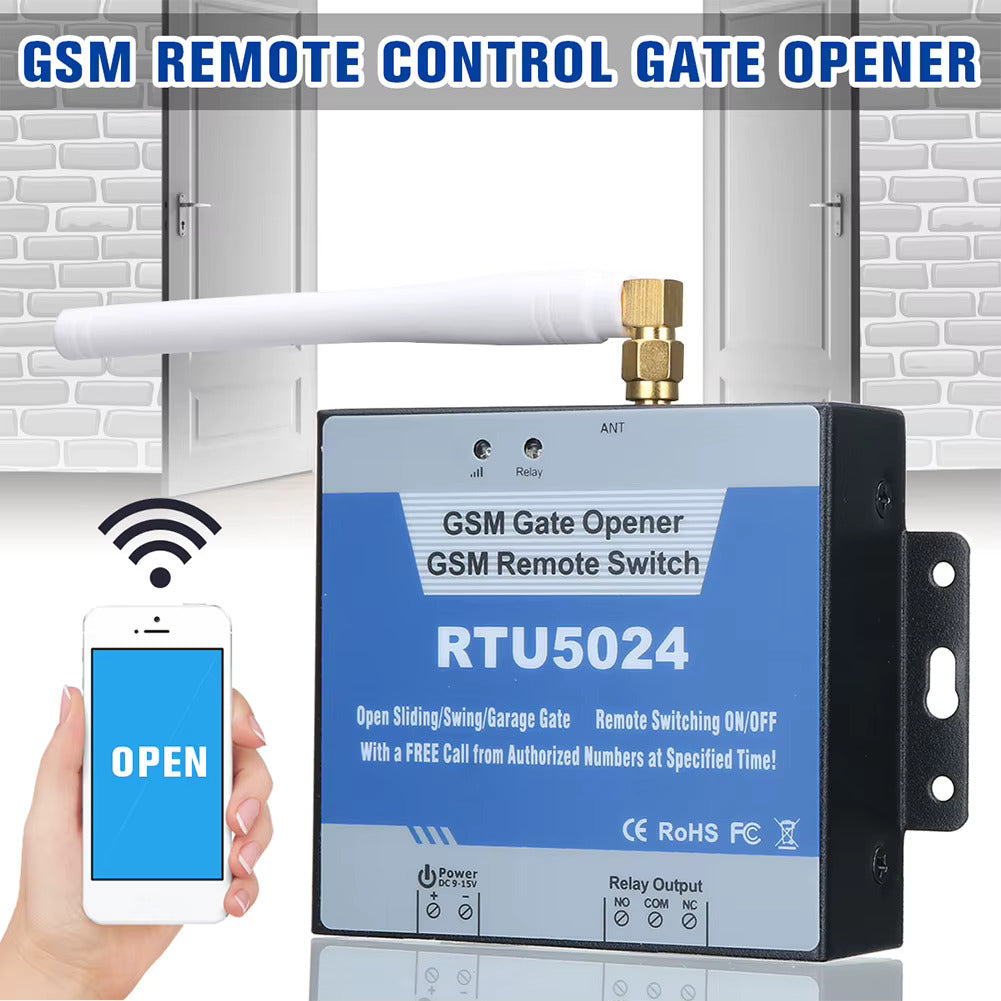

GSM gate opener

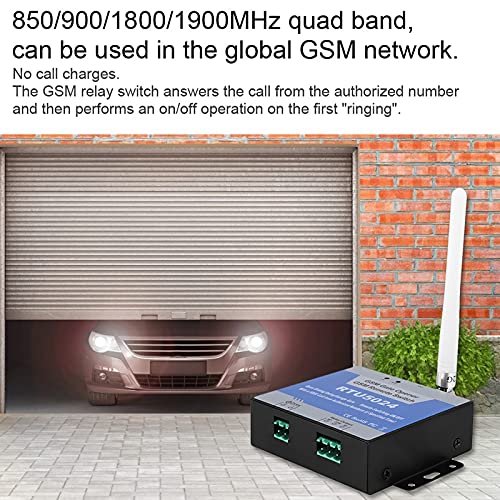

Just dial from Authorized User number then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener. There are no call costs, the GSM Gate Opener rejects the call from authorized number then carries out the turn ON/OFF action.
Features:
1. No call charges. The GSM Gate Opener rejects the call from authorized number then carries outthe turn ON/OFF action on the first 'ring;
2. It is no longer traditional to open the door, but it is more interesting to open the door by shaking
it.
3. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or
machines);

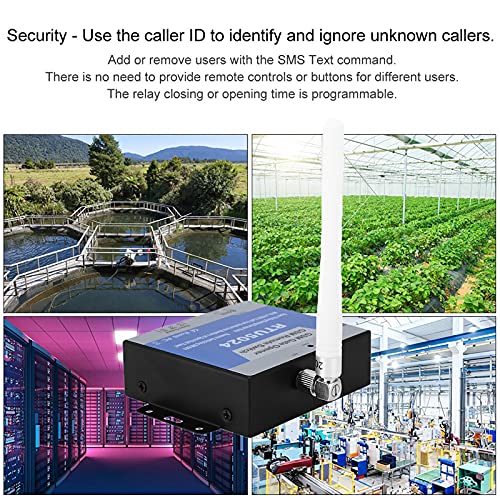

4. Secure - Using caller ID for identification, unknown callers are ignored;
5. Can be operated from anywhere, no distance limit;
6. Add or remove users by SMS Text command;
7. No need to provide a remote control for different users;
8. Up to 200 authorized phone numbers can be configured;

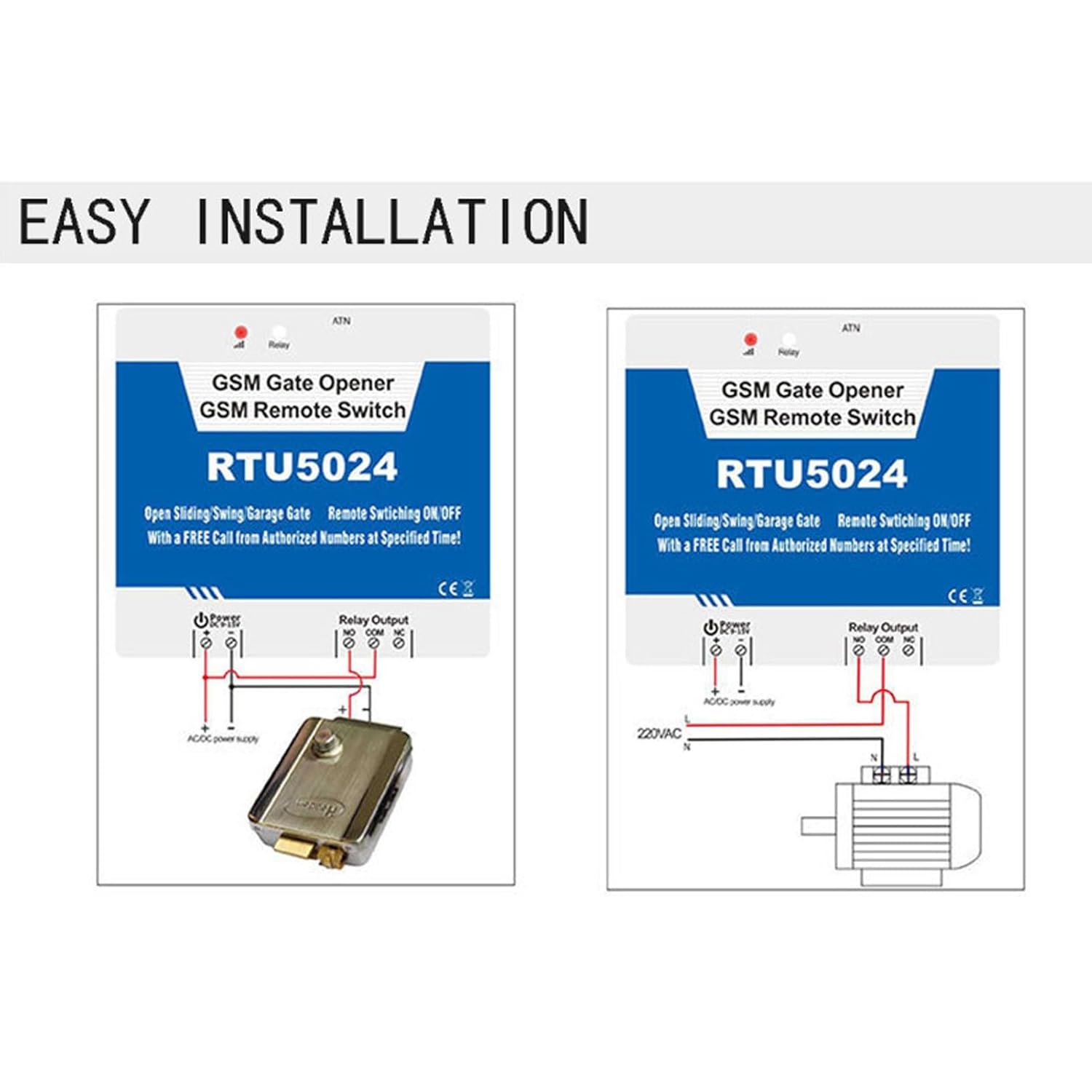

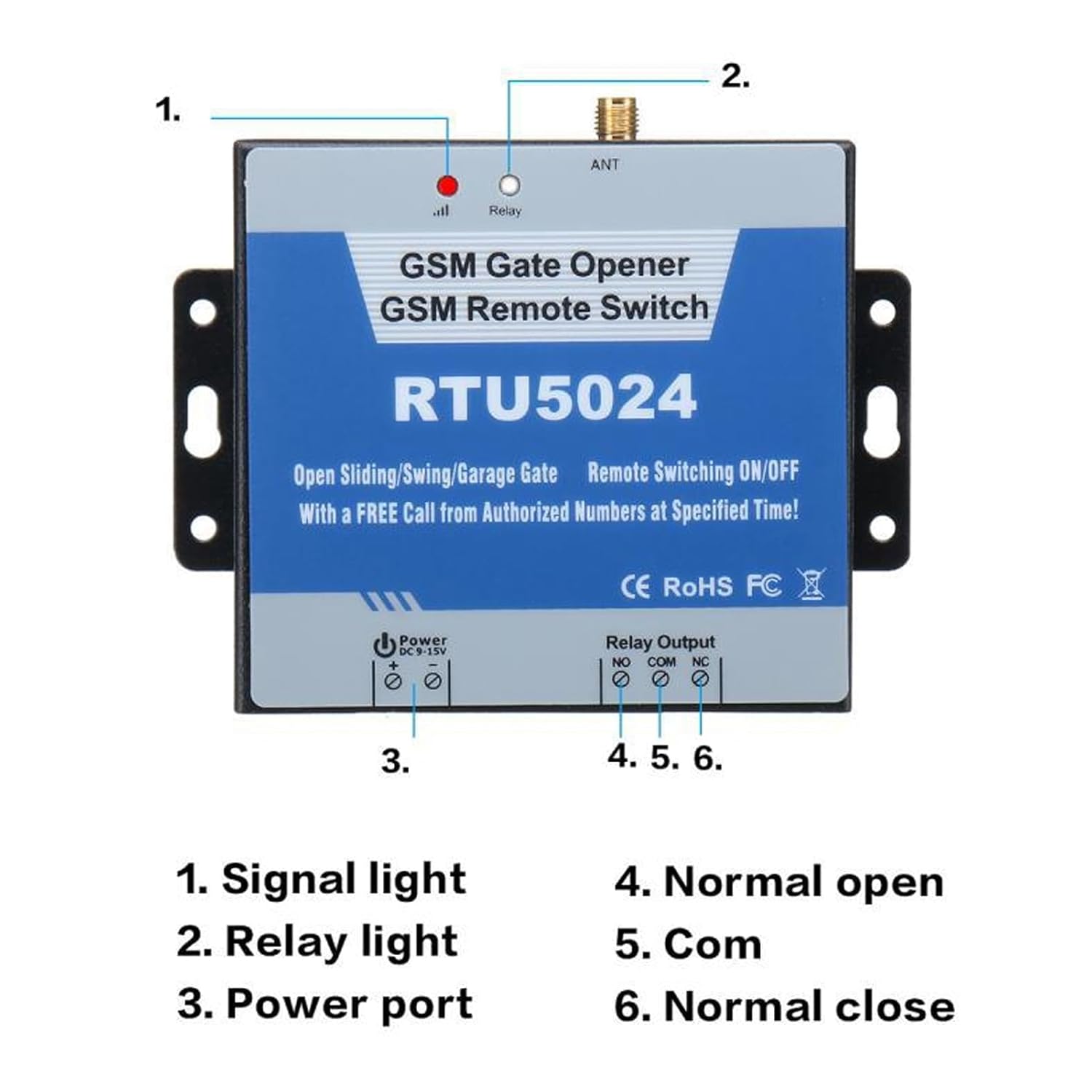

9. One output with relay rating 3A/240VAC for connecting the switch of the door or machines;
10. The relay action will return a SMS confirmation to the owner, this function is editable by user;
11. Based on GSM Network, applied to many applications.
Specification:
Model: RTU5024
Rated Voltage: 12VDC 1 A
Working temperature: -10℃～+60℃
Storage temperature: -20℃～+60℃
Relative humidity: 10-90%, No condensation
Work frequency: 850/900/1800/1900MHz
Communication protocol: GSM PHASE 2/2+ (include data service)
Related Voltage of the Output Relay: 3A/240V AC
Net Weight: 0.30Kg

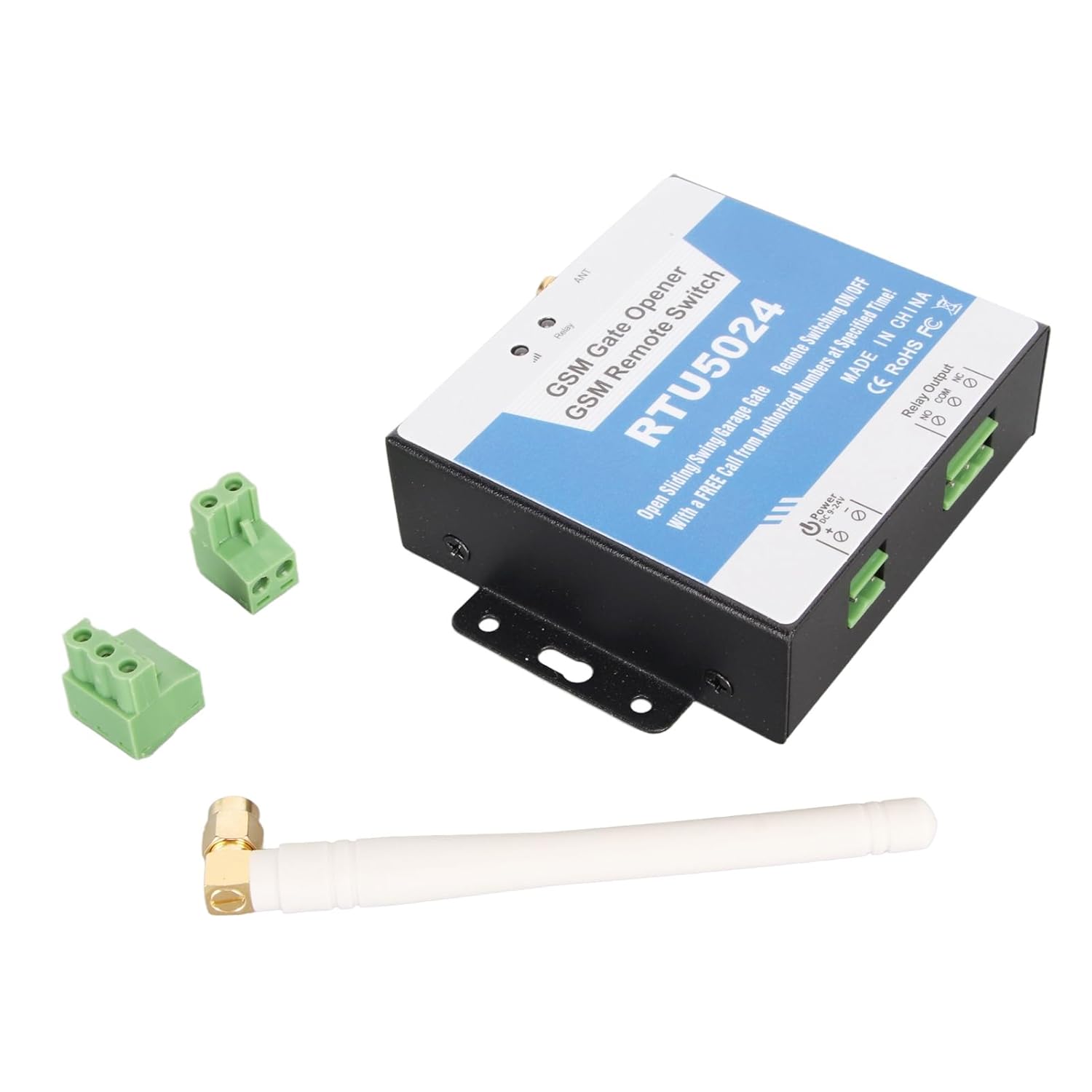

Package List:
1 x GSM Mobile Phone Access Controller

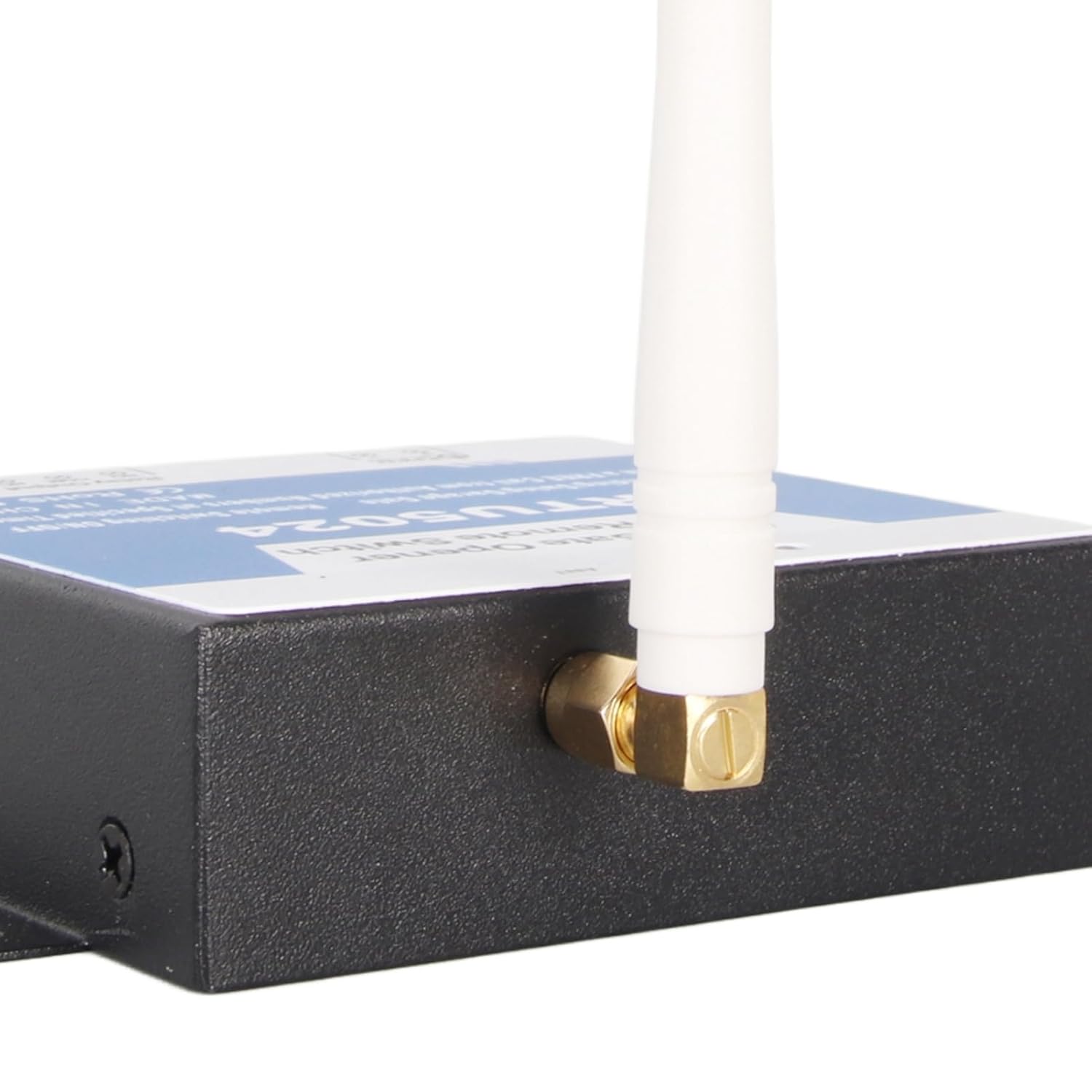

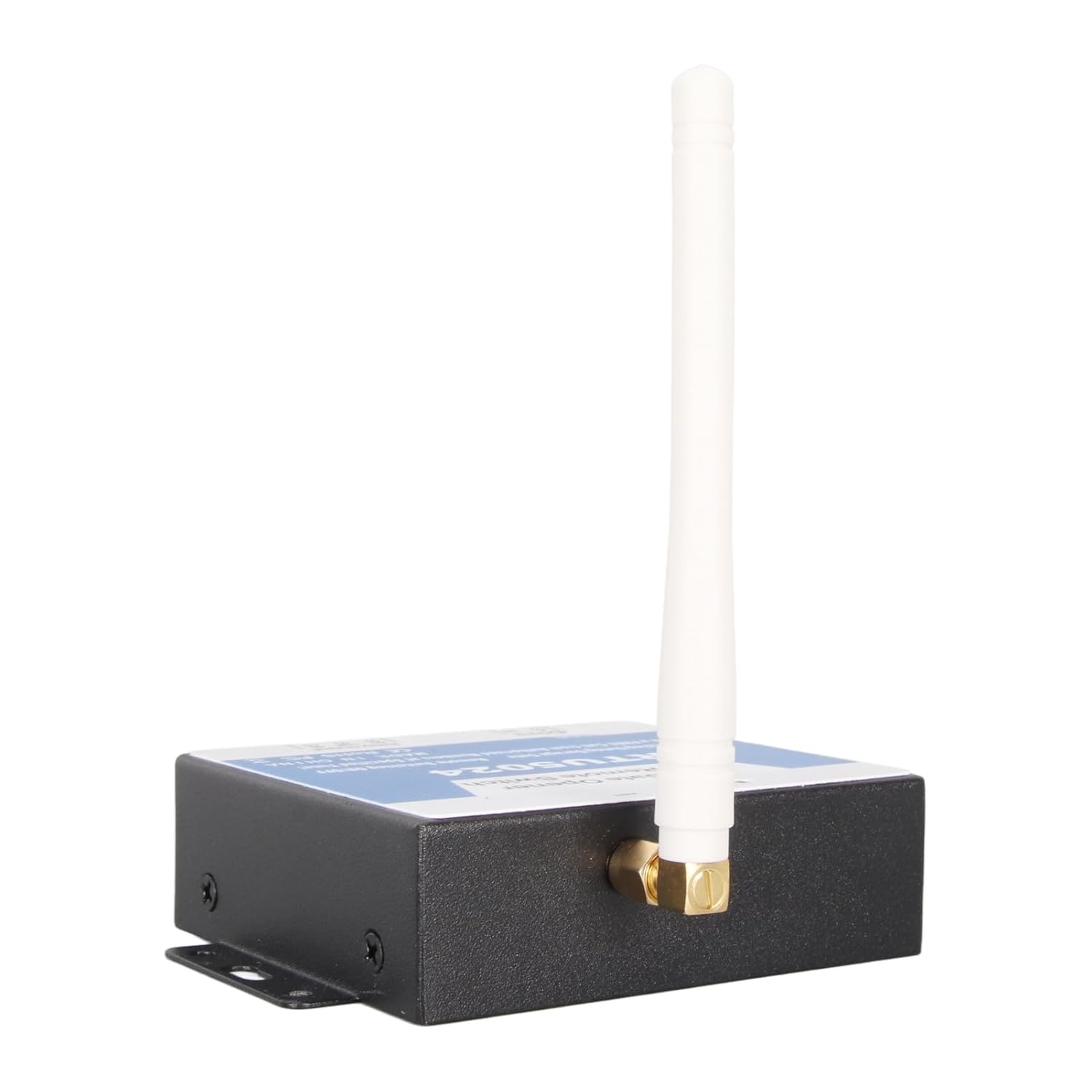

1 x Antenna
2 x Terminal
1 x English Manual
Important information
1) Please read the User Manual carefully before you install the Control Unit and set the ControlUnit.
2) Install the system in a hidden place.
3) Avoid getting water into the Control Unit.
4) Have a secure connection to the main power supply.
Maintenance
1) In case of failure, please contact the distributor or manufacturer.
2) If the remote control works, but the Control Unit fails to send SMS texts, switch the power of
Control Unit off and switch it on after one minute. Test this system after another minute, or check
the settings are correct and the GSM Signals are strong enough.
3) If the Control Unit can run work, but cannot send SMS texts, please change SIM Card to check it.
4) If the problem cannot be solved, please contact the distributor or manufacturer.
Frequently asked questions
Is the RTU5024 a complete gate motor?
No. The RTU5024 is a GSM relay controller for a compatible gate or access-control system. The listed package contains the controller, antenna, terminals and manual; a gate motor is not listed as included.
How do I operate the RTU5024?
The controller uses calls from authorised phone numbers to operate its relay. Users are added or removed by SMS. Check GSM network support and compatibility with your gate controller before ordering.
What power supply does this controller require?
The listed supply requirement is 12V DC, 1A. A power adaptor is not listed in the package contents. Contact us to confirm the power supply and installation accessories needed for your setup.
Do prices include GST?
Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.
Is technical support available?
Yes. Free technical support is available for installation and setup.
