Secureye

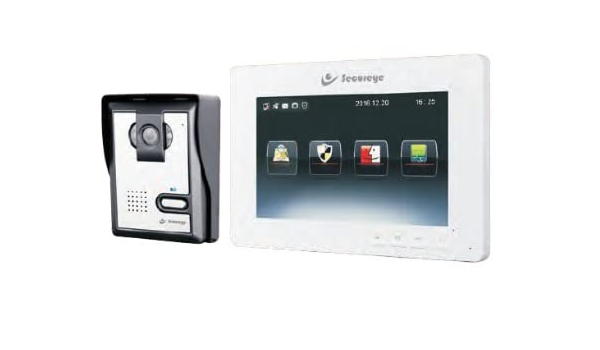

Secureye Video Door Phone S-VDP9
Secureye Video Door Phone S-VDP9
Couldn't load pickup availability
"Secureye One Touch Video Door Phone – S-VDP9" offers advanced security with its intuitive 7-inch screen video communication system. Ideal for homes and businesses, it enables instant interaction with visitors at the door, enhancing access control. The large screen provides clear visual verification before granting entry, contributing to heightened security. Elevate your security standards with the "Secureye One Touch Video Door Phone – S-VDP9," a sophisticated solution that combines video technology with easy access control for added safety and convenience in diverse settings.
Technical Specification

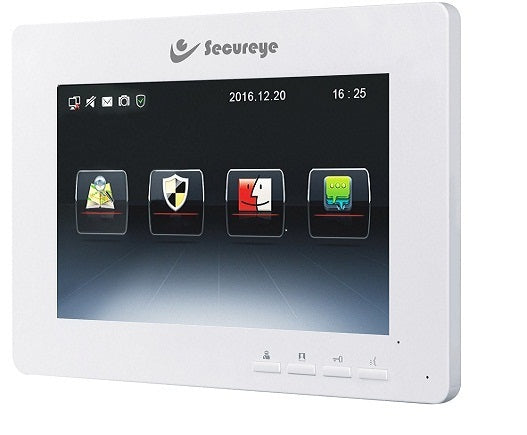

Indoor Unit:
- LCD Size: 17.78cm (7) (16:9)
- Adapter input Voltage: AC100-240V 50Hz-60Hz
- Adapter output Voltage: Current DC15V 1500mA
- Resolution Digital: 800*3(RGB)*480
- Working Voltage: DC15V
- Power consumption: Stand-by <1.1W
- Visual angle:Up 50º, down 70º
- Working Temperature: -20ºC ~ +60ºC
- Relative humidity: 10%-90%(RH)
- Body size: 205*132*22mm

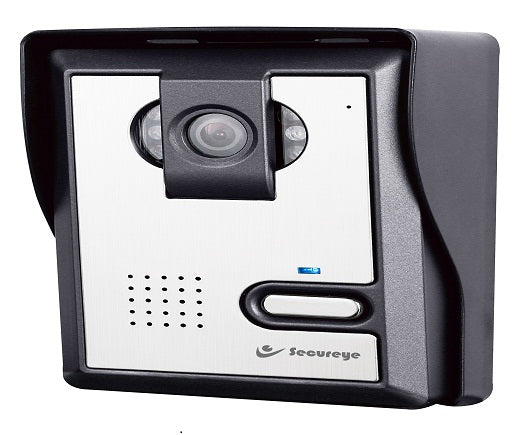

Outdoor Unit:
- IR Distance: 4 meters (approx)
- Visual angle: Up or down 66º, Left or right 75.7º
- Power: DC12V
- Camera: 1/3? CMOS 480 TVL
- Operation temperature:-25ºC~+65ºC
BROCHURE :-

Frequently asked questions

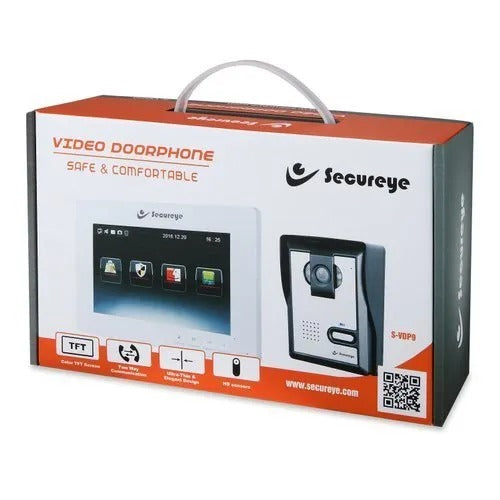

What is in a video door phone kit?
An outdoor camera unit, an indoor monitor and the power supply. Cables connect the units, and the monitor can release an electronic door lock.
Can it open the door?
Yes, it can drive an electronic lock through its relay output. Check the lock type in the product details.
Is installation support available?
Yes. NavKar Systems provides free technical support and wiring diagrams.
Do prices include GST?
Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.
Is technical support available?
Yes. Free technical support is available for installation and setup.
