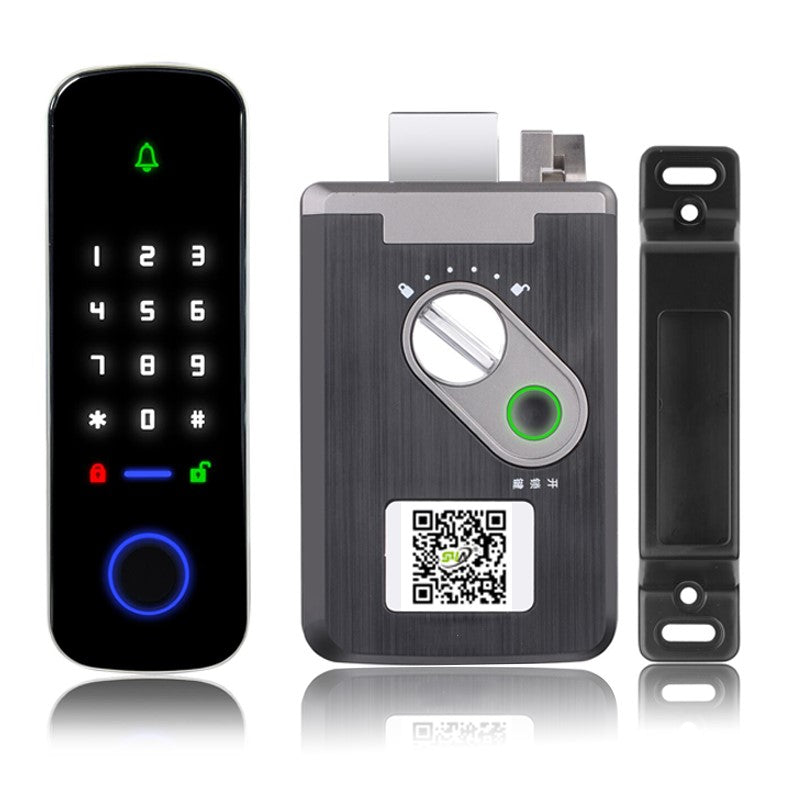

Navkar Systems FPLK-ACRB Wireless Door Lock with Access Control

Product Name

Wireless DIY Lock Kit

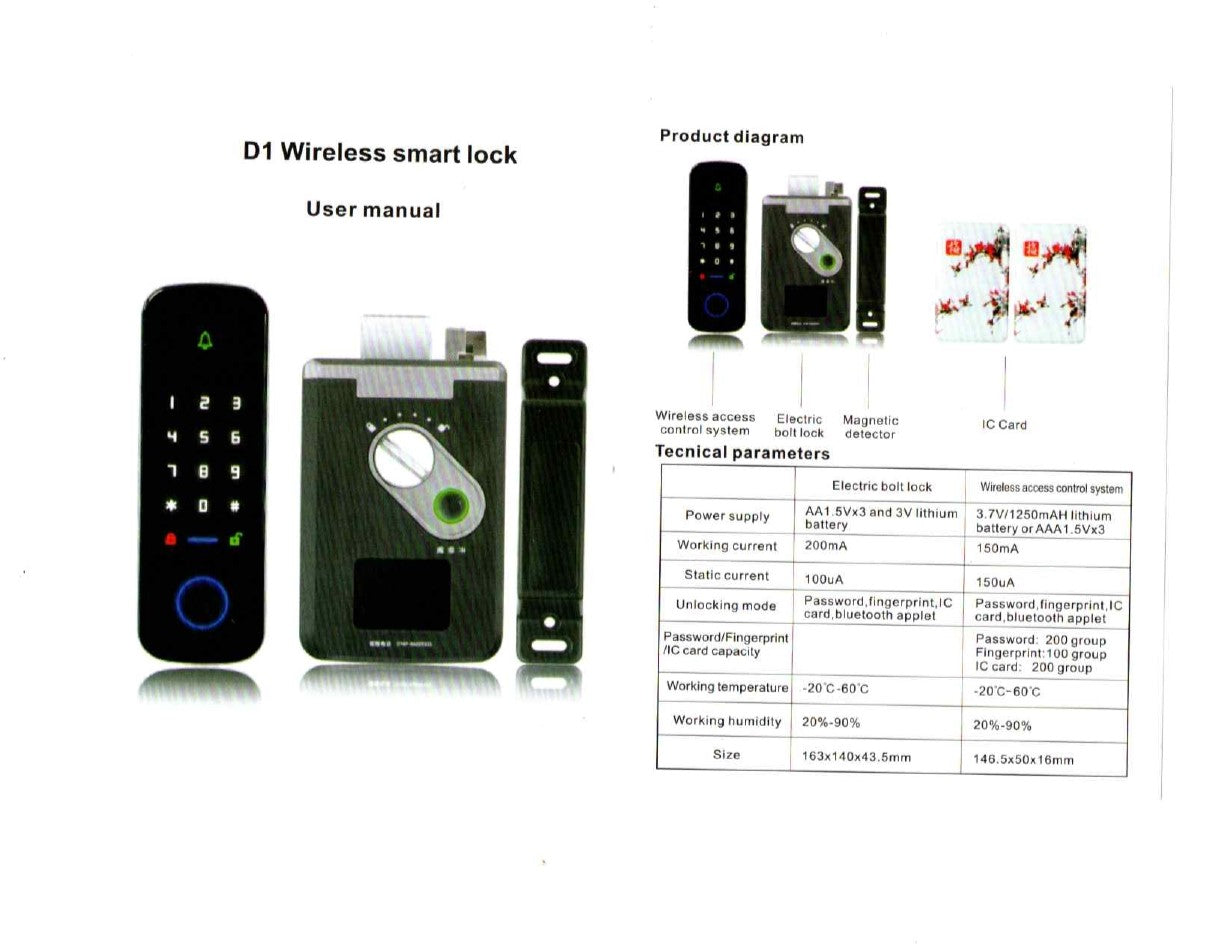

Parameters

Electric Bolt Lock

Wireless access control system

Power supply

AA1.5Vx3 and 3V lithium
battery

3.7V/1250mAH lithium
battery or AAA1.5Vx3

Working current

200mA

150mA

Static current

100uA

150uA

Unlocking mode

Password, fingerprint, IC
card, bluetooth applet

Password, fingerprint, IC
card, bluetooth applet

Password/Fingerprint
/IC card capacity

X

Password: 200 group
Fingerprint:100 group
IC card: 200 group

Working temperature

-20℃-60℃

-20℃-60℃

Working humidity

20%-90%

20%-90%

Size

163x140x43.5mm

146.5x50x16mm
