Fire Alarm Panel Zones Explained: 2-Zone vs 4-Zone Panels

Short answer: a zone on a conventional fire alarm panel is one wired circuit of detectors and call points, and when anything on that circuit triggers, the panel tells you which zone it is in, not which exact device. A 2-zone panel suits a single-floor shop, clinic or office split into two areas; a 4-zone panel suits a two- to four-floor building or a site with separate blocks, and leaves room to grow. On our store the AGNI 4-zone panel costs ₹5,999 and the AGNI conventional kit with panel, call point, smoke sensor and siren costs ₹7,199.

What is a zone in a fire alarm panel?

A conventional fire alarm panel has a few input terminals, one per zone. Each zone is a pair of wires that runs out to a group of detectors and manual call points (MCPs) and back. All the devices on that pair share the same zone number. When a smoke detector in a room on that circuit senses smoke, or someone presses an MCP, the panel lights that zone's fire LED and sounds the hooters.

So the zone answers the question every guard or owner asks first when the alarm sounds: where is it? If zone 2 is the first floor, staff go straight to the first floor instead of searching the whole building. The more sensibly you divide the building, the faster that search is.

The fire alarm basics guide covers what the panel, detectors, MCP and hooter each do. This page goes one step further: how zones work and how many you need.

How does a conventional zone work?

• Fire condition. A detector or MCP on the circuit closes and the panel reads it as a fire on that zone.
• Fault condition. Conventional panels also watch the wiring of each zone. A cut cable or a removed device shows as a fault rather than a fire, so you know the circuit needs repair. Most panels do this with an end-of-line device at the last detector on the circuit; the panel manual tells you which one to fit.

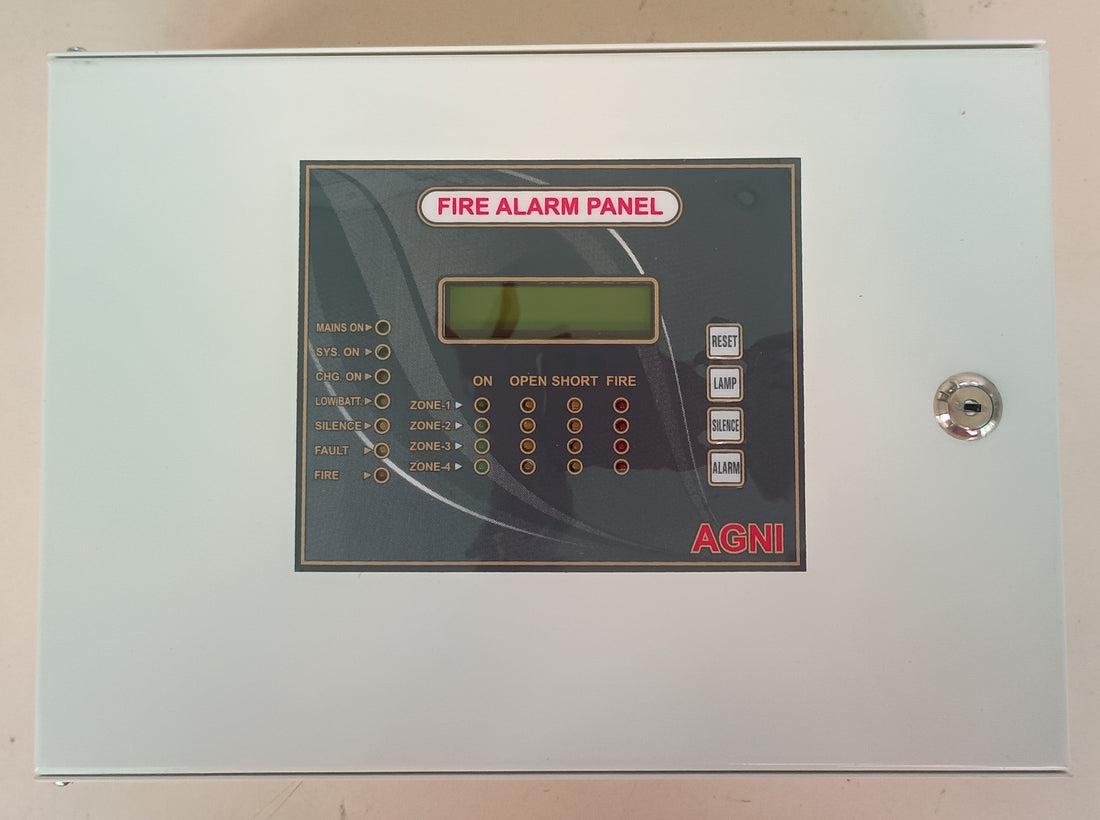

• Indication. The AGNI panel we sell lists separate coloured LEDs for fire and fault status, a 16×2 LCD display and a keypad for operation.
• Outputs. When a zone goes into alarm, the panel drives the hooters. The AGNI panel also lists relay outputs for fire and fault, which can be used to signal other equipment.
• Backup. The AGNI panel lists standby battery backup with built-in charging and a low-battery warning, so it keeps running in a power cut.

A zone does not tell you which detector fired. Panels that identify each device individually are called addressable panels; they are used in large buildings. For a shop, clinic, school block or small factory, a conventional zoned panel is the usual choice.

2-zone vs 4-zone: which one do you need?

Point	2-zone panel	4-zone panel
Typical building	Single-floor shop, showroom, clinic or office	Two to four floors, or one floor with separate areas such as office, production and store
How the alarm is located	Two areas, for example front and back, or ground and first floor	Up to four areas, for example one per floor or per block
Room to expand	Little; a new floor or wing may need a new panel	Spare zones can be used later for a new floor, terrace room or godown
Wiring	Two circuits back to the panel	Up to four circuits back to the panel, so more cable runs if every zone is used
On our store	Not currently listed	AGNI 4 Zone Fire Alarm Panel, ₹5,999

A simple rule: count the floors and the separate areas a guard would need to check, then add one spare. If that number is two or less, a 2-zone panel is enough. If it is three or four, choose a 4-zone panel. If it is more than four, you need a larger panel or a professional design. A 4-zone panel also works in a building that needs only two zones today; the unused zones are terminated as the manual describes and kept for later.

How to divide a building into zones

1. One floor, one zone. Do not let a zone cover two floors. People must know which floor to go to.
2. Separate risky or locked areas. A godown, generator room or server room that is often locked deserves its own zone, so an alarm there is not confused with the main floor.
3. Keep each zone small enough to search quickly. If a guard cannot walk the whole zone in a minute or two, split it.
4. Put MCPs on the same zone as the area they serve. An MCP at the first-floor staircase belongs to the first-floor zone.
5. Label everything. Write zone names on the panel and keep a simple floor plan next to it.
6. Follow the device limit. Each zone can only take a certain number of detectors. That figure is in the panel manual; it is not stated on the AGNI product page, so check it before you finalise the layout.

Example: a two-floor clinic with a store room

Zone 1 is the ground-floor reception and consulting rooms, zone 2 is the first-floor wards, zone 3 is the store room, and zone 4 is kept spare for a planned terrace room. A starting shopping list, assuming one MCP per zone at the stair or exit and a hooter on each floor:

Item	Qty	Unit price	Line total
AGNI conventional fire alarm kit (panel, MCP, smoke sensor, siren)	1	₹7,199	₹7,199
Agni PVC Manual Call Point (extra)	2	₹499	₹998
Agni 24V Wall-Mounted Hooter (extra)	1	₹599	₹599
Total before extra detectors and cable			₹8,796

Add one smoke detector for each room and corridor beyond the one in the kit, plus cable and installation. Send us your floor plan on WhatsApp and we will confirm which detector model works with the panel and how many each zone can take.

Fire alarm panel and zone devices on our store

Product	Key spec from listing	Role in a zone	Price
AGNI 4 Zone Fire Alarm Panel	16×2 LCD, keypad, battery backup with charging, fire and fault LEDs, relay outputs	The panel: one input per zone	₹5,999
AGNI Conventional Fire Alarm Kit	Control panel, MCP, smoke sensor and fire alarm siren	Starter set for a small building	₹7,199
Agni PVC Manual Call Point	Break-glass or press type, reset button, red PVC	One near each exit or staircase	₹499
Agni 24V Hooter	24V, wall mounted, visual alarm	Sounder on each floor	₹599
SMK-WD Wired Smoke Detector	DC 9–24V, NC/NO output, red LED, auto reset	Wired detector for alarm hosts; confirm panel compatibility first	₹899

Browse all devices in Fire Alarms and Smoke Detectors and louder sounders in Sirens and Hooters. For single detectors and kits by price, see the smoke detector price guide. If your exits use electric locks, read the exit switch and break-glass guide so doors release in an emergency. For a school, hospital or factory, send your layout through the bulk enquiry page.

Fire safety rules in India depend on the building's type, size and height. Use this guide to understand zones; buildings under mandatory rules need a design and approval from a qualified fire safety professional.

FAQ

What does zone mean in a fire alarm panel?

A zone is one wired circuit of detectors and call points. When any device on it triggers, the panel shows that zone number, which tells staff which floor or area to check.

What is the difference between a 2-zone and 4-zone fire alarm panel?

A 2-zone panel can report two separate areas and a 4-zone panel can report four. The 4-zone panel suits buildings with more floors or blocks and leaves spare zones for future expansion.

How many detectors can I connect to one zone?

It depends on the panel. The limit is given in the panel's manual; check it before planning, and split large floors into more than one zone.

Can I use a 4-zone panel if I only need 2 zones?

Yes. Use the zones you need and terminate the unused ones as the manual describes. The spare zones are useful if you add a floor or godown later.

What is the difference between a conventional and an addressable fire alarm?

A conventional panel tells you which zone triggered. An addressable panel identifies the exact device. Conventional zoned panels are common in shops, clinics, schools and small factories.

Does a fire alarm panel work during a power cut?

It should have battery backup. The AGNI 4-zone panel lists standby battery backup with built-in charging and a low-battery warning.

Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
