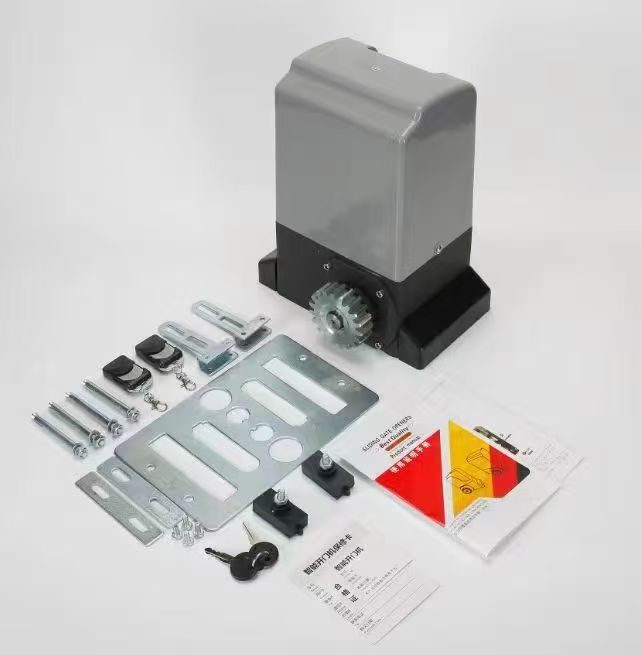

SGM-370 sliding gate motor for gates up to 600 kg

Sliding Gate Motor Price in India (October 2026): 600 kg to 2000 kg, With Gear Rack and Remotes

Short answer: in India a sliding gate motor costs about ₹22,500 to ₹35,000 for the motor alone, depending on gate weight: ₹22,500 for a 600 kg gate, ₹25,500 for 1200 kg, ₹32,500 for 1500 kg and ₹35,000 for 2000 kg. A ready kit with gear rails, an obstacle sensor and a siren lamp costs ₹31,500 to ₹41,500. Gear rack is ₹1,399 per metre, a Wi-Fi module ₹1,849 and an extra remote ₹1,249. All prices below are our live website prices, include GST, and delivery across India is free.

What decides the motor size

Two things: how heavy the gate is, and how long it is. Weight picks the motor. Every model below is rated for a maximum gate weight, so choose a motor rated above your gate weight. Length picks the gear rack. The rack is bolted along the gate and the motor's pinion drives it, so you need rack for the full length of the gate.

If you do not know the weight, ask your fabricator. A rough answer is fine, as long as you then pick the next model up. The easiest route is our Gate Builder: enter gate weight and length and it picks the motor and gear rack in whole metres.

Price table: sliding gate motors by gate weight (NavKar Systems, 27 October 2026)

These are motor-only listings. Each comes with 2 remotes, limit switches, 2 keys to release the motor by hand and a mounting base plate. Gear rack, sensor and Wi-Fi are bought separately.

Model Rated gate weight Motor power Best for Price
SGM-370 Up to 600 kg 370 W Most house gates and small shop or godown gates ₹22,500 (MRP ₹24,950)
SGM-370 with single beam sensor Up to 600 kg 370 W Same motor plus an obstacle sensor in the box, no gear rack ₹23,500
SGM-550 Up to 1200 kg 550 W Heavy MS gates at kothis, farmhouses and showrooms ₹25,500
SGM-750 Up to 1500 kg 750 W Society, school and factory gates ₹32,500
SGM-1200 Up to 2000 kg 1200 W Very heavy industrial and warehouse gates ₹35,000

Price table: ready kits with gear rails, sensor and siren lamp

A kit puts the motor, gear rails, 1 single-beam obstacle sensor, 1 siren lamp and 2 remotes in one box. Pick the kit by your gate length. Rail lengths are the approximate totals stated on each listing.

Gear rails in the kit SGM-370 kit (up to 600 kg) SGM-550 kit (up to 1200 kg)
3 rails, approx. 10 ft ₹31,500 ₹33,950
4 rails, approx. 13 ft ₹32,950 ₹35,500
5 rails, approx. 16.3 ft ₹34,500 ₹36,950
6 rails, approx. 20 ft ₹35,950 ₹38,500
7 rails, approx. 23 ft ₹37,500 ₹39,950
8 rails, approx. 26 ft ₹38,950 ₹41,500

Price table: add-ons people price with the motor

Item What it does Price
GR-12M gear rack Heavy duty 12 mm galvanised iron rack, 1 metre per piece, 3 studs included. Buy one per metre of gate. ₹1,399 per metre
SB-10 single beam sensor Infrared safety beam across the gate opening, 10 m single beam, 12 to 24 V DC, IP55. Pack of 3. ₹2,999
WFC-SGM Wi-Fi module Open and close the gate from your phone with the Smart Life app. Works on 2.4 GHz Wi-Fi only. ₹1,849
SF-2T warning light Strobe lamp with 110 dB buzzer; runs on AC 220 V, DC 12 V or DC 24 V. Already included in the kits above. ₹850
SW-3B push button Wired 3-way push button unit, IP65, for the guard room or porch ₹899
DK-SGM wireless keypad Open the gate with a PIN code; lit buttons for night use. For Navkar Systems gate openers only. ₹3,450
RM-SGM extra remote 4-button remote for family members or drivers. Works with Navkar Systems sliding gate motors only. ₹1,249
RTU5024 GSM gate opener Opens the gate with a free call from up to 200 authorised numbers. Needs a SIM and a 12 V DC 1 A supply. ₹3,999
In-car Bluetooth USB module Open the gate from your car over Bluetooth instead of a remote ₹3,999

Worked example: a 4-metre, 500 kg house gate

Say your gate is about 4 metres long and about 500 kg. The SGM-370 is rated up to 600 kg, so it is the right motor. Here is what the full setup costs with real prices:

Total: about ₹30,945, with the safety sensor, 4 metres of 12 mm rack, 2 remotes and phone control.

Two other ways to build the same gate:

  • Plain SGM-370 (₹22,500) + 4 m GR-12M rack (₹5,596) + SB-10 sensor pack (₹2,999) + Wi-Fi module (₹1,849) = ₹32,944.
  • SGM-370 kit with 4 gear rails (₹32,950, approx. 13 ft of rail, sensor and siren lamp included) + Wi-Fi module (₹1,849) = ₹34,799. If your gate is a little longer than 13 ft, take the 5-rail kit.

Installation, cable and the civil base for the motor are not in these prices.

What moves the price

  • Gate weight. This sets the motor. Going from the 600 kg SGM-370 to the 1200 kg SGM-550 adds ₹3,000. The 2000 kg SGM-1200 is ₹12,500 more than the SGM-370.
  • Gate length. Each metre of 12 mm GI rack adds ₹1,399. In the kits, each extra rail adds about ₹1,450 to ₹1,550.
  • Kit or separate parts. Kits are simple to order and include a siren lamp. Buying the motor and GR-12M rack separately lets you choose the heavier 12 mm rack; the GR-12M listing notes that rail supplied with a motor is generally 8 mm.
  • Safety and control extras. A sensor, Wi-Fi module, keypad or GSM opener each adds ₹1,849 to ₹3,999. Most homes need the sensor and one control upgrade, not all of them.
  • Installation. Our team guides you on call for free. On-site installation is charged extra and quoted on distance from Ambala.

Which one for your gate

  • House gate up to 600 kg: SGM-370 with sensor (₹23,500) plus GR-12M rack, or an SGM-370 kit from ₹31,500.
  • Heavy gate, 600 to 1200 kg: SGM-550 (₹25,500) or an SGM-550 kit from ₹33,950.
  • Society, school or factory gate up to 1500 kg: SGM-750 (₹32,500).
  • Very heavy gate up to 2000 kg: SGM-1200 (₹35,000).
  • Gate swings open instead of sliding: see the swing motors below.

Swing gate motors

If your gate opens on hinges, a sliding motor will not fit. These are the swing operators in stock:

Model Rated gate weight Type Price
ARM-3K 300 kg Arm swing gate motor, 120 W, 220 V ₹39,999
SWM-700 Up to 700 kg Rolling swing opener with roller wheel, DC motor, 120 W x 2 ₹37,999

For arm versus rolling operators and site checks, read the swing gate motor buying guide.

Spare parts are listed too: the CB-SGM control board with 2 remotes (₹7,950), LS-SGM limit switch (₹1,200) and clutch switch with 2 keys (₹799). Browse everything in gate automation, sliding gate motors and gate motor accessories. For installation, safety and remotes in more depth, read the sliding gate motor buying guide. Or send your gate size and a photo on WhatsApp and we will pick the parts.

FAQ

How much does a sliding gate motor cost in India?

On our store the motor alone costs ₹22,500 to ₹35,000 for gates of 600 kg to 2000 kg. A kit with gear rails, sensor and siren lamp costs ₹31,500 to ₹41,500. Prices include GST.

Is the gear rack included with the motor?

Not with the motor-only listings. Buy the GR-12M rack at ₹1,399 per metre, or choose a kit that includes rails. The Gate Builder works out the rack in whole metres from your gate length.

Which motor do I need for my gate weight?

Choose a motor rated above your gate weight. A 500 kg gate takes the 600 kg SGM-370; a 1000 kg gate takes the 1200 kg SGM-550.

Can I open the gate during a power cut?

Yes. Release the clutch with the supplied keys and the gate slides by hand. Lock the clutch again when power returns.

Can I open the gate from my phone?

Yes. Add the WFC-SGM Wi-Fi module (₹1,849) and use the Smart Life app on 2.4 GHz Wi-Fi. If there is no Wi-Fi at the gate, the RTU5024 GSM opener (₹3,999) opens it with a free call. See the GSM and Wi-Fi gate opener guide.

Do you help with installation?

Yes. Our technical team guides you on call and WhatsApp for free, and we share an installation video. On-site installation by our team is charged extra, based on distance from Ambala.

Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
