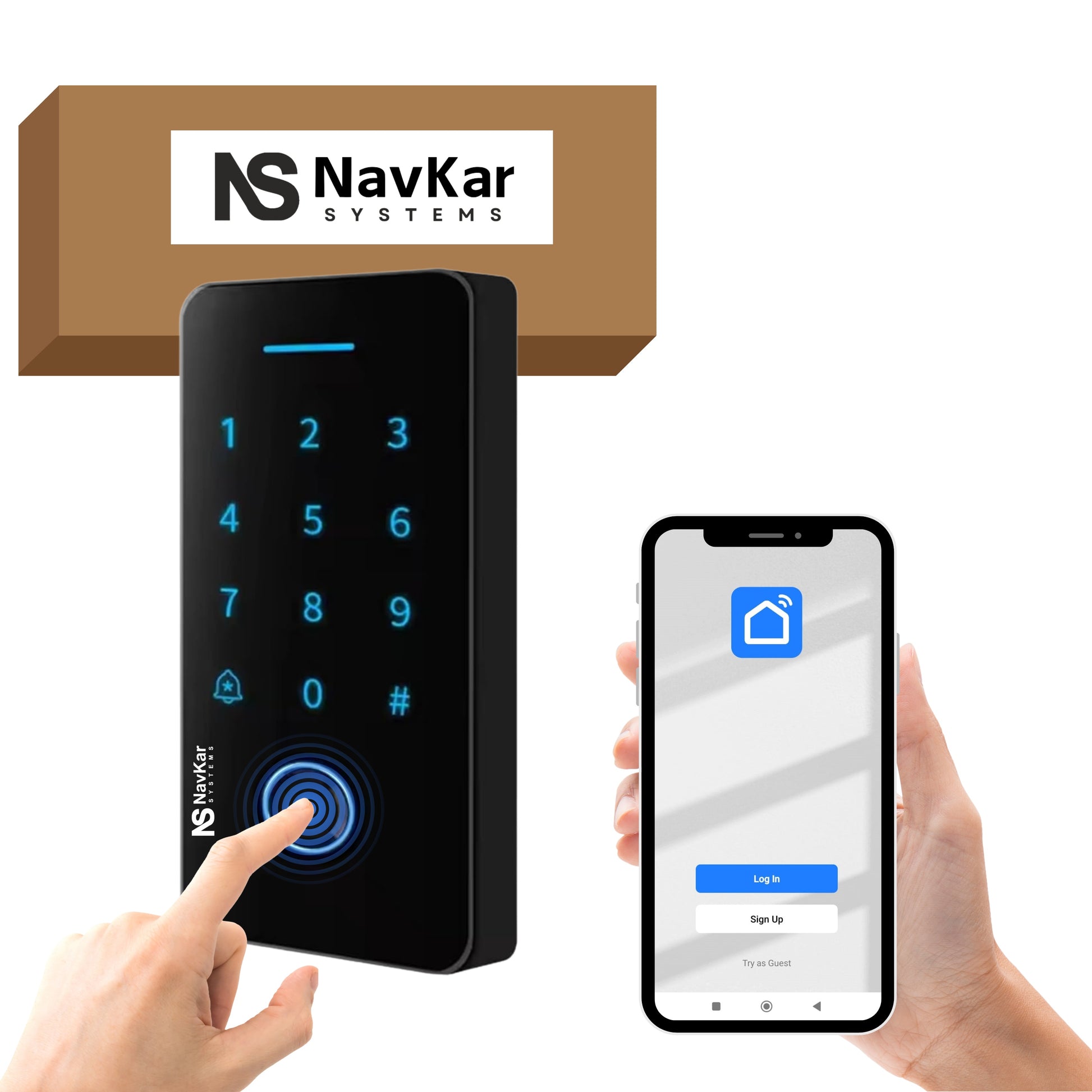

WB-02 Weatherproof Finger Card Pin Remote Mobile App Access Control Panel, Can Operate Any Electronic Lock Using Finger Card Pin Remote Smart Life App
WB-02 Weatherproof Finger Card Pin Remote Mobile App Access Control Panel, Can Operate Any Electronic Lock Using Finger Card Pin Remote Smart Life App
Regular price
Rs. 3,749.00
Regular price
MRP
Sale price
Rs. 3,749.00
Unit price
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Free shipping, pan-India
Secure online payment
Prices include GST
Free tech support
Product Introduction
This product is a non-contact induction access control system that supports fingerprint (optional), card, password, and card password unlocking and supports normally open mode. It is suitable for magnetic locks, electric mortise locks, motor locks, electric induction doors and other accessories.
Features
Touch Button, 8000 user capacity. Supports WG26 and WG34 protocols and can switch between Wiegand input and output/add 315M remote control through password buttons.
Technical Parameters
|
Serial Number
|
Function
|
Parameter
|
|---|---|---|
|
1
|
Operating Voltage
|
DC9-16V
|
|
2
|
Quiescent Current
|
<50mA
|
|
3
|
Working current
|
<100mA
|
|
4
|
User capacity
|
8000 user cards
|
|
5
|
Card reader type
|
ID/IC optional
|
|
6
|
Unlocking method
|
Card, Password, Card+Password, Fingerprint (optional)
|
|
7
|
Remote unlock
|
Mobile APP remote (optional)
|
|
8
|
Reading distance
|
|
|
9
|
Button Type
|
Full touch button
|
|
10
|
Output mode
|
NO COM NC contact
|
|
11
|
Wiegand interface
|
WG26/34 input/output switchable
|
|
12
|
Operating mode
|
Support normally open function
|
|
13
|
Remote control frequency
|
315M remote control pairing code
|
|
14
|
Waterproof type
|
Surface waterproof/IP68 fully waterproof
|
|
15
|
Operating temperature
|
-20°C - 60°C
|
|
16
|
Working humidity
|
0-95%
|
|
17
|
Product Size
|
93x93x16mm / 136x75x17mm
|
Frequently asked questions
What does an access control system include?
A reader (fingerprint, card, PIN or face), a controller, a power supply and an electronic lock such as an EM lock or strike lock, plus an exit button. Complete kits include most of these parts.
Which lock should I use with it?
Use an EM lock for glass and wooden doors that must fail open in a power cut, or a strike lock for doors that must stay locked. Match the lock voltage with the power supply.
Can I add more users later?
Yes. Users are added with fingerprints, cards or PINs, and the number of users is listed in the product specifications.
Do prices include GST?
Yes. Yes. All prices are inclusive of GST, and NavKar Systems delivers across India.
Is technical support available?
Yes. Free technical support is available for installation and setup.
