Swing Gate Motor Price in India (October 2026): Arm and Roller Openers
Short answer: in India a swing gate motor on our store costs ₹37,999 to ₹39,999: ₹37,999 for the SWM-700 rolling (roller wheel) opener, listed for leaves under 700 kg, and ₹39,999 for the ARM-3K arm opener, listed for 300 kg. The safety and control add-ons people buy with them cost ₹799 to ₹3,999 each, so a complete swing gate setup usually lands between about ₹39,600 and ₹45,700. All prices below are our live website prices, include GST, and delivery across India is free.
What decides which swing gate motor you need
Three things: the weight of each gate leaf, the type of opener that suits your site, and whether you have one leaf or two. Weight sets the limit. The ARM-3K is listed for 300 kg and the SWM-700 for leaves under 700 kg, so a heavy, fully clad MS leaf points straight to the SWM-700.
The site decides the type. An arm opener fixes between the pillar and the gate and pushes or pulls the leaf. It needs room on the pillar and a sound hinge. A rolling opener mounts on the gate itself and drives it along the ground on a roller wheel, so the ground under the leaf matters. The SWM-700 listing is specific: the slope across the courtyard should be under 8 cm, the bottom of the gate must be more than 2.5 cm above the ground when closed, the ground cannot be soft, and the motor is installed on the inner side. If your driveway is kuccha or slopes steeply, an arm opener is the safer choice.
For a double gate, check how many operators you need. The SWM-700 listing gives the motor rating as 120 W x 2; the ARM-3K listing does not say how many arms are in the box. Send us your gate photo on WhatsApp and we will confirm before you order.
Price table: swing gate motors (NavKar Systems, 27 October 2026)
| Model | Type | Rated gate weight | Key specs from the listing | Price |
|---|---|---|---|---|

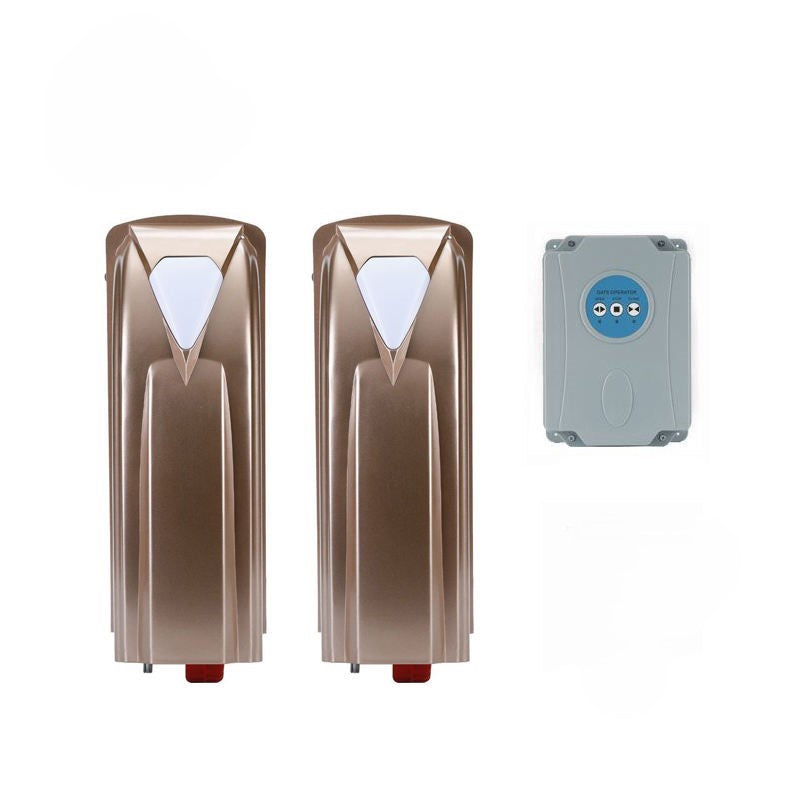

| SWM-700 | Rolling opener with roller wheel, DC motor | Under 700 kg per leaf | AC 220 V or DC 24 V, 120 W x 2, 600 N thrust, 10 to 15 m per minute, remote range 70 m, safety stop on obstacle detection | ₹37,999 |
| ARM-3K | Arm swing gate motor | 300 kg | 220 V single phase, 120 W, 800 RPM; remote, keypad or sensor operation; obstacle detection, auto-stop and manual override | ₹39,999 |
The SWM-700 has limited stock. If it shows sold out when you order, WhatsApp us for the next lot.
Price table: add-ons people price with a swing motor
| Item | What it does | Price |
|---|---|---|
| SB-10 single beam sensor | Photocell pair across the opening to stop a closing gate; 12 to 24 V DC, IP55, NO/NC jumper | ₹799 |
| SF-2T warning light | Strobe lamp with 110 dB buzzer while the gate moves; AC 220 V, DC 12 V or DC 24 V | ₹850 |
| SW-3B push button | Wired 3-way push button unit, IP65, for a porch or guard room | ₹899 |
| DK-SGM wireless keypad | Open with a PIN; rolling code, lit buttons. Listed for Navkar Systems gate openers only, so confirm your model with us | ₹3,450 |
| RTU5024 GSM gate opener | Open with a free call from up to 200 authorised numbers; relay output, 12 V DC 1 A supply, needs a SIM | ₹3,999 |
Worked examples: what a full swing gate setup costs
- Farmhouse gate, heavy MS leaf, firm level driveway: SWM-700 (₹37,999) + SB-10 beam (₹799) + SF-2T warning light (₹850) = ₹39,648.
- House gate, lighter leaf, sloping or uneven ground: ARM-3K (₹39,999) + SB-10 beam (₹799) + SF-2T (₹850) + RTU5024 GSM opener for calls from family phones (₹3,999) = ₹45,647.
Installation, cable, conduit and any civil work on pillars or the driveway are not in these prices. Our team guides installation on call for free; on-site installation is charged extra and quoted on distance from Ambala.
What moves the price
- Opener type. On our store the rolling SWM-700 is ₹2,000 cheaper than the ARM-3K arm opener while carrying a higher weight rating. The arm opener earns its place on sites where a roller wheel cannot run.
- Leaf weight. A leaf over 300 kg rules out the ARM-3K. A leaf near 700 kg needs a different solution or a lighter gate.
- Single or double leaf. A double gate may need two operators. Confirm what is in the box before comparing prices.
- Safety and control extras. A beam and warning light add ₹1,649 together. A GSM opener or keypad adds ₹3,450 to ₹3,999.
- Site work. Weak pillars, sagging hinges or a soft driveway must be fixed first, and that cost is separate.
Swing or sliding: is a swing motor more expensive?
Yes, on our store. A sliding gate motor starts at ₹22,500 for the 600 kg SGM-370, and a sliding kit with gear rails, sensor and siren lamp starts at ₹31,500, against ₹37,999 for the cheapest swing opener. But the choice is set by your gate and site, not the price. A hinged gate cannot take a sliding motor without rebuilding the gate and adding a track and free wall space beside it. If you are building a new gate and have the space, compare both in the sliding gate motor price guide.
Which one for your gate
- Heavy leaf up to just under 700 kg, firm level ground: SWM-700 (₹37,999).
- Leaf up to 300 kg, uneven or soft ground, strong pillar: ARM-3K (₹39,999).
- Any swing gate where people or children pass: add the SB-10 beam (₹799). Our safety sensor guide explains where to fit it.
- No Wi-Fi at the gate, many users: add the RTU5024 GSM opener (₹3,999). The guide to opening a gate from your phone compares the options.
- Automatic swing door in an office or clinic, not a gate: the ADC-02 swing door operator is listed separately; check availability.
See the swing models in swing gate, door and shutter motors and everything else in gate automation. For arm versus rolling layouts and site checks, read the swing gate motor buying guide, or send your gate size and a photo on WhatsApp and we will pick one.
FAQ
How much does a swing gate motor cost in India?
On our store a swing gate motor costs ₹37,999 for the SWM-700 rolling opener and ₹39,999 for the ARM-3K arm opener. Prices include GST and delivery across India is free.
Which swing gate motor is best for a heavy gate?
The SWM-700 is listed for leaves under 700 kg, against 300 kg for the ARM-3K. It needs firm, nearly level ground, since it drives the gate on a roller wheel.
Does a swing gate motor work on a sloping driveway?
A rolling opener has limits: the SWM-700 listing asks for a courtyard slope under 8 cm and firm ground. On a steeper or soft driveway, an arm opener such as the ARM-3K is the better fit.
Do I need two motors for a double swing gate?
Usually each leaf needs its own operator. The SWM-700 listing gives 120 W x 2; for the ARM-3K, confirm with us what is in the box before ordering.
Can a swing gate open during a power cut?
The ARM-3K listing includes a manual override, so the gate can be freed and moved by hand. To keep the motor running through cuts, it needs a mains backup such as a correctly sized inverter, checked by your electrician.
Is installation included in the price?
No. Our team guides installation on call and WhatsApp for free. On-site installation is charged extra, based on distance from Ambala.
Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
