Sliding Gate Motors From India for Dealers and Installers: Range, Spares and Support
Short answer: our NavKar Systems SGM range covers sliding gates from 600 kg to 2000 kg, with motor-only units from ₹22,500 to ₹35,000 and ready kits with gear rails, an obstacle sensor and a siren lamp from ₹31,500 to ₹41,500. For dealers and installers, the range is backed by separately listed spares: control boards, limit switches, brass gears, remotes, clutch switches, cover caps and gear rack. The motor listings state a 220 V AC, 50 Hz supply, so overseas buyers should check their site supply first; bulk and export pricing is quoted on request.
What is in the SGM range?
Each motor-only listing includes 2 remotes, limit switches, 2 keys to release the motor by hand, and a mounting base plate. Gear rack, photocell sensor and the Wi-Fi module are bought separately. The SGM-370 and SGM-550 listings state a 220 V AC 50 Hz supply, IP55 protection and built-in thermal protection at 125 degrees C in the motor winding; the SGM-750 listing states the same supply and protection and a 1-year warranty against manufacturing defects.
| Model | Rated gate weight | Motor power | Supply stated | Price |
|---|---|---|---|---|
| SGM-370 | Up to 600 kg | 370 W | 220 V AC 50 Hz | ₹22,500 (MRP ₹24,950) |
| SGM-370 with single beam sensor | Up to 600 kg | 370 W | 220 V AC 50 Hz / 110 V 60 Hz (as written on listing) | ₹23,500 |
| SGM-550 | Up to 1200 kg | 550 W | 220 V AC 50 Hz | ₹25,500 |
| SGM-750 | Up to 1500 kg | 750 W | 220 V AC 50 Hz | ₹32,500 |
| SGM-1200 | Up to 2000 kg | 1200 W | See product page | ₹35,000 |
| SGM-370 kits (3 to 8 rails) | Up to 600 kg | 370 W | 220 V AC 50 Hz / 110 V 60 Hz (as written on listing) | ₹31,500 to ₹38,950 |
| SGM-550 kits (3 to 8 rails) | Up to 1200 kg | 550 W | 220 V AC 50 Hz / 110 V 60 Hz (as written on listing) | ₹33,950 to ₹41,500 |

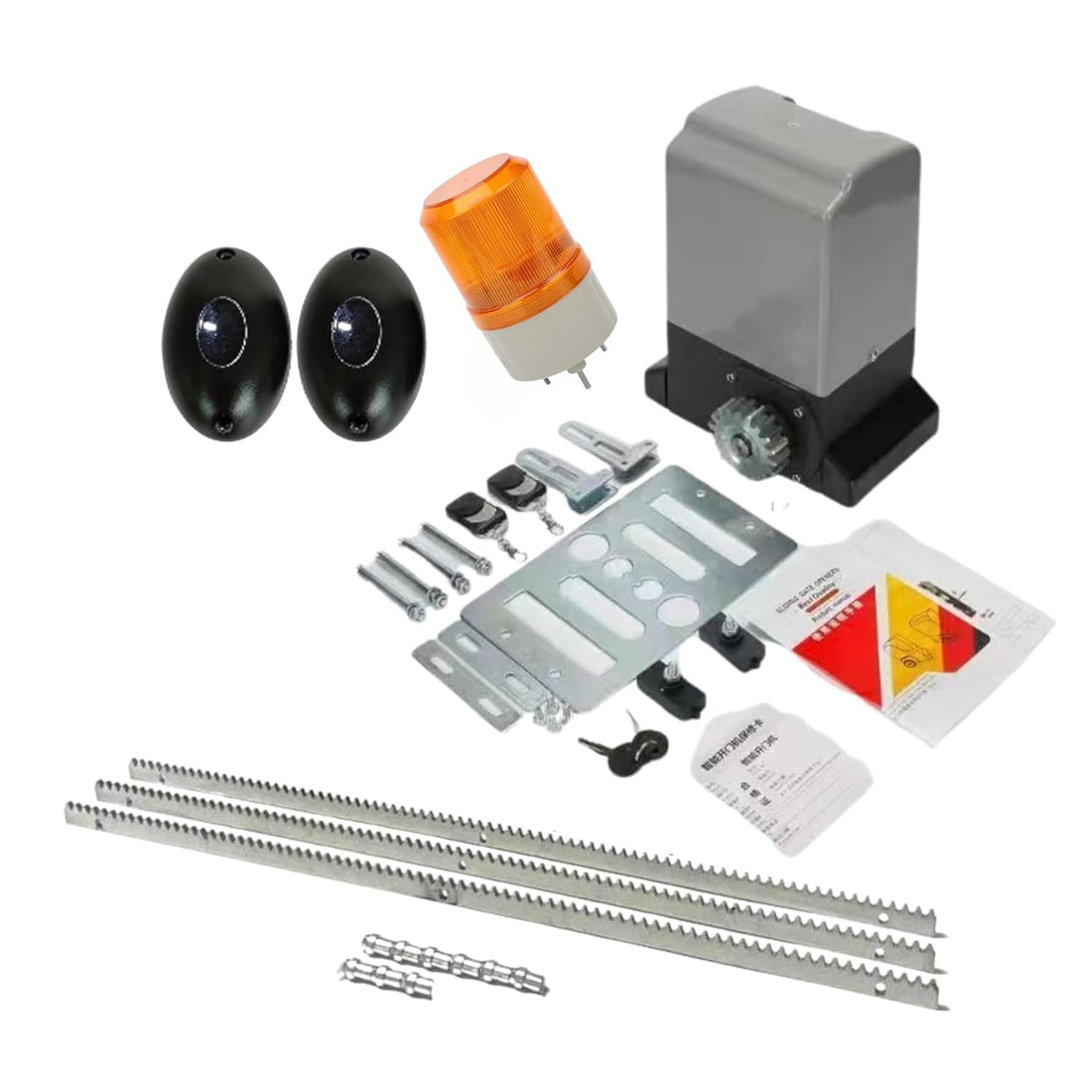

Kits come with gear rails of roughly 10 ft (3 rails) up to 26 ft (8 rails), 1 single-beam obstacle sensor, 1 siren lamp and 2 remotes. For how to size a motor by gate weight and length, see the sliding gate motor buying guide and the sliding gate motor price guide.
Which spares can installers order separately?
Being able to fix an installed gate quickly is what keeps an installer's customers. These parts have their own listings:
| Spare or add-on | What the listing says | Price |
|---|---|---|
| CB-SGM control board (Combo-CN87) | For AC 220 V single-phase sliding gate motors with 3 motor wires and a limit switch connection; not for DC or three-phase motors; 2 remotes included | ₹7,950 |
| LS-SGM limit switch | Magnetic limit switch, 1 pair, IP54, detection range 15 to 40 mm | ₹1,200 |
| Limit switch magnets, 2 pack | Replacement magnets with 2 mounting brackets | ₹1,799 |
| BRG-SGM brass gear | Replacement brass gear for sliding gate motors | ₹3,499 |
| Clutch switch with 2 keys | Manual release clutch for NavKar Systems sliding gates | ₹799 |
| Motor cover cap | Fits NavKar Systems 370 W, 550 W, 750 W and 1200 W motors only | ₹3,950 |
| RM-SGM remote | 4-button learning-code remote | ₹1,249 |
| GR-12M gear rack | 12 mm galvanised iron rack, 1 metre, 3 studs per piece | ₹1,399 per metre |
| NB-SGM nut bolts, pack of 3 | Fixings for gear rack | ₹399 |
| SB-10 single beam sensor, pack of 3 | Infrared safety beam for gates, 10 m | ₹2,999 |
| WFC-SGM Wi-Fi module | Smart Life app control, 2.4 GHz Wi-Fi only | ₹1,849 |
| DK-SGM wireless keypad | PIN-code opening; only for NavKar Systems gate openers | ₹3,450 |
A spares kit for a service van
An installer looking after a group of SGM motors might carry this set, priced at website rates:
- 1 x CB-SGM control board with 2 remotes: ₹7,950
- 2 x limit switch magnet packs at ₹1,799: ₹3,598
- 1 x BRG-SGM brass gear: ₹3,499
- 2 x clutch switches at ₹799: ₹1,598
- 4 x RM-SGM remotes at ₹1,249: ₹4,996
- 1 x NB-SGM nut bolt pack: ₹399
Total: ₹22,040 at website prices. Website stock levels change daily (the GR-12M rack, for example, shows low stock today), so dealer quantities are confirmed in the quote.
What should overseas installers check?
- Mains supply. The motor-only listings for the SGM-370, SGM-550 and SGM-750 state 220 V AC 50 Hz, and the CB-SGM board is for 220 V AC single-phase motors. The kit listings write the supply as 220 V AC 50 Hz / 110 V 60 Hz. If your site is not on a 220 V, 50 Hz supply, tell us your voltage and frequency so the quote confirms what you will receive. Check your local supply and wiring rules, and use a qualified electrician.
- Remote frequency. The motor listings do not state the remote frequency. Ask us before ordering, and check your local radio rules for gate remotes.
- Phone control. The WFC-SGM module needs 2.4 GHz Wi-Fi and the Smart Life app. The RTU5024 GSM gate opener (₹3,999) lists GSM 850/900/1800/1900 MHz; check with your local operator that a compatible network is available.
- Safety. Automatic gates should have safety sensors such as the SB-10 beam. Local safety rules for automatic gates vary, so check your local rules.
- Certifications and warranty. Rely only on what each listing states, and ask how warranty claims are handled for an overseas order.
More detail on power and radio checks is in our voltage, plug, frequency and GSM checklist.
How do dealers and installers order?
Website checkout and free delivery are for addresses in India. Overseas dealers and installers send model numbers and quantities through the Bulk and Project Enquiry page or on WhatsApp at +91 91384 68548, and we confirm price, payment method, shipping and lead time in a quote. The steps are in how overseas businesses request a quote. Use the Gate Automation Builder to work out a motor and rack length for a given gate, then send the result. Prices shown are Indian retail prices in rupees and include GST, India's Goods and Services Tax.
Free technical support is available on call and WhatsApp, and setup videos are on our YouTube channel, youtube.com/@MolikJain. Browse sliding gate motors and gate motor accessories.
FAQ
What gate weights does the SGM range cover?
From 600 kg (SGM-370) to 2000 kg (SGM-1200), with the SGM-550 for 1200 kg and SGM-750 for 1500 kg.
What power supply do the SGM motors need?
The SGM-370, SGM-550 and SGM-750 motor-only listings state 220 V AC 50 Hz. Kit listings state 220 V AC 50 Hz / 110 V 60 Hz, so confirm the version for your supply in the quote and check your local rules.
Can I buy a replacement control board?
Yes. The CB-SGM control board with 2 remotes is ₹7,950 and suits AC 220 V single-phase sliding gate motors with 3 motor wires; it does not suit DC or three-phase motors.
Is the gear rack included with the motor?
Not with motor-only listings. Kits include rails; the GR-12M 12 mm rack is sold per metre at ₹1,399.
Do you offer dealer pricing on gate motors?
Bulk and export pricing is quoted on request through the Bulk and Project Enquiry page or WhatsApp.
Can the gate be opened during a power cut?
Yes. Each motor comes with keys to release the clutch so the gate can be moved by hand.
Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
