Video Door Phone for a Villa or Multi-Floor House: Extra Monitors and Outdoor Units
Short answer: for a three or four-floor house where every floor must answer the gate, budget about ₹8,600 for an audio door phone with four handsets and an electronic gate lock, and about ₹17,200 to ₹23,700 for a video system with a gate lock. The video figure is either a Wi-Fi Hawkvision system that can grow to 8 monitors, or a Secureye set with four 7-inch monitors and a 4-button outdoor station, each with our lock kit. All prices are live website prices, include GST, and delivery across India is free.
Our video door phone buying guide covers the basics of monitors, unlocking and wiring. This page is for one specific situation: a kothi, villa or builder floor in which the gate is on the ground floor, people live on several floors, and nobody wants to run down the stairs every time the bell rings.
First decide: one family or one family per floor?
This single question decides which system you buy.
- One family per floor (builder floor, joint family with separate kitchens, house with a tenant upstairs). Each floor needs its own bell button at the gate, so a visitor for the second floor does not disturb the ground floor. You want a multi-button outdoor station with one monitor or handset per button.
- One family across all floors. You want the bell to reach whichever floor you are on, and ideally to pass the call between floors. You want a system that supports several indoor monitors and call transfer, with room to add a second outdoor unit at the main door later.
What you need and why
- Outdoor station at the gate. Camera (or speaker only, for audio), microphone and call button. For separate families, one button per floor.
- Indoor monitor or handset on each floor. This is where you see or hear the visitor and press unlock.
- Electronic gate lock and lock power supply. A door phone only sends the open signal; the lock does the work. Our RML-8K rim lock runs on 12 V DC, and its listing shows the PSRM-01 supply has a dedicated terminal for the lock output of a video door phone. The PSRM-01 listing says it works with all types of audio and video door phones.
- Remotes. Useful for family members arriving by car or scooter, so they do not have to stop and use a key.
- Cable and an electrician. Not included in any kit. Run the cable in conduit from the gate to each floor, away from mains wiring, and follow the cable type in the product manual.
Shopping list 1: video, one family per floor (four floors)
Assumed: four floors, one bell button and one 7-inch monitor per floor, one electronic lock on the main gate, 3 remotes.
| Item | Why | Qty | Price | Line total |
|---|---|---|---|---|
| Secureye 4 x S-VS9 7-inch monitors with S-C40P 4-button villa outdoor station | One button and one colour monitor per floor; listing states night vision and vandal-proof outdoor station | 1 set | ₹19,999 | ₹19,999 |
| Combo-CN231 electronic lock + power supply + 3 remotes | RML-8K gate lock with PSRM-01 supply; opens by remote or door phone | 1 | ₹3,699 | ₹3,699 |
| Total | ₹23,698 | |||
With a 4-button station, each button calls its own monitor. Label the buttons by floor or family name so visitors press the right one.
Shopping list 2: video, one family across several floors
Assumed: one family, Wi-Fi at home, gate lock opened from the monitor or phone app, with the option to add monitors on other floors later.
| Item | Why | Qty | Price | Line total |
|---|---|---|---|---|

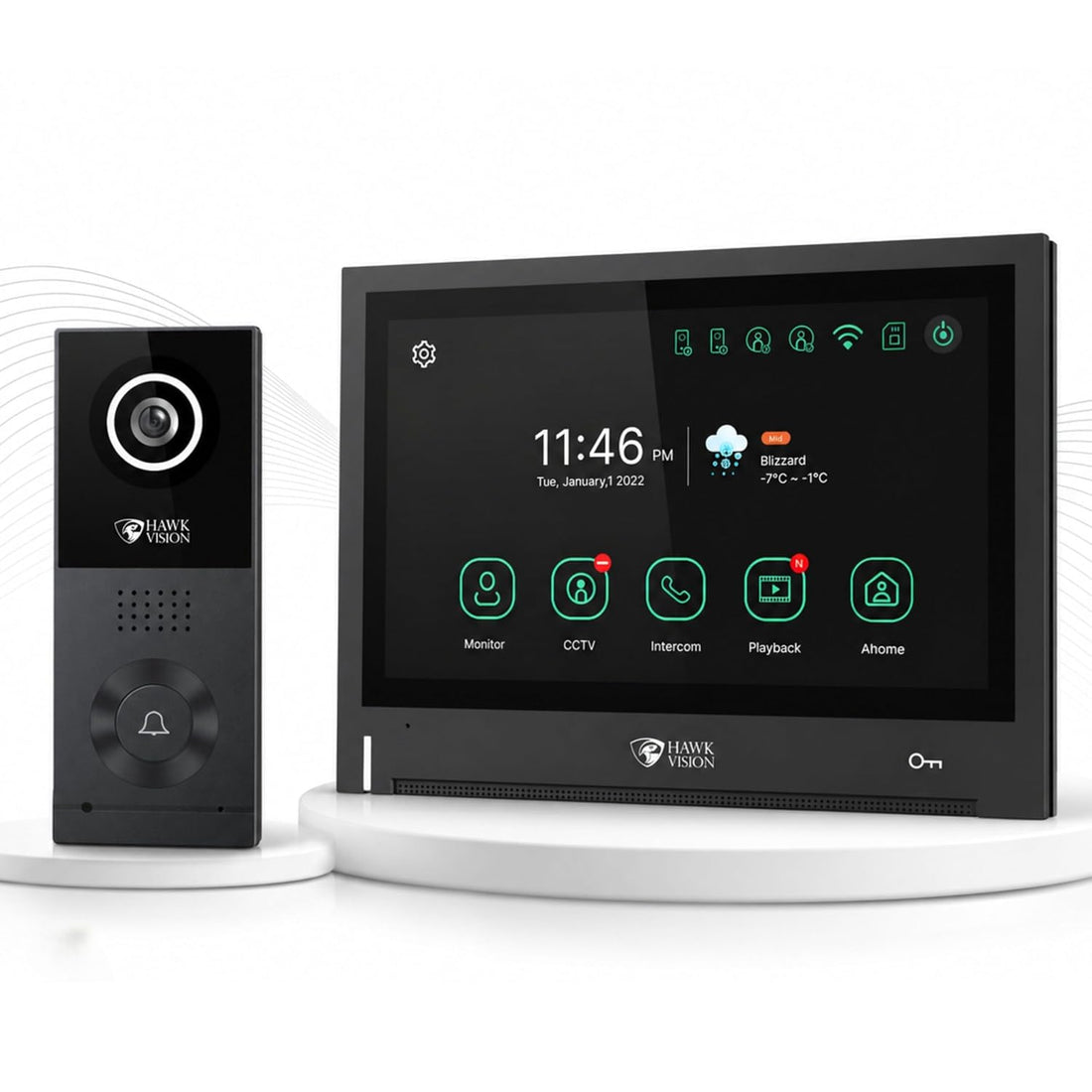

| Hawkvision HV-IPK-VL802 8-inch Wi-Fi video door phone | Listing states support for up to 8 indoor monitors and 4 outdoor units, call transfer between monitors, app answering and remote unlock | 1 | ₹13,499 | ₹13,499 |
| Combo-CN231 electronic lock + power supply + 3 remotes | Gate lock, supply and remotes | 1 | ₹3,699 | ₹3,699 |
| Total | ₹17,198 | |||
The box holds one indoor monitor and one outdoor camera. Extra Hawkvision monitors and outdoor units are not listed separately on our store yet, so WhatsApp us for price and availability before you plan more than one screen. Until then, every family member with the HawkSmart app can answer the gate on their phone from any floor, which in practice covers most multi-floor homes.
A smaller option is the Hawkvision HV-AD-VL-730 (₹10,500), whose listing states support for up to 2 outdoor units and 4 monitors.
Shopping list 3: audio only, on a tight budget
Assumed: four floors, one family per floor, voice only, one gate lock.
| Item | Why | Qty | Price | Line total |
|---|---|---|---|---|
| Combo-CN279 audio door phone | ADP-4B four-bell outdoor unit, 4 ADP-HS handsets and ADP-PS power supply | 1 | ₹4,899 | ₹4,899 |
| Combo-CN231 electronic lock + power supply + 3 remotes | Gate lock, supply and remotes | 1 | ₹3,699 | ₹3,699 |
| Total | ₹8,598 | |||
For three floors, swap in Combo-CN102 (3-button outdoor unit, 3 handsets, power supply) at ₹4,299, which brings the total to ₹7,998. Audio is a fair choice if you know your regular visitors by voice; if you want to see faces, spend the extra on video.
Optional upgrades
- Open the gate from your phone anywhere: use Combo-CN111 (lock, PSWF-01 Wi-Fi supply and 3 remotes, ₹5,499) instead of CN231. That adds ₹1,800 and puts the gate on the Smart Life app.
- A doorbell at a side or back door: the VDP-TY battery video doorbell (₹2,799) needs no wiring. See our Wi-Fi video doorbell guide.
- An extra audio handset: the ADP-HS handset is ₹650.
- A stronger brand for an IP setup: the Hikvision DS-KIS603 lists 2 relay outputs, so one monitor can release both a gate and a door lock. Read our Hikvision video door phone guide.
Planning tips that save rework
- Fix the gate unit at face height and under a small hood or canopy, even if the listing states it is weatherproof.
- Put each indoor monitor where people actually sit: the living area, not a corridor.
- Lay conduit to every floor during construction or painting, even for floors you will connect later.
- Mount the lock power supply indoors on a dry wall. The RML-8K listing notes water and physical damage to the supply are not covered by warranty.
- Press the unlock button briefly. The same listing explains that holding it down overheats the lock coil.
Browse video door phones, audio door phones and rim lock + door phone kits, or plan locks, alarms and cameras together in the security system builder.
FAQ
Can I connect more than one monitor to a video door phone?
Yes, if the model supports it. The Hawkvision HV-IPK-VL802 lists up to 8 indoor monitors and the HV-AD-VL-730 up to 4. Check the product page for the limit before you plan.
How do separate families in one building use one gate camera?
Use a multi-button outdoor station such as the Secureye S-C40P, where each button calls its own monitor. Each floor then answers only its own visitors.
Can every floor open the gate lock?
Yes. A monitor or handset with an unlock button sends its signal to the lock power supply, and the remotes in our lock kit also work from any floor within their range.
What does a video door phone for a four-floor house cost?
On our store, a four-monitor Secureye set with an electronic gate lock kit comes to ₹23,698. An audio system for four floors with the same lock kit is ₹8,598.
Is cable included in video door phone kits?
No. Buy cable separately to suit the distance from the gate to each floor, and follow the cable type given in the product manual.
Prices are NavKar Systems website prices on 27 October 2026, inclusive of GST, and may change.
